No Moq Circuit Board Electronic Electronics Circuit Thermostat Board

FOB Reference Price:Get Latest Price
  • 1 - 4 Pieces
    $10.00
  • >=5 Pieces
    $1.00
Lead Time:
Quantity(Pieces) 1 - 10000 10001 - 100000 >100000
Est. Time(days) 3 8 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YDYPCBA
Model Number:
YDYB654
Base Material:
FR4/High TG FR-4/M4/ M6/Rogers/Nelco/Isola
Copper Thickness:
0.5-10oz
Board Thickness:
0.4-6.5mm
Min. Hole Size:
0.1-6.5mm
Min. Line Width:
3mil
Min. Line Spacing:
3mil
Surface Finishing:
ENIG,HASL,OSP,ENEPIG
Product name:
electronics circuit board
Max Layer:
60L
PCB Standard:
IPC-A-600
Solder mask:
Green,Black,Blue,Red,Matt Green
Legend:
White,Black,Red,Yellow
Certificate:
ISO/UL/TS16949/RoHS/TS16949
PCBA service:
One Stop Turnkey PCBA Service
PCB File Format for production:
Gerber, PROTEL 99SE, PROTEL DXP, CAM350, ODB+(.TGZ)
Product quotation:
Within 2 Hours
Service:
24Hours Technical Services
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
QFN,BGA,SSOP,PLCC,LGA
Port
ShenZhen / HongKong
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10000 10001 - 100000 >100000
Est. Time(days) 3 8 To be negotiated
Video Description
Product Description
Article
Description
Description
Sercive
PCB and SMT assembly with one-stop service
Material
Laminate materials
FR4, high TG FR4, high frequency, alum, FPC

Board cutting
Number of layers
1-48
Min.thickness for inner layers (Cu thickness are excluded)
0.003”(0.07mm)



Board thickness
Standard
Standard


Min
Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist
no more than 7/1000
Copper weight
Outer Cu weight
0.5-4 0z
Inner Cu weight
0.5-3 0z


Drilling
Min size
0.0078”(0.2mm)
Drill deviation
±0.002″(0.05mm)
PTH hole tolerance
±0.002″(0.005mm)
NPTH hole tolerance
±0.002″(0.005mm)


Solder mask
Color
Green,white,black,red,blue…
Min solder mask clearanace
0.003″(0.07mm)
Thickness
(0.012*0.017mm)

Silkscreen
Color
white,black,yellow,blue…
Min size
0.006″(0.15mm)

E-test
Function Test
100% Functional test
PCBA Testing
X-ray,AOI Test,Functional test
Pcb assembly
one-stop service electronic manufacxturer service
Component sourcing
Yes
Certificate
IATF16949, ISO13485, ISO9001
Delivery time:
PCB
3-8 days
PCBA
10-20 days
Tolerance of pcb
±5%
MOQ
No MOQ ( 1 PCS )
Surface Finish
HASL,ENIG,immersion silver,immersion tin,OSP…
PCB outline
Square,circle,irregular(with jigs)
package
QFN,BGA,SSOP,PLCC,LGA
Sub-assembly
Plastic,metal,screen

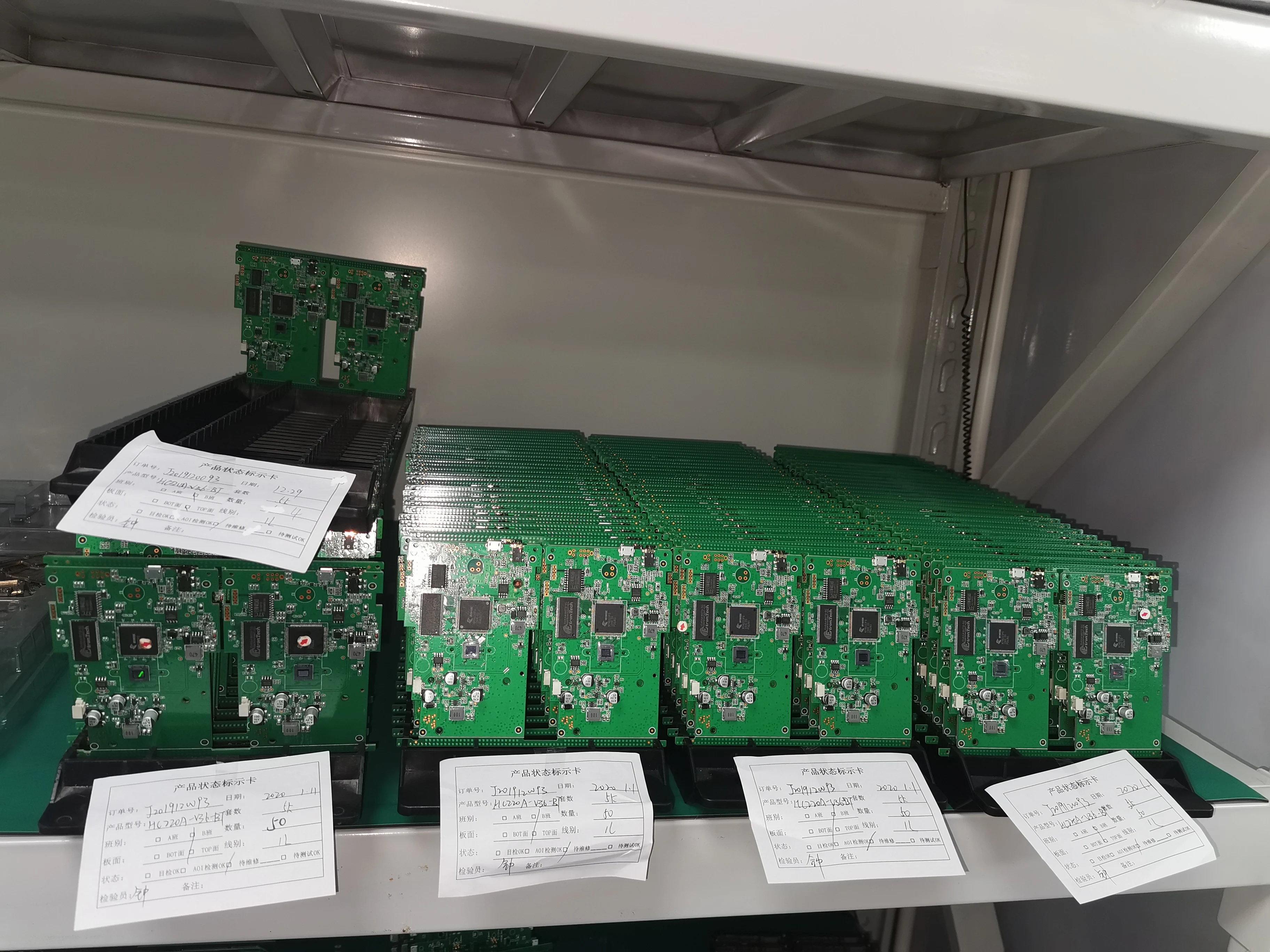

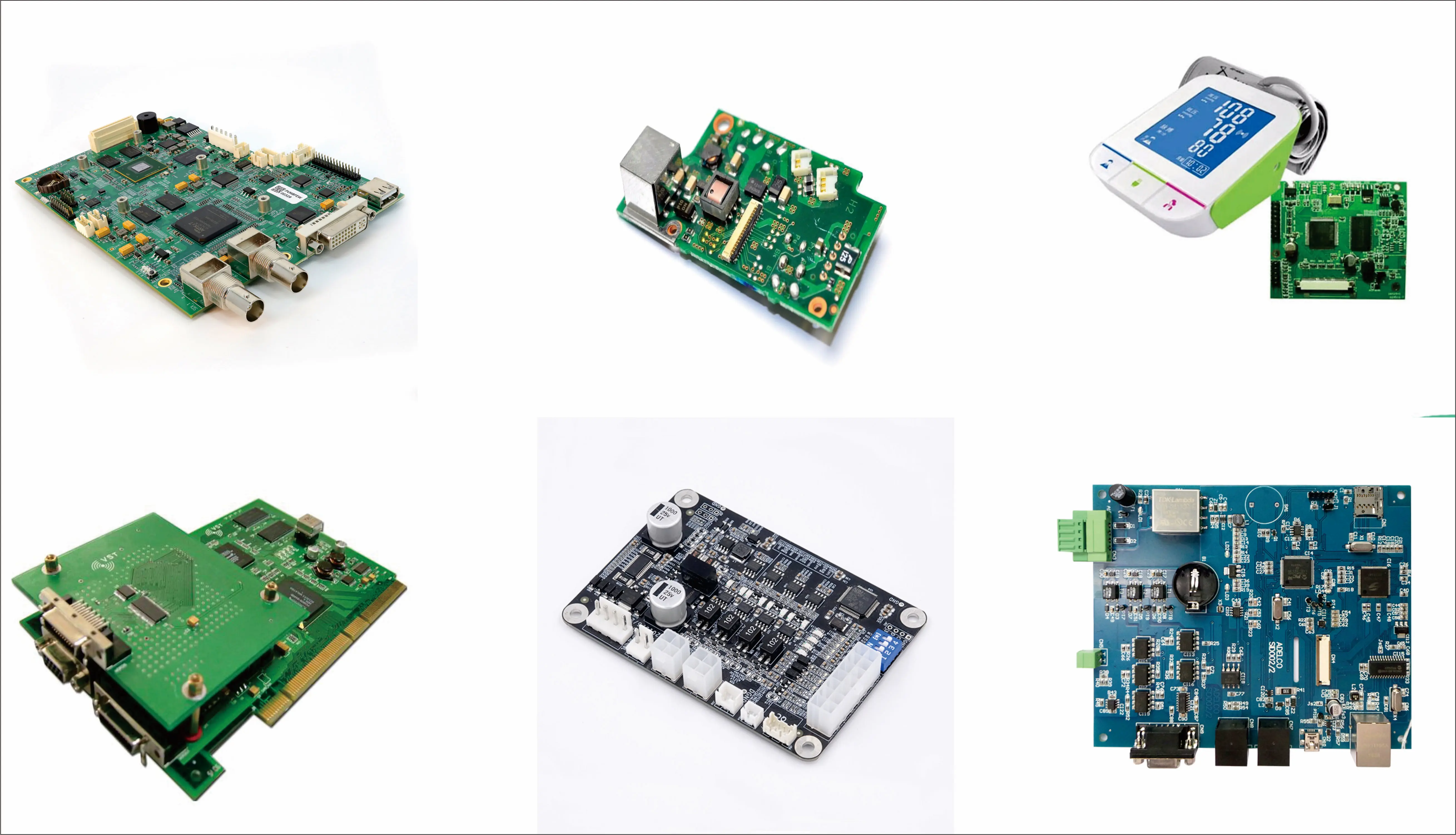

More PCBA Case

Our services specialize in prototyping & ODM and small-volume production, making your requirment complete on the one-stop destination of boards fabrication and assembly.
Company Introduction
YDYPCBA provide full turnkey contract included Custom design, PCB prototype,PCB, PCBA ,PCB Assembly, testing, accessories and cables, plastic enclosure,and packaging.box building. EMS include consumers electronic ,medicla, industrial,power control, automotive. Temperature & Humidity ,Internet & Communication Smart Home Security etc device . All PCBA are double Check by Machines and QC work , Welcome to Visit our factory !

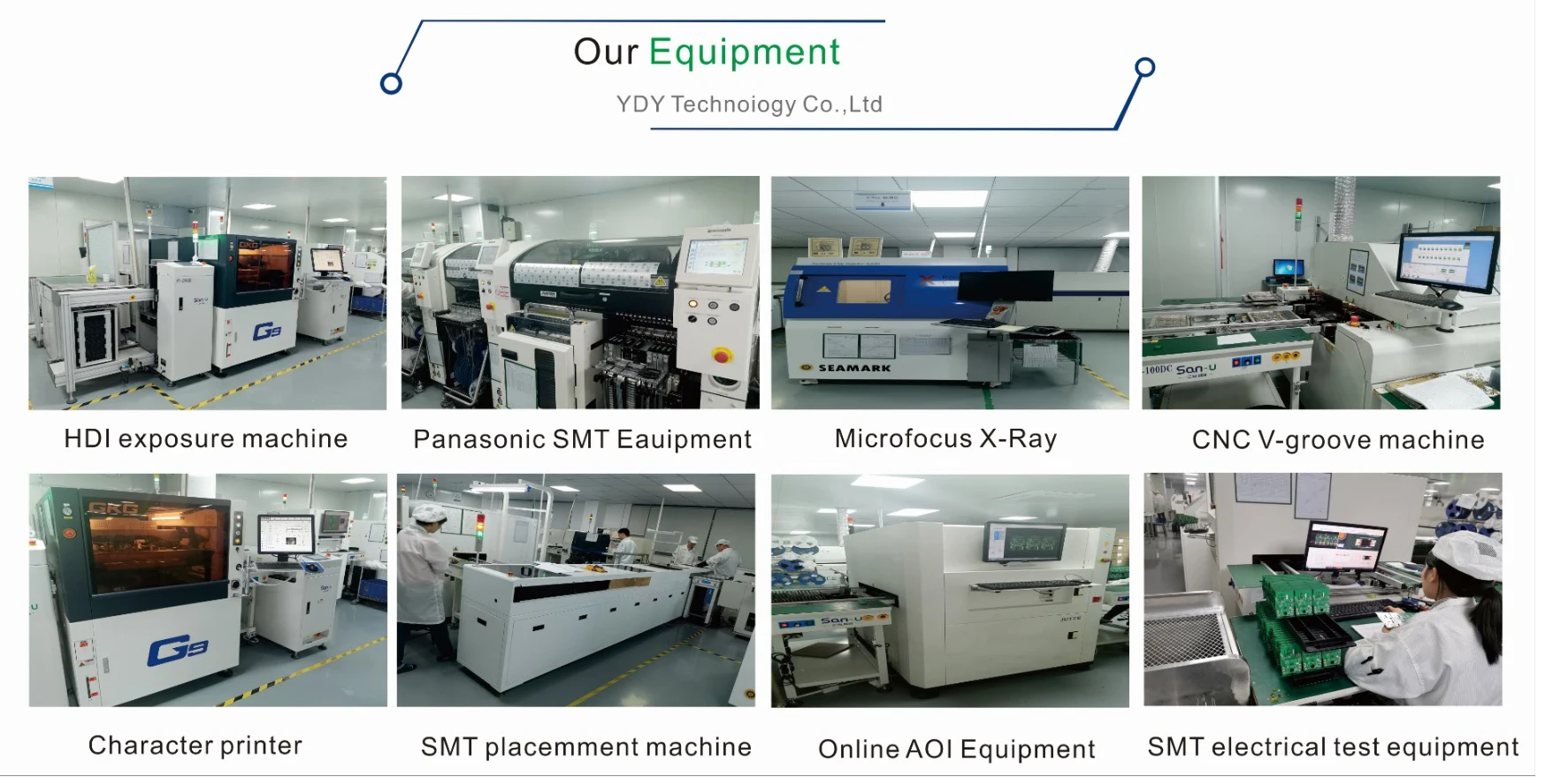

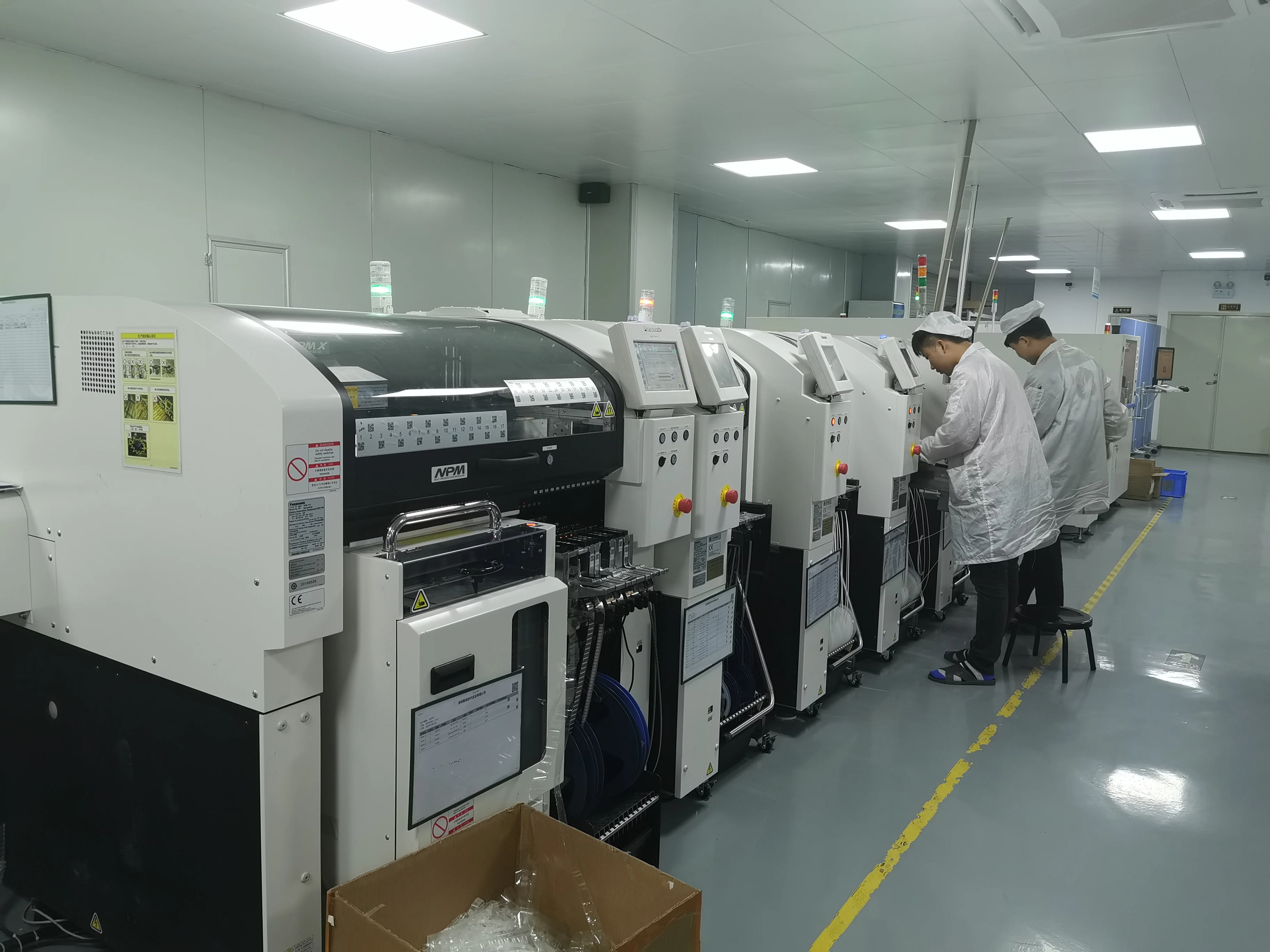

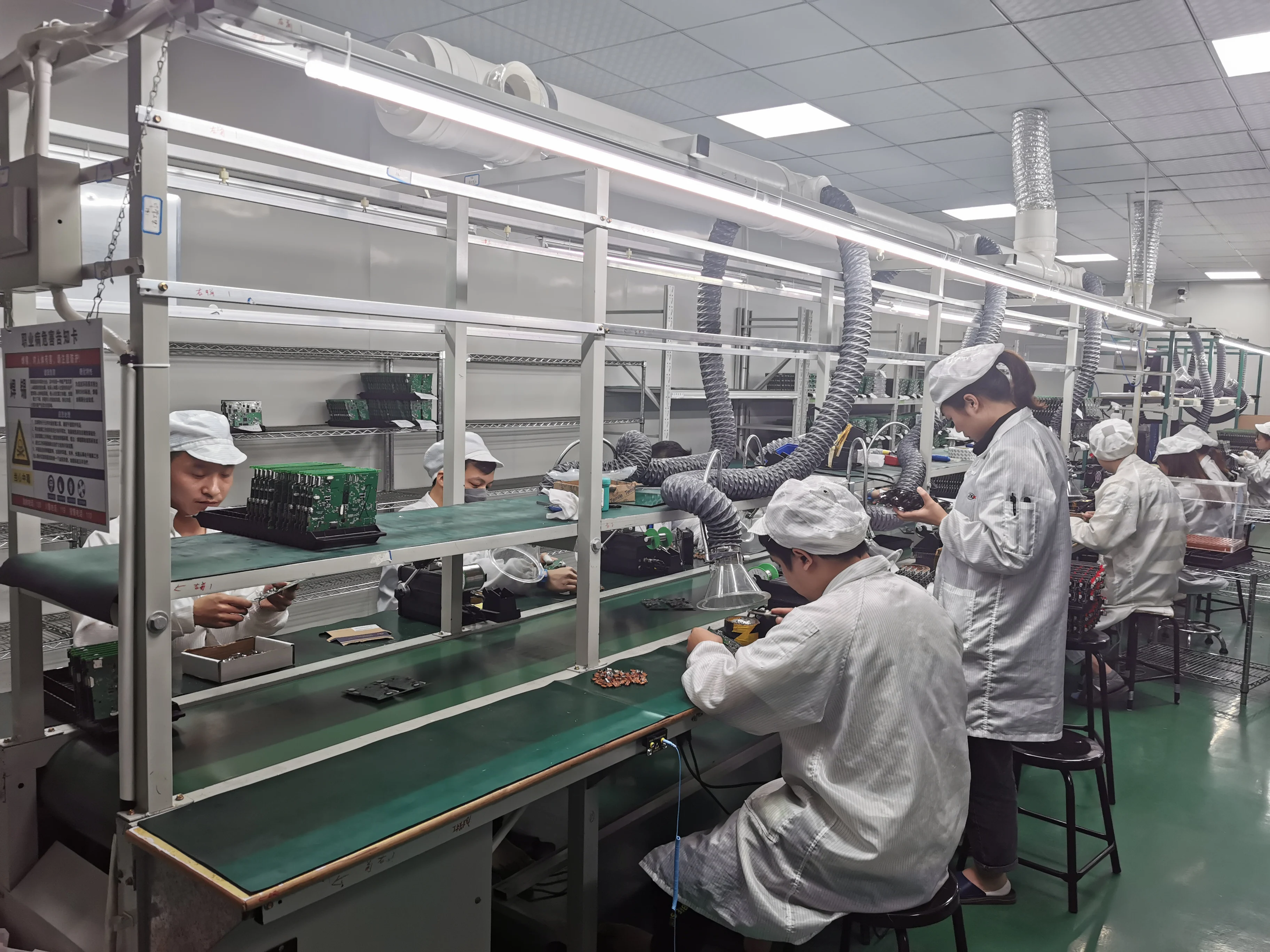

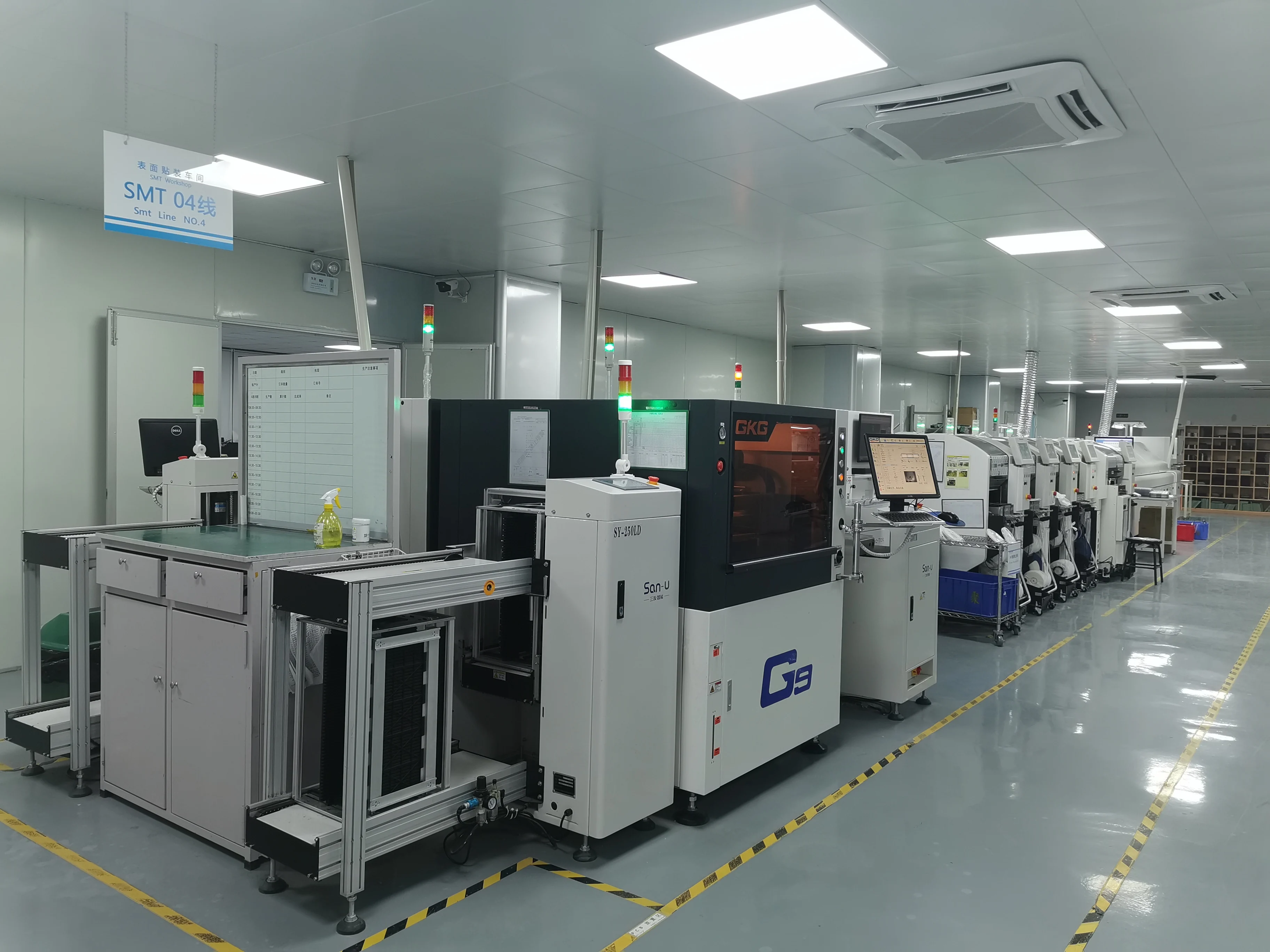

Our Services & Strength

Our business goal is to be the most professional PCB manufacturer for prototyping and low-volume production to work with in the world. Our manufacturing shop was ISO9001 certified in December, 2001, ISO14000 certified in May 2003 and UL approved in June, 2004, and TS16949:2002 in Jan. 2010.
Our Service

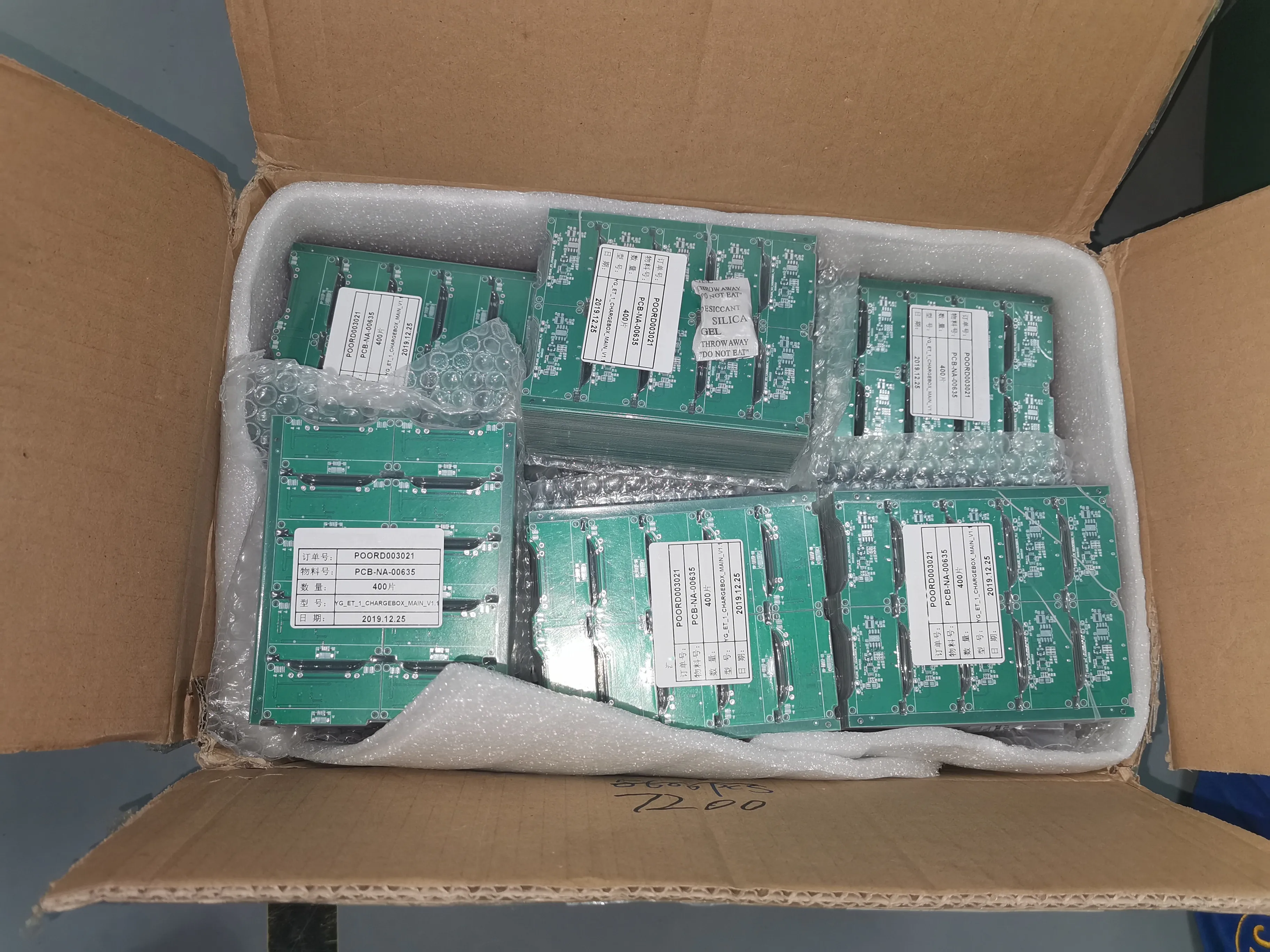

Packing&Shipping
FAQ
1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value - added service.

2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness)
For PCBA: PCB information, BOM,Testing documents.

3 ,How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.

4, What are the main products of your PCB/PCBA services?
Automotive, Medical, Industry Control, IOT, Smart Home,Military.

5, What is your minimum order quantity (MOQ)?
Our MOQ is 1 PCS, sample and mass production all can support.

6, Are you factory?
Our factory is located in East Floor 4, Building F, GuangHao Industrial Park, QueShan Road, GaoFeng Community, DaLang Street,LongHua District . Welcome to Visit our factory !
