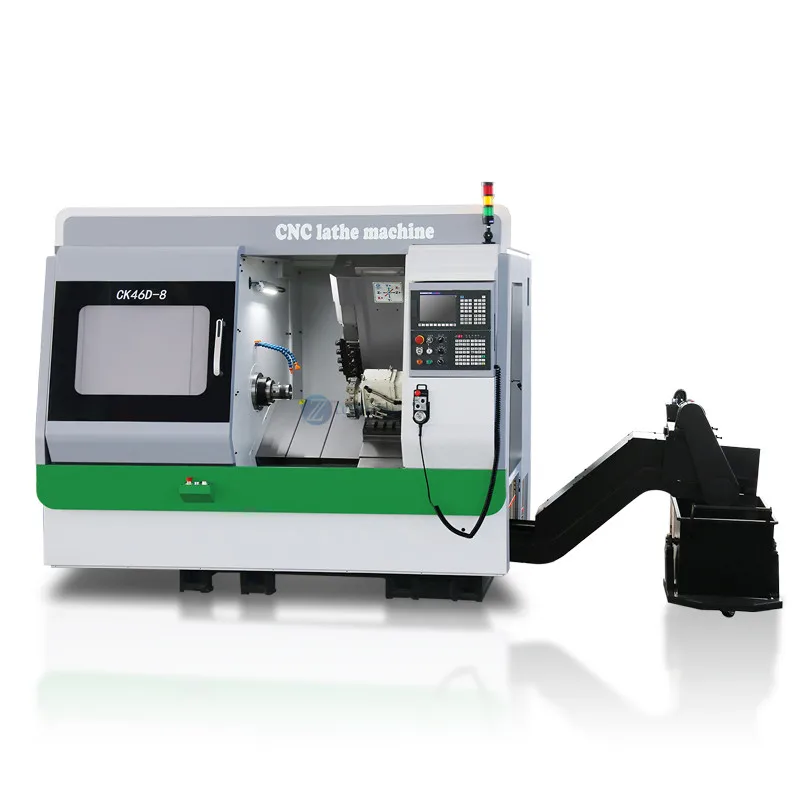

Numerical control lathe CK46D-8 ace fanuc cnc lathe machines

  • >=1 Sets
    $25,490.00
Spindle bore:
56mm
Max. Swing Diameter (mm):
450
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Positioning Accuracy (mm):
0.006
Repeatability (X/Y/Z) (mm):
0.003
Max. Length of Workpiece (mm):
450
Max. Swing Diameter (mm):
420
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant
Type:
TURNING CENTER
CNC or Not:
CNC
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
Luzhong Machine Tool
Model Number:
CK46D-8
Voltage:
380V
Dimension(L*W*H):
2500x1800x1800mm
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support
Warranty:
1 Year
CNC Control System:
GSK
Power (kW):
7.5
Key Selling Points:
High-accuracy
Weight (KG):
3000
Name:
Numerical control lathe CK46D-8 ace fanuc cnc lathe machines
Max. Swing over cross slide:
130mm
Max. Processing length:
450mm
Cross slide length:
780mm
Spindle nose:
A2-5
Spindle speed range:
50-5000r/min
Milling head speed:
3000rpm
X axis travel:
500mm
Y axis travel:
240mm
Z axis travel:
450mm
Product Certification Verified
CE Certified.
Valid from 2017-12-11 until 2020-12-10
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
The Package of Numerical control lathe is export standard plywood case with iron pallet below ,very strong and durable .
The numerical control lathe will be shipped to customers by land freight or sea freight .
Port
Any port in china
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated

Numerical control lathe CK46D-8 ace fanuc cnc lathe machines

Product Description



Product main technical specifications:

Specifications

Units

SCK46D-8

Max.swing over bed

mm

450

Max. Swing over cross slide

mm

130

Max. Processing length

mm

450

Cross slide length

mm

780

Lathe bed straucture



30° integral inclined lathe

Distance between cross slide and spindle axis

mm

80

Spindle nose



A2-5

Spindle (C axis )speed range

R/min

50-4500

Milling head



(side)4 (nose)4

Milling head power

kw

2.3

Milling head speed

R/min

3000

Distance of each milling head

mm

60

X axis travel

mm

500

Z axis trave

mm

450

Y axis trave

mm

240

Turret type



8 station hydraulic chuck,4+4 milling head

X rapid traverse

Mm/min

24000

Y rapid traverse

Mm/min

24000

Z rapid traverse

Mm/min

15000

X/Z axis positioning accuracy

mm

0.006

X/Z axis repositioning accuracy

mm

0.003

Spindle (C axis)dividing positioning accuracy

mm

0.02’’(70 arc-seond)

Spindle (C axis)dividing repositioning accuracy

mm

0.006’’(20 arc-seond)

Machine dimension(LxWxH)

mm

2500x1800x1800

Net weight

Kg

3000

Details Display




Related Products



Company Information



FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
