OBD2 4g device with wifi and monitoring funtion G-M402 gps tracking device for trucks

Feedback Ratings
  • 50-199 Sets
    $119.00
  • >=200 Sets
    $117.00
Color:
Black
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 10000 Sets)
Customized packaging (Min. Order: 10000 Sets)
Contact Supplier
Samples - $125.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
OBD tracker
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Roadragon
Warranty:
1 years
Model Number:
G-M402
Use:
vehicle
CAN:
2 channel high speed CAN, fit for CAN 2.0
K/L:
Support KWP2000 all kinds of protocol can-bus
OBD:
Support 9 protocol ,,vehicle private protocl
Six-Axis Gyroscope:
Wake up when ACC off and car-dragging
WAN::
Support 2G/3G/4G voice & data
External interface:
1 RS485 and 1 RS232 interface
Position module:
GPS+(BEIDOU+GLOSNASS OPTONAL)
battery:
Li-300mAh/3.7V
OBD function:
Vehicle status diagnosis

Packaging & Delivery

Selling Units:
Single item
Single package size:
8X20X15 cm
Single gross weight:
3.0 kg
Package Type:
Normal packing
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 10 11 - 500 >500
Est. Time(days) 5 13 To be negotiated
Product Description

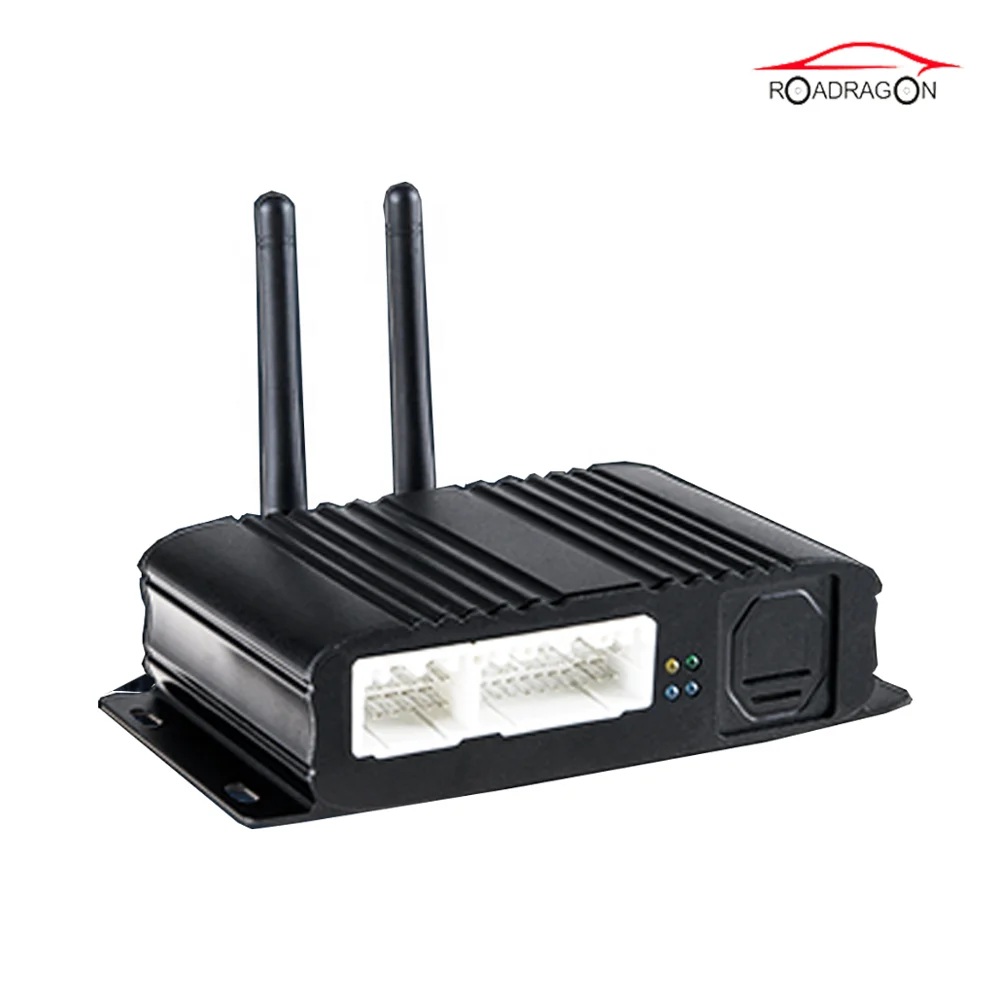

G-M402 is a 4G gps tracking device for trucks

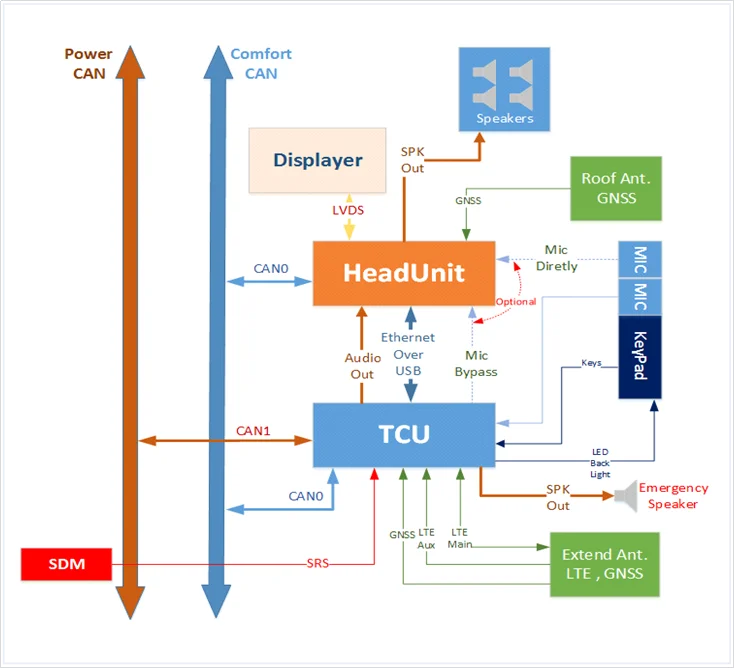

Integrated advanced wireless full Netcom data 4G communication module, high-precision Beidou dual-mode GPS module, low-power Bluetooth 4.0 module, high-performance six-axis gravity and gyroscope sensor and car ECU computer communication module, optional voice speaker and microphone Optional external TF data storage and data encryption chip, optional SOS button, ACC signal input, car communication 2 way CAN, K/L line circuit, external 485 and 232 cameras, temperature sensor, oil quantity sensor, punch External devices such as devices. Compatible with 12V/24V power systems for passenger cars and commercial vehicles. The vehicle running status, vehicle condition data, vehicle fuel consumption data, driver control data, etc. can be uploaded to the vehicle network management cloud platform through the wireless module, and the vehicle management platform realizes the vehicle trajectory, driving behavior, fuel consumption statistics, anti-theft tracking, etc. through terminal data. Remote fleet management reduces vehicle fuel consumption by regulating driving behavior.

GPS/location/route
Fatigue drive
Cold chain temp monitor
Mileage
Car speed
Engine work time
Cruise control switch
Key car
Sudden acceleration
idling
Remote voice alarm
Fuel consumption
RPM
Engine temp
Engine torque mode
CAN data
Sudden deceleration
High speed N gear drive
Bluetooth bracelet
Vehicle fault
accelerator pedal position
Air pressure
Fuel consumption rate
10-90 items
Sudden turn
ACC ON/OFF
Water temp alarm
Battery voltage
Brake pedal position
 Inlet manifold pressure
Engine load rate
Over speed
Plug out alarm
TPMS alarm
Air flow
Clutch switch
Engine oil pressure
Power take-off status
OBD common data items
Battery voltage
Intake manifold pressure
Accelerator pedal position
Total mileage category
Fault light status
Engine running time
total mileage
Number of fault codes
Fault mileage
Total fuel consumption
Coolant temperature
Remaining oil
Engine speed
Vehicle ambient temperature
Engine load
Vehicle speed
Fuel pressure
Long-term fuel correction (group 1)
Air flow
Atmospheric pressure
Ignition advance angle
Intake air temperature
Throttle position
Total vehicle running time
Function

Feature

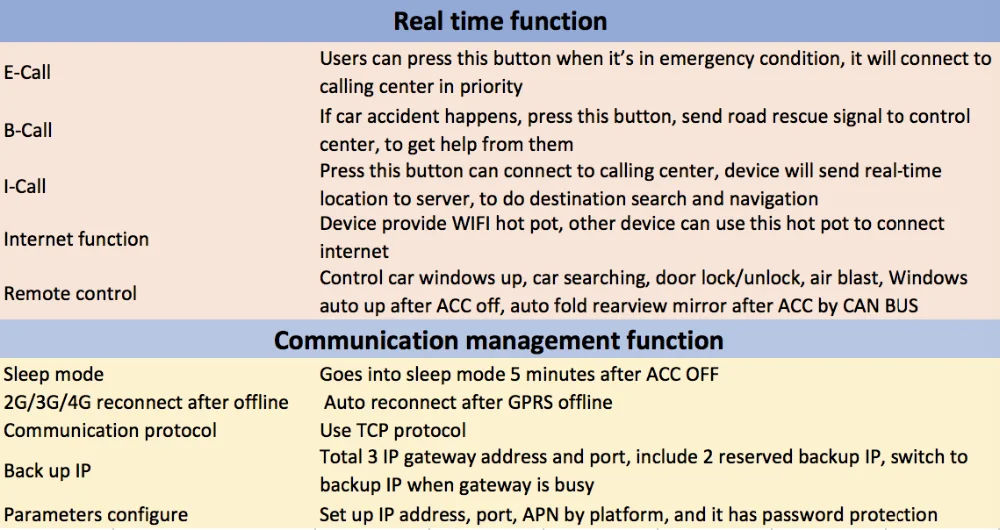

1.Communication Management Function
2. GPS

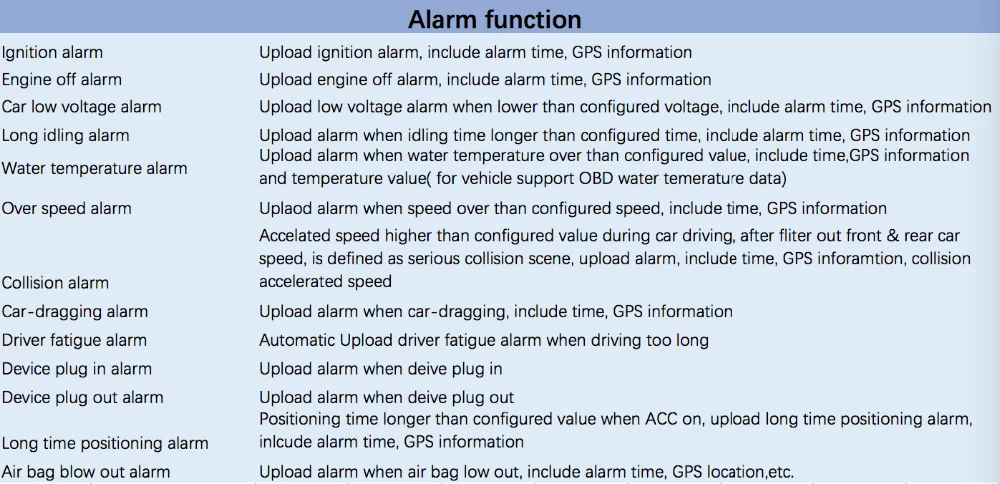

3. Reminder alarm function
4. Four separated SOS emergency help
5. Two-ways communication

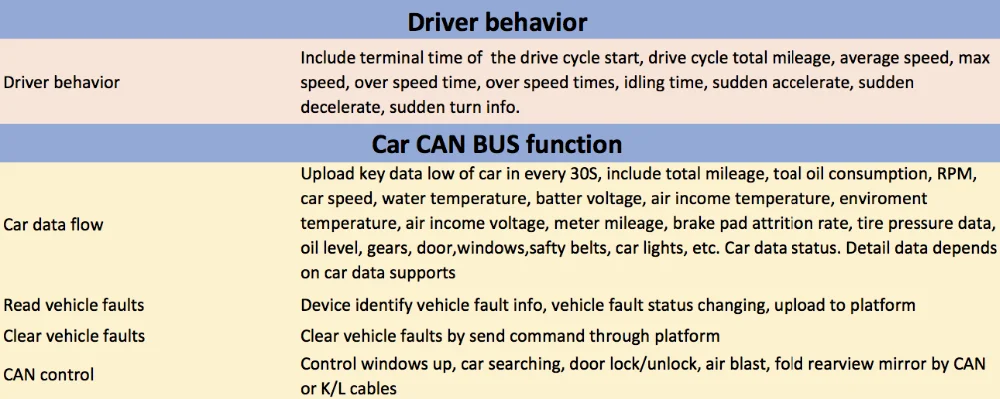

6. Driving behavior
7. OBD data function
8. Support multi languages
9. Compatible iOS &Android system

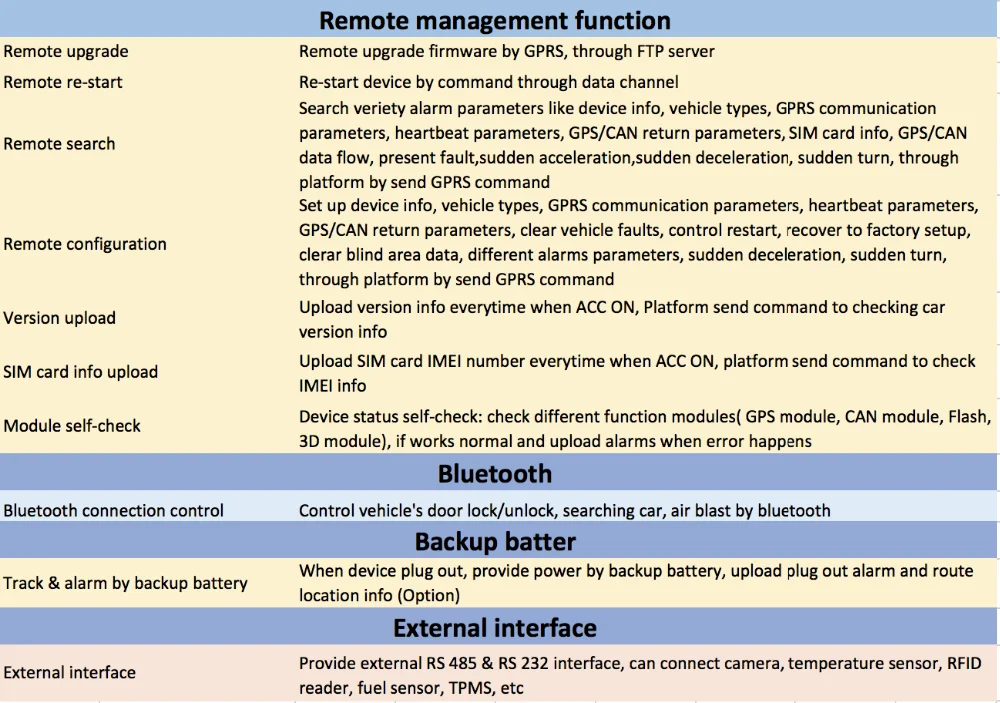

10 Remote control management function

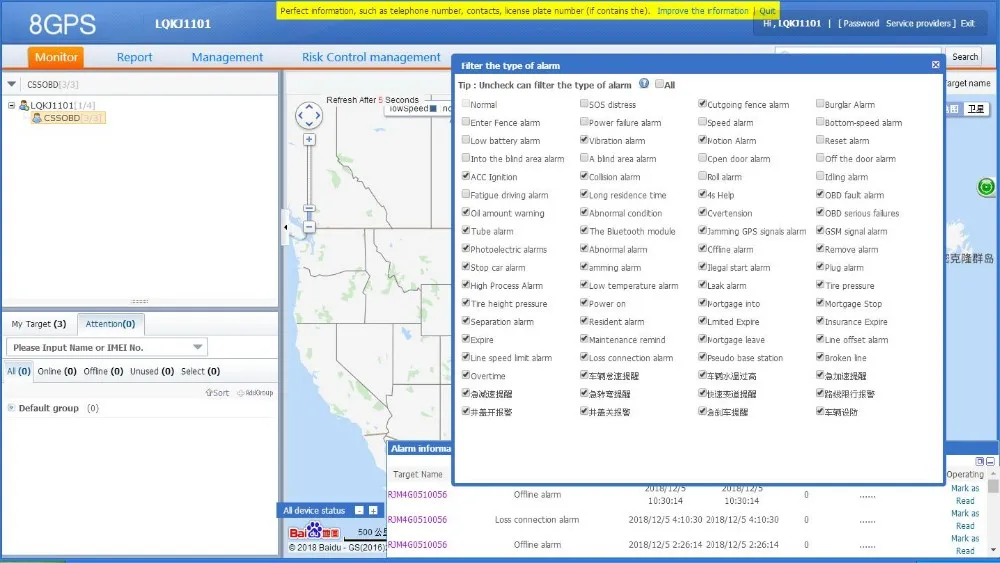

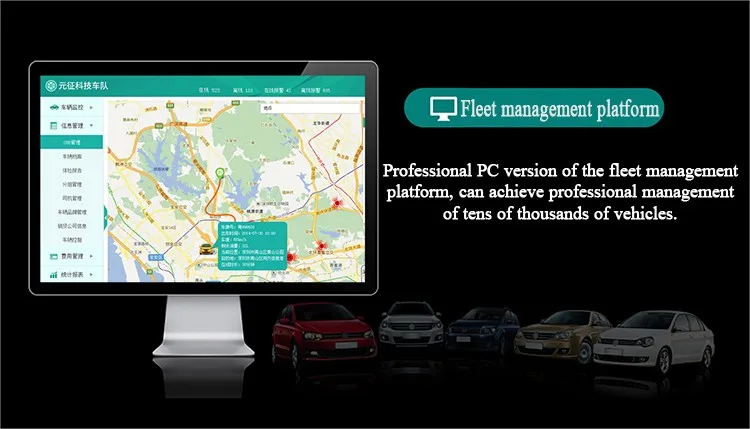

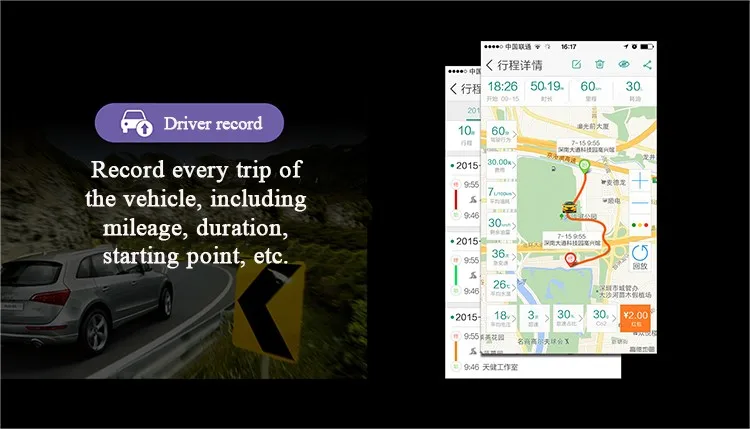

platform & APP

Platform : http://bs.flyinggnss.net   test account: lqtest    code:123456

Accessories

Fuel sensor

Speaker


Camera

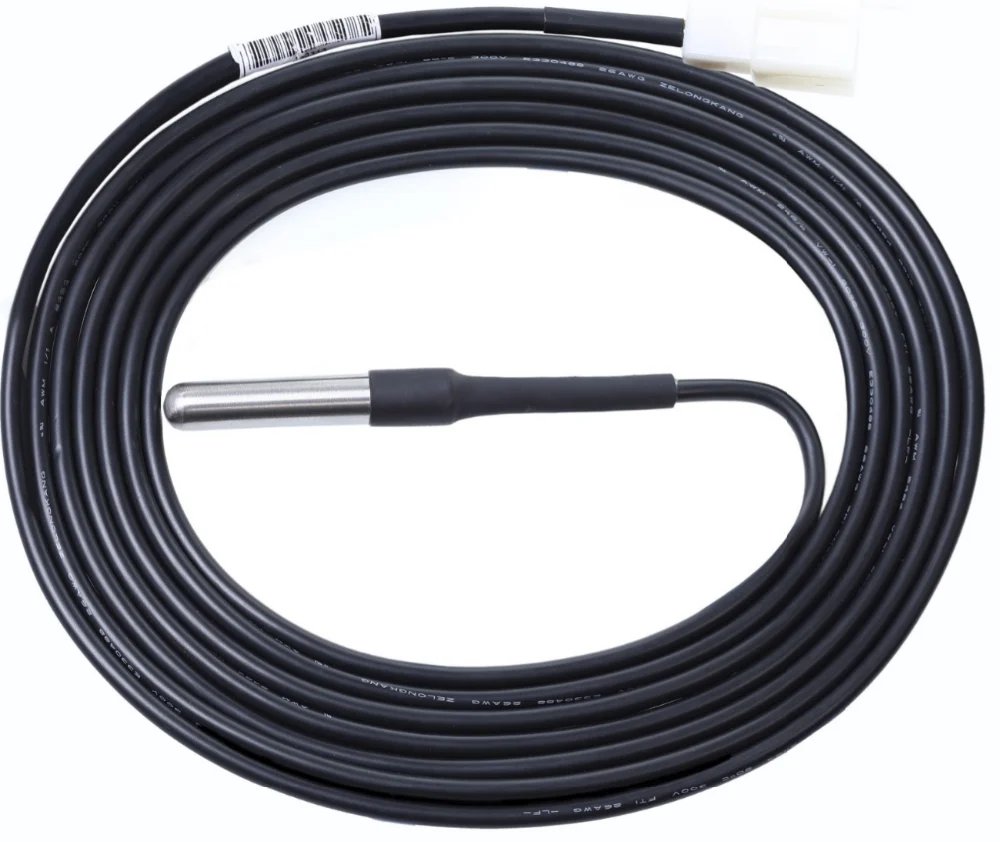

temp sensor

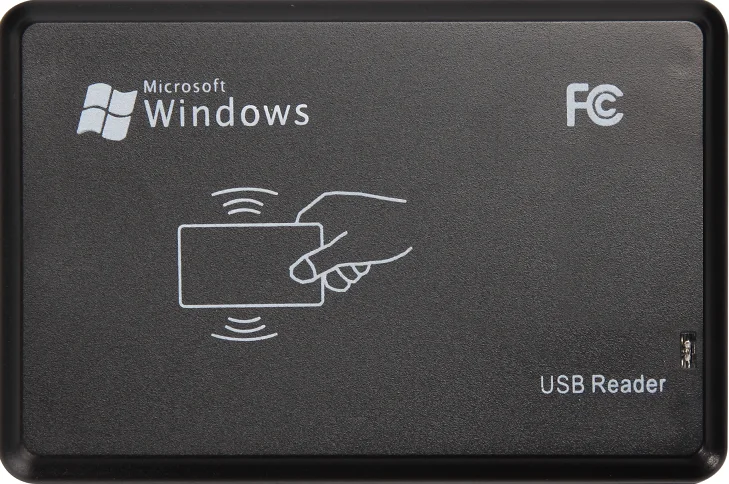

RFID reader
