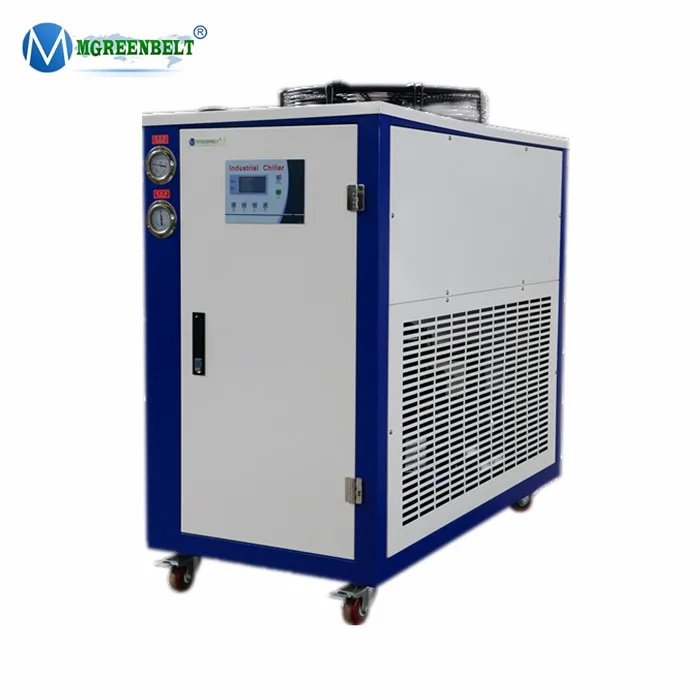

OEM Low Price 55kw Air Cooled Industrial Chiller Scroll Cooling Qatar Water Chiller

  • 1-4 Units
    $6,600.00
  • 5-7 Units
    $6,500.00
  • 8-9 Units
    $6,400.00
  • >=10 Units
    $6,300.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Units)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
1560*850*1500mm
Weight:
850KG
Condition:
NEW100%
Type:
Air-Cooled
Place of Origin:
China
Brand Name:
MGREENBELT
Model Number:
MG-20C(D) Qatar Water Chiller
Cooling Capability(kw):
55.3kw
Voltage:
3PH~220V/380/415V~50HZ/60HZ
Certification:
CE, ROHS, UL
Product name:
Qatar Water Chiller
Cooling capacity:
47558 kcal/h
Refrigerant Industrial Water Chiller:
R22/R407C/R134A/R410A
Compressor Brand:
Danfoss \ Panasonic / Copeland
Industrial Water Chiller flow rate:
9.48 m3/h
Evaporator style:
SS Tank with coil, SS heat exchanger
Compressor power:
20hp / 9.05*2kw
Pipe Diameter:
DN40
Pump:
1.5 kw
Total input power:
21.27kw
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
14 Months

Packaging & Delivery

Selling Units:
Single item
Single package size:
156X85X150 cm
Single gross weight:
450.0 kg
Package Type:
OEM Low Price 55kw Air Cooled Industrial Chiller Scroll Cooling Qatar Water Chiller Package: 2100*1000*1700mm G.Weight: 850kg Materials: Standard Plywooden case
Picture Example:
package-img
package-img
Lead Time :
15
Video Description
Product Description

Product cope of OEM Low Price 55kw Air Cooled Industrial Chiller Scroll Cooling Qatar Water Chiller

1.The industrial chiller is divided into two categories: water-cooled chiller and air-cooled chiller. Water-cooles chiller cooled by water, using with cooling tower and water pump, the other cooled by fan, can be used independently.
2.Our compressor is imported from USA, Japan,Italy, France and so on, being of high-quality built-in safe protection, with low noise, the electricity of province is durable.
3.Cooling capacity range:2.7kw~189kw.
4.Normal conditions: Chilled water inlet temperature is 20 degrees, outlet temperature is 15 degrees. Cooling water inlet temperature is 30 degrees, outlet temperature is 35 degrees. But the temperature can be set in 5-30 degrees range according to customers’ request, and the lowest temperature can arrive -25 degrees.
5.Stardard Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%, Can also be customized according to customers request, such as 220V, 440V, 480V, 60HZ and etc.
6.The quantity of compressor can be one or two, each compressor is independent refrigeration system. Each other run independently. when the one is working, the other can be working or not.
7. The quantity of compressor can be 1 to 4 each compressor is independent refrigeration system. Each other run independently. when the one is working, the other can be working or not.
8. Use PLC microcomputer control from France Schneider, both English and Chinese human-machine interface.
9. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
10. Our standard refrigerant is R22, but you can choose to use environmental refrigerant such as R407C , R134A or R507.

SPECIFICATIONS FOR  OEM Low Price 55kw Air Cooled Industrial Chiller Scroll Cooling Qatar Water Chiller
Model
MG-20C(D)
Outlet Temp Range
+ 5 deg C ~+35 deg C, user can set it based on working need.
Total Input power
KW( inlude compressor, pump, fan and etc electrical parts.
21.27

Cooling capacity
Kw
55.3
Kcal/h
47558
US Tons
15.7
Refrigerant
Type
R22/R407C/R134A/R410A
Control type
Thermostatic expansion valve

Compressor
Type
Hermetic scroll type
Quantity
2 Sets
Power
9.05*2

Evaporator
Type
SS Tank with coil
350 L
If user side is a sealed type water circulate system, please choose this one.
Shell and tube, or SS heat exchanger plate
If user side is a open type water circulate system, please choose this one.
Flow rate
m3/h
9.48
Pipe Dia
DN 32
Condenser
Fan motor
0.75*2 kw
Condenser
Type
Air cooled aluminum foll finned tyoe
Pump
0.75 kw, 2 bar pressure, if no special requirements, or customize based on user need.
Protection System
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension
mm
2100*1000*1700
Weight
Kg
850

Different model if OEM Low Price 55kw Air Cooled Industrial Chiller Scroll Cooling Qatar Water Chiller is not workable for your need.

1.MG-5C: 5hp sunrise water chiller industrial, cooling capacity 13.1kw;

2. MG-8C(D), 8HP sunrise water chiller industrial, cooling capacity 20.3kw;

3. MG-15C(D), 15HP sunrise water chiller industrial, cooling capacity 41.8kw;

4.MG-30C(D), 30HP sunrise water chiller industrial, cooling capacity 83.6kw.

Detailed Images

 OEM Low Price 55kw Air Cooled Industrial Chiller Scroll Cooling Qatar Water Chiller detailed images

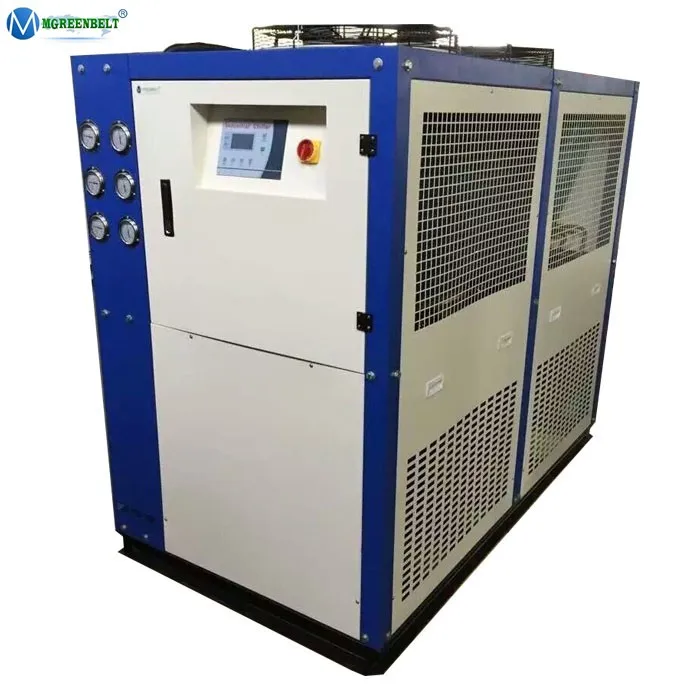

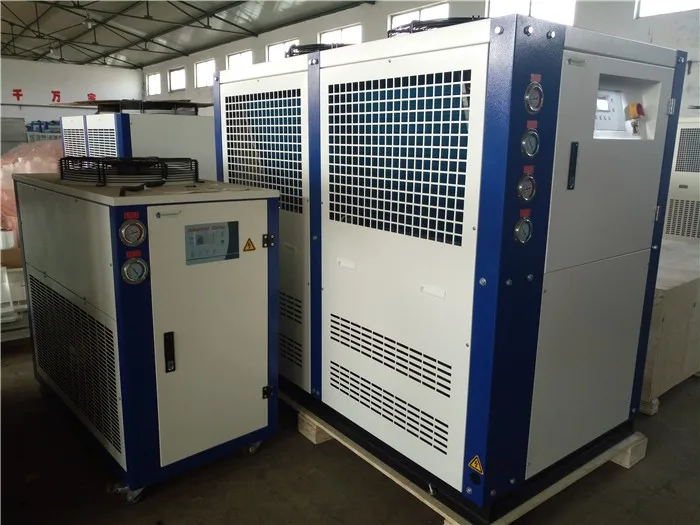

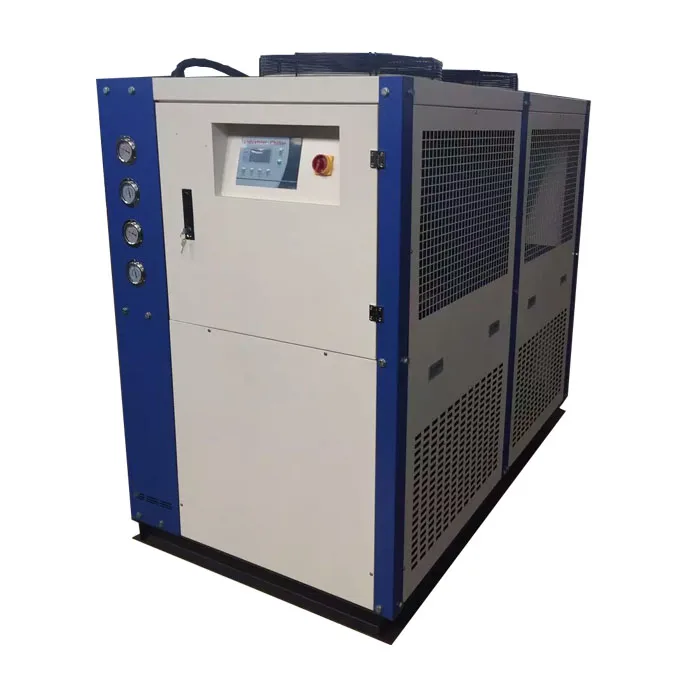

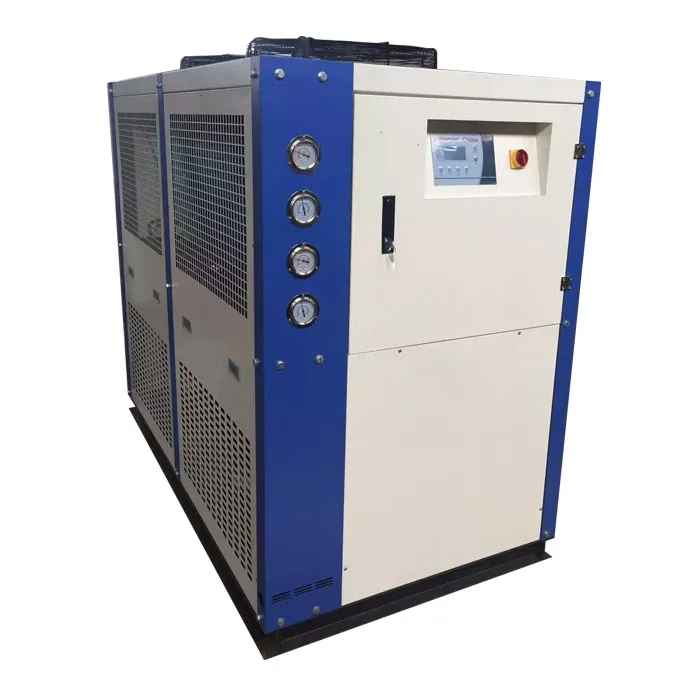

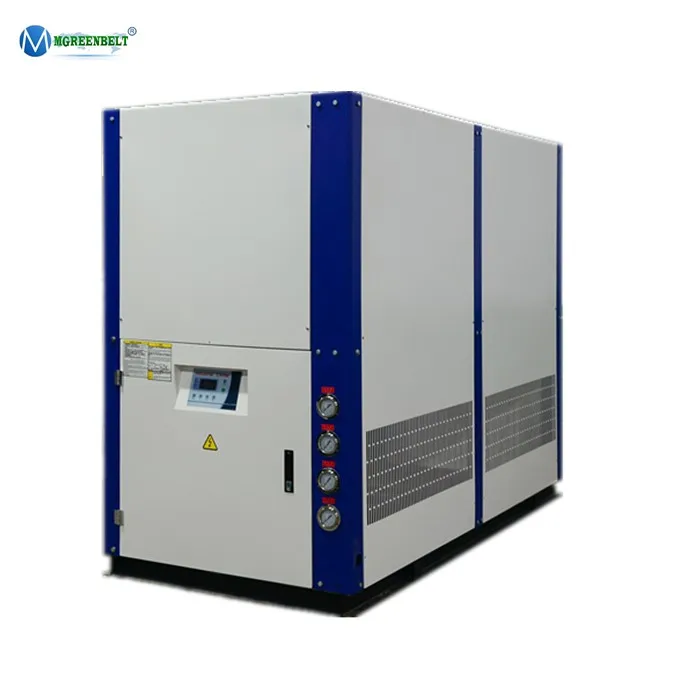

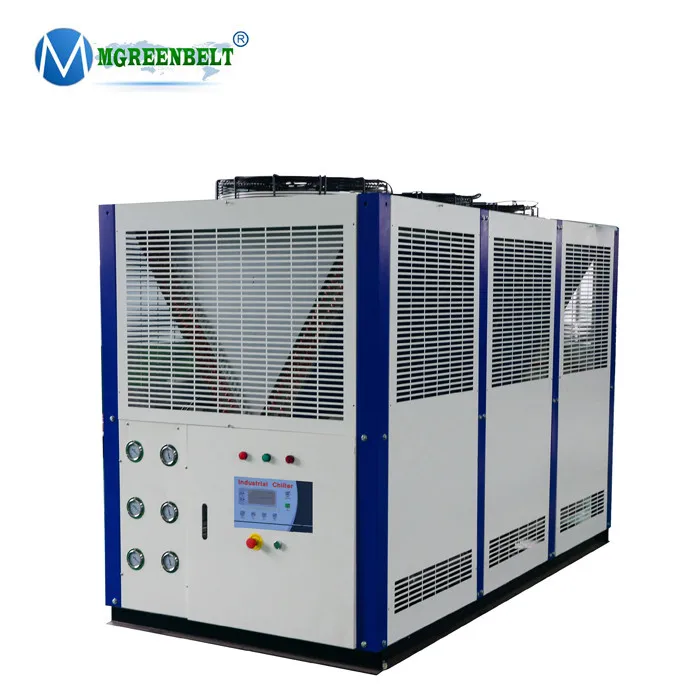

Each side of the  Qatar Water Chiller

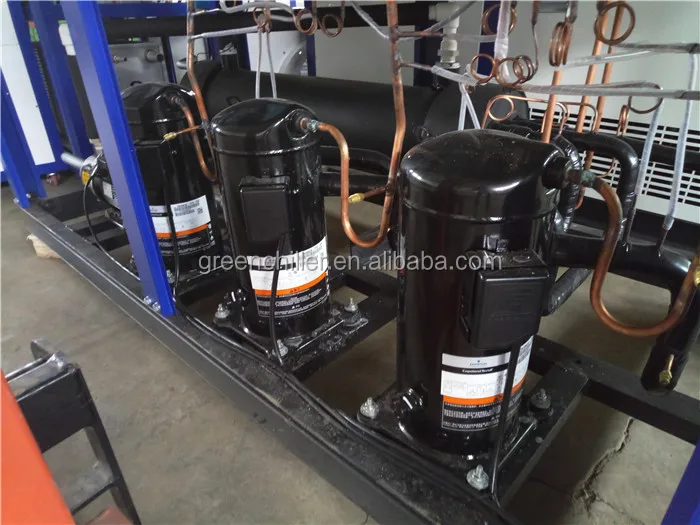

Copeland Scroll Compressor

Danfoss \ Panasonic, Enough power we promise.

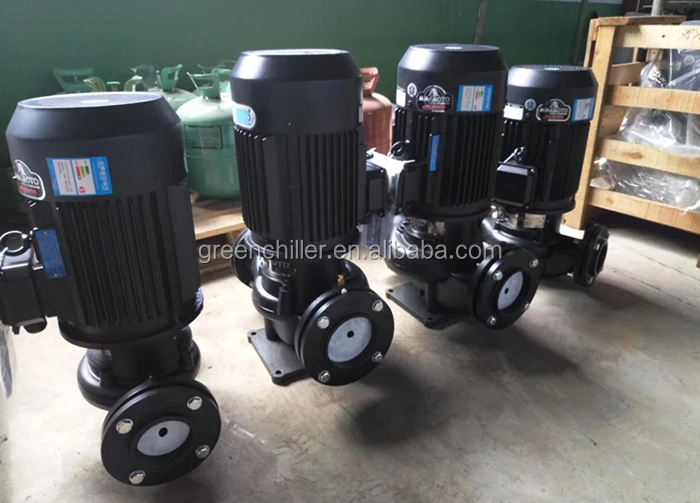

Stainless steep pump optional.
0.75kw powerful ensure, or if different pressure need, please inform us correct.

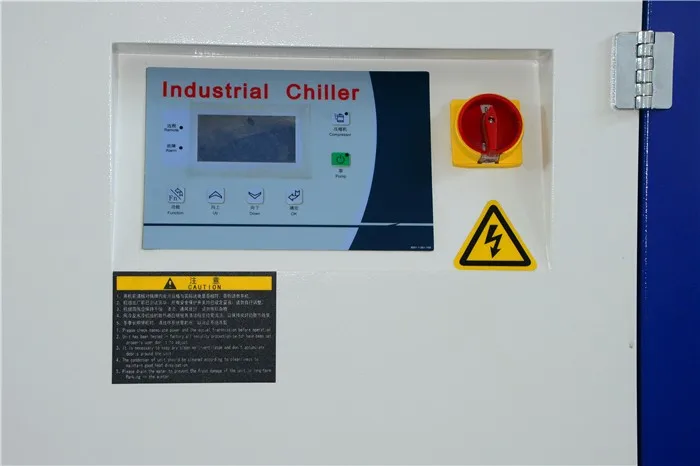

Micro-computer controller system, or PLC optional.

Use set the temperature point, and it will always display on the LCD,

Show: compressor, pump, fan and etc running status.

Powerfull fan, low noise

Workable for -25 deg C ambient temperature,  based on the condensing pressure to control the fan ON/OFF, or adopt the fan controller to control it's working speed.

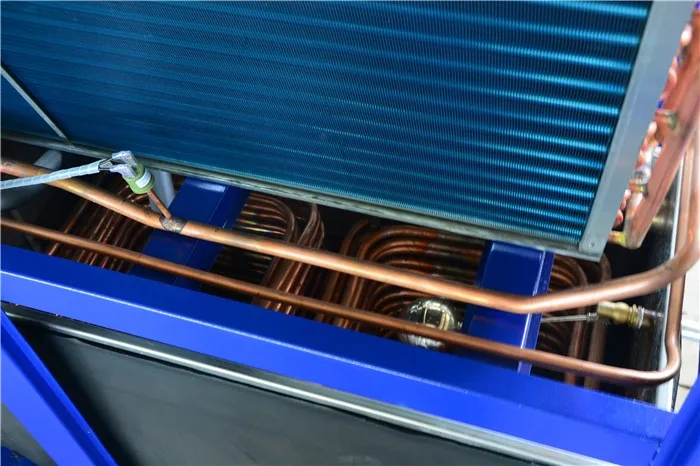

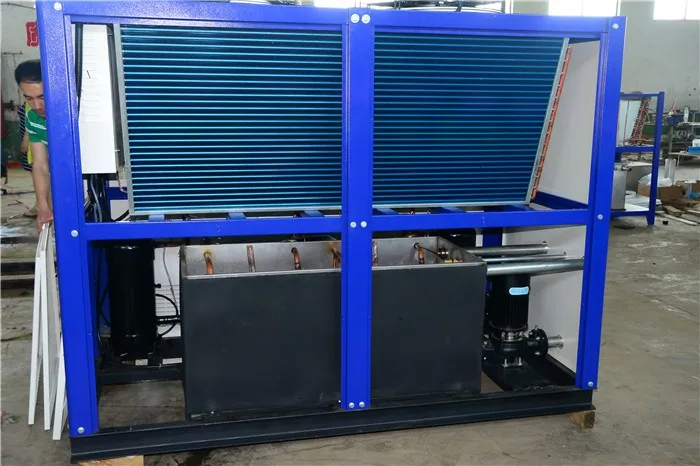

Evaporator: Stainless steel tank with copper pipe;

Tank is water, copper pipe is for refrigerant.

If user side is a closed type circulate, please chose this type.

Evaporator: Shell and tube

If user side is a tank or any other open type circulate, please chose this type.

World famouse electrical components for 10hp industrial water chiller.

World famouse electrical components for 10hp industrial water chiller.

Top technology details deal with10hp industrial water chiller.

Industry application and customer working site

Industrial water chiller can be used in cooling processes like mold in plastics industry, plating solutions in electroplating industry, electronic industry, chemical industry, pharmaceutical industry, food industry, fresh-keeping industry and cooling system in air-conditioners.
Besides, they can also be used in laser, chemical industry, electroplating oxidation, precise machinery, printing ink, printing, medical equipment, injection molding, blister, food, refrigeration, boiler roller interlining, electronic circuit board industry; or wave soldering and reflow soldering, space of purification treatment, hardware, ultrasonic cleaning, heating or cooling bath, medical storage, welding,bottle blowing, casting, surface treatment, paper making, aluminum, grass crafts, jewelry processing, leather, aquaculture etc.

Certifications
Our Service

---Order Service

Inquiry - Quotation - Agreement - Order Confirm - Proforma Invoice-Deposit Payment - Production - Balance Payment - Delivery - Documents Dispatch - Goods Collection - Installation - Operation - Feedback.

---Technical Service

(1). We calculate the capacity and recommend the best models.
(2). We design and develop the new products according to your requirements besides our standards products.
(3). We supply you the professional refrigeration technical support and electronic technical support for your installation,debugging and operation.
(4). We supply the spare parts and technical suppory in & after the warranty time.
(5). We supply the training course to your workers at our factory if you need.

---After-sale service

(1). Technical support for your installation,operation and maintenance.
(2). One year's warranty,and you can pay for extended warranty.
(3). Spare parts and technical support at most econimic prices after the warranty.
(4). Update you the latest products information and price adjustment every year.
(5). Old customer discount will be available when you order the products again.

Packing & Delivery

Package

Dust Proof Film + Anti-Collision Foam + 5 Layer Cartons + Ply-wooded Case (For LCL only,no need fumigation).
Customized packing is available.

Shippment

Express delivery
Air flight
Sea Shipment, we usually transport by truck to Qingdao port,then ship by sea.
Railway transporation.

Our Company

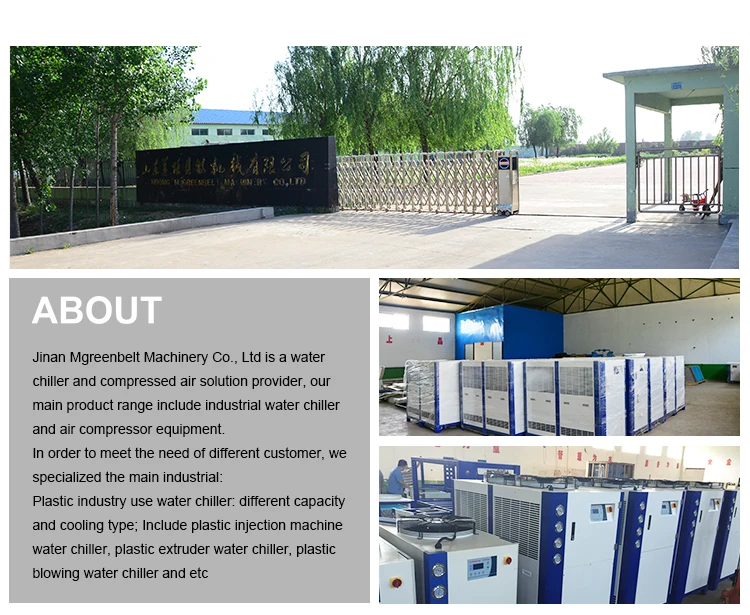

About us

Shandong Mgreenbelt Machinery Co.,Ltd was established in 2003.The Production factory located in economic and technological development zone of Pingyuan, Dezhou, Shandong, China. Which covers an area of 34000 square meter, mainly devoted to the development research and production of refrigeration industrial chiller, ice water chiller, etc.
