OEM/ODM 1 Channel Relay Module Board Shield 5V Relay Module 12V 9V 24V At Optional

  • 10-100 Pieces
    $0.58
  • 101-500 Pieces
    $0.54
  • 501-1000 Pieces
    $0.51
  • >=1001 Pieces
    $0.47
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces)
Product function customization (Min. Order: 1000 Pieces) Less
Samples: $5.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $5.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
OEM
Model Number:
OKY3011
Theory:
Voltage Relay
Usage:
Protective
Size:
Miniature, 4.7 x 2.9 x 1.8cm
Protect Feature:
Sealed
Contact Load:
Low Power
Model number:
OKY3011
Name:
1 Channel Relay Module Shield
Material:
PCB
Equiped with high-current relay:
DC30V 10A AC250V 10A
Voltage:
5V / 9V/ 12V/ 24V
Condition Brand:
New and Original
Application:
DIY Project
Weight:
16g
Color:
Black+Blue

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X8X6 cm
Single gross weight:
0.02 kg
Package Type:
1. Retailing Package:Anti-static bag 2. Bulking Packing:50Pcs/Lot 3. Retailing Box package design according to your requirement( Order > 500PCS)
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 500 501 - 1000 >1000
Est. Time(days) 3 4 To be negotiated
Video Description
Product Description

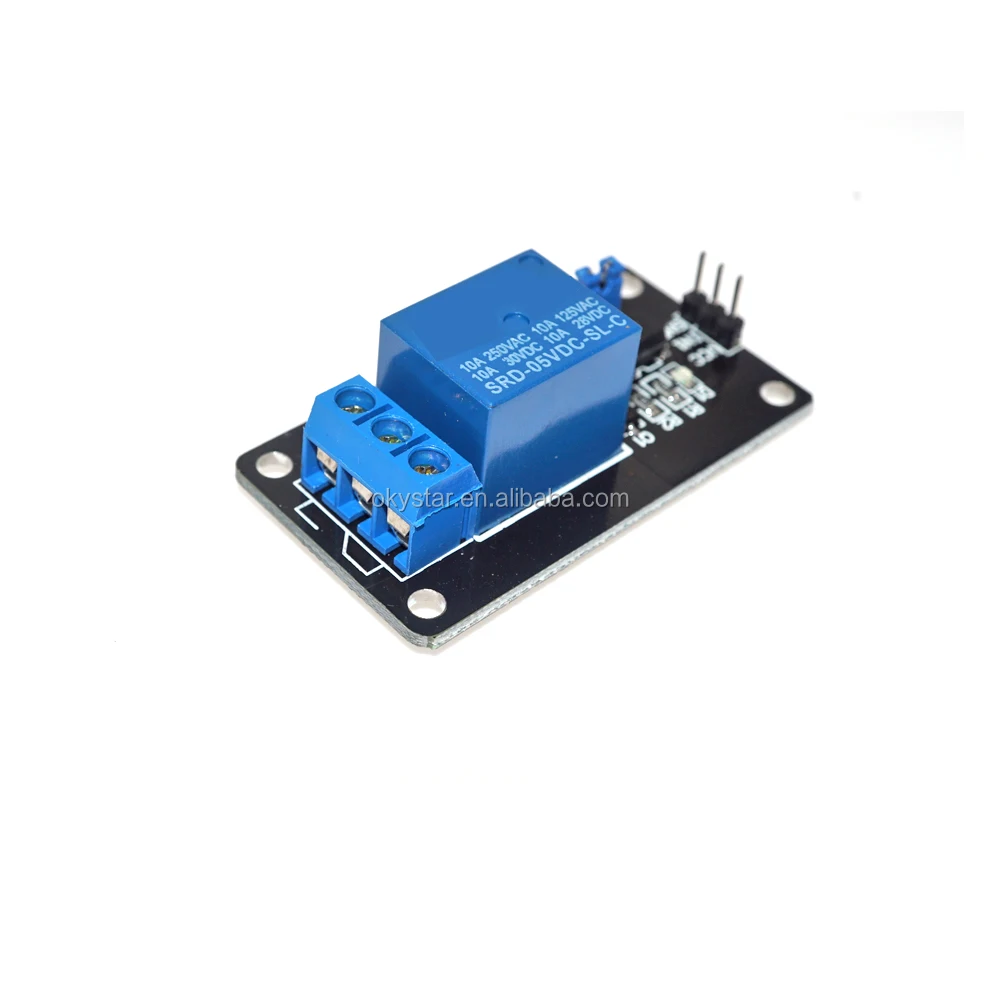

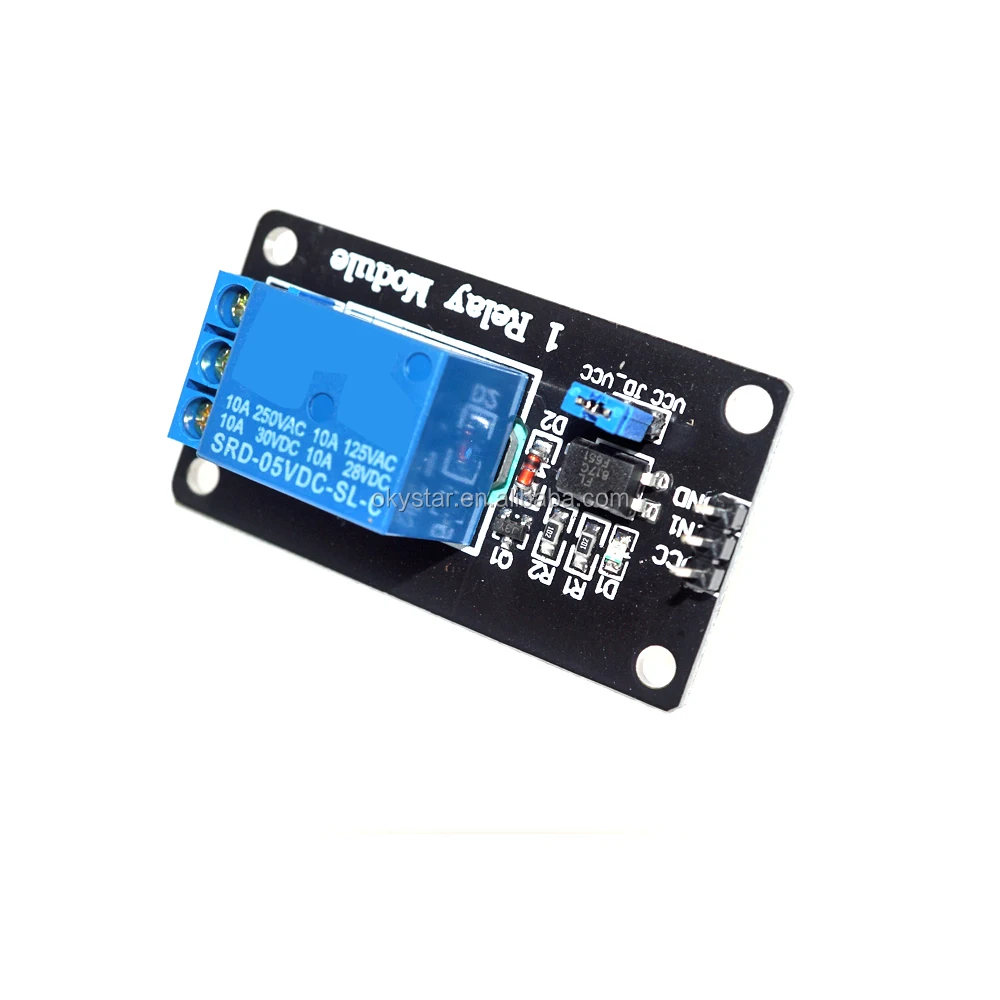

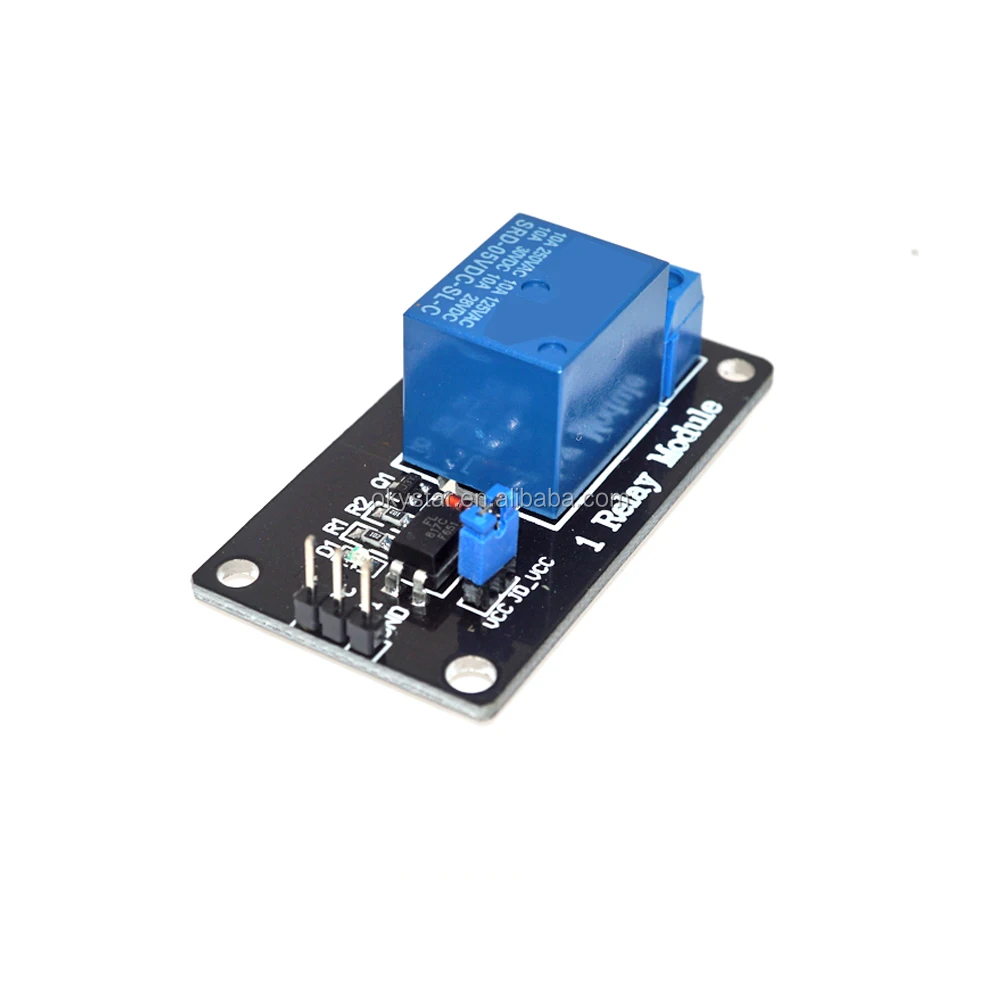

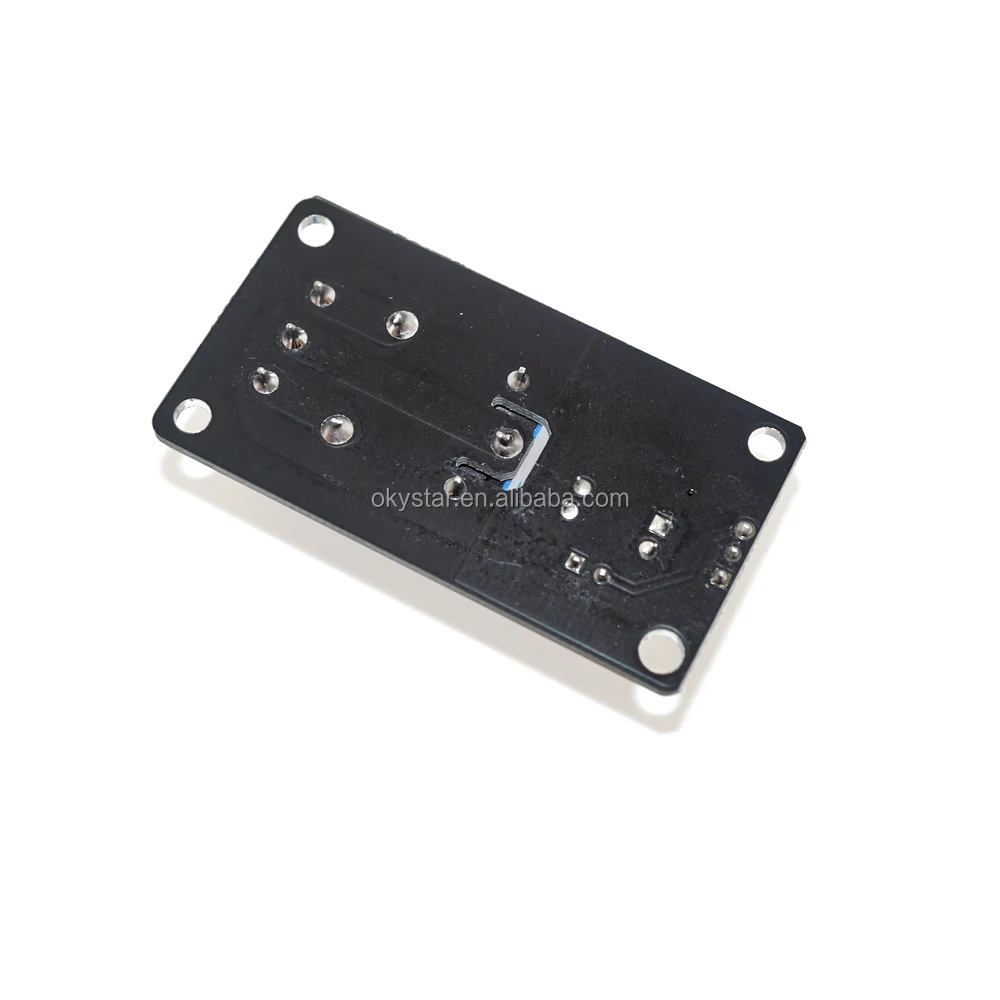

1 Channel Relay Module Board Shield 5V Relay Module 12V 9V 24V At Optional


Description:

1, the new 5V / 9V/ 12V/ 24V relay module
2, can be used microcontroller development board module can be used as home appliance control
3,5V-12V a TTL control signal
4, the control of DC or AC signal, you can control 220V AC load.
5, there is a normally-open and one normally closed contact
6, power indicator
7, there are control lights, pull off, disconnect does not shine
8, increase transistor drive a relay coil, control pins high impedance.
9, the control pin has a pull-down circuit, prevent floating relay malfunction



Notes:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style
is the same as shown in the pictures.

Pack Size
48mm*29mm*18mm
Weight
16g
Available with
Arduino , 8051, AVR, PIC, DSP, ARM
Equiped with high-current relay
DC30V 10A AC250V 10A
Voltage
5V / 9V/ 12V/ 24V at optional.
Warm Tips
Please tell us which voltage you want when make order
Product packaging
We provide different package base on your need
Our company

Okystar Technology Co., Ltd is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 1500 skilled workers,50 technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export 3D Printer, Board&shield, sensor module, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Mainboard,etc.

After 15 years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduino.


Certifications
Payment
Packaging and delivery
FAQ

1. What is the delivery time?

Normally, 1-5 workdays after payment;

Special requirement orders, delivery time is negotiable.



2.If the products can’t work after receiving it,what should I do?

We will replace new items for you at once, and respect your final decision for wrong goods.



3.If the products don’t meet my demand after I received it,can I return it?

Yes,no problem.

You can return back to us, we will refund your full payment.





4.what is the warranty?



1-2 years warranty according to different products.



1-3 months to replace new items for free.



All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
