Offer Permalloy 80 / Permalloy strip / Mumetal

FOB Reference Price:Get Latest Price
$21.00 - $37.00 / Kilogram | 1 Kilogram/Kilograms (Min. Order)
Samples:
Lead Time:
Quantity(Kilograms) 1 - 2400 >2400
Est. Time(days) 30 Negotiable
Customization:
Stock Available (Min. Order: 17 Kilograms)
Custom-made sample order (Min. Order: 500 Kilograms)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Type:
Nickel Strip
Application:
Industry
Grade:
Iron-nickel Alloy
Ni (Min):
78.5
Resistance (μΩ.m):
0.55
Powder Or Not:
Not Powder
Ultimate Strength (≥ MPa):
1030 (hard temper)
Elongation (≥ %):
3 (hard temper)
Model Number:
Ni79Mo4
Brand Name:
Xagy
Commercial Grade Name:
Permalloy 80 /Mumetal
DENSITY:
8.6 g/cm3
Standard:
ASTM A753-13 Alloy 4 / MIL-N-1441 C
Process:
Cold-Rolled
Material:
Iron-Nickel-molybdenum Material
Certificate:
ISO9001:2015
Feature:
High Initial Permeability
heat treatment:
1150 ± 20 ℃
Thickness:
T0.05 to 1.80mm
Lead-Time:
4 week Custom-Made order)/4days (Stocks)
Supply Ability
Supply Ability:
2400 Kilogram/Kilograms per Month
Packaging & Delivery
Packaging Details
Standard export seaworthy package
Ex. Gross Weight Under 20kg = Carton Box / Gross Weight Over 20kg = Plywood Box
Or As Per Request
Port
Shanghai

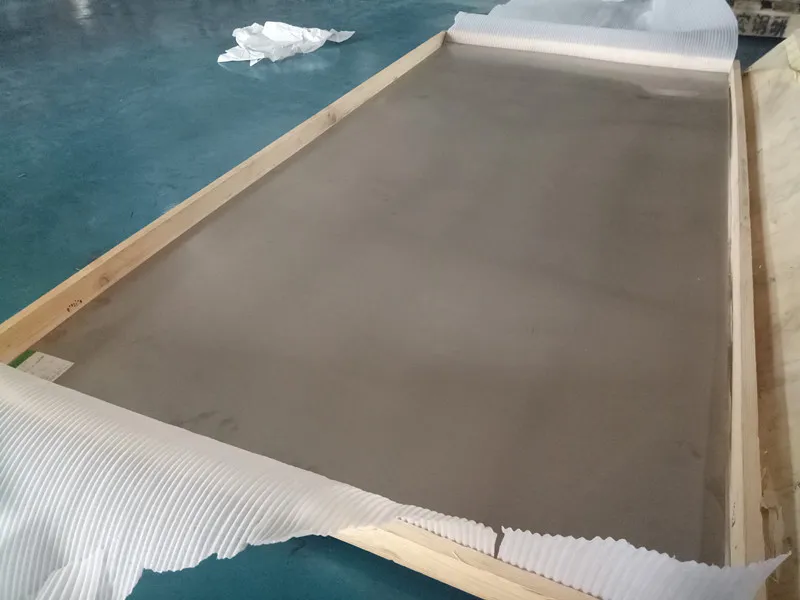

Picture Example:
package-img
package-img
Lead Time :
Quantity(Kilograms) 1 - 2400 >2400
Est. Time(days) 30 To be negotiated
Video Description


High Permeability shielding application Permalloy 80/Mumetal/HYMU 80

Permalloy 80 is nickel with additions of iron and molybdenum as main elements in turn this alloy offers an extremely high initial permeability. It is only moderately resistant to moisture and atmospheric corrosion, it used mainly in in transformer cores but is well known for its magnetic properties which are used for shielding electrical components from magnetic fields. "HYMU 80" has a minimum DC permeability of 80,000 at a flux density of 40 gauss when heat treated by the recommended procedure and test in accordance with ASTM 596

Key Words

MuMetal / µMetal / HyMu80 / Nickel Iron Molybdenum / Permalloy 80 / Super Muniperm / FeNi80Mo5 / Super MuMetal /SofMag80 / Supermalloy / Aperam / Permimphy / Permalloy C / EFI Alloy 79 / Magnifer 7904 / Hipernom / Moly-Permalloy /

Standard Specification:ASTM A753 -13 Alloy 4 / MIL-N-14411 C 1
Commerical Trdae Name
Mumetal , Permalloy 80 ,Hymu 80, Magnier7904
Material
Nickel-iron
Specification
ASTM A753 Alloy 4 , MIL-N-14411 C Alloy 1
Feature
High Initial Permeability
Surface Finish
Cold-Finish
I.D. Value
200 to 550 mm(Paper Coil I.D. Value)
O.D. Value
Base on Coil Weight
Temper Name
Hard /Annealed
Heat Treatment Temperature
(DC-100kHz) high permeability & high shielding efficiency
Application
Shielding , Relay, Amplifiers;Loudspeakers;Transformer
Forms of supply
ROD
Dia.20 to180mm, Length2000mm,Max
Surface Finish: Black, De-scaling & Ground Surface
STRIP/SHEET
T0.1 to 3.0mm, width2000mm,Max
Temper Name : Hard / Annealed

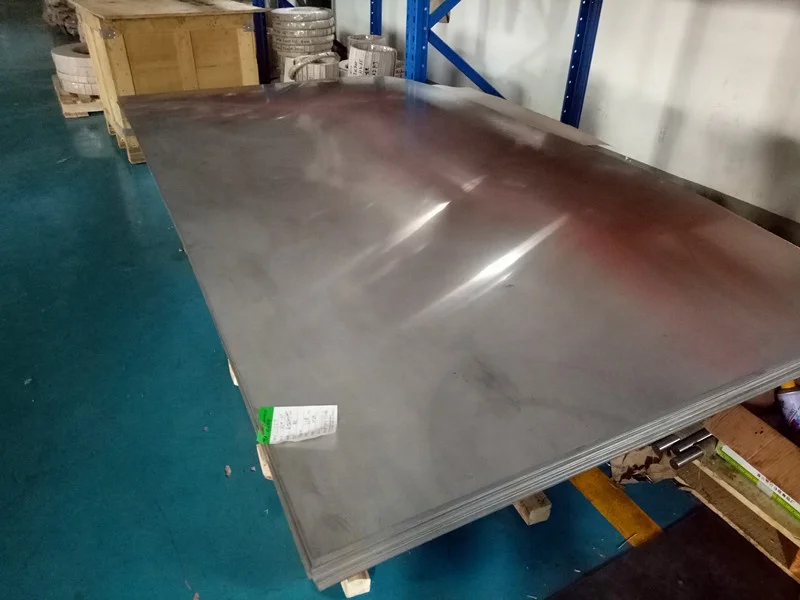

PLATE
T3.0 to 40.0mm, Width1000mm,Max
Surface Finish: Black / Bright

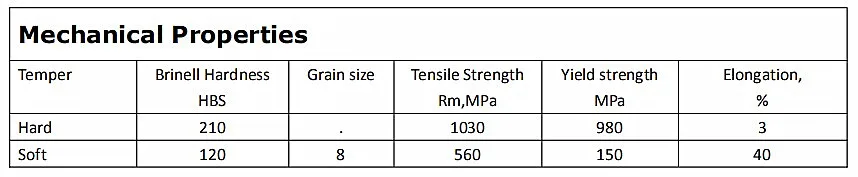

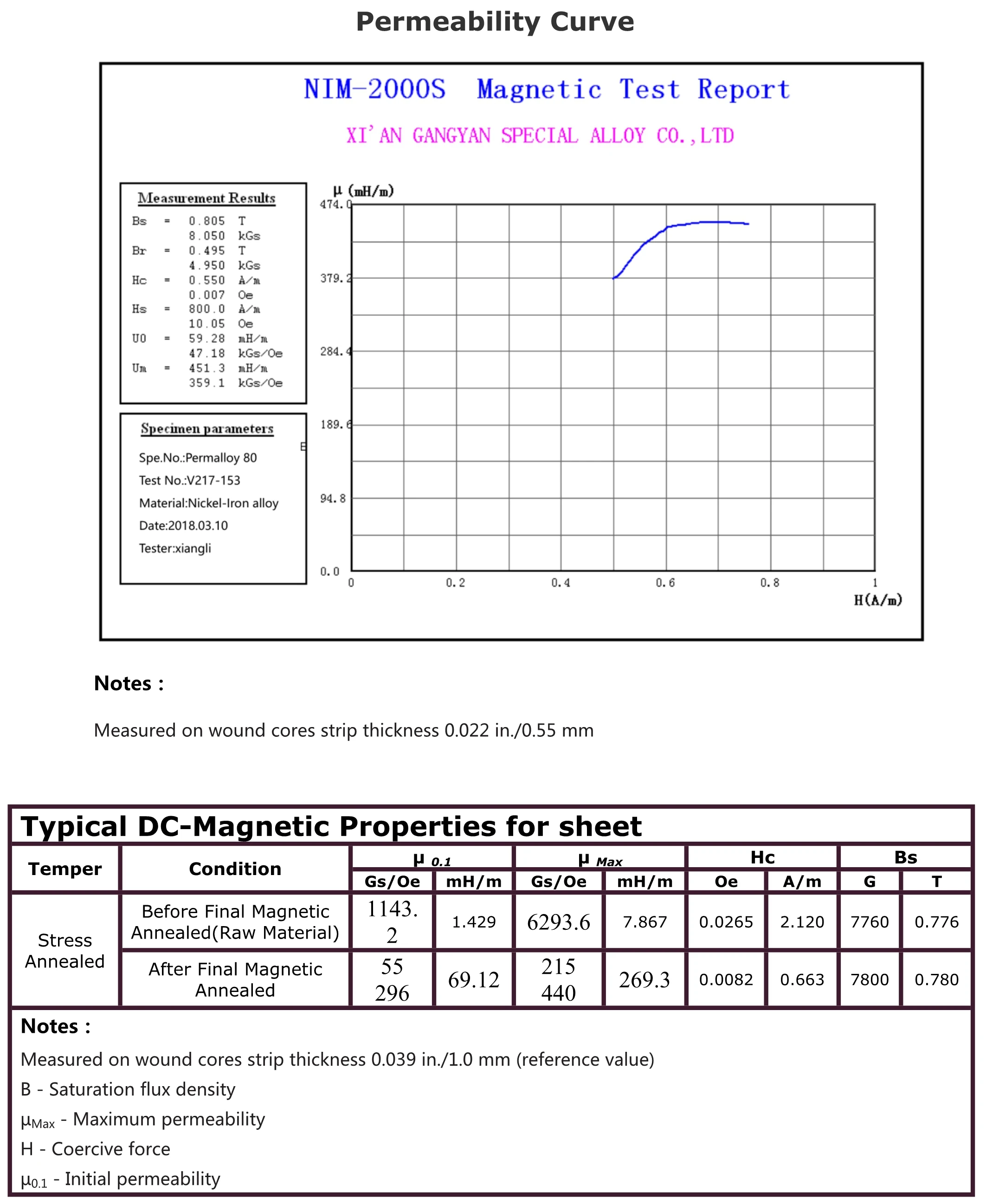

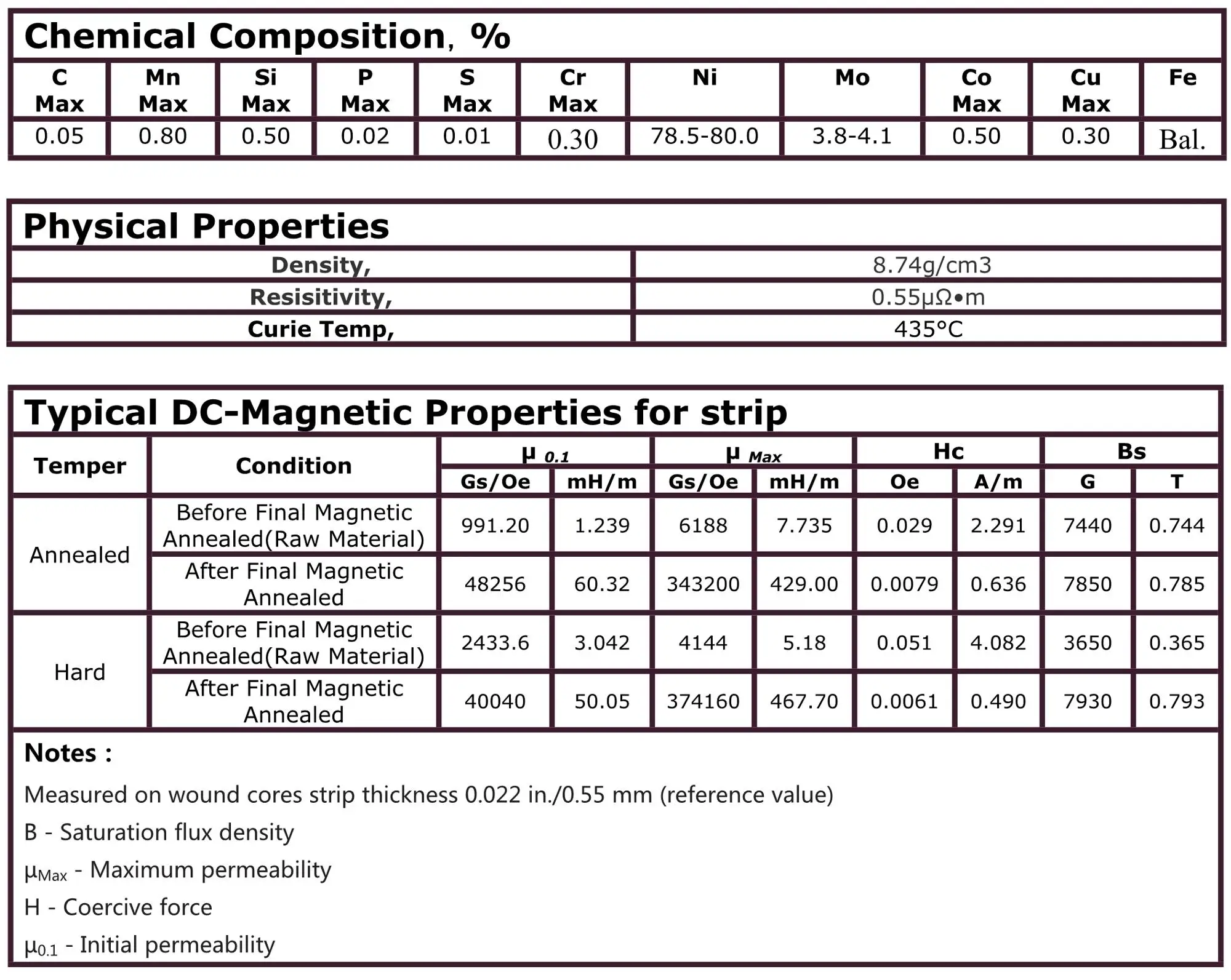

Product Data

FURTHER PROCESSING -magnetic final annealing

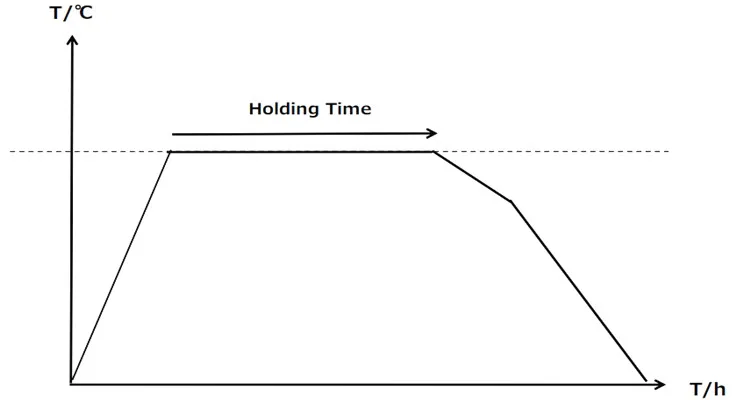

The maximum magnetic properties of Permalloy 80 are best achieved by annealing for 5 hours at 1140 ℃ to 1150 ℃ in a pure dry hydrogen atmosphere (-40 ℃ dew point). Cooling in the blow 1150 ℃ to 600℃ range at 150℃ per hour ,and 600℃ to 300℃ ≥400℃ per hour is recommended. In order to retain the maximum properties this anneal should be done after all manufacturing of the part is completed.

XAGY does not sell Permalloy 80 products in the 'magnetic' annealed condition.but we are provide the option of heat-treatment processing techniques and Recommendations!

ANNEALING vs HEAT TREATMENT

The definition of annealing is: "heat metal and allow it to cool slowly, in order to remove internal stresses and toughen or soften it." While we need to anneal permalloy 80 and other magnetic shielding alloys during the magnetic shield fabrication process, we do not anneal for maximum magnetic permeability. As noted in the definition, the annealing step is done to relieve stress within the material that was introduced as a part was being formed or bent.When we are heat-treating our HyMu 80 magnetic shielding materials, we are actually changing the physical properties by enlarging the grain structure, allowing for more magnetic flux to be absorbed by the magnetic shield.

In conclusion, both annealing and heat-treating are necessary during the magnetic shield fabrication process, but both serve a very different purpose. If you need to relieve stress in material, soften or toughen it, you want to anneal it. If you are trying
to achieve maximum permeability, you want to heat treat the material.

It should also be noted that material in our kinds have been annealed for forming possible, but is not heat-treated for maximum magnetic permeability.

If you still have questions about heat treating and annealing, do not hesitate to contact Mr.Paul with any specific questions.
Process

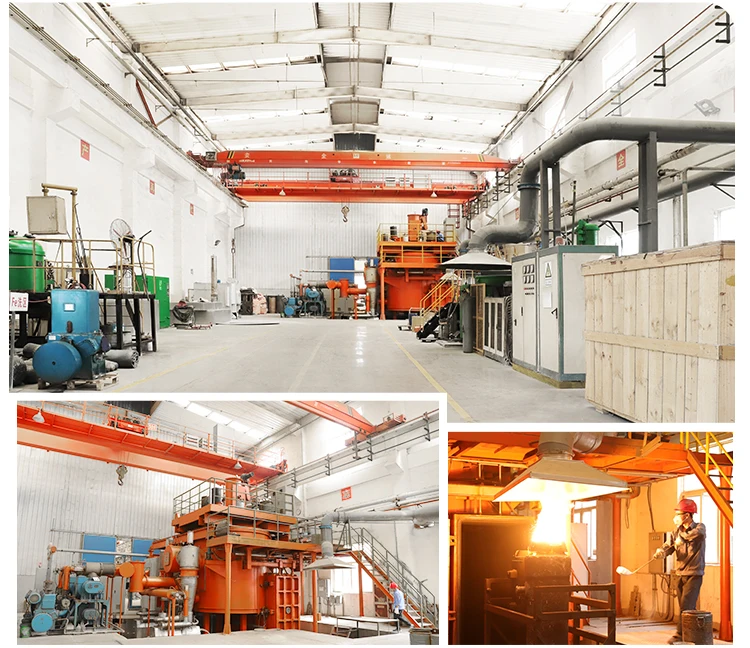

1.5T Vacuum Induction Melting (VIM) Furnace
5T Electro Slag Remelt (ESR) Furnace

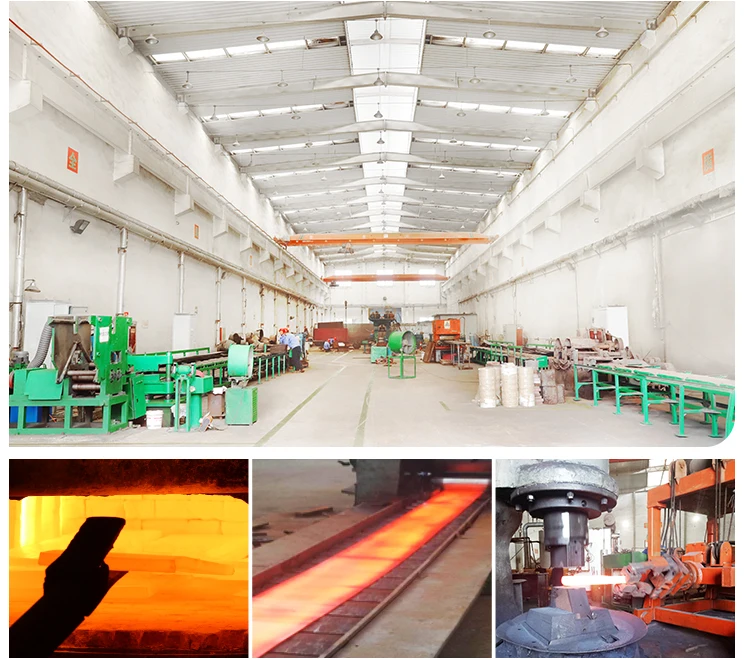

Forging & Hot Rolling Workshop

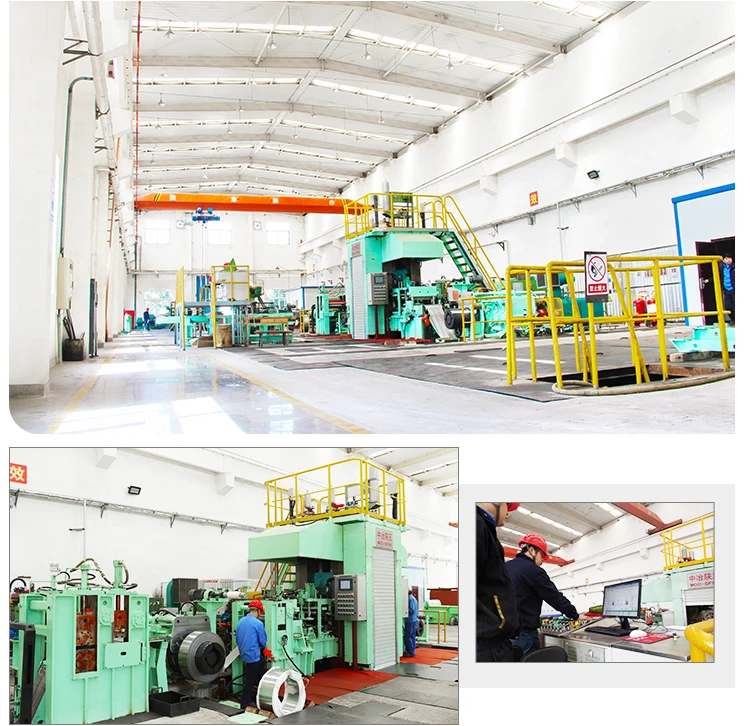

Cold-Rolling Workshop
Annealing Workshop

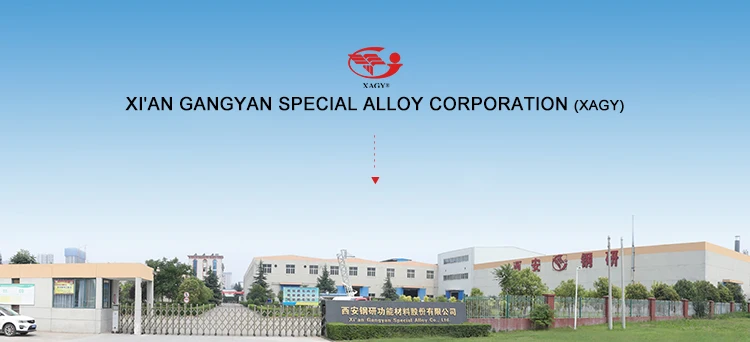

About Us

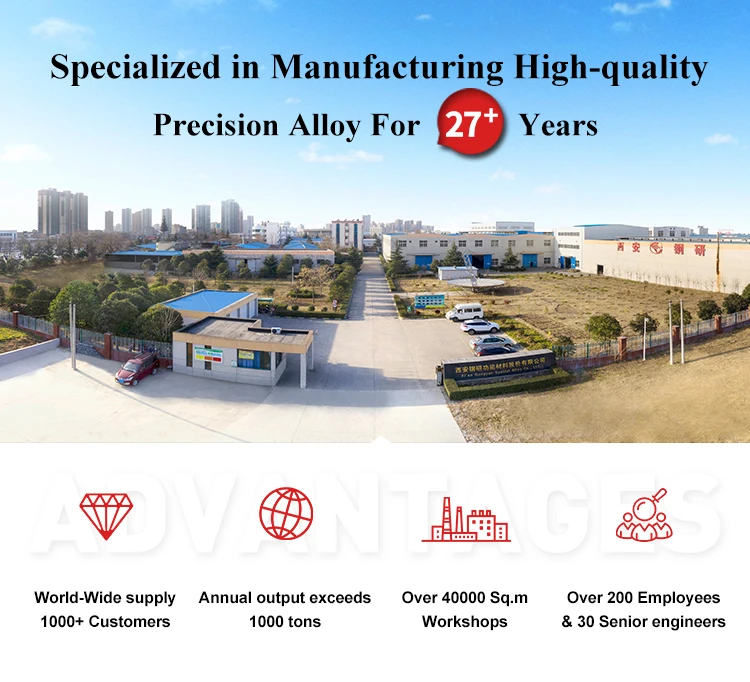

Specialized in manufacturing Nickel alloys & Cobalt alloys for 27+ years,with a company mission to provide a high quality, reliable source for precision alloys, high temperature alloys and stainless steels in both pilot processing and mass production. We are professionally manufacturing materials with unique features, which are then used in aerospace, military, electronics, marine, petroleum and petrochemical industries. Now our company has formally marketed in China's new stock market, stock No. 836660.
Base on "Quality-oriented, Leading Technology, Continuous Improvement, Customer Satisfaction", we believe XAGY Inc can be your best supplier.

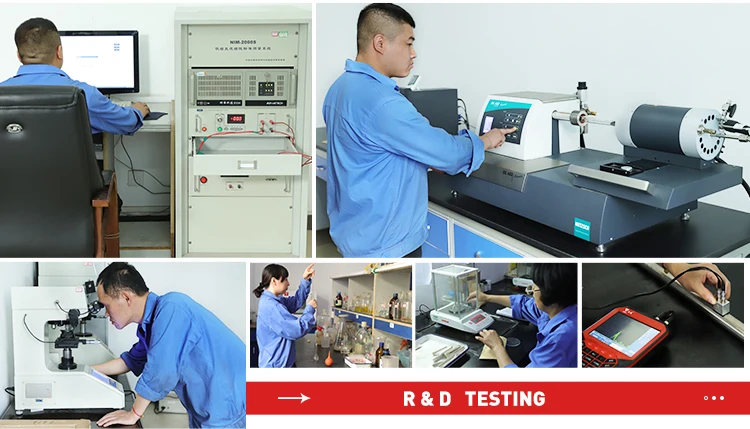

The Quality control team has 25 members, more than 15 sets existing inspection equipment, mainly responsible for the analysis and detection of all raw materials, finished products in the factory. Undertaking more than 55 analysis and testing items. Such as material chemical composition,physical properties,magnetic properties,mechanical properties,surface and dimensions,Etc.
Each member of our team is a specialist in his or her field of high precision alloys. All the inquires will Response within 24hours.

Packing & Delivery
Ex. Gross Weight Under 20kg = Carton Box / Gross Weight Over 20kg = Plywood Box.

FAQ
1. Notice
Chemical composition,Physical and Mechanical properties will be engineered according to specific customer requirements.Therefore chemical composition,physical and mechanical properties might be different to values listed in this document.
Information about product characteristics or applicability of materials are shown only for informative purposes.   2. Sample Policy
Custom-made sample order support for Prototyping project. Meanwhile regular size are available in stock,The weight base on mill random length. MOQ 1PC 3. Payment Terms
30% T/T in advance ,balance before shippment. 4. Production Period
About 4 weeks for customized Product.
