Offline Hot Stamping Machine For Plastic PVC Foam Board

$16,000.00 / Set | 1 Set (Min. Order)
Model Number:
UN-1300
Gross Power:
36KW
$16,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Field installation, commissioning and training
Plate Type:
Flatbed Printer
Color & Page:
Multicolor
Usage:
hot stamping
Type:
Heat Transfer
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Advertising Company
Condition:
New
Place of Origin:
Qingdao, China
Brand Name:
Unique
Automatic Grade:
Automatic
Voltage:
380V
Dimensions(L*W*H):
7000mmX1500mmX800mm
Weight:
2ton
Warranty:
More than 5 Years, One Year
Machine type:
hot stamping machine for plastic
Model:
UN-1300
Max. stamping width:
1300mm
MOQ:
1 Set
Speed:
0-12m/min.
Total power:
36kw
Heating Method:
Electric Heating
Heating power:
2X12kw
Product name:
Offline Hot Stamping Machine For Plastic PVC Foam Board

Packaging & Delivery

Selling Units:
Single item
Single package size:
700X150X80 cm
Single gross weight:
2000.0 kg
Package Type:
Pallet
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

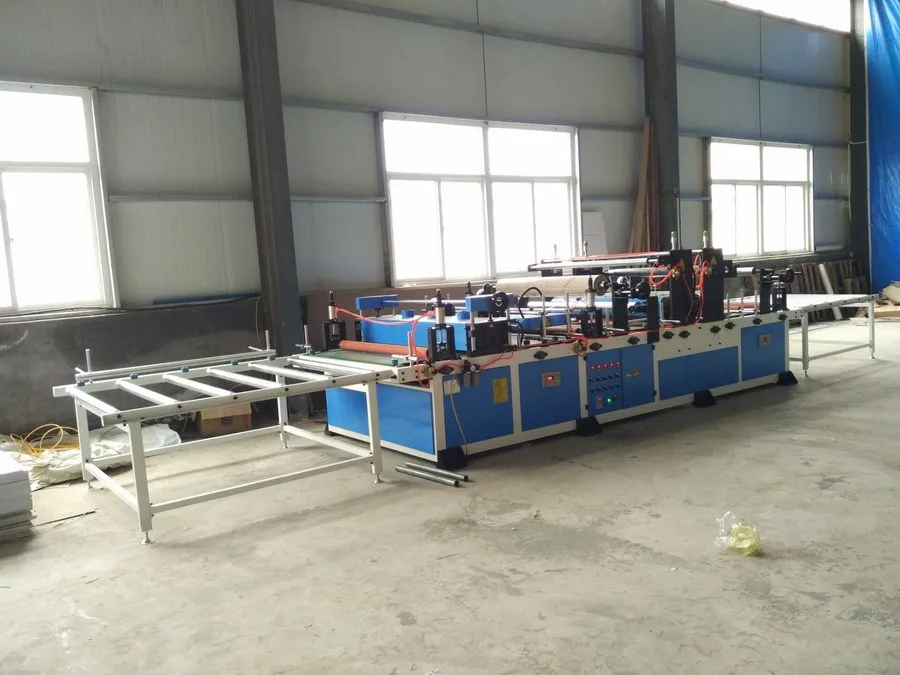

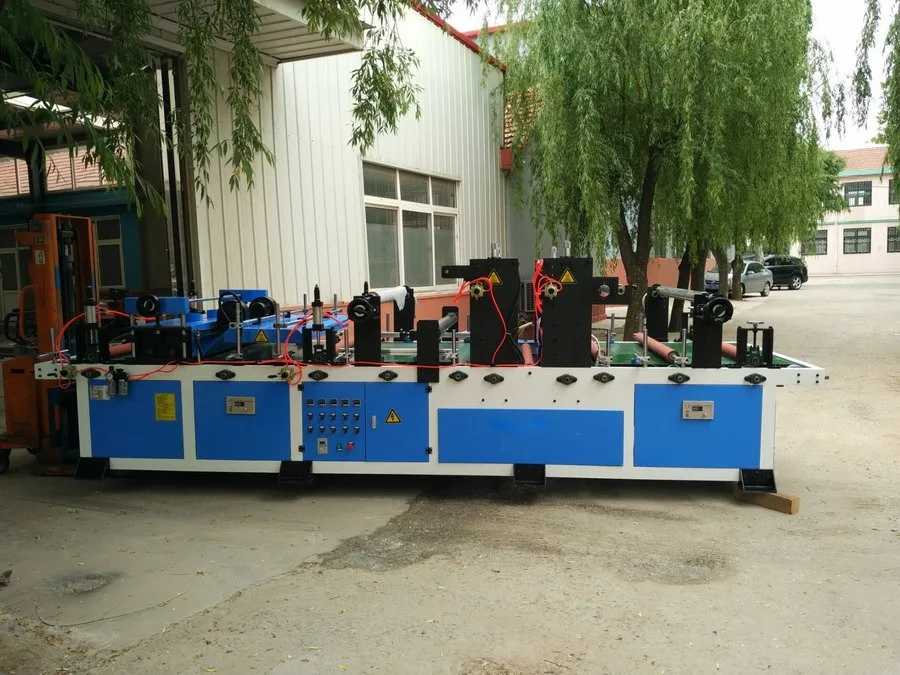

Hot stamping machine for PVC foam board

 Hot stamping machine for foam board is applicable for heat transfer patterns of hot stamping foils on the surface of PVC foam board, plastic wood door(WPC), and medium density fiberboards(MDF) to improve the appearance. It includes feeding, duct cleaning, heating, glue coating, transfer and discharging systems.
Acorrding to the different specifications of foam board, the effect working width is 1300mm.
And it transfers the color pattern to the WPC foam board from PET base film.


Paremeter of hot stamping machine for PVC foam board

Max. stamping width
1300mm
Max. stamping height
60mm
Stamping speed
0~12m/min
Board pre-heating power
9Kw 380V
Transfer roller heating power
2×12Kw 380V
Rewinding power
25W
Transmission power
2.2Kw
Total power
around 36Kw
Board transfer roller diameter
¢125mm
Air supply
10MPa
Feeding & discharge conveyor
2000mm×1500mm×752 mm(adjustable foot)
Flat transfer machine
5000mm×1500mm×752 mm
Total weight
around 2000Kg
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Related Products

Wood grain hot stamping foil

100% Response Rate

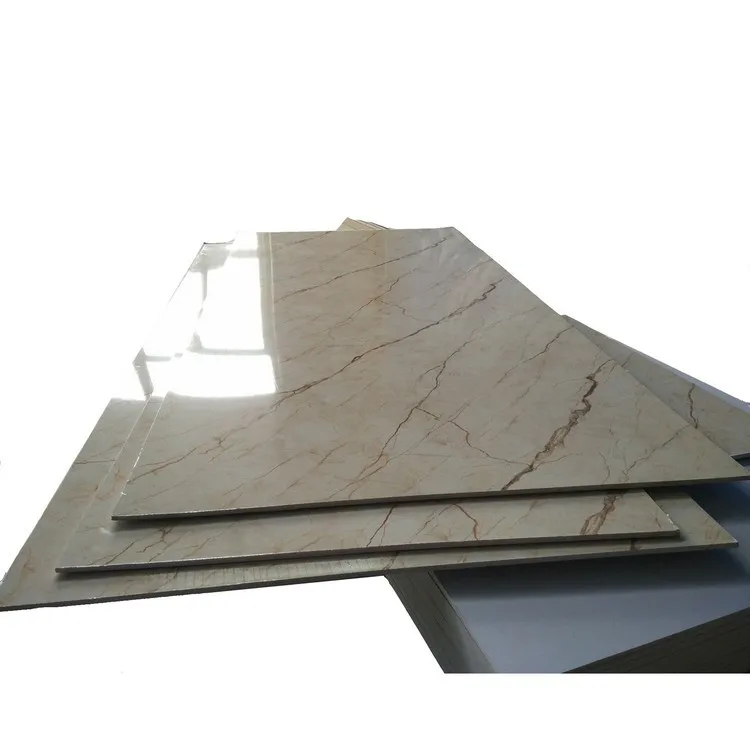

Marble hot stamping foil
