Oil Paint Mixer,Printing Ink Dispersion Mixer Industrial mud paddle agitator

FOB Reference Price:Get Latest Price
$3,000.00 - $60,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
QLF/TSJ/IXJ/IDJ
Report Suspicious Activity
Overview
Quick Details
Max. Loading Capacity:
3000L
Application:
Medicine Processing, Chemicals Processing, paint,pigment,ink,dye,magnetic material,pesticide,ceramic,paste, Liquid with Suspended Solids
Condition:
New
Mixer Type:
Homogenizer
Product Type:
Paint, paint,pigment,ink,dye,magnetic material,pesticide,ceramic,paste
Additional Capabilities:
Milling
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
IDA
Voltage:
220/380v
Dimension(L*W*H):
Customizable
Certification:
CE ISO9001:2000
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
pump power(kw):
4.5~165
Chamber Material:
High wear resistant alloy steel/ceramic
Rotor Type:
Disc type
Grinding media:
80%&95% zirconia beads
vacuum:
-0.098Mpa
Mechnical Seal:
Assebly double end mechanical seal
high speed shaft:
23~33rpm
capacity:
3L-3000L
Power(W):
4.5kw-165kw
Supply Ability
Supply Ability:
40 Unit/Units per Month
Packaging & Delivery
Packaging Details
The machine will be covered with anti-abrasion film and then packed in plywood cases.
Port
shanghai



1. Working Principle:



The working force between grinding media and material is generated from the high-speed rotation of dispersing device(disc, pin or paddle). Under the force of viscous resistance, Grinding media and material moves along with dispersing device and be thrown to the cylinder inner wall by centrifugal force, forming double-circle turbulence. The strong inter-movements of grinding media form great cutting, pressing and abrasive force, making the material change shape and generate stress-field. When that stress reaches material yielding and breading limit, the material will be deformed plastically or pulverized. The un-pulverized material will be thrown back to the cylinder inner wall by centrifugal force. In this zone, the density of grinding media reaches the highest point, thus making the pulverization more powerful. The fine final products will be separated from grinding media by separator and be discharged from the bead mill.

2. Machine Features



1) Patent grinding disc structure has a bigger action area for the grinding media. Bigger shearing force and higher efficiency.

2) Double cooling systems for the chamber and end cap. The dissolvent which is compatible with grinding material can be added as cooling agency to reduce the production loss because of the leakage.

3) Feeding device: USA/Canada/Sweden imported pneumatic diaphragm pump or frequency control gear pump is optional as clients’ requirements. Feeding and discharging tubes are imported USA with good solvent resistant property.

4) High security property. The bead mill will automatically stop working when there is water shortage, air pressure shortage or over-high material temperature.

5) Grinding chamber and rotor is made of high wear resistant alloy steel /Silicon carbide/Ceramics which has no metallic pollution and discoloring. PU and ceramic material are optional according to actual condition.

6) Reasonable design for inner and outer structure allows stable performance with no vibration and noise.

7) Ceramic and PU material are optional.

8) Frequency control and PLC are optional

9) With CE&ISO9001:2008 qualification.

10) Dynamic or static separating system for different material to ensure smooth discharging.

3. Technical Parameter

Planet mixer:IXJ series

Type

IXJ60

IXJ150

IXJ300

IXJ500

IXJ800

motor power(Kw)

4

7.5

15

22

30

Pump motor power(Kw)

0.75

1.1

1.5

2.2

2.2

Tank capacity(L)

60

150

300

500

800

Shaft revolution(rpm)

0-43

0-33

0-20

0-20

0-20

Shaft rotation(rpm)

0-78

0-60

0-40

0-40

0-40

Concentric double-axel mixer:TSJ series

Type

TSJ-300

TSJ-500

TSJ-1000

TSJ-1500

power(kw)

high speed shaft

7.5--11

11--15

15--22

30-37

low speed shaft

0.75

1.1

1.5

2.2

speed(r/min)

high speed shaft

1450

1450

1450

960

low speed shaft

10

10

10

10

capacity(L)

300

500

1000

1500

pump power(kw)

1.1

1.5

1.5

2.2

QLF Multi-function triple shaft mixer: QLF series

Type

QLF-5

QLF-300

QLF-500

QLF-1000

QLF-2000

QLF-5000

cylinder volume

5

300

500

1000

2000

5000

feeding volume

3

180

300

600

1200

3000

motor power

1.5x3

11x3

15x3

30x0

37x3

55x3

revolution speed(rpm)

33

33

33

23

23

23

rotation speed(rpm)

0-1500x2

0-1500x2

0-980x2

0-980x2

0-980x2

0-980x2

vacuum(Mpa)

-0.098

-0.098

-0.098

-0.098

-0.098

-0.098

Butterfly Dispersion Mixer:IDJ series

type

IDJ150

IDJ500

IDJ600

IDJ1000

IDJ1200

Tank capacity(L)

150

500

600

1000

1200

high speed motor power(kw)

11

22

22

30

37

low speed motor power(kw)

7.5

22

22

22

24/34

Disc diameter mm

200

250

280

300

300

butterfly diameter mm

570

860

960

1160

1260

speed of high shaft r/min

1470

1470

1470

1470

1470

speed of low shaft r/min

700

950

1000

1100

1100

range of up and down mm

200

250

300

450

450

 4. Application:

IDA Bakete Bead Mill is widely applied in production of paint, dye, ink, magnetic material, pesticide, ceramic, paste, adhesion etc. With high quality and reasonable price, IDA Basket grinding bead mill has won smile from clients over 10 countries. IDA horizontal sand mill has been a wise choice for owners of paint, dye, ink factories.

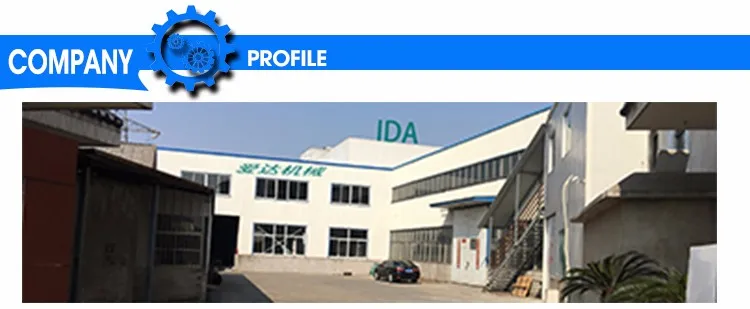

Company Information

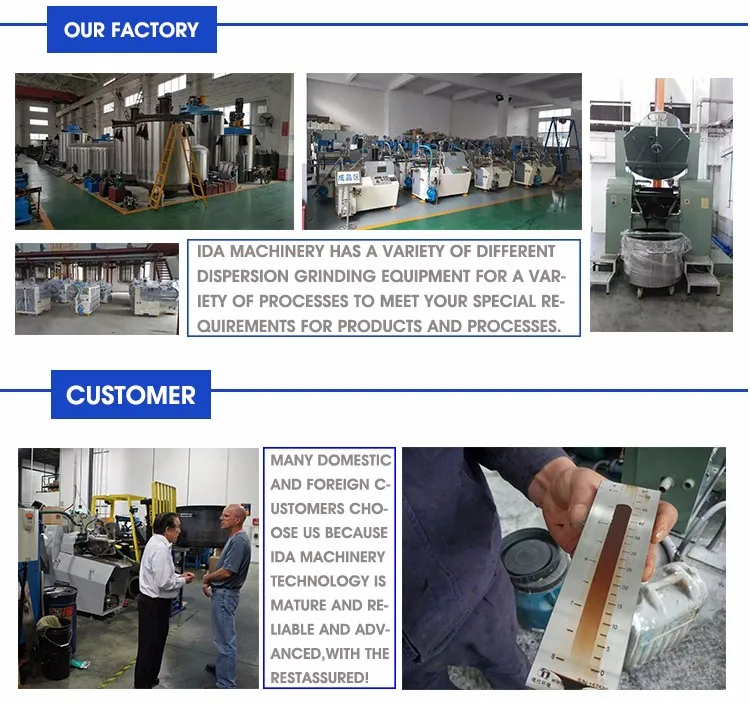

IDA machinery is a professional engaged in fluid & powder equipment Research and development , design, manufacturing, sales and service as one of the integrated high-tech enterprises. Our company's main products are dispersing equipment, mixing equipment, grinding equipment, emulsifying equipment and complete sets of production lines, to provide our customers with industrial grade high standard of professional products and quality services. Widely used in industries and fields as follows : Paint & coatings, inks, dyes and pigments, flavors and fragrances, food, papermaking chemicals, medicine, cosmetics, pesticide, resin, rubber, lithium battery materials, building materials, lubricants, adhesives, surfactants, hard material & ceramic materials, electronic chemicals, oil field chemicals. IDA machinery for various process has a variety of grinding equipment has to meet your special requirements for products and processes are different. Many domestic and foreign customers choose us because IDA machinery technology is mature and reliable and advanced, with the rest assured!



Packaging & Shipping





Our Services



Pre-Sale Service: IDA engineer team could provide you with design of complete production line. We are owning modern Nano Laboratory and could help clients do test run of your material, generate lab report and guide your actual production.

On-Sale Service: IDA factory will manufacture the good quality disperser.

After-sale Service: IDA engineers will be sandby for 24 hrs to provide you with prompt solution. We could send technicians to your factory to help you install the disperser and sand mill, train your workers to operate and help with the debugging.

All wear parts of IDA disperser and sand mill is available at any time you need. Our engineer will provide you with spare parts scheme before sending the grinding mill to help you know when it is needed to change the parts so that to avoid any delay of production due to mill parts.
