On Sale photo frame cnc woodworking cutting machine wood carving router

FOB Reference Price:Get Latest Price
$1,000.00 - $8,900.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
senke
Certification:
CO,FORMA ,FORME,FTA available
body structure:
steel made/t-support optional
dargon gate:
aluminum/steel choose
table:
vacuum table
spindle:
aircooling/watercooling
gear rack:
taiwan miko brand
control system:
nc-stuido/DSP/SYNTEC
motor:
stepper/servo optional
drivers:
leadshine/yako/servo optional
colour:
customized
size:
customized
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1.5 year
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
export wooden box
Port
tianjin/shanghai
Lead Time :
within 10 working days after payment

Specifications

wood carving router
1.Water/Air cooled spindle,optonal
2.manufactuer supply directly
3.OEm supply

        wood carving router


Product Description



Features:

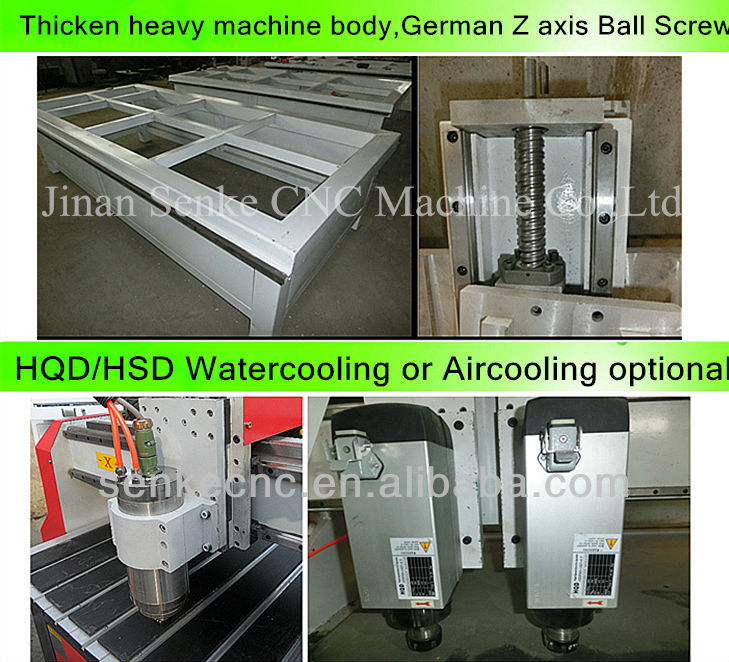

1. X,Y axes transmission with gear rack, Z Germany ball screws, ensures stable and smooth movement of the machine.
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.

4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press






Techncial parameters:
Discription
Parameter
SKW-1325
SKW-1530
SKW-2040
Option
Working Area (X*Y*Zmm)
1300*2500*200mm
1500*3000*200mm
2000*4000*200mm
Sizes
customized
Body structure
Steel tubes
X, Y Structure
rack and pinion drive
Z Structure
Ball Screw/option gear wheel
X, Y Resolution
<0.01mm
Max Moving Speed
32000mm/min
Max Engraving Speed
20000mm/min
XYZ traveling positioning accuracy
0.03/300mm
XYZ repositioning accuracy
0.03mm
Spindle power
3kw/4.5kw/5.5KW/8KW(can be choices)
Spindle Speed
6000-18,000rpmrpm
Table style
Fixture/option vacuum table
Dust collection
Can add or not
Voltage
AC220V/50Hz
Drive type
Stepper/Option:servo
Working Dictate
G Code ,HPGL
Operating system
Dsp System/option syntec or LNC
Interface
USB
Flash memory
128M(U Disk)
Software Compatability
Type3/Ucancam Artcam
Running Enviroment
Temperature: 0-45



Rotary Axis--need know the length and diameter of your cylinder materials
  Applicable industrial:

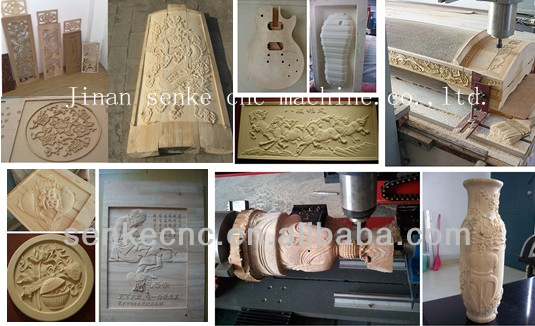

It is suitable for the wave board processing, wooden door, screen, craft, window processing and different kinds of furniture assistance processing. Also suitable for the aluminium board, plastic board, artificial marble as well as the light metal industry


Packaging & Shipping






Our Services

  Guarantee & After Sales Service:
1.One and a half years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Free training course at our plant.
3.24 hours on line service (MSN,Skype,Email ) every day, free technical support.
4.Machine has been adjusted before delivery , operation disk was included
