Operated V-type powder mixer for granulated powder

FOB Reference Price:Get Latest Price
$599.00 - $6,999.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
CWV-
Lead Time:
Quantity(Sets) 1 - 30 >30
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Max. Loading Volume (L):
750 L
Barrel Volume (L):
800 L
Mixer Type:
Screw, V - type effective mixer
Max. Loading Capacity:
10000L
Weight (KG):
1000 KG
Condition:
New
Product Type:
Detergent Powder
Application:
Powder, Powder, Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Additional Capabilities:
Milling
Place of Origin:
China
Brand Name:
CWJX
Voltage:
220V/380V/440V
Dimension(L*W*H):
variable
Certification:
ISO,CE
Power (kW):
5.5 kW
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Key Selling Points:
High Safety Level
Applicable Industries:
Machinery Repair Shops, Food & Beverage Factory, Food Shop
Product name:
V-type mixer
Material:
Stainless Steel 201/304 / SUS316L
Machine Type:
V-type/shape equipment
Capacity:
50L---10000L
Rotation speed:
0-8000r/min
Function:
Chemical powder copper particle mixing machine
Weight:
200~5000kg
Application scope:
powder mixing equipment
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
300 Set/Sets per Month

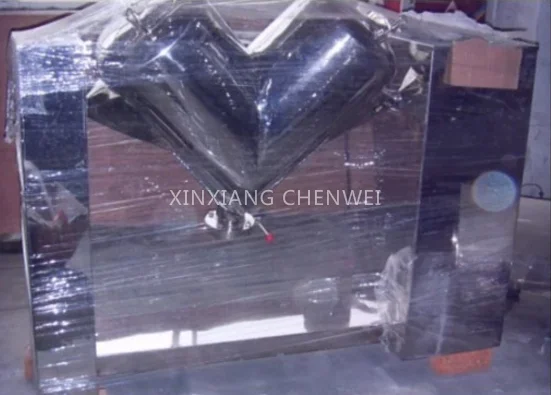

Packaging & Delivery
Packaging Details
Operated V-type powder mixer for granulated powder: Export standard plywood packages are supplied with well packed.(For V type Mixer)
Port
Qingdao/Shanghai/Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 30 >30
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Introduce.

 The machine applied to good liquidity dry powder and granular material mixing in pharmacy industry, chemical industry, food industry. This machine mixing cylinder structure special, efficiency is high, no blind angle,material adopt stainless steel, wall polishing treatment, nice appearance,equally mixing, can as per customer's request equip mixer, it can applied to fine powder material mixing.

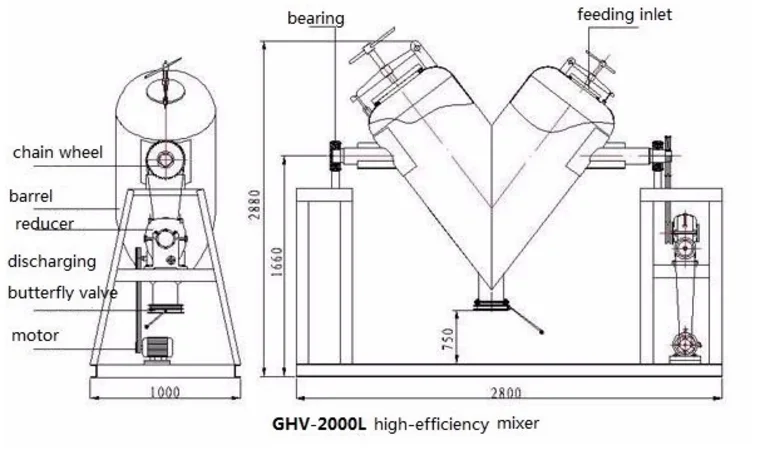

Technical parameter.

Model
CWV-500
CWV-1000
CWV-1500
CWV-2000
CWV-2500
CWV-3000
CWV-4000
Volume(CBM)
0.5
1.0
1.5
2.0
2.5
3.0
4.0
Capacity kg/batch
100
250
400
600
800
1200
1500
Mixing time (min)
6-12
6-15
8-20
8-20
8-20
8-20
10-30
Turning speed
12
12
12
12
12
12
10
Power (kw)
2.2
4
4
5.5
7.5
11
15
Weight (kg)
550
900
1200
1400
1800
2100
2800

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Advantage.

1) Compact structure, operation simple, maintenance convenience.
2)All parts contact with materials are all made of high quality stainless steel, and the inside wall and outside wall of the mixing vat are mirror polished, easy to wash, no pollution, meet the GMP standard.
3)The machine adopts V type asymmetric mixing vat to compound, no dead angle, no accumulation of materials, high speed, and short mixing time, high uniform mixing.
4)Running steady, no noise.
5)The machine is equipped with a timing device, it can set mixing time to realize automatic stop.

Application.

1.Suitable for the powder, the particle, add the lubricant, bind the mixing of pharmaceutical, spices, etc...
2.Can join the vacuum system with enter the material automatically, or connect oscillator by automatic granulation take shape and operate airtight.
3.Enclose the time-recorder and automatically control and mix time

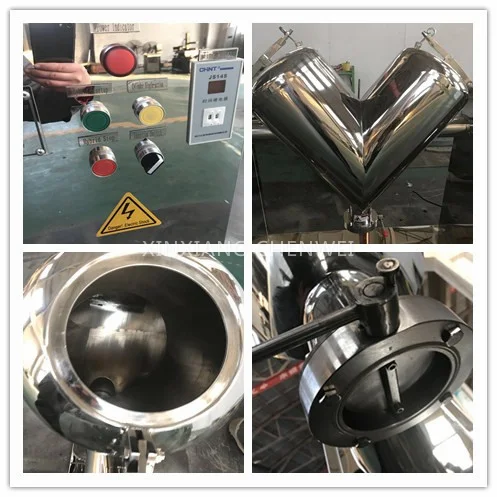

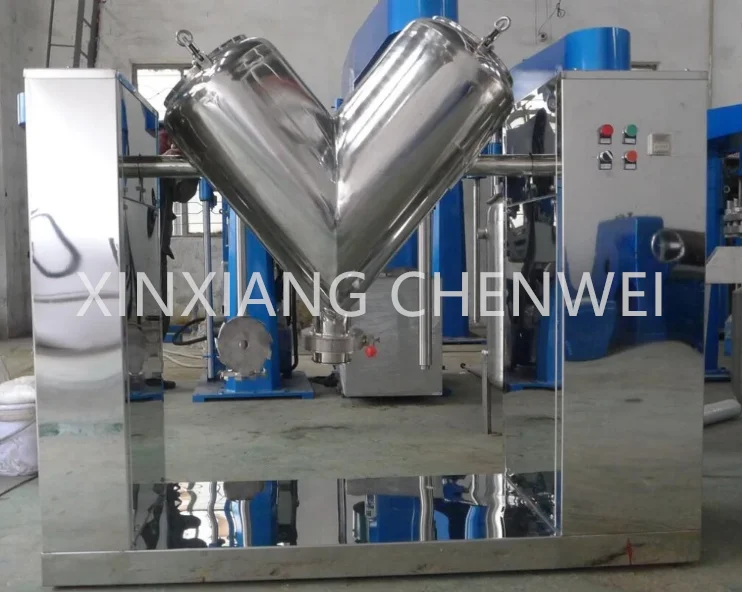

Detailed Images
