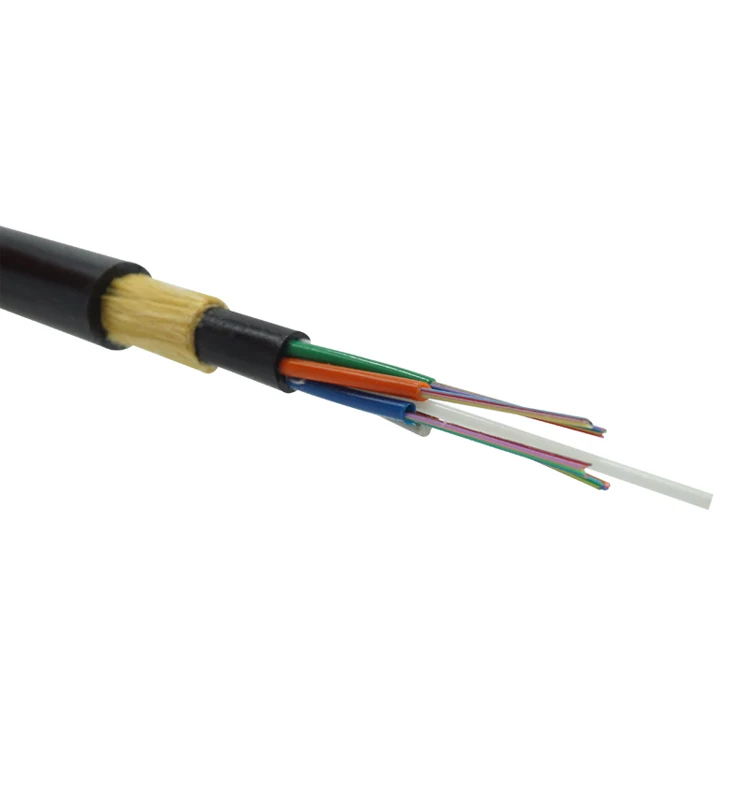

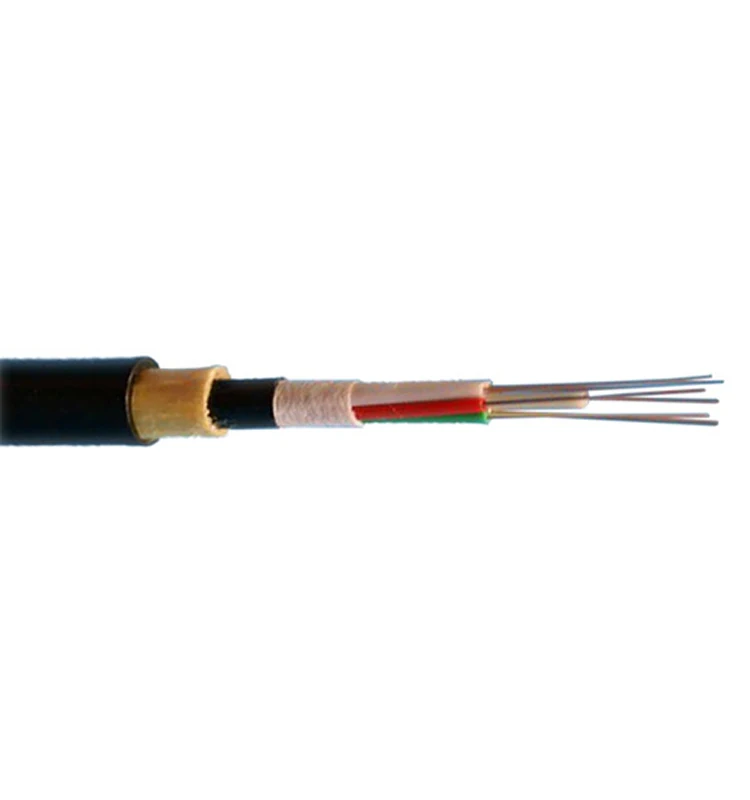

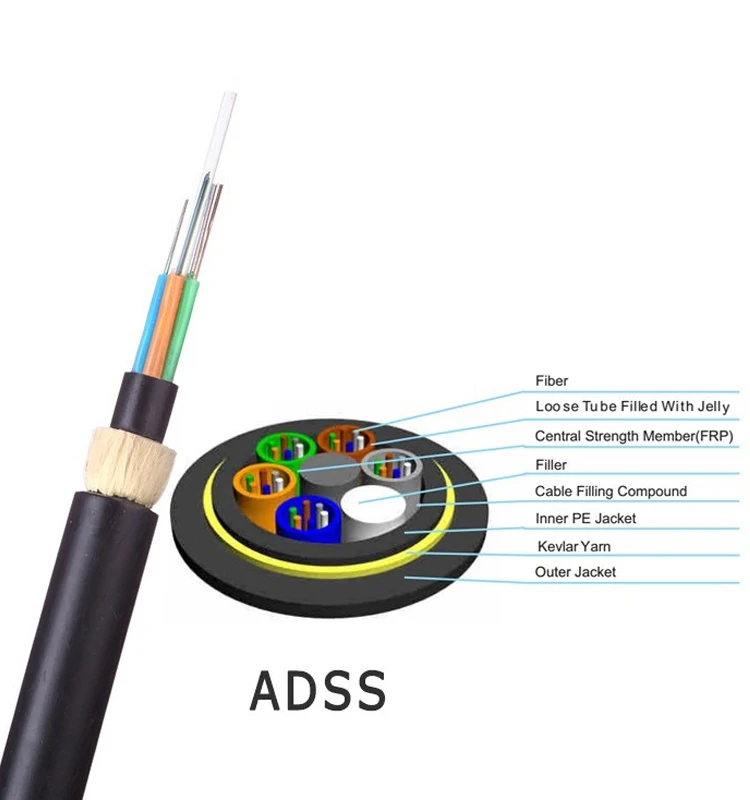

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features: Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment. Excellent mechanical performance Good flexibility and bending performance Small outer diameter, lightness and compact construction
No. of Fibers
Max No. of Fibers/Tube
No. of Tube(+Fillers)
G.652D G.655 G.657 OM1 OM2 OM3 OM4
Max .Allowable Tension
Short Term :3500N Long Term:100N MAT:3.5Kn RTS:9.0Kn Wind Speed: ≤30m/s Ics:0mm
