Optical Fiber Huawei GPON ONU Gpon Huawei HG8245 gpon onu configuration

FOB Reference Price:Get Latest Price
$20.00 - $45.00 / Unit | 100 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Huawei
Model Number:
HG8245 C+
Product name:
Huawei GPON ONU HG8245
Type:
Router
Configuration:
4GE+2POTS+1USB+WIFI
Fiber Type:
GPON
Color:
Black
Dimension:
195 mm x 174 mm x 34 mm
Packing:
20pcs/ctn
G.W.:
20kg/ctn
Name:
gpon onu configuration
Supply Ability
Supply Ability:
5000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Original Huawei Carton Packaging
Port
GuangZhou/ShenZhen/HongKong
Lead Time :
7-10 working days when received deposit
Product Description

Optical Fiber Huawei GPON ONU Gpon Huawei HG8245 gpon onu configuration

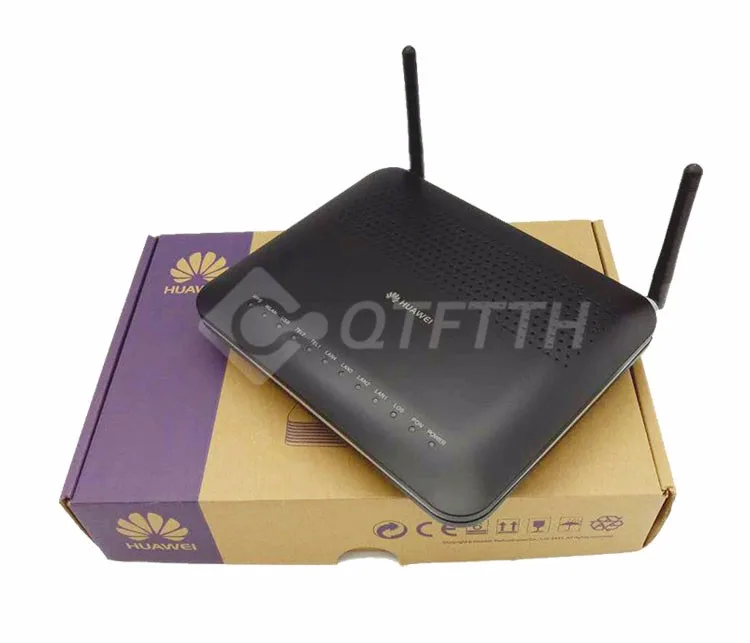

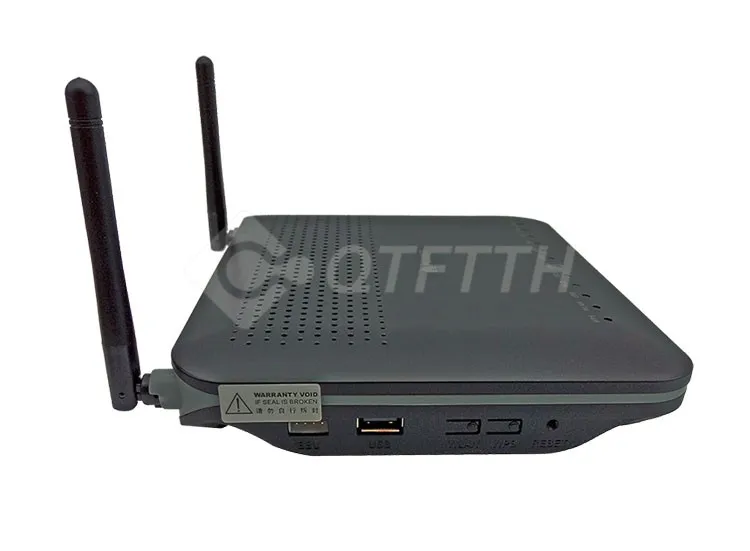

The EchoLife HG8245, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8245 provides two POTS ports, four GE/FE auto-adapting Ethernet ports and one Wi-Fi port. The HG8245 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8245 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

Huawei GPON ONU HG8245 Product Specifications

*Dimensions(W x D x H):195 mm x 174 mm x 34 mm

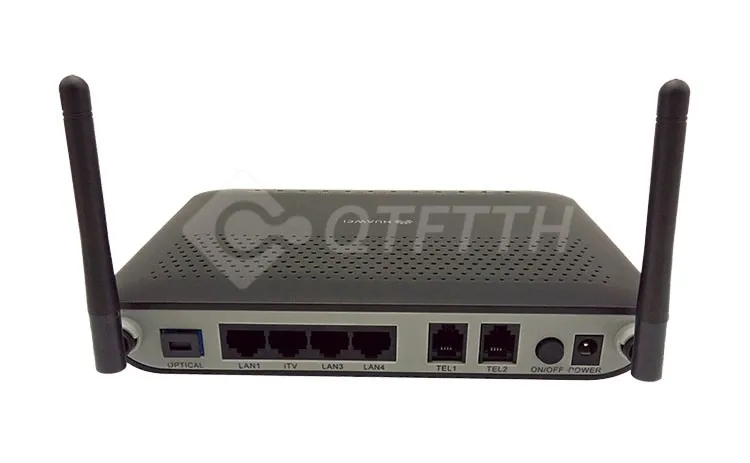

*Port:2POTS+4GE+1USB+1Wi-Fi

*Average power consumption:8 W

*Operating environment:Temperature: 0℃~+40℃;

*Humidity: 5%–95%, non-condensing

*Power supply:Adapter input: 100–240 V AC, 50–60Hz;

*Adapter output: 11–14 V DC, 2 A

*Weight:About 550g (including the power adapter)

Product Highlights


1.Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.

2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.

3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.

5.Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.

GPON features

*Class C+ optical module

*Security authentication mode: SN,
password or SN+password

*Upstream/downstream FEC

Routing features

*NAT function

*Internet, IPTV and VoIP services are automatically bound to ONT ports

*Virtual server, port trigger, DMZ,and DDNS

Reliability features

*Dual systems for software protection

*Type B protection and rogue ONT detection

*Lithium battery backup and backup battery monitoring

Maintenance features

*Local management using Web and remote management using TR069 and OMCI

*Optical power monitoring

*802.1ag Ethernet OAM

*Loop-line test of POTS ports,call emulation and PPPoE dialup emulation

Green engery-saving features

*Dynamic power consumption adjustment

*With a backup battery, the guaranteed services can be selected flexibly

Voice features

*SIP and H.248 protocols

*Media stream and signaling stream separation

Multicast features

*IGMP V2&V3 snooping/IGMP proxy

Wi-Fi features

*802.11b/g/n, certified by the Wi-Fi Alliance

HG8245


English Version/Software


All products we supplied are English version and Original.

Euro Plug

US Plug

Related Products

Huawei EPON ONU


HG8347R
Configuration : 1GE+3FE+1POTS+1USB+WIFI
Fiber Input Port : SC/UPC

Huawei GPON ONU


HG8310M
Class : B+/C+
Configuration : 1GE
Fiber Input Port : SC/UPC

Huawei GPON ONU


HG8546M
Configuration : 4FE+1POTS+1USB+WIFI
Fiber Input Port : SC/UPC
Our Company

Guangzhou Qitong Electronics Technology Co., Ltd. located in BaiYun,GuangZhou,GuangDong,China,which is the dealer of FTTH products of Huawei,ZTE and Alcatel-Lucent.Except ONUs&OLTs,our company also provide competitive price fiber optic accessories,like splitter,patch cord,fast connector,adapter,drop cable,ftth box,SFPs...

Our main market are America like Brazil,Paraguay,Asia like Iran,Europe like Spain,Poland,Albania...


Qitong Offers You :
1.Variety Type: more than 70 type to meet your market
2. Reliable Quality: we have professional engineer test devices before shipping to ensure quality
3. Good Price: strong competitor in this market
4. Satisfied Service: customer-oriented and demand satisfied

Hot Sale Products
Huawei GPON ONU
ZTE GPON ONU
Fiber Optic Accessories
Packing & Delivery

Packing

All products are original packing,we can pack the cartons to meet your requirements as the below pictures.

HG8245 packing : 20pcs/ctn 20kg/ctn

Delivery

Normally,we will ship the goods within 7 working days when received your deposit.

We have our own shipping agent who handle with DHL,EMS,FedEx,UPS,TNT,AIR,SEA...
