Original Huawei dual band Gpon Onu Hs8145v with English version

FOB Reference Price:Get Latest Price
$21.00 - $26.00 / Unit | 100 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Huawei
Model Number:
Hs8145v
Product name:
Huawei GPON ONU Hs8145v
Type:
Router
Configuration:
4GE+1POTS+1USB+WIFI
Fiber Input Port:
SC/UPC
Fiber Type:
GPON
Color:
White
Dimension:
250 mm x 185 mm x 35 mm
Packing:
20pcs/ctn
G.W.:
13kg/ctn
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Original Huawei Carton Packaging
Port
GuangZhou/ShenZhen/HongKong
Lead Time :
7-10 working days when received deposit
Product Description

Original Huawei dual band Gpon Onu Hs8145v with English version

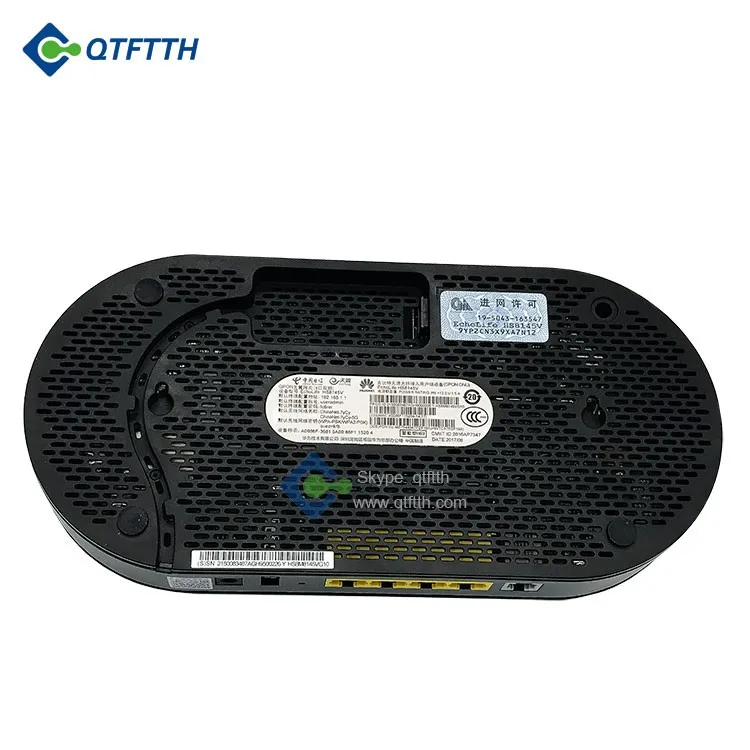

The EchoLife HS8145V, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HS8145V provides 1* POTS ports, 4* GE auto-adapting Ethernet ports, and 2* Wi-Fi port. The HS8145V features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HS8145V provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.

Huawei GPON ONU HS8145V Product Specifications

*Dimensions(W x D x H):250 mm x 185 mm x 35 mm

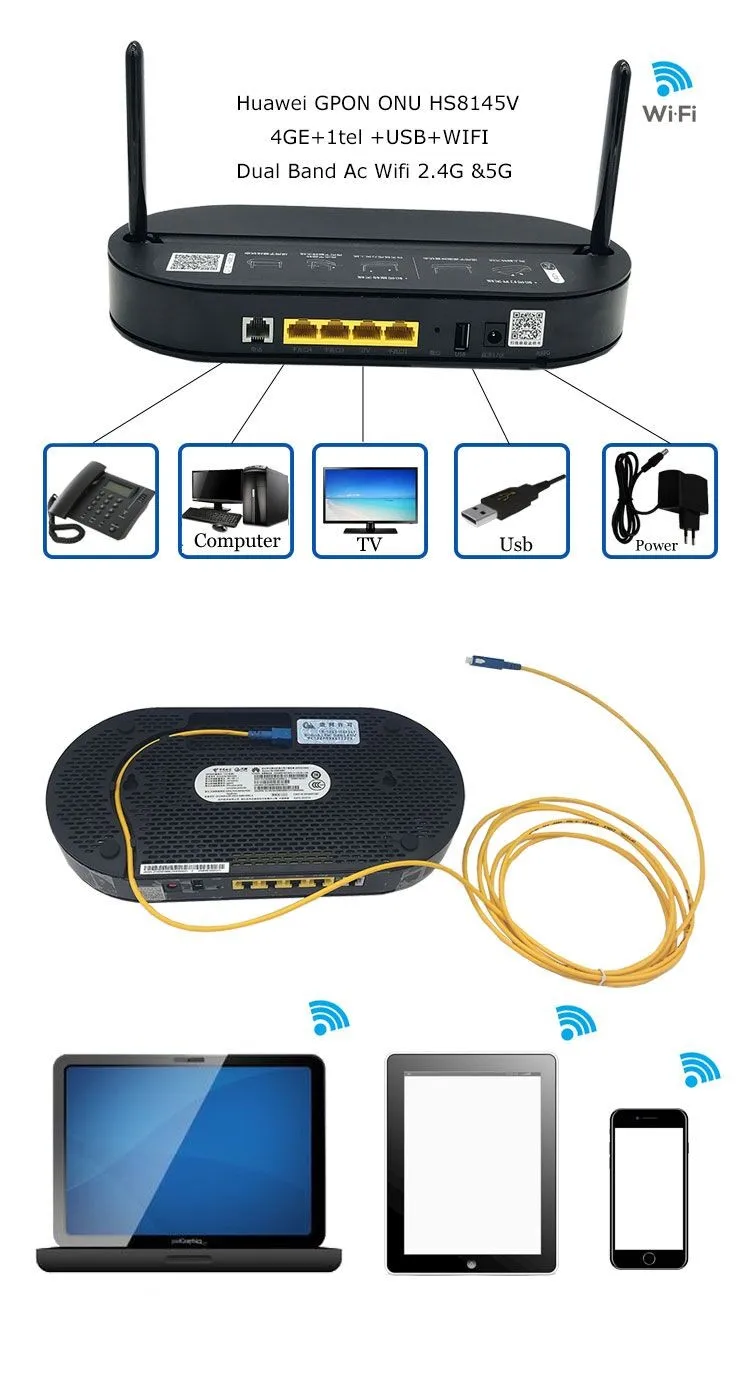

*Port:1POTS+4GE+1USB+1Wi-Fi

*Average power consumption:8 W

*Operating environment:Temperature: 0℃~+40℃;

*Humidity: 5%–95%, non-condensing

*Power supply:Adapter input: 100–240 V AC, 50–60Hz;

*Adapter output: 11–14 V DC, 1 A

*Weight:About 500g (including the power adapter)

Product Highlights

1.Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.

2.Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.

3.Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

4.High speed forwarding: GE line rate forwarding in the bridging scenario and 900 Mbit/s forwarding in the NAT scenario.

5.Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.


Quick details :

a.Place of original: China 5-7 working days after payment Guangzhou/Shenzhen/Hongkong in original Huawei package

b.Brand name: Huawei

c.Module number:HS8145V

d.Condition: Brand new

e.Power adapter: EU,US,UK,AU

f.Support : SIP,H.248,TR069

g.WLAN(2.4G):802.11 b/g/n(2.4G)

h.WLAN(5G):802.11 a/n/ac(5G)

i.Similar model: HS8546V

j.Compatible OLT: Huawei series

k.PON interface: SC/UPC

l.PPPOE:yes

m.Warranty: 1 Year

n.XPON: GPON

o.Product description:

p.The Echo Life HS8145V EPON ONU, an optical network terminal (ONT), is a high-end home  in FTTH solution. By using the EPON technology, ultra-broadband access is provided for home and SOHO users.

q.The HS8145V provides 1 POTS port, 4GE Ethernet ports,1USB port and dual band wireless,2.4G/5G,featuring high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services.

GPON features

*Class B+ optical module

*Security authentication mode: SN,
password or SN+password

*Upstream/downstream FEC

Routing features

*NAT function

*Internet, IPTV and VoIP services are automatically bound to ONT ports

*Virtual server, port trigger, DMZ,and DDNS

Reliability features

*Dual systems for software protection

*Type B protection and rogue ONT detection

*Lithium battery backup and backup battery monitoring

Maintenance features

*Local management using Web and remote management using TR069 and OMCI

*Optical power monitoring

*802.1ag Ethernet OAM

*Loop-line test of POTS ports,call emulation and PPPoE dialup emulation

Green engery-saving features

*Dynamic power consumption adjustment

*With a backup battery, the guaranteed services can be selected flexibly

Voice features

*SIP and H.248 protocols

*Media stream and signaling stream separation

Multicast features

*IGMP V2&V3 snooping/IGMP proxy

Wi-Fi features

*802.11b/g/n, certified by the Wi-Fi Alliance

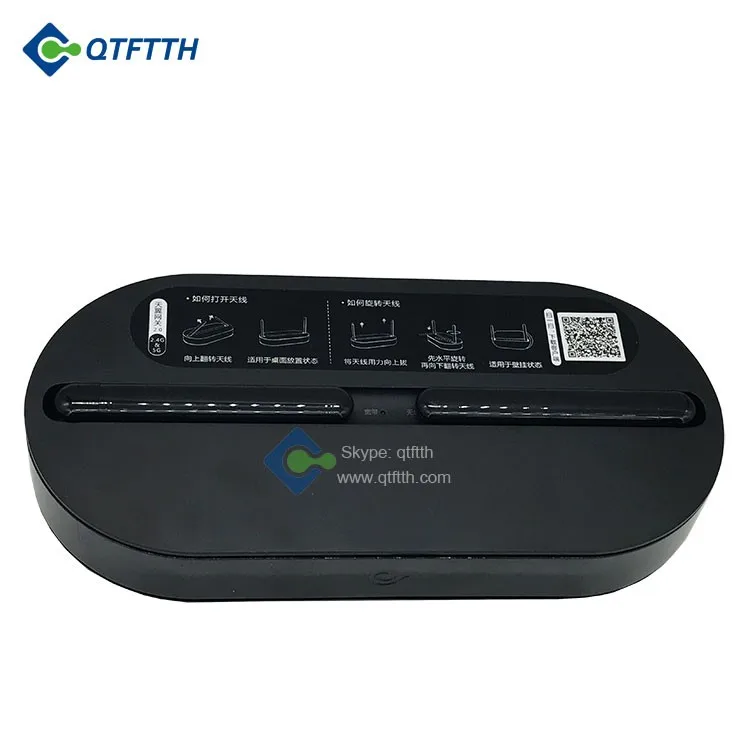

HS8145V


English Version/Software


All products we supplied are English version and Original.

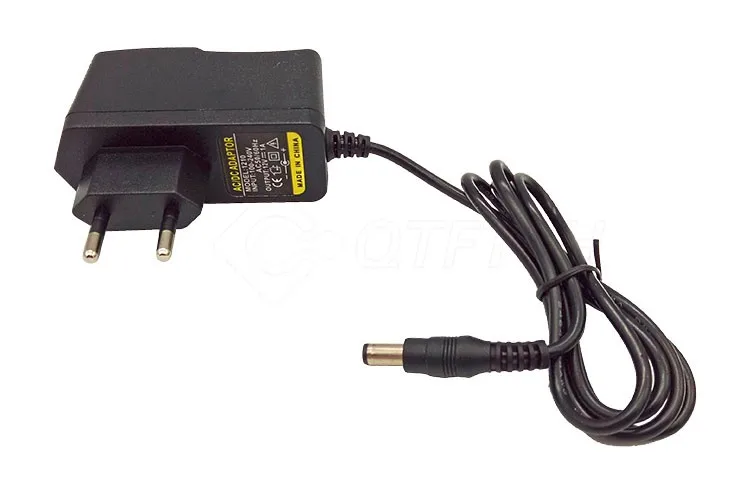

Euro Plug

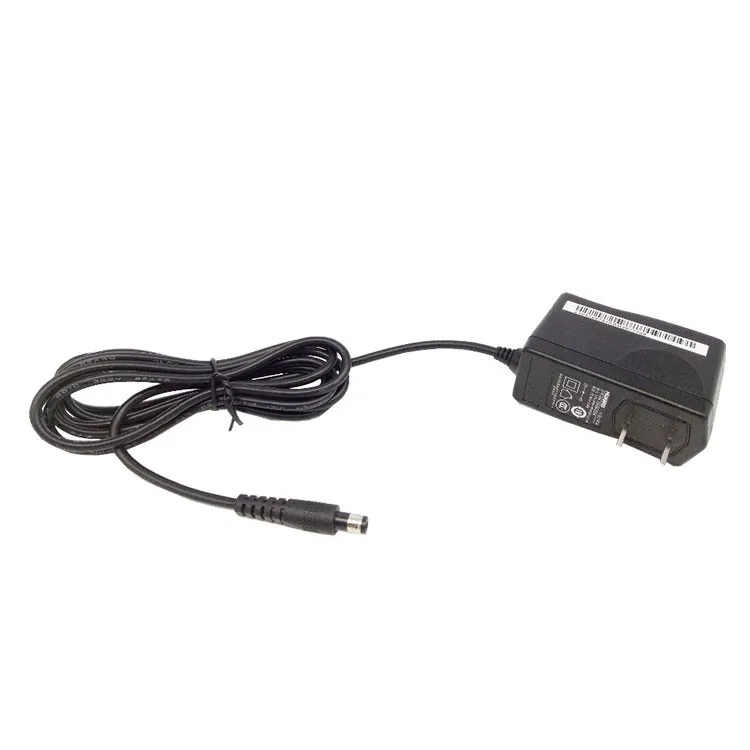

US Plug
