Outdoor ELG-200 dimmable 200W 12v DC waterproof led driver

FOB Reference Price:Get Latest Price
  • 1 - 10 Pieces
    $38.47
  • 11 - 50 Pieces
    $35.90
  • 51 - 199 Pieces
    $33.66
  • >=200 Pieces
    $32.05
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan
Brand Name:
Meanwell
Model Number:
ELG - 200 -12
Output Power:
200W
Output Type:
Single
Input Voltage:
100~ 305VAC
Output Frequency:
47 ~ 63Hz
Output Current:
0~16A
Product Name:
12v DC led driver
Application:
LED Lighting
Warranty:
5 Years
Protection:
Short Circuit/Over temperature/over voltage
Packing:
0.75kg; 16pcs/13kg/0.72CUFT
Dimmension:
244* 71*37.5mm (L*W*H)
Working Temp:
-40 ~ +90℃
Certification:
CE CB EMC UL TUV PSE
In stock:
yes
Keyword:
200w led driver
Output Voltage:
12V
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month 200w LED driver Samples always in stock
Packaging & Delivery
Packaging Details
Outdoor ELG-200 dimmable 200W 12v DC waterproof led driver
Special protective exporting carton for led driver,
packing 199 63 * *35.5mm (L*W*H), 0.75kg; 16pcs/13kg/0.72CUFT
Port
Any sea port or airport in China
Led Driver Desc

Outdoor ELG-200 dimmable 200W 12v DC waterproof led driver

ELG Series led driver Features:
 1. Bulit-in active PFC function
2. Protections: short circuit / over current / over voltage / over temperature
3. No load power consumption<0.5w
4. IP67 / IP65 for indoor outdoor installations
5. Three in one dimming functionresistance
6. 5 years warranty
7. Metal housing design
8. Typical lifetime > 50000 hours

ELG series led driver  is high-grade led driver models, metal case, IP67/IP65 design for indoor or outdoor installations. ELG built-in active PFC function, with complete protections and safety certificates (UL, CB, CE, EMC, ENEC). Built-in 3 in 1 dimming function for B- type (0~10VDC or 10V PWM signal or resistance), 5 years warranty. Applications: LED street lighting, LED architectural lighting, LED bay lighting, LED floodlighting, Class I, division 2 hazardous. This led driver combined with connectors provide a pleasing and imposing aesthetic with a unique and function design that combines modern aesthetics with the power of a high- grade product. Mean well high power AC/DC led driver range from 75 to 150 watts has been earning supreme customer’s rating for a long time.

Meanwell is a leading standard led driver switching power supply manufacturers in the world. KULON electronics is the biggest agent of “meanwell” brand in the china. We do not only provide you products, we also offer you solutions. “To be your green and energy saving power solution expert” is our goal.

Led Driver Paramet
Model
ELG-200-12
ELG-200-24
ELG-200-36
ELG-200-42
ELG-200-48
ELG-200-54




OUTPUT
DC VOLTAGE
12V
24V
36V
42V
48V
54V
CONSTANT CURRENT REGION
6~12V
12~24V
18~36V
21~42V
24~48V
27~54V
RATED CURRENT
16A
8.4A
5.55A
4.76A
4.16A
3.72A
Rated POWER
192W
201.6W
199.8W
199.9W
199.68W
200.88W
RIPPLE & NOISE (max.)
150mVp-p
200mVp-p
250mVp-p
250mVp-p
250mVp-p
350mVp-p
CURRENT ADJ. RANGE
Can be adjusted by internal potentiometer A type only
SETUP, RISE TIME
500ms, 100ms at 95% load 230VAC
MODEL
ELG-200-12
ELG-200-24
ELG-200-36
ELG-200-42
ELG-200-48




INPUT
VOLTAGERANGE
100 ~ 305VAC 142 ~ 431VDC
FREQUENCYRANGE
47 ~ 63Hz
EFFICIENCY
90%
92%
92%
92.5%
93%
AC CURRENT
1.8A / 115VAC 1.2A / 230VAC 1.0A/277VAC
INRUSH CURRENT
COLD START 60A(twidth=510 s measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC
POWER FACTOR
PF≥0.97/115VAC,PF≥0.95/230VAC, PF≥ 0.92/277VAC at full load
TOTAL HARMONIC DISTORTION
THD< 20% when output loading 50% at 115VAC/230VAC input and output loading 75% at 277VAC input
Model
ELG-200-12
ELG-200-24
ELG-200-36
ELG-200-42
ELG-200-48
PROTECTION
SHORT CIRCUIT
95 ~ 108%, Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
28~34V
41~48V
47~54V
54~62V
62~72V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down


ENVIRONMENT
WORKING TEMP
-40 ~ +95°C (Refer to Derating Curve)
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP,HUMIDITY
-40 ~ +80C, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/QC (0 ~ 50C)



SAFETY EMC
SAFETY STANDARDS
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP65 or IP67, J61347-1, J61347-2-13 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC EMISSION
Compliance to EN55015, EN61000-3-2 Class C ( 60% load) ; EN61000-3-3
Led Driver Certify
Led Driver APP

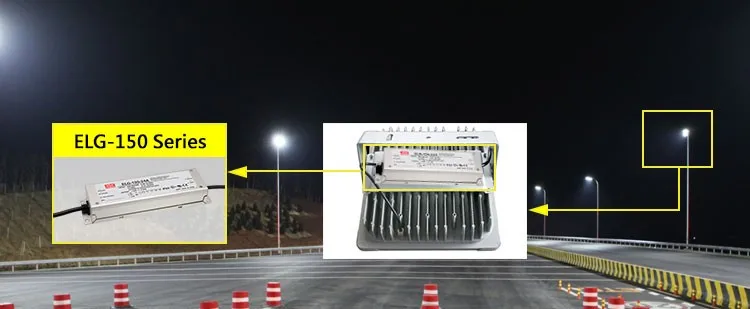

ELG series led driver is suitable for :

1. LED street lighting

2. LED bay lighting

3. LED architectural lighting

4. LED floodlighting

Packing&Delivery

Outdoor ELG-200 dimmable 200W 12v DC waterproof led driver

Related Led Driver

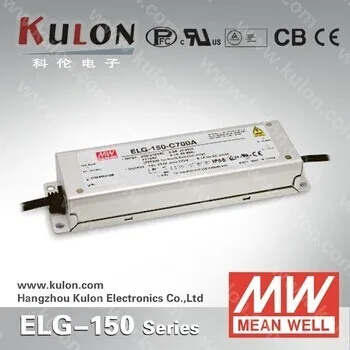

ELG Series Led Driver

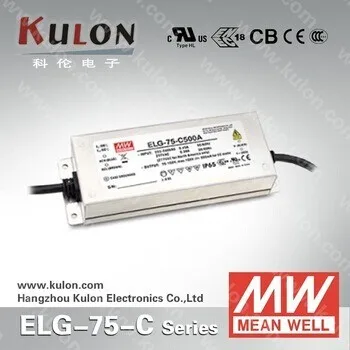

ELG Series Led Driver

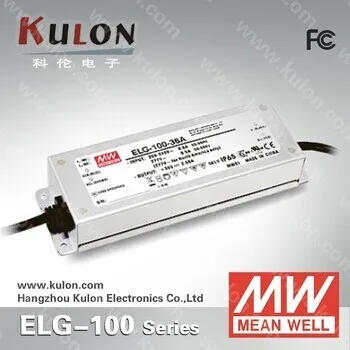

ELG Series Led Driver

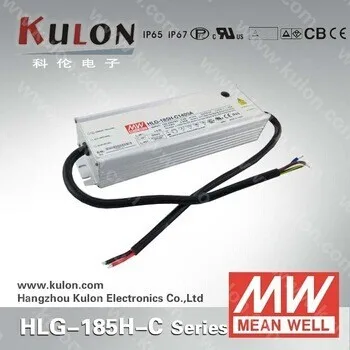

HLG Series Led Driver

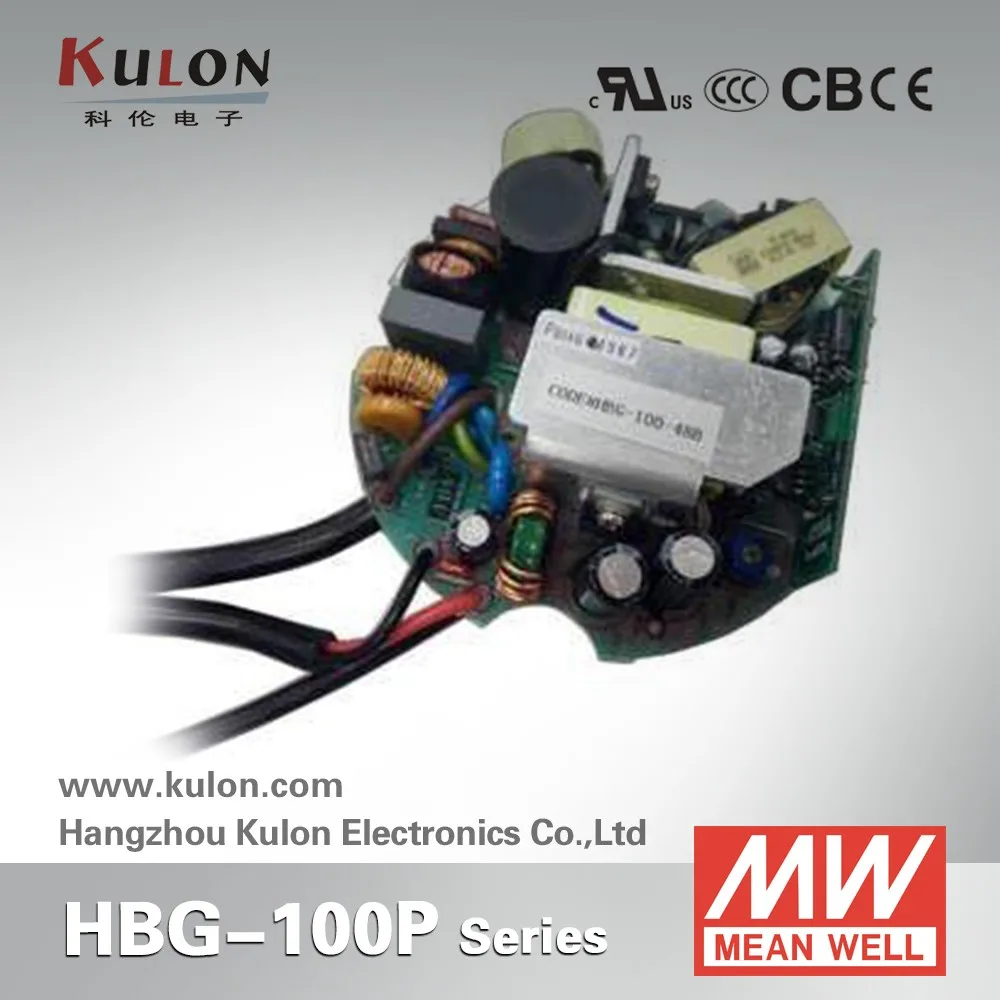

HBG Series Led Driver

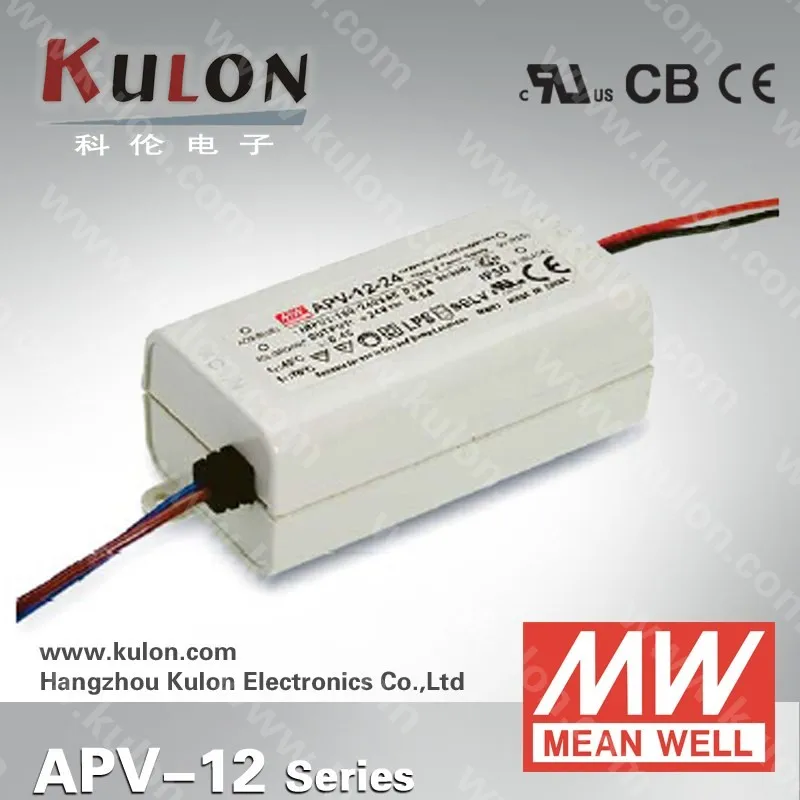

APV Series Led Driver

FAQ

How to choose a right Mean well LED driver Switching Power Supply?

A.To increase the reliability of the S.P.S., we suggest users choose a unit that has a rating of 30% more power than actual need.
For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system

B. Choosing functions based on your application:
1. Protection function: Over Voltage Protection (OVP), Over Temperature Protection (OVP), Over Load Protection (OLP), and etc.
2. Application function: Signaling Function (Power Good, Power Fail), Remote Control, Remote Sensing, and etc.
3. Special function: Power Factor Correction (PFC), Uninterruptible Power Supply (UPS) function.
