Outer size 134x69mm MPG Hand encoder manual electric pulse generator

FOB Reference Price:Get Latest Price
$1.00 - $130.00 / Pieces | 5 Piece/Pieces electric pulse generator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
TM1469
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Digital Sensor
Outer size:
134x69mm
Votage:
dc 5V, dc 5~26V
Output form:
Line driver (26LS31)
Resolution:
25,100 PPR
Protection Class:
IP50
Material:
Plastic shell
Operating temperature:
-25~75 ℃
Product name:
Manual pulse generator
Wire length:
4.5m
Application:
CNC machine
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day MPG hand encoder
Packaging & Delivery
Packaging Details
Standard Strong Export Carton Box
According To Your Needs
Port
Shanghai
Lead Time :
Shipped in 8 days after payment
Product Description

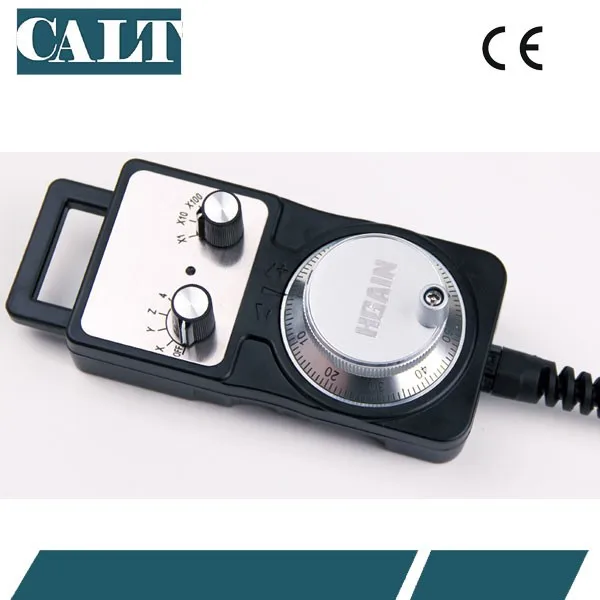

Outer size 134x69mm MPG Hand encoder manual electric pulse generator

For CNC machine origin correction and signal split.


 Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.

Output circuit
Open-collector output
Voltage output
Push-pull complementary outputs
driver
Supply voltage
5~26V
5~26V
5±0.25 5~26V
5±0.25 5~26V
Current consumption
≤80mA
≤80mA
≤80mA
≤150mA
Load current
40mA
40mA
40mA
60mA
Output high
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Output low
MAX 0.4V
MAX 0.4V
MAX 0.8V
MAX 0.4V
Rise time Tr
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Fall time Tf
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Highest frequency response
10kHz
10kHz
10kHz
10kHz
Max speed r/min
Starting torque
Axis maximum load
Impact
Anti-vibration
6000
<0.05Nm
Radial 25 N Axial 15N
50G/11ms
10G 10-2000Hz
Moment inertia
Work Temperature
Storage Temperature
Protection Degree
Weight
4 x 10.-8kgm²
-25~75ºC
-25~85ºC
IP50
250g
Related Products

Solid shaft type GHS38 Series.

Widely used in automatic control, automatic measurement, as the angle and speed sensors.


ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water

Servo-motor Encoder GSM48 Series.

Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.


Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning.  With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

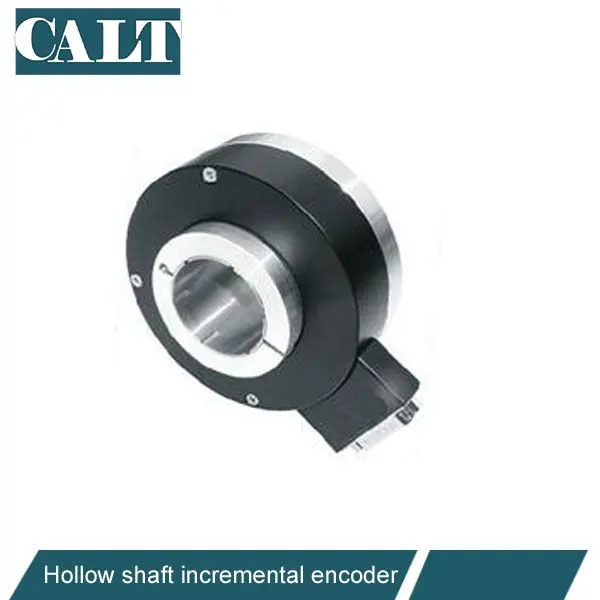

Hollow Shaft Type GHH38 Series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Hollow Shaft Type GHH100 series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

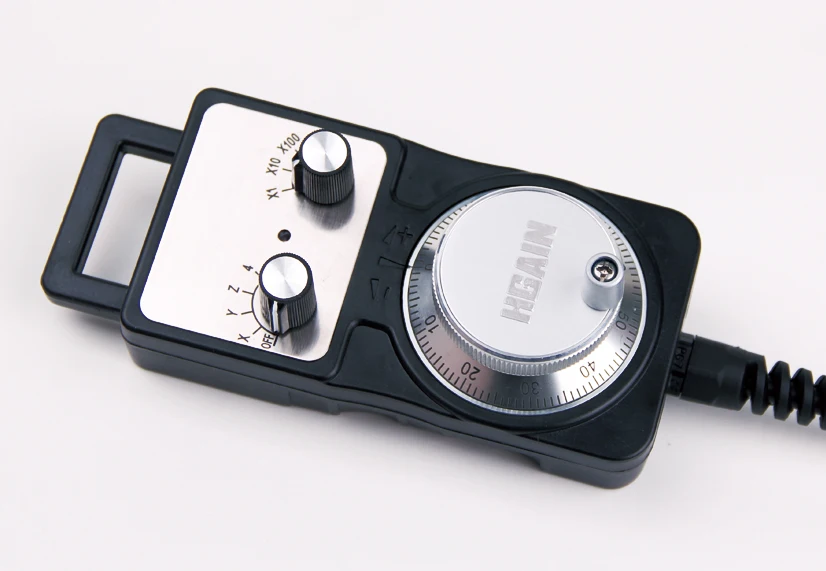

Manual Pulse Generator TM1469 series.

For CNC machine origin correction and signal split.


 Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.

Draw-wire Position Sensor CESI series.

compact size, rugged construction, easy to install

economic cost, and cost savings for customers
Various signals output optional: push-pull, TTL, open collector and so on


The cylinders, testing machines and other industry has achieved large-scale applications, reliability

Our Factory
Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box
4. Ziplock packed for flexible coupling
5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.
