PE PP PVC POF CPP OPP Plastic Film Bag Flexographic Printing Machine

FOB Reference Price:Get Latest Price
$3,000.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YT
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Plate Type:
Flexo Printer
Color & Page:
Multicolor
Certification:
CE, ISO,SGS
Gross Power:
8kw
Usage:
Paper Printer, Label Printer, Card Printer, Film Printer
Type:
Flexographic Printer
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Ruixin
Automatic Grade:
Automatic
Voltage:
380V /220V/415V
Dimensions(L*W*H):
2300x1600x2200
Weight:
1200kg
Name:
Flexographic Printing Machine
Application:
plastic Film ,Roll Paper ,
Anilox roller:
Metal Roller
Material:
Pe Opp Bopp Paper
Printing type:
Flexo Press
Keyword:
Flexografic Printing Machine
Doctor blade:
Optional
Plate Thickness:
2.28mm
Tension:
Magnetic Powder Breaker
Color:
red /white/blue
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case package or Wrapping film package well
Port
Ningbo ,Shanghai
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 10 To be negotiated
Product Description

PE PP PVC POF CPP OPP Plastic Film Bag Flexographic Printing Machine:

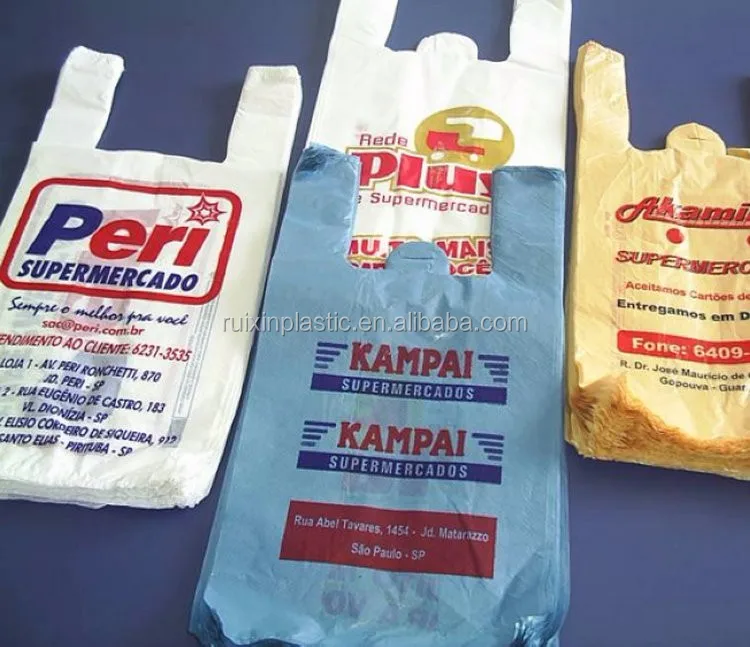

The Flexographic Printing Machine is used to print such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, t-shirt bag and clothes bag, etc.

Performance and Characteristics:

1. Easy operation, flexible starting, accurate color register.

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity        or when the material is cut off.

3. The printing cylinder lift and lower, is will stir the printing ink automatically after lifting.

4. The printing ink is spread by the knurled cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 360°continuous and adjustable longitudinal register device.

7. The frequency control of motor speed adapts to different printing speeds.

8. There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Model
YT-2-600
YT-2-800
YT-2-1000
Max printing width
560mm
760mm
960mm
Max Roll width
600mm
800mm
1000mm
Max printing length
180mm-1200mm
180mm-1200mm
180mm-1200mm
Printing Speed
0-60m/min
0-60m/min
0-60m/min
ACCuracy Of registration
±0.2mm
Thickness of plate
2.28mm
2.28mm
2.28mm
Raw Material
PE ,PP ,PVC ,POF ,CPP ,OPP, PET ,Paper
Main Motor
2.2KW
2.2kw
3kw
Inverter
2.2kw
2.2kw
3kw
ink motor
0.75
0.75
0.75
Total Power
8kw
10kw
12kw
Weight
1200KG
1600KG
2000KG
Overall dimession
2300x1600x2200
2300x1800x2200
2300x2000x2200

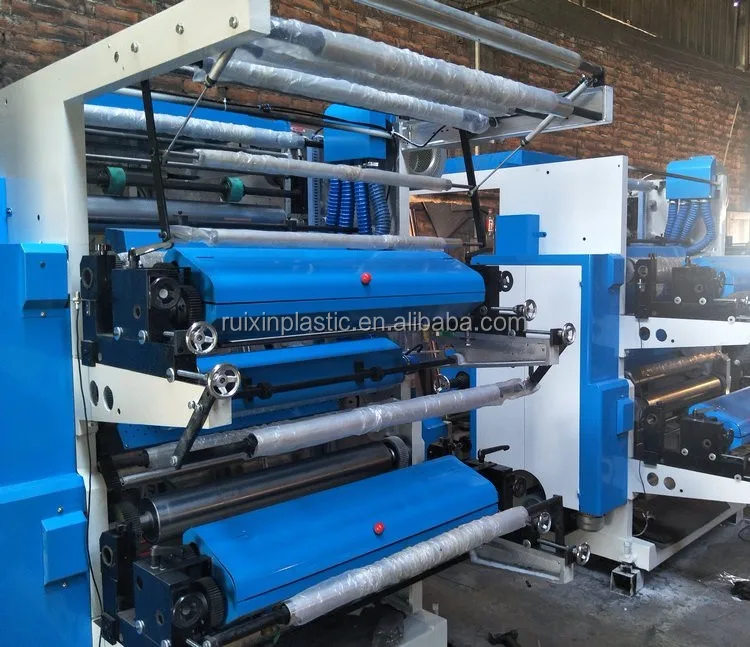

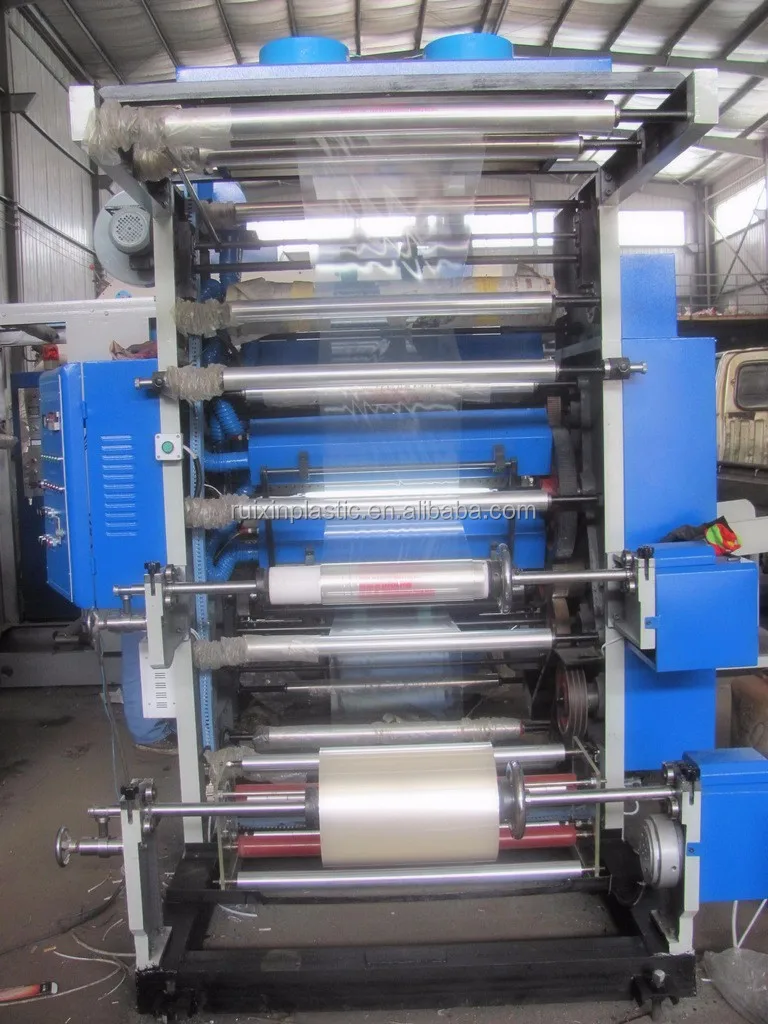

Products Show
Our Service

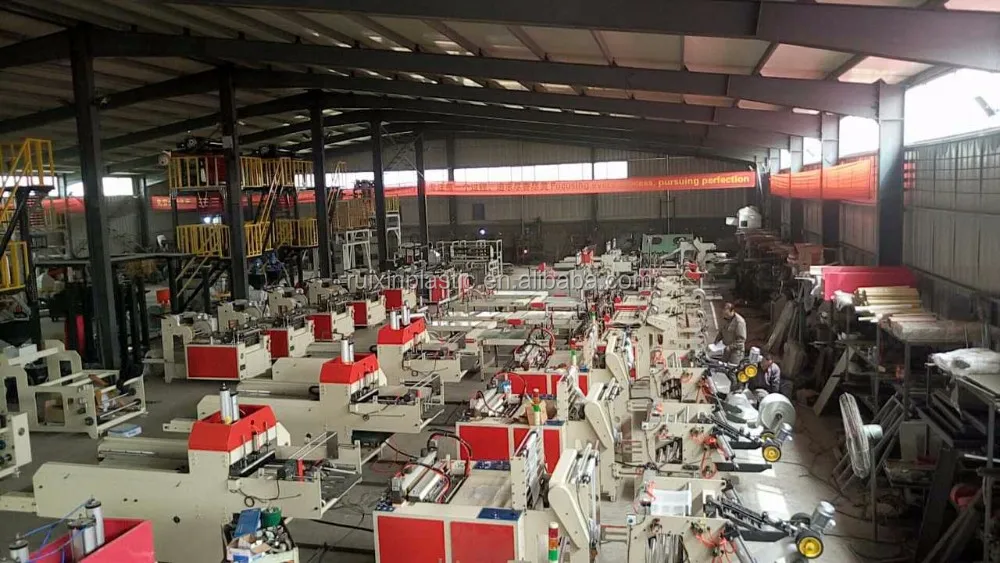

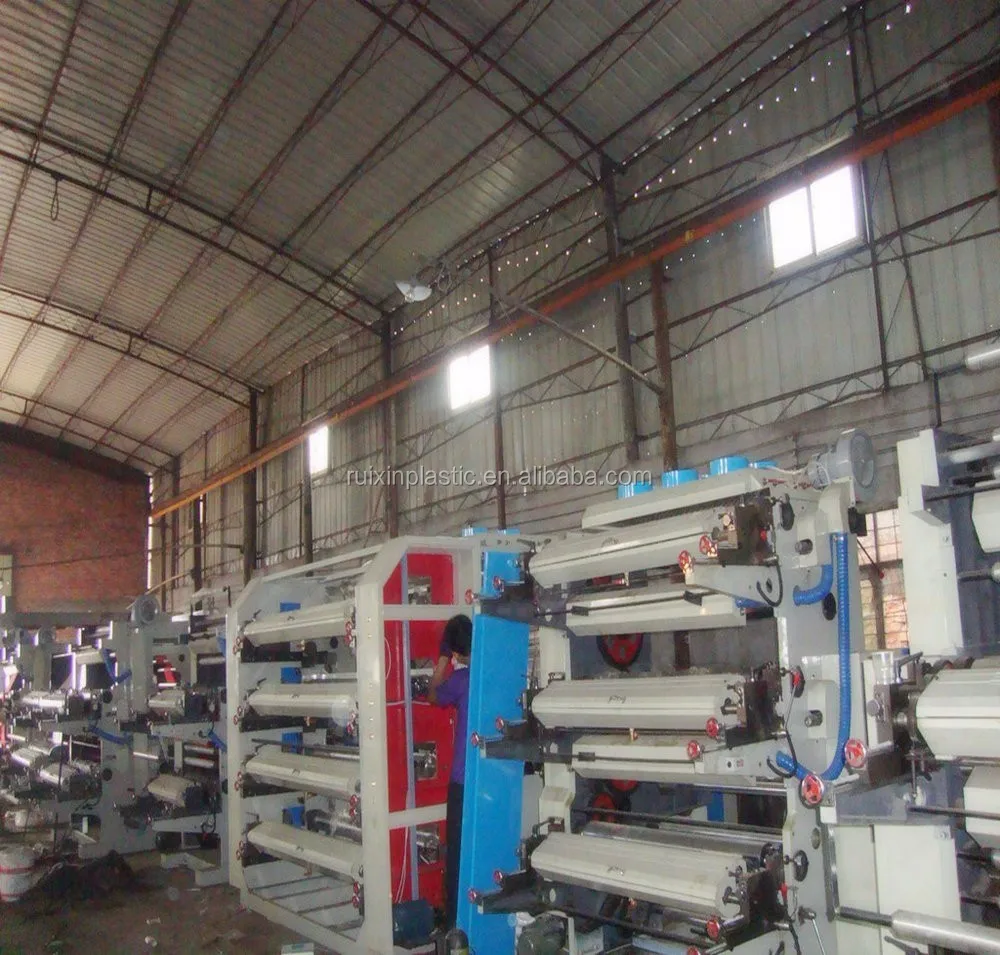

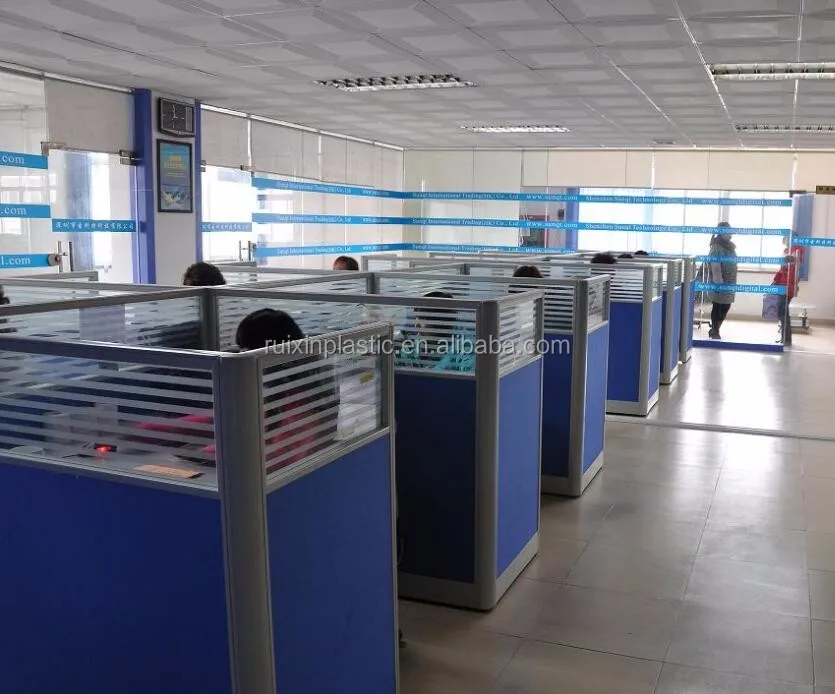

Our Company

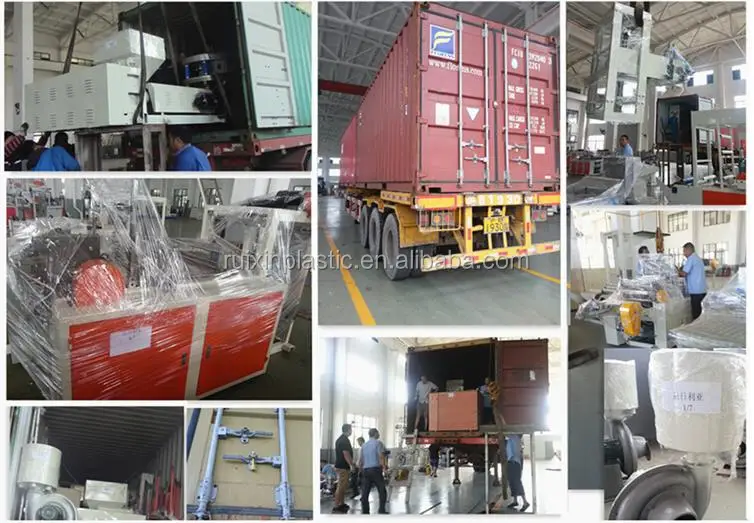

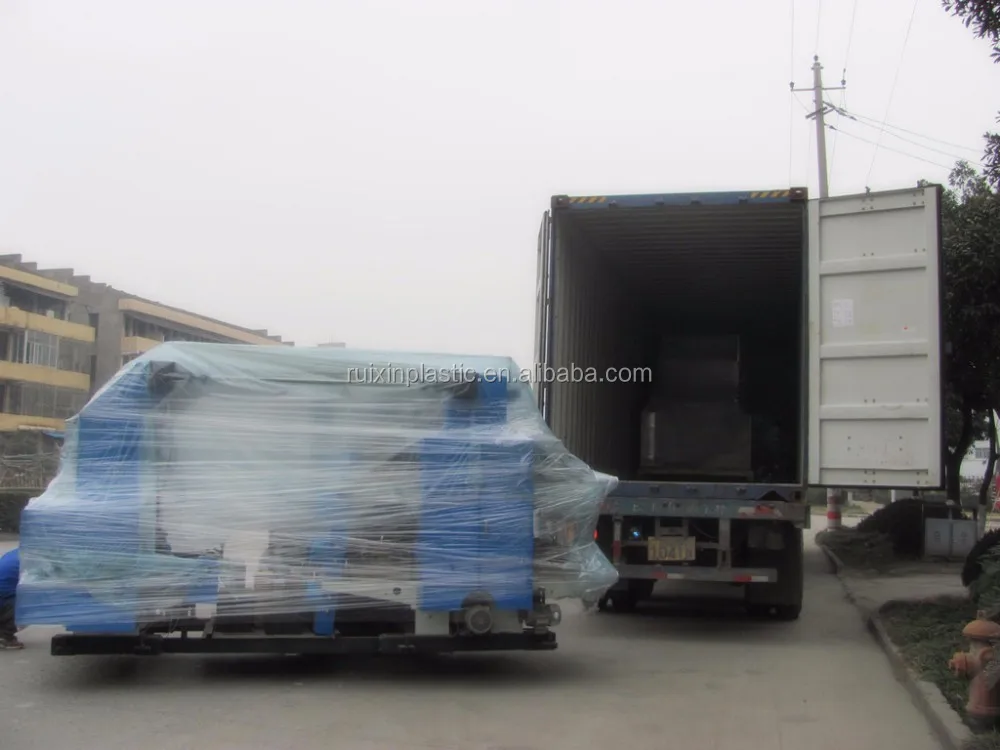

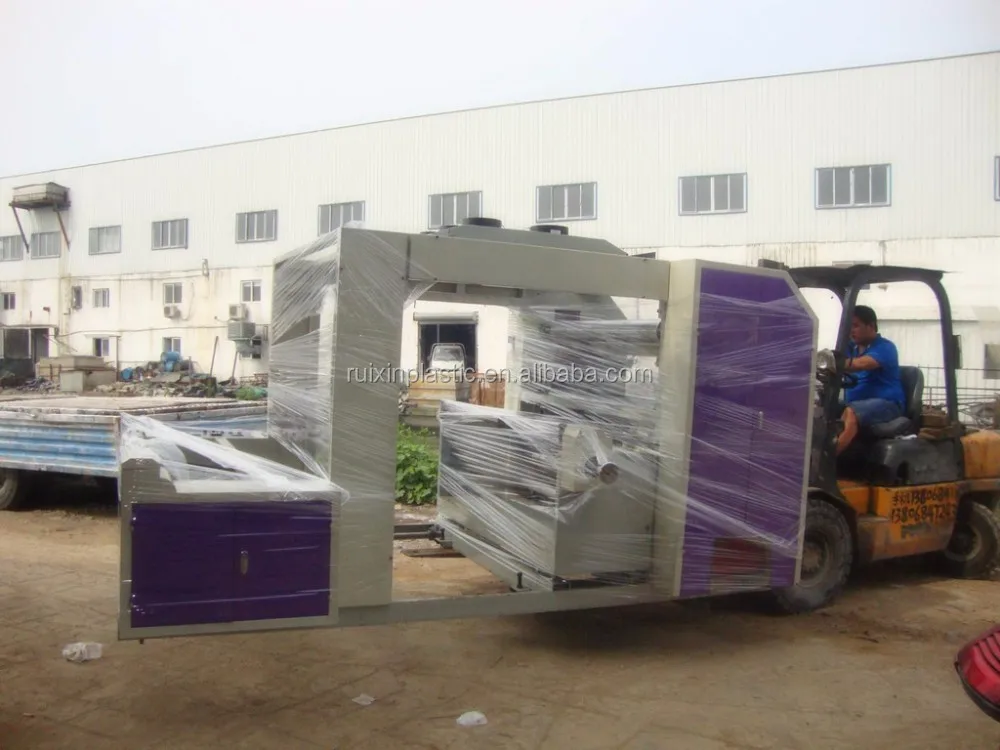

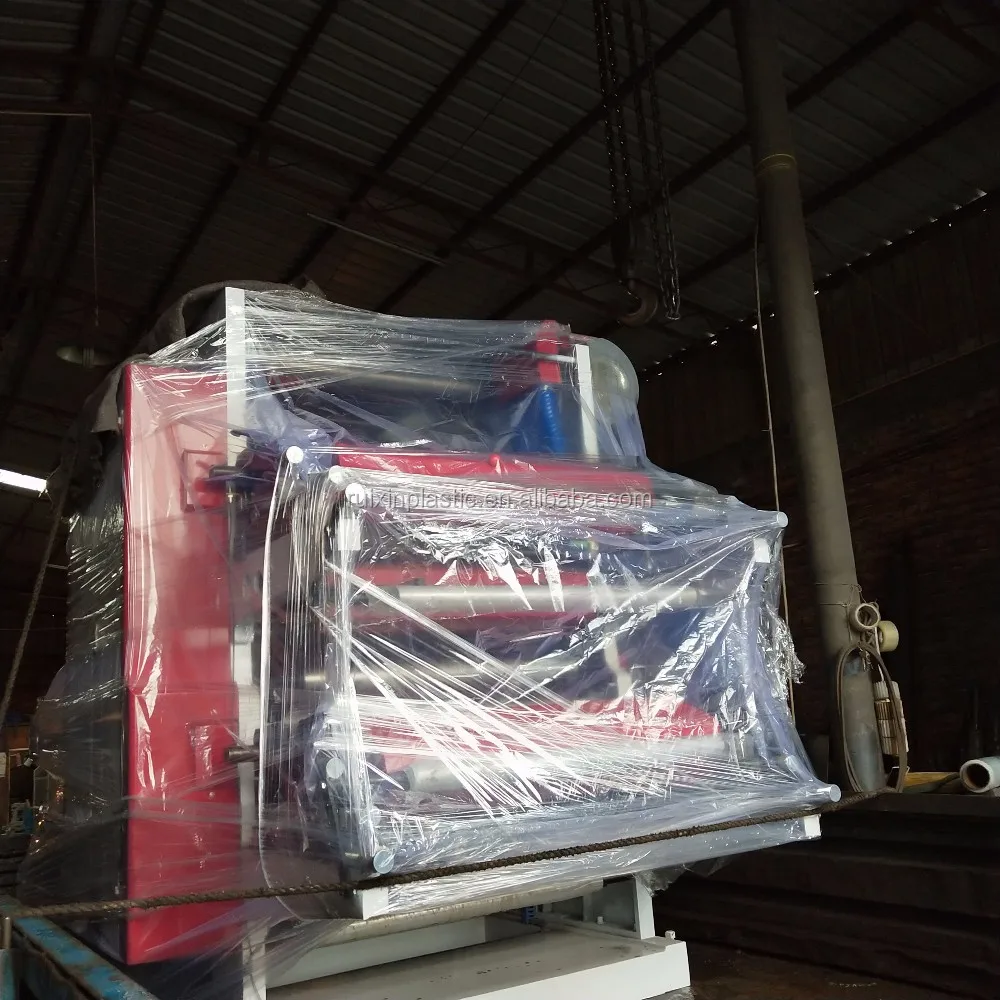

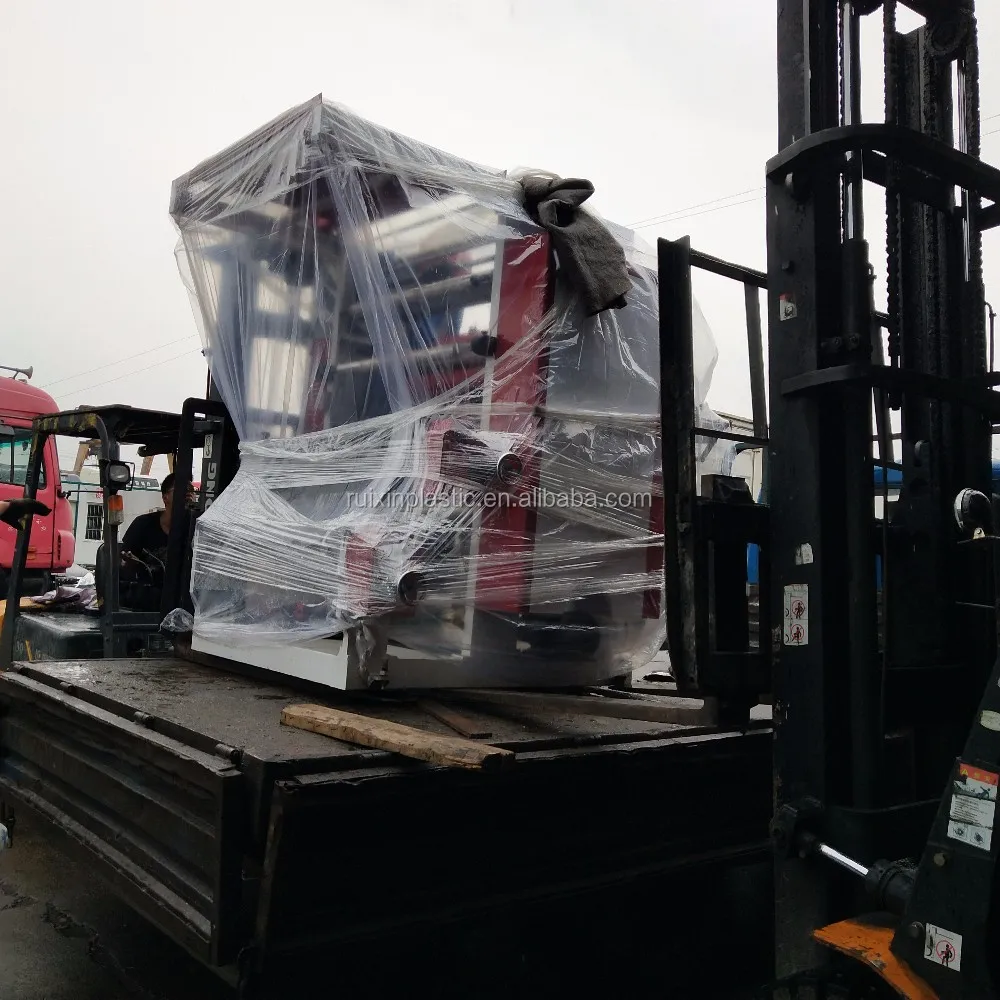

Packing & Delivery


1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film

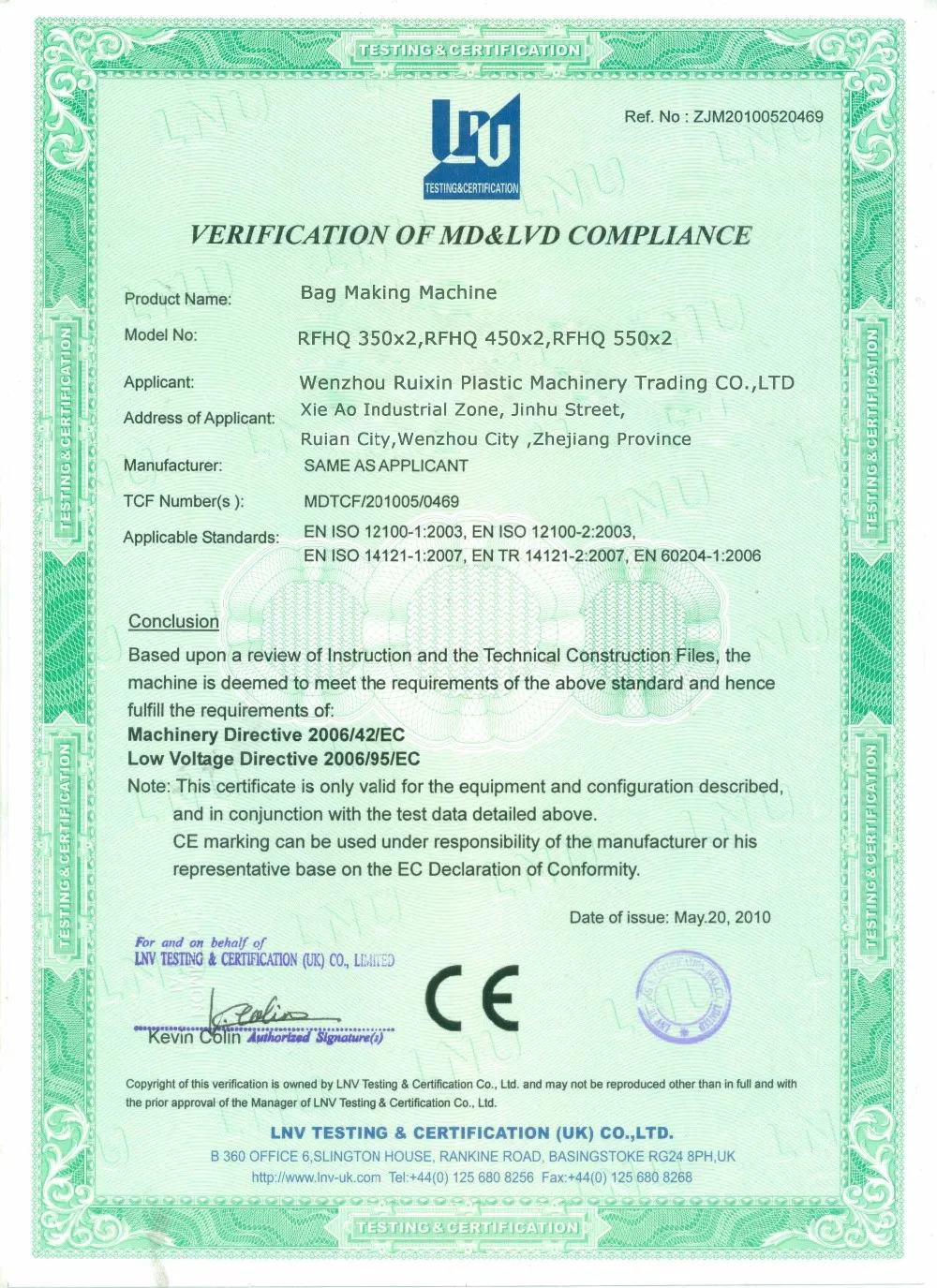

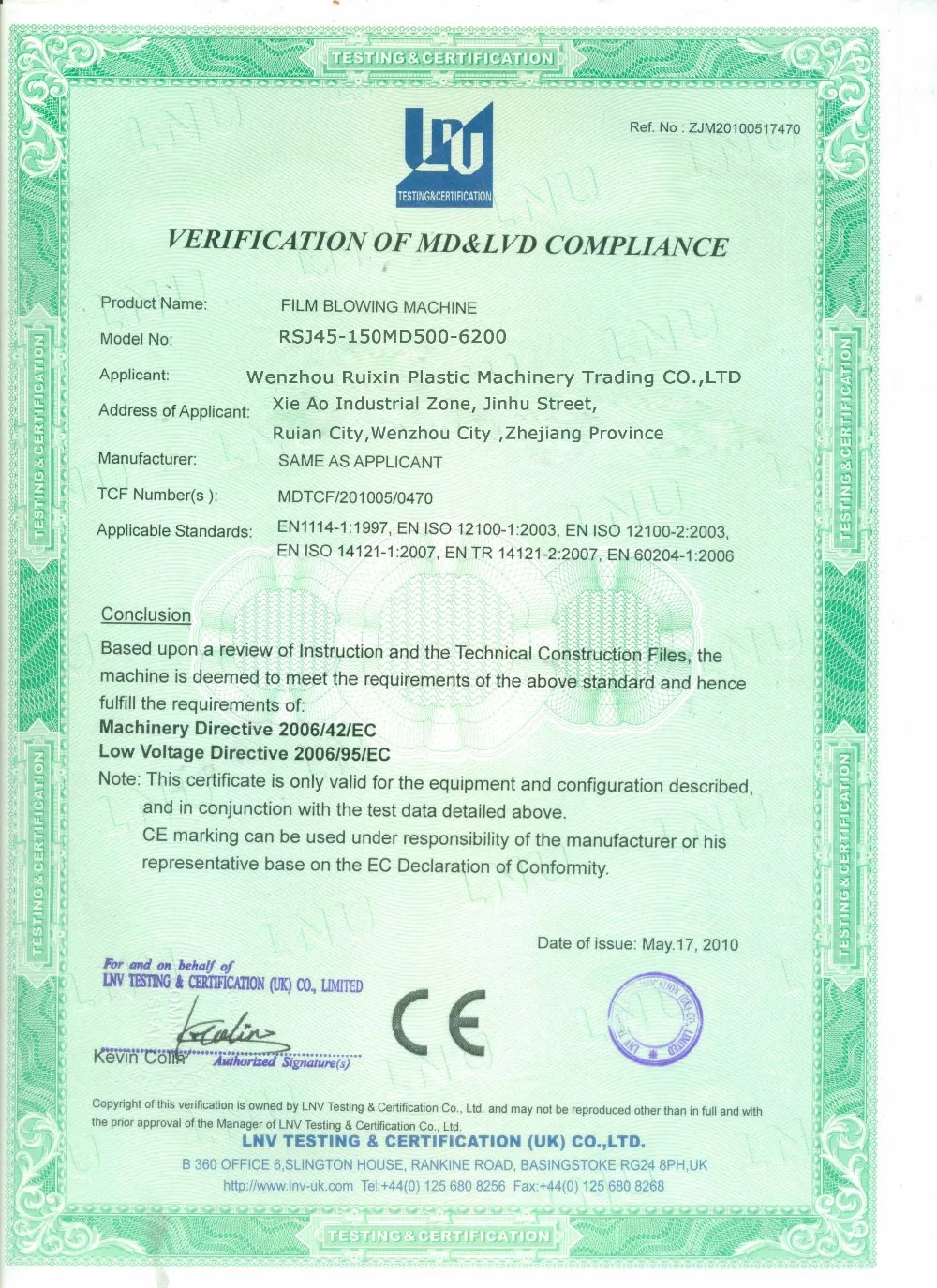

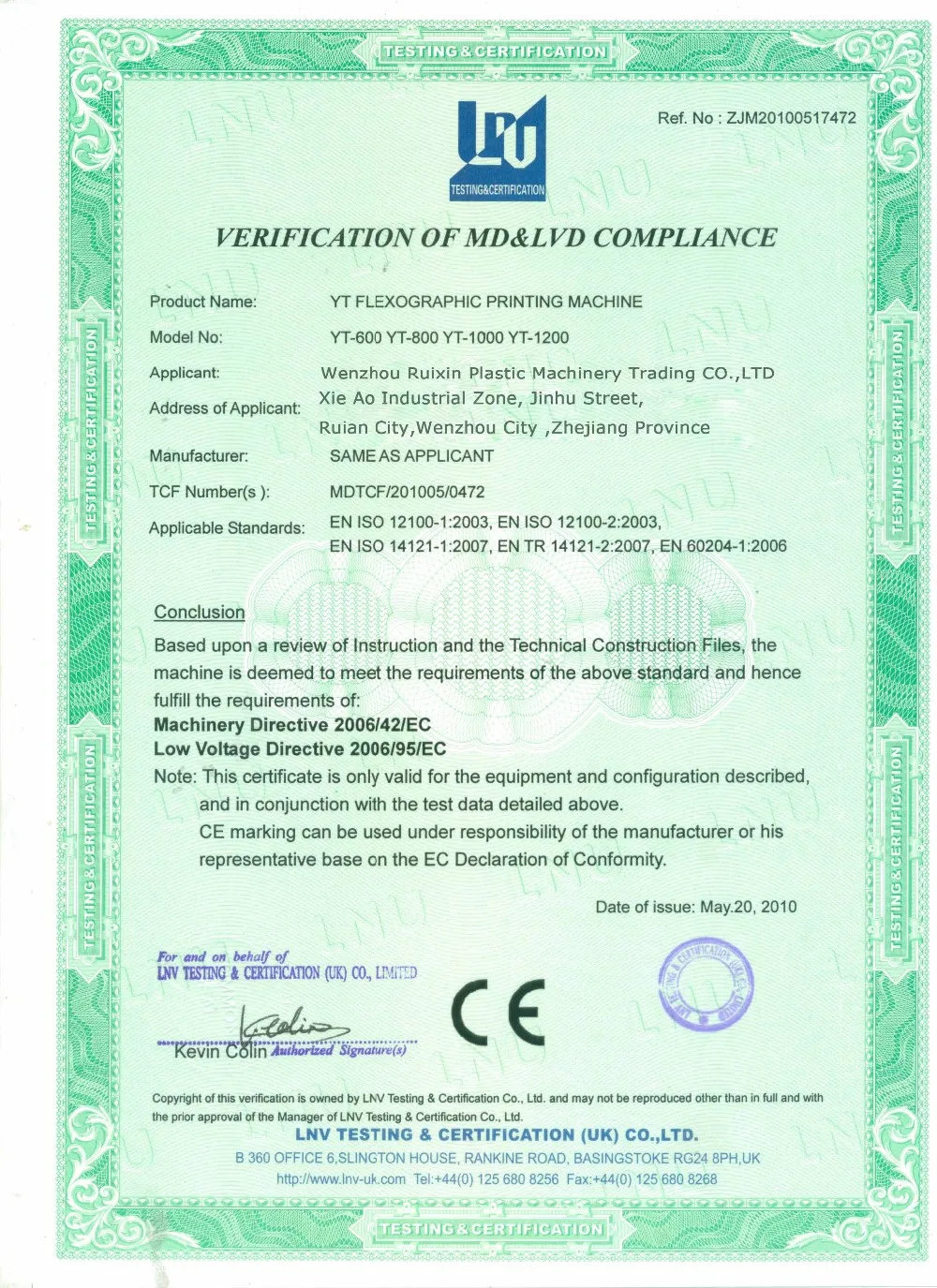

Our Certifications



Customer Photo

RSJ60-1100 Film Blowing Machine

Our India Client was checking the extruder testing , He is the engineer ,he use the machine to produce Pe heat shrinkable film for package bottles and make label


MB-2700 Three Layers Co-extruder Film Blowing Machine

our German Client visited us and checked the three layers Co-extruder Film Blowing Machine to produce Greenhouse Cover agriculture film with UV Protect .

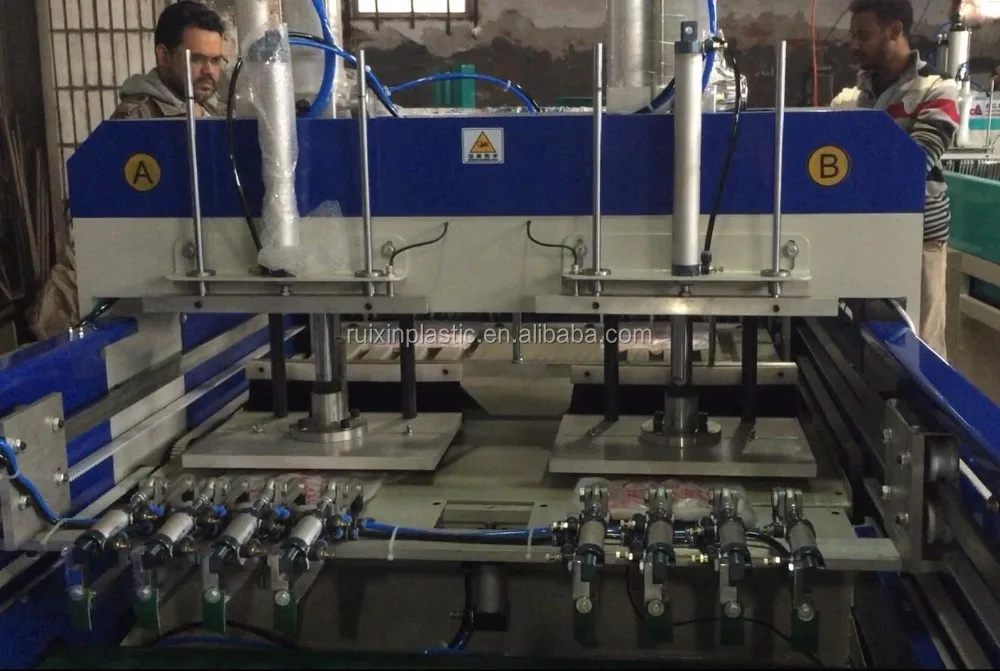

DFHQ-500x2 High Speed Tshirt bag making machine

Our USA client visited us and checked the full automatic Tshirt bag making machine working and running process ,They are new in this field ,they stay here only 2 days to study and learn the machine operation !

YT-4-600 Flexo Printing Machine

Our South America client came to our factory to test the printing machine for plastic bag . He use the printing macine to do specilized printed by his client !

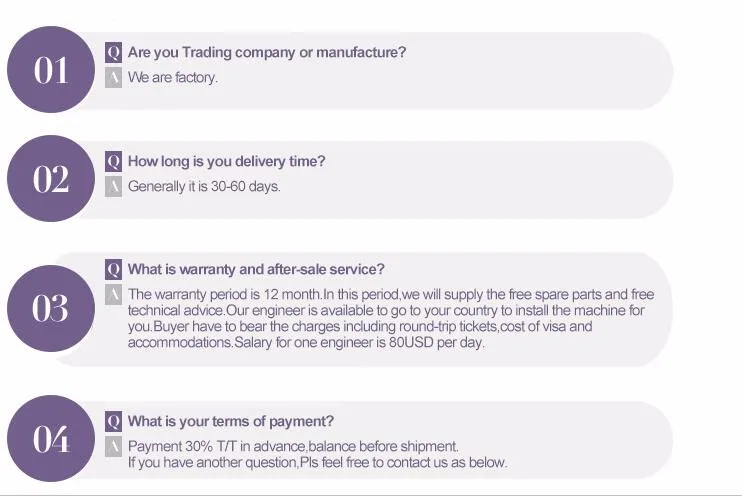

FAQ
