PET Lump Plastic Milk Bottle crushing recycling and washing plant

FOB Reference Price:Get Latest Price
$10,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PET Recycling Line
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, waste plastic recycling
Condition:
New
Application:
PET Bottle Recycling
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China
Brand Name:
KOOEN
Voltage:
Customize
Dimension(L*W*H):
As per specification
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Automatic
Keywords:
PET Plastic Bottle Recycling Production Line
Raw material:
PET PP PE PVC
Capacity:
300kg/h-3000kg/h
Moisture:
Below 1%
Particle size:
12mm
Packing Details:
Wooden package
Delivery time:
55 Days
Production Capacity:
300-3000kg/h
Power(W):
As per specification
Weight:
As per specification
Supply Ability
Supply Ability:
10 Quarter/Quarters per Quarter
Packaging & Delivery
Packaging Details
Standard export packing
Port
ShangHai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description

                 PET recycling washing line







Product Description

 PET recycling machine  (crushing, washing and drying)  working flow:

Waste plastic PET bottle washing recycling machine main components

Name:

Power:
Belt conveyor2.2kw
Mechanical label remover22kw
Manual separating table1.5kw
Metal detector0.4kw
Belt conveyor2.2kw
Crusher55kw
Screw conveyor2.2kw
Floating washer2.2kw+2.2kw+2.2kw
Screw conveyor2.2kw
Hot washer36kw
Screw conveyor2.2kw
High speed frication machine22kw
Screw conveyor2.2kw
Floating washer2.2kw+2.2kw+2.2kw
Screw conveyor2.2kw
Vetical dewatering machine11kw
Drying system36kw+7kw
Zig zag air classification system 11kw
Storage hopper
Control cabinet











                                                     Advantages

  • Final products has good quality. When process PET bottle, final products humidity below 1%, impurities100ppm,PVC label content 100ppm . The whole line capacity between 300kg/h-2000kg/hour
  • Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time
  • World famous brand components applied on the production line- e.g. SKF bearing, Siemens contactor, Omron temperature, FUJI invertor, Siemens PLC controller, etc.
  • The whole production line with CE certification, ISO9001 certification;













                                                 Product images



Crusher machine, to crushing raw metarials (waste pet bottle, pe/pp film bags) into small pieces. Blade are made of SKD-11, from Japan





To remove the pet labels, can be dry process/ or process with water for options. label remove rate reach 99%

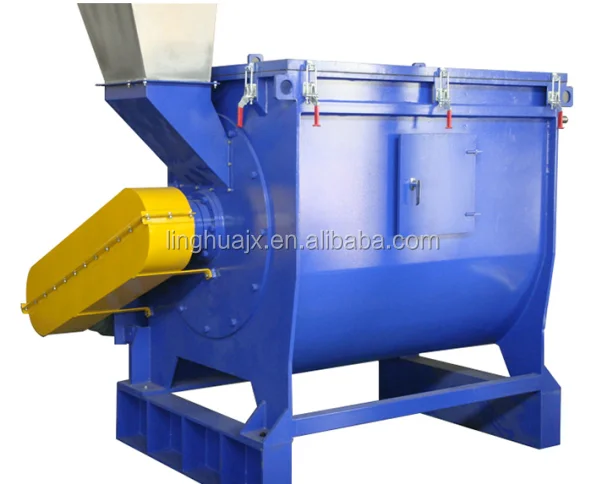

High speed friction washer to cleaning the flakes by 1200 rpm high speed friction, process with water

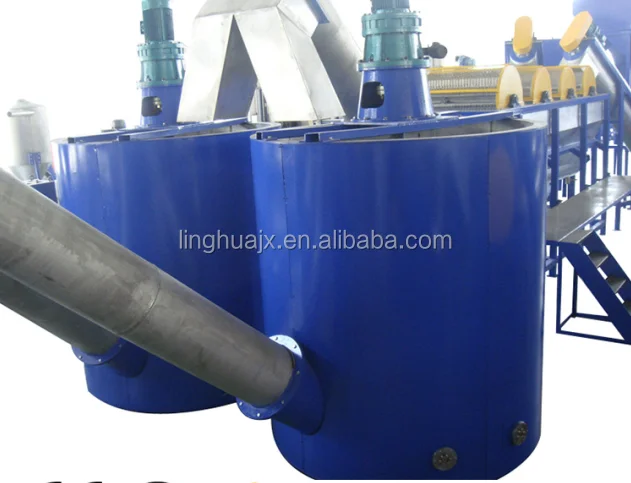

Floating washer tank to remove the dirty  material

Hot washer chamber add some chemicals (e.g. suda) to remove the oil/grease, etc...

Dewatering machine to remove the water , rotation speed reach 1500rpm

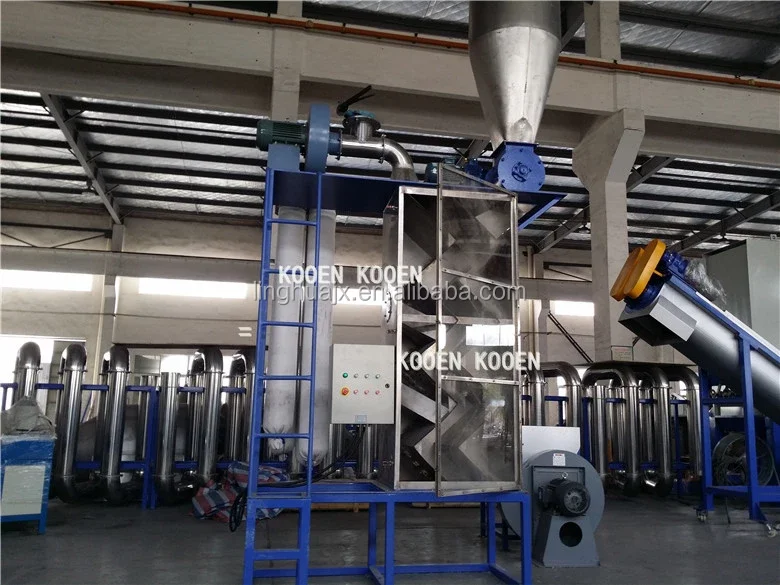

ZIg zag air classify system to remove the labels on the last step.

1.Final products has good quality. When processPET bottle, final products humidity below 1%, impurities100ppm,PVC label content 100ppm . The whole line capacity between 300kg/h-3000kg/hour
2.Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time
3.World famous brand components applied on the production line- SKF bearing, Siemens contactor, Omron temperature, ABB invertor, Siemens PLC control, etc.
4.The whole production line with CE certification, ISO9001 certification
