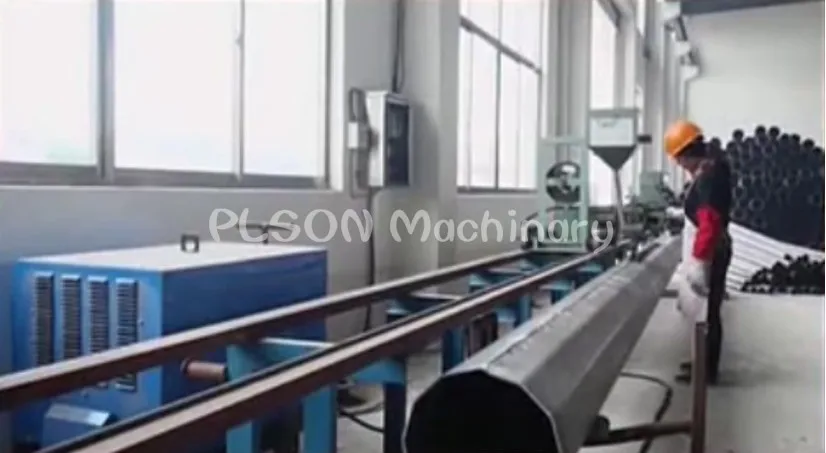

PLSON 8m-10m high quality street light pole production line

  • 1-18 Sets
    $500,000.00
  • >=19 Sets
    $300,000.00
Model Number:
PLSON
Max Pipe Diameter:
5m
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Pipe Production Line
Production Capacity:
500 pieces/week
Power(W):
500KW
Certification:
GB,ISO
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Industries:
Manufacturing Plant
Condition:
New
Pipe Material:
Stainless Steel
Application:
Energy Supply Pipe
Brand Name:
PLSON
Voltage:
380V
Dimension(L*W*H):
50000*15000*6000
Weight:
200T
Key Selling Points:
High Productivity
Color:
Customer's Requirement

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X30X60 cm
Single gross weight:
68.0 kg
Package Type:
1. nude packing 2. wrapped with films, fixed with wire in the container
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 2 >2
Est. Time(days) 15 To be negotiated
Product Description

Machine tool overview

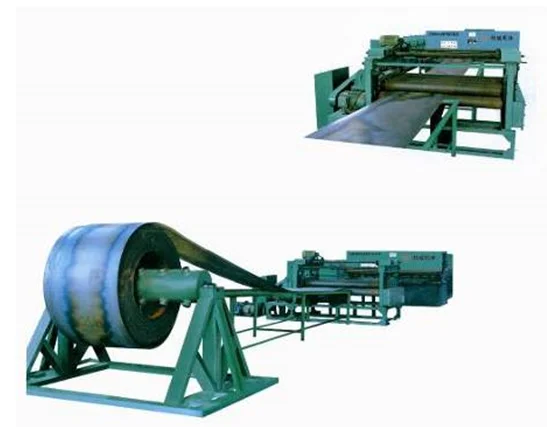

The coil leveling machine mostly used in coil leveling industry, please check drawing as followed for your reference, the leveling and cutting line including uncoil machine, guiding device, leveling machine, cutting machine, sheet metal store platform and electrical system.

Detailed Images

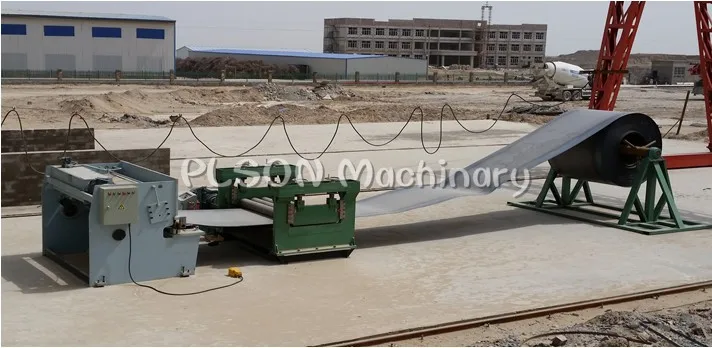

Steel Bevel Shearing Production Line


The bevel shearing machine production line is for light pole,mainly used as cutting for longer plate .
►Working procedures are controlled automatically by electrical system except feeding plate manually .
►The speed of double disk slitting roller of main machine is same with the feeding speed of movable working table to ensure the cutting quality and cutting life reliably .
►The above two speed is displayed on the operating panel.
►The holding down device on the movable working table holds the plate reliably during cutting .
►The pneumatic clamper is set on the fixed and movable out feeding frame to ensure the cutting smoothly for different sizes of plates.
►The over-loading protective device is set on the machine.

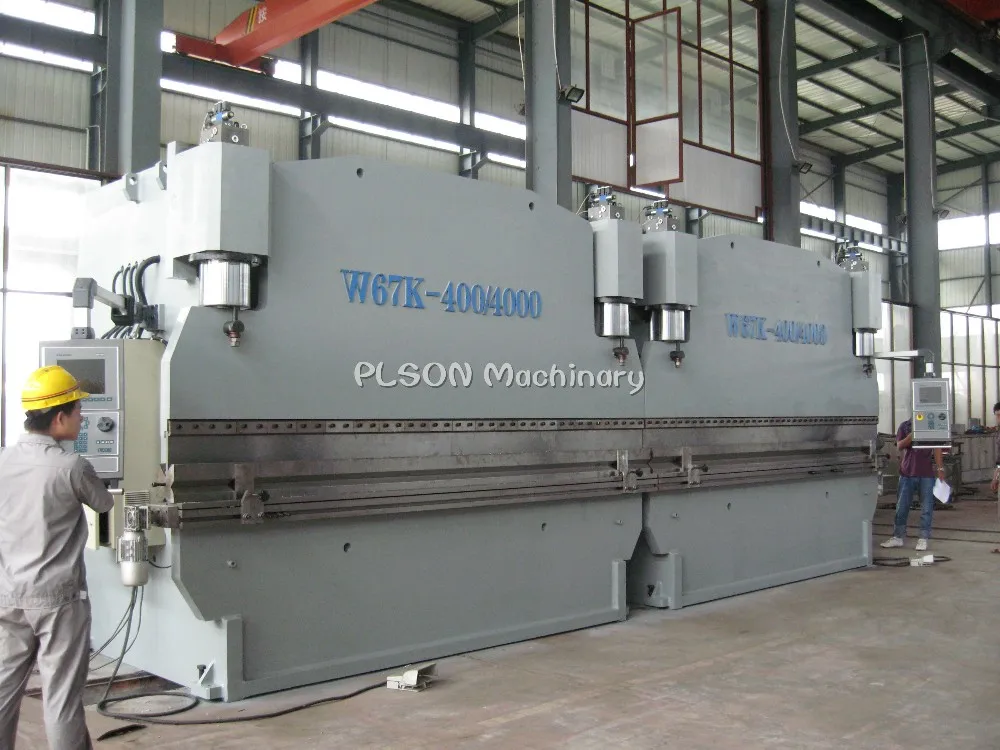

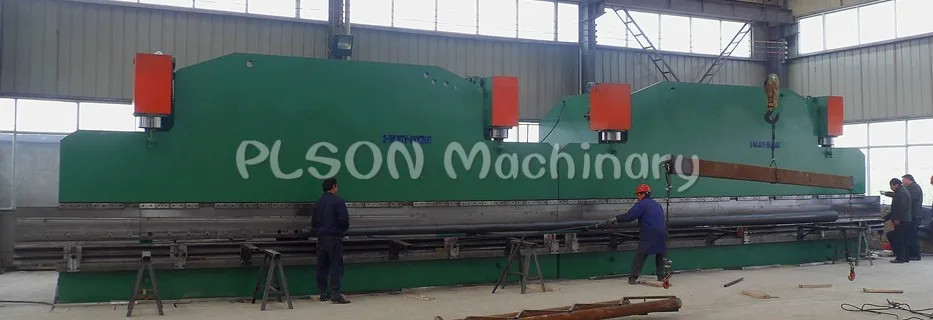

WE67K-2X500T/8000 CNC Press Brake


► The frame is organized by the right upright, left upright, working table and cross ties. All the components are mutually welded for improved frame stability.

► Using large ground boring and milling machine, with a whole processing method, precision machining, to ensure that the machine tool machining precision.

► Through two oil cylinder to control the slider up and down movement .

► Electro-hydraulic servo synchronization control Slider synchronous, stable and reliable.

► Using DELEM CNC system to control the Y axis (slider up and down movement)
Manual, semi-automatic and fully automatic operating mode.

► Back gauge device has the function of automatic retreat and delay action.

► Back gauge device adopts high performance servo motor and precise ball return and linear guideway, guarantee the X axis transmission positioning accuracy and repeat positioning accuracy.

► Europe advanced CNC control, automatic adjustment of mechanical rod type deflection compensation table and V axes ,ensure the machining accuracy.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Jiangsu PLSON Metalforming Equipment Co., Ltd
http//www.plsjc.com
https://jsplson.en.alibaba.com
Add:Libao, Haian, Nantong, Jiangsu, China
Tel:0086-513-81800677
Fax:0086-513-81801160
whatsApp/Wechat/Phone:0086-15298803771

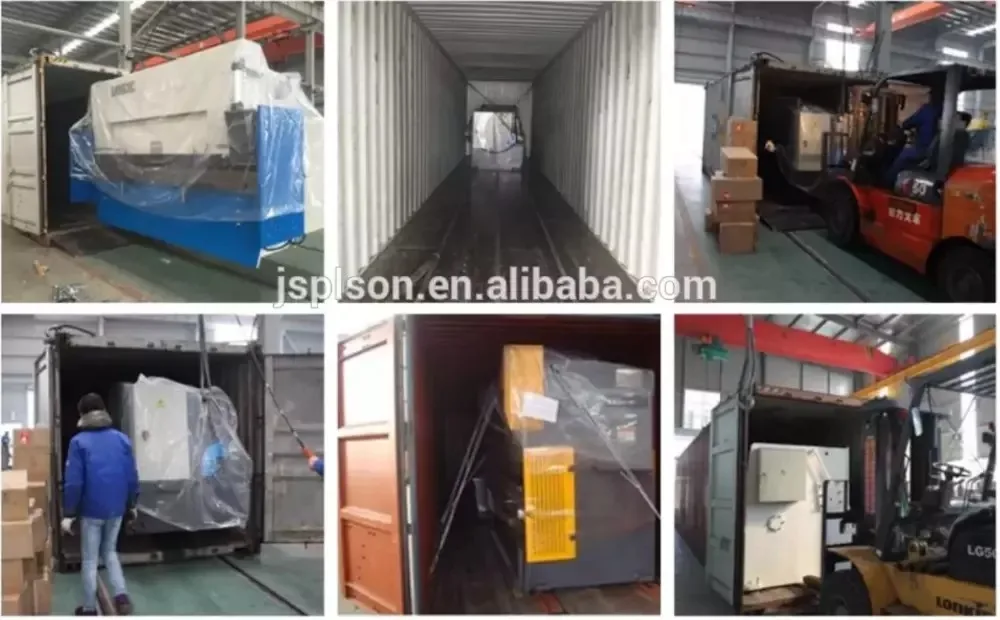

Packing & Delivery
Packaging
Size
5000 (L) * 3000 (W) * 2000 (D)
Weight
30T



Packaging Details
1. nude packing
2. wrapped with films, fixed with wire in the container
Our client
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Our Company

Jiangsu PLSON Metalforming Equipment Co., Ltd. is located in the Binhai Industrial Zone of Haian County, Jiangsu Province. The company mainly produces "Prison" brand series hydraulic press, press brake, shearing machine, rolling machine, etc. The products are manufactured according to German technical standards, and the performance of the machine has reached the advanced level in China.Some products have entered the international market, through Nantong, Southeast Asia, the Middle East, Africa and other areas of the product launch. Thanks for your business and welcome to visit our factory.

FAQ

1.Q: How about your manufactory in CHINA?
A: PLSON located in NanTong CITY,Jiangsu province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 18 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

2. Q: Are you the manufacture?
A: Yes, we are manufacturer factory, so you can get factory price directly. Don't need pay some extra agent price.

3.Q: Can we visit your factory?
A: Of course.We welcome our customers from all over the world. And we hope to cooperate with you for a long time.

4.Q: I want to buy this machine, what suggestion can you give?
A:Please tell me what material do you process? What's the size of your material?
