PP Meltblown Nonwoven Fabric Production Machine Line

FOB Reference Price:Get Latest Price
$300,000.00 - $400,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
SJ90 Single screw extruder
Output (kg/h):
1200kg/day melt blown extrusion line
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Melt blown Fabric
Plastic Processed:
PP
Output (kg/h):
50 - 60
Screw Design:
Single-screw
Showroom Location:
Egypt
Place of Origin:
Jiangsu, China
Brand Name:
BOGDA brand
Voltage:
380V 50HZ 3P, or customized
Dimension(L*W*H):
15*8*5m
Power (kW):
350
Weight:
4.8T
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Field maintenance and repair service, Online support
Key Selling Points:
Automatic
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt
Applicable Industries:
Manufacturing Plant
Marketing Type:
New Product 2020
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty of core components:
1 YEAR
Core Components:
Motor, PLC, Gearbox
Fabric width:
1200mm PP meltblow fabric
Whole line speed:
4~50m/min
Fabric GSM:
20~200/㎡
Screw maximum temperature:
300℃
T die and spinneret:
320℃
Single spinning:
2~10um
Melt filter motor:
1.5KW
Heating tank:
SUS304
Electric system:
Independent
DCD adjustable:
100~600
Screw diameter (mm):
90 mm mm
Screw L/D Ratio:
30:1
Screw Material:
38CrMoAlA
Supply Ability
Supply Ability:
500 Set/Sets per Year 1200mm PP meltblown production machine
Packaging & Delivery
Packaging Details
Inner films and container for PP Meltblown Nonwoven Fabric Production Machine Line
Port
shanghai port for PP Meltblown Nonwoven Fabric Production Machine Line
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated

PP Meltblown Nonwoven Fabric Production Machine Line
Machine price is changing, plz contact usto get final price

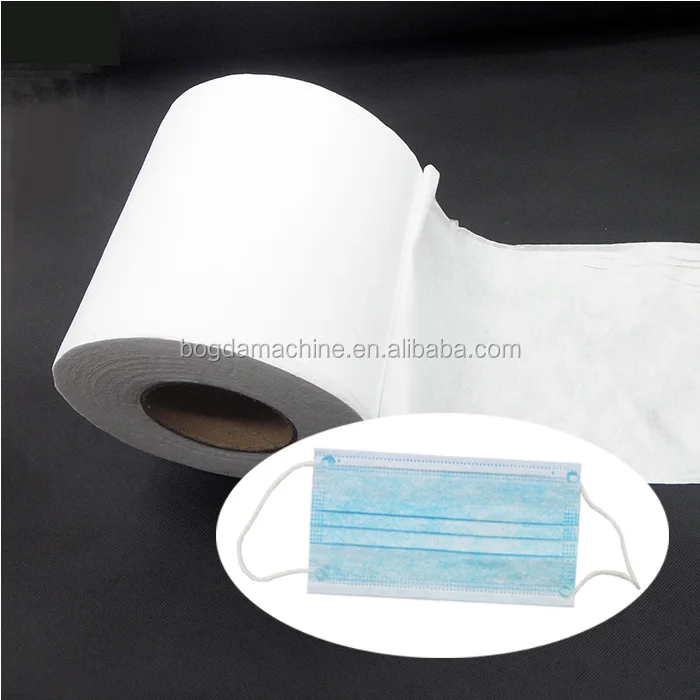

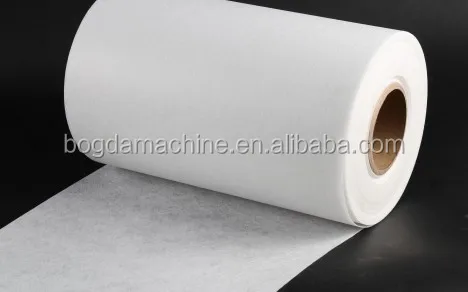

Final Product Application
Melt-blown nonwovens is the most core material of mask, melt spraying cloth mainly USES polypropylene as the main material, the fiber diameter can reach 1 ~ 5 micron. The microfiber with unique capillary structure increases the number and surface area of fiber per unit area, so that the melt spray cloth has good filtering, shielding, insulation and oil absorption.

Melt-blown nonwovens can be used for air, liquid filtration materials, isolation materials, absorption materials, mask materials,warm materials, oil absorption materials and wiping cloth and other fields.
Product Description
1200mm PP Meltblow Fabric Extrusion Machine List
NO
Item
QTY
1
Automatic material dosing system
1 set
2
Suction device
1 set
3
Screw extruder
1 set
4
Screen changer
1 set
5
Gear pump
1 set
6
Melt pipe
1 set
7
Combined melt-out die head
1 set
8
Hot-air system
1 set
9
Air heater
1 set
10
Suction fan
1 set
11
Connecting duct
1 set
12
Receive net
1 set
13
Automatic slitting and rewinding machine
1 set
14
Electric control system
1 set

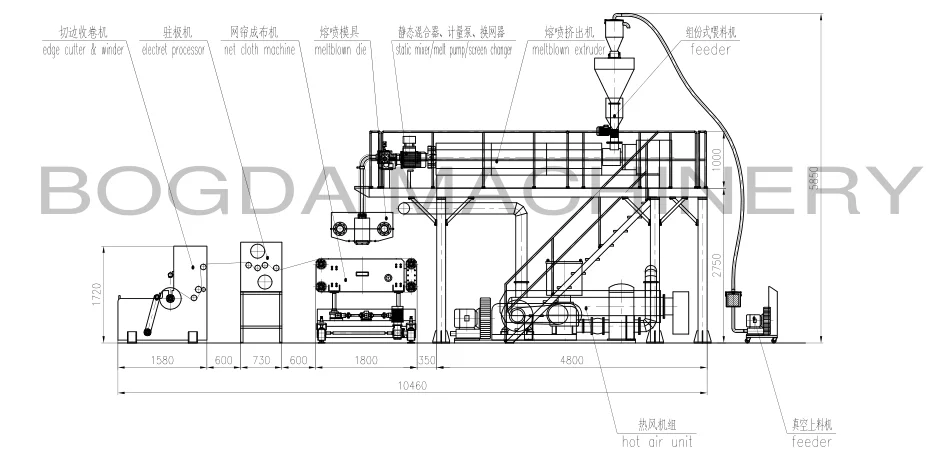

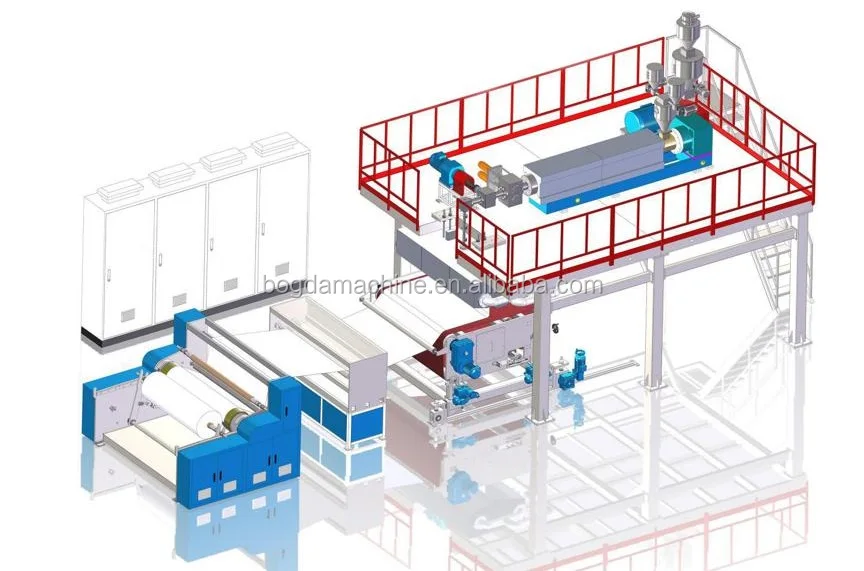

1600mm PP Meltblow Fabric Extrusion Machine Layout

Screw extruder machine

1. Screw diameter:Ф100mm
2. Screw L/C:30:1
3. Screw Material:38CRMOAIA
4. Nitridation hardness:HV950-1100
5. Max extrude capacity:120kg/h(grain material)
6. Center height:550mm
7. Screw speed:20-90r/min
8. Heating Section:6 section
9. Heating KW:4.6KWx6 sections=27.6kw(220v0
10. Driving Kw:45KW/4 pole(INV adjust speed)

Melt Filter

1. Motor power:1.5KW
2. Hydraulic control system:1set
3. Web diameter:Ф100mm
4. Web Holes:300 holes/inch
5. Melting capacity:200kg/h
6. Melting running temperature:≤300℃

Metering pump

1. Siemens motor:3KW Siemens Inverter AC control
2. Pump flow:500ml/r
3. Speed:15~40r/min
4. Designed temperature:280℃
5. Input pressure:≥5±0.5MPa
6. Output pressure:≤40MPa

Melting T die

1. Melting T die made from 1 hanger type distribution,out side heating
2. Melting T die designed temperature:300℃
3. Melting T die designed pressure:6MPA

Spinnerets

1. Made from high temperature alloy material
2. Strip shape spinneret outlook size:1970mmx210mm
3. Spinneret hole bore:0.3mm(hole center distance 0.6)
4. Spinneret L/D:12:1
5. Spinneret Hole Quantity: around 3833 pieces
6. Air chamber:1 piece
7. Circular air chamber:1piece
8. Air press board:2 pcs
9. Stand-ed air press board:2pcs
10. Air flow speed:200~340m/s
