PP PE PVC Flexible corrugated conduit pipe making machine

  • 1-2 Sets
    $18,000.00
  • >=3 Sets
    $13,000.00
Model Number:
SJ65/30
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year, 12MONTHS
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Place of Origin:
china
Brand Name:
FLW
Voltage:
380v
Application:
Pipe
Weight:
10T
Certification:
CE, ISO9001
Screw Design:
Single-screw
Plastic Processed:
PE
Dimension(L*W*H):
180000mmx4000mmx3000mm
Raw material:
HDPE/PVC/PP/EVA
Main Motor:
SIMENS
Output:
120-200kg/h
Inverter:
ABB
Temperature controller:
Schneider
Contactor:
simens
Extruder:
SJ65
Machine Name:
SWC pipe machine
Automatic Grade:
Fully automatic
Power(W):
22kw

Packaging & Delivery

Selling Units:
Single item
Single package size:
672X105X120 cm
Single gross weight:
200.0 kg
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Video Description
Product Description

 Single wall corrugated pipe machine  for Mexico customer SWC production line plastic  pipe extruder



automatic double station rewinder

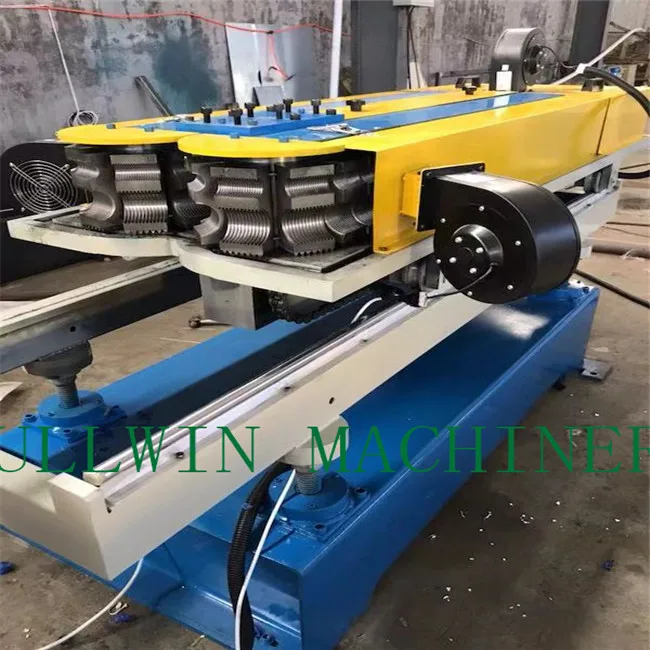

corrugated molds with forming machine

1.One set mold have two sizes design can save cost and easy change to another size of mold...this to meet different reqirements from customer.

Forming machine with large cooling area .Temperature fast cooling down.this means the speed will be faster.




SINGLE SCREW EXTRUDER FOR CORRUGATED PIPES

advantages:

All parts are high standard for exporting..use domestic and foreign well known brands

Simens motor, ABB frequency converter, Guomao reducer, Omron temprature control,Demaji screw










 OTHERS



1.This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes. 2.Plastic single wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good  flexibility, etc 3.They are widely used in fields of auto wire, electric thread passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc

Features: High and stable extrusion capacity  Corrugator mould one mould two size Good water cooling or air cooling system Production Flow: Raw material + master batches→mixing→vacuum feeding →material dryness →single screw extruder→extrusion mould→corrugation forming machine→meter measurer→double winder→finished product inspecting &packing

Technical Parameters:

Single Wall Flexible Plastic Corrugated Conduit Pipe Making Machine Information

Extruder

SJ 30/25

SJ 45/33

SJ 65/30

SJ 65/33

Main motor power

5.5kw

11-18.5kw

30-45kw

55kw

Molding

52pairs

45-72pairs

50-72pairs

55pairs

Pipe diameter

4-17mm

10-35mm

40-110mm

72-200mm

Speed

5-15m/min

15-20m/min

10-20m/min

3-15m/min

Output

15kg/h

60-100kg/h

100-150kg/h

100-180kg/h

Packaging & Shipping


Our Services

1.prefessional service team, high work efficiency. The machine price is reasonable and high quality. We can also make turnkey project for buyers. And we can provide best after sale service.



2. our company have 30 workers and 12 years’ experience in plastic machinery. We focus on machine design and updates. We have 3 engineers for oversea service, machine installation and teach buyers how to use it.





Company Information

 1.jpg406292133302469934.jpg478692452262577343.jpg520915796241145906.jpg752000570843072162.jpg888929454871726919.jpg

FAQ



Q:Are you machinery factory or trading company?

A:We are machinery factory

Q:If we have very special request for the production line,could you help me to do the design?

A:Experienced mechanical designer customized-design provided.

Q: Installation and stuff training available from you?

A: Yes, our engineers will guide machine installation and train your workers.

Q: How can we visit your company and machines?

A : Our factory is in Jiaozhou Town, Qingdao City, Shandong Province, China. About 1 hours from Qingdao International Ariport.

Q:What`s the payment method? A: T/T, L/C,Western Union,etc
