PVC PVDF hollow fiber UF Membrane, UF water filter system

  • 1-49 Pieces
    $760.00
  • >=50 Pieces
    $680.00
Model Number:
UF250-H-100KC
Processing Capacity:
99.99%
$
- +
available
Samples:
UF250-H-100KC , 99.99%
$830.00 /Piece, 1 Piece (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2019
Warranty of core components:
1 Year
Core Components:
UF membrane
Place of Origin:
Guangdong, China
Brand Name:
YOUBER, Youber/no brand
Material:
UF
Size:
250*1710mm
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, good after-sales service
Warranty:
1 Year
Productivity:
2000L/Hour
Membrane material:
Modified(PVC)
Shell material:
UPVC
End seal material:
Epoxy
Fibers MWCO:
100,000Dalton(0.01micron)
The interface of out side and in side:
Dia 50mm(DN40)
Pure water flow(0.2Mpa,25℃):
22000L/H
UF module designed water flow:
1700-6000L/H

Packaging & Delivery

Selling Units:
Single item
Single package size:
180X32X32 cm
Single gross weight:
28.000 kg
Package Type:
Carton box packing, 1pcs/ctn Packing list: 1pcs of UF250-H-100KC UF membrane, 2sets of clamps, 2pcs of rubber gaskets
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

Product characteristics:


1. PVC material UF membrane module can remove bacteria, microorganisms, it can reduce turbidity, SDI and remove colloids, macromolecular organics;

2. High mechanical strength of PVC modules, and good elongation make membrane has longer lifespan;

3. PVC fibers and UPVC shell make membrane modules have cheap price;

4. PVC UF membrane module can be applied to drinking water purification, treatment of river water, seawater, groundwater, pre-treatment of RO, reclaimed water reuse,etc.

Product technical parameters

Using condition
Pretreatment
50-100um
Operation mode
Internal pressure operation
Working pressure
0.02-0.2Mpa
Max water inlet pressure
0.3MPa
Max TMP
0.2MPa
Water inlet PH range
2-12
Tolerated continuous residual chlorine concentration
100 ppm
Tolerated interval residual chlorine concentration
200 ppm
Working temperature
5-45degree
Feed water quality
Turbidity ≤15NTU.
(should add pretreatment while using surface water, river/well water,etc.can use cartridge filter(<150um) to make feed water turbidity ≤15NTU)
Water production quality
*Water production turbidity
< 0.1NTU
*Silt density index(SDI)
< 1
Particles(>0.2µm)
100% removal rate
Microbe, removal rate of pathogens
99.99%
Backwashing design
Backwashing frequency
One time per 30-60minutes
Backwashing pressure
≤0.2MPa
Backwashing flow rate
100-150L/ H.m2
Backwashing dosing drugs
15-20PPm NaCLO
Dosing backwashing frequency
Suggestion:automatic dosing drugs while each time need to backwash
Chemical cleaning design
Chemical cleaning frequency
One time per 1-4months
Acid cleaning agent
Citric acid,oxalic acid or hydrochloric acid (solution of PH=2)
Alkaline cleaning agent
0.5%NaOH+0.1%NaClO(solution of PH=12)
Remark: * means municipal water as raw water to test (raw water turbidity <5NTU)

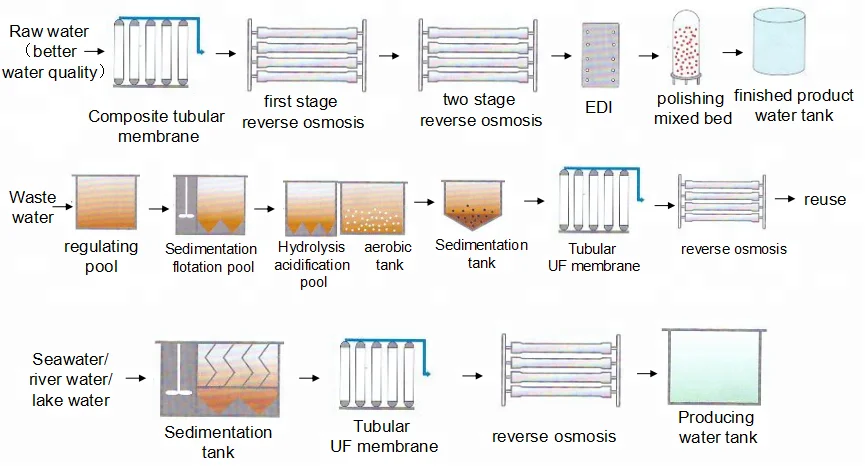

Product Application

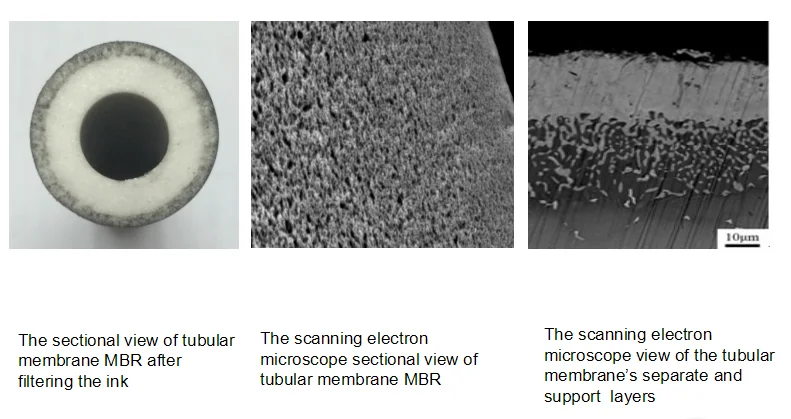

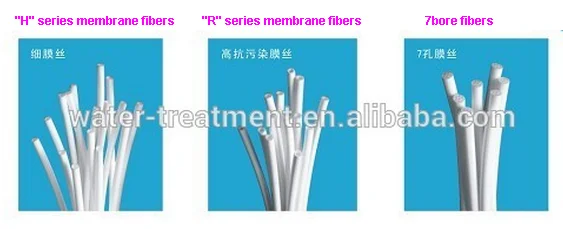

Detailed Images

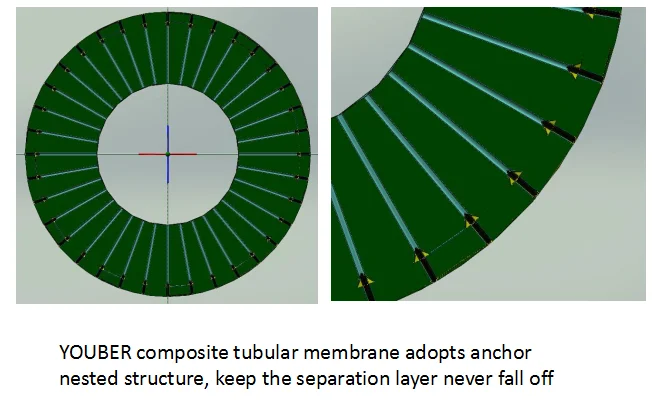

YOUBER original creative anchor nested structure:

Other module:UF90,UF160,UF200

UF90

Pure water flow(0.2Mpa,25℃):

2050L/H


Module design flow rate:

160-560L/H

UF160

Pure water flux (0.2Mpa,25℃): 8000L/H

Design flow of module

640-2500L/H

UF200

The pure water flow (0.2Mpa,25℃) 13000L/H

Module design output water 1000-3600L/H

Packing & Delivery

Carton box packing, 1pcs/ctn

Packing list: 1pcs of UF250-H-100KC UF membrane, 2sets of clamps, 2pcs of rubber gaskets

Packing size and weight:
L*W*H: 1850*360*360(MM)

Weight: 65KG

Our Service

YOUBER products service:

So far, Youber has mastered the PVC, PVDF, PES, PS, PAN and PP, and UF membrane production of various features, and also has produced millions of square meters hollow fiber membrane products by using various materials, and have been successfully used in a lot of water purification, liquid separation and concentration projects in the world


YOUBER personalized service:
Specific to different kinds of liquid separation fields, we can also provide personalized products with various performance, also OEM,ODM services: different filtering precision products, filtration precision scope (6000-500000 Daltons), different size and structure UF membrane products, different materials UF membrane, high temperature liquid separation membrane products, low pressure and large water flux membrane products, high viscosity liquid separation and high pollution water source membrane products and so on.
