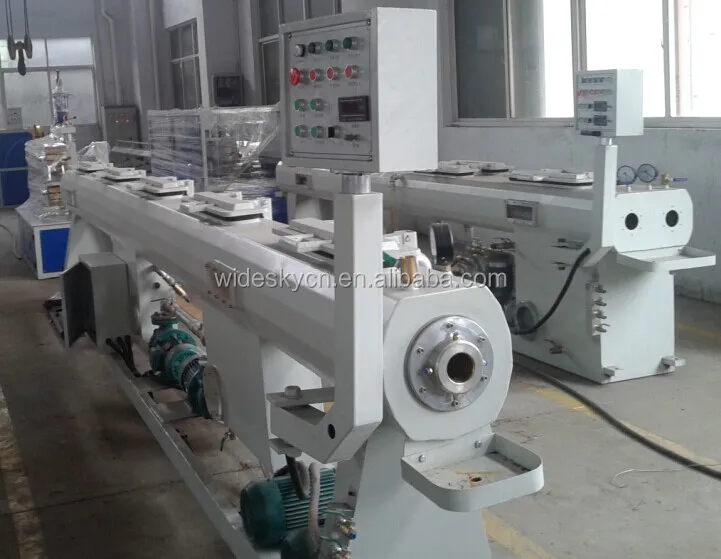

PVC Pipe Vacuum Calibrating and Cooling Tank

FOB Reference Price:Get Latest Price
$30,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Pipe
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
automatic
Place of Origin:
Jiangsu, China
Brand Name:
WIDESKY
Voltage:
220V- 480V
Dimension(L*W*H):
28000X2200X2700mm
Certification:
CE
PVC Pipe Moulds:

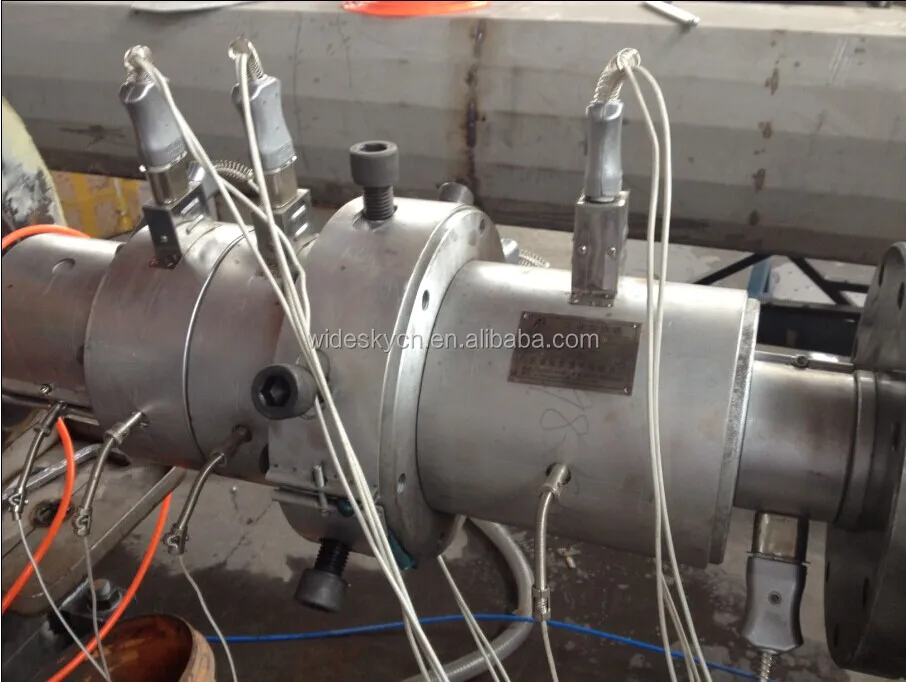

mould head,calibrator moulds
Pipe Belling Machine:
U-type, R-type, Socket-type
Pipe Printing:
Ink print company name, logo
Cutting Length:
can be adjustable
Pipe Diameter::
16-630mm
Extrusion Speed:
1-6m/min
Mixing Material:
PVC powders, stabilizer, CPE,ACR etc.
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Port
Shanghai
Lead Time :
45 Days

Specifications

PVC Pipe Machine
1.16-630mm pvc pipe
2. CE
3. Water supply pipe & drain water pipe



Product Description



1. PVC pipes of various diameters and wall thickness are used in the agricultural and constructional plumbing, cable protection, etc.

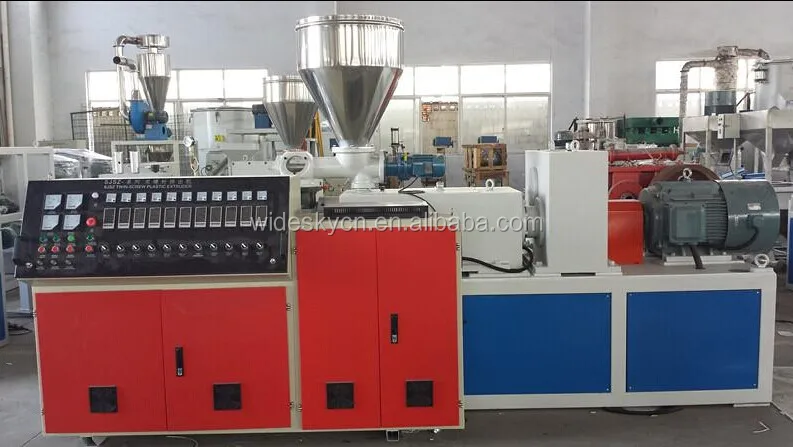

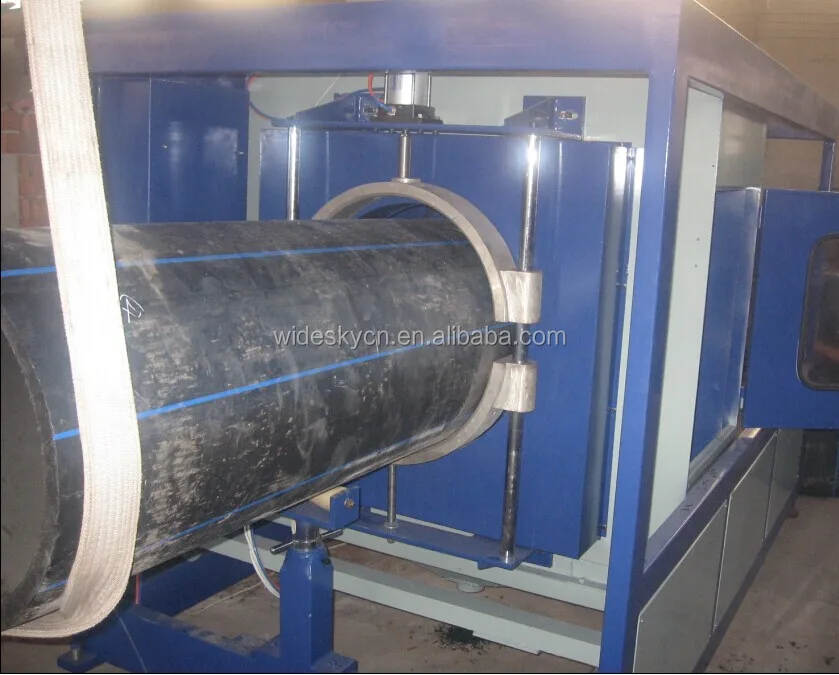

2. This line consists of the conical twin-screw extruder, a vacuum calibration Forming Tank, a traction machine, a cutter, etc. The twin-screw extruder and the traction machine are equipped famous brand AC frequency converting control device.

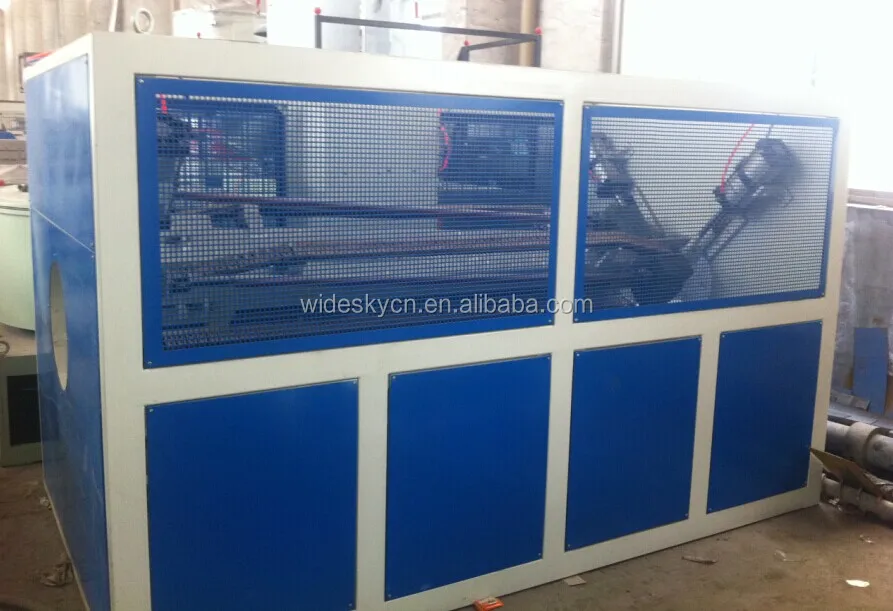

3. Two cutting types: planet cutter and No-dust cutter. Length measuring apparatus and the intensifying device can be attached.

4. Optional devices: pipe end expanding device, spiral muffler tube making unit and core foaming tube making unit as required.





Main Technical Data

Model number
SJW-16/63 SJW-20/110SJW-50/160SJW-75/250SJW-110/315SJW-200/450SJW-315/630
Pipe diameter 16-63mm20-110mm50-160mm75-250mm110-315mm200-450mm315-630mm
Max output 120kg/h120kg/h180kg/h300kg/h450kg/h650kg/h800kg/h
Production rate1.5-15m/min0.8-8m/min0.5-5m/min0.4-4m/min0.3-2m/min0.1-1m/min0.07-0.7m/min
Extruder modelSJ-50/105SJ-50/105SJ-55/110SJ-65/132SJ-80/156SJ-92/188SJ-92/188
Installed power45kw45kw55kw75kw105kw160kw205kw
Center height1000mm1000mm1000mm1000mm1100mm1100mm1200mm
Installation area22*2.5*2.0m24*2.8*2.0m24*2.8*2.0m30*2.8*2.2m35*3.0*2.4 m36*3.0*2.4 m38*3.2*2.8 m
