PVC Single Core Solid Copper Conductor electrical building wire

FOB Reference Price:Get Latest Price
$1.50 - $150.00 / Meters | 100 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Geerta
Type:
Insulated
Application:
Underground
Conductor Material:
Copper
Conductor Type:
Solid
Insulation Material:
PVC
Voltage:
up to 750V
Jacket:
PVC Jacket
Core:
1 Core
Package:
coil
Insulation:
XLPE Insulation
Conductor:
Bare Copper Conductor
Temperature:
-5 To +70°C
Appliance:
House Wiring
Supply Ability
Supply Ability:
100000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Coil
Port
Tianjin, Qingdao, Shanghai
Lead Time :
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 15 To be negotiated
Product Description

PVC Insulted Single-core solid conductor house wiring Cable\

Application:

It is determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes,under and surface mounting of plasters.

Some wire cables are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks.
Some optical electrical wire are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.

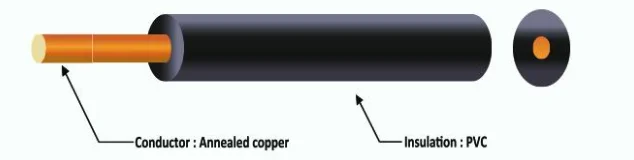

Construction characteristics

Conductor material: Solid copper conductor to IEC 60228 class 1

Insulation: polyvinyl chloride (PVC)

Electrical characteristics

Rated voltage Uo/U (Um): 300/750 V

Test voltage: 2000/2500 V

Usage characteristics

Temperature range: -5 to +70°C

Maximum operating temperature: 70°C

Short-circuit max conductor temperature: 160°C

Installation temperature: 5°C

Color options

Black, Red, Orange, Blue, Yellow, Yellow-green, Other colors can be supplied on request

Mechanical resistance to impacts: Low

Installation conditions

Minimum bending radius: 4 x cable diameter
Recommended maximum tensile stress: 50 N/mm²

Product parameters

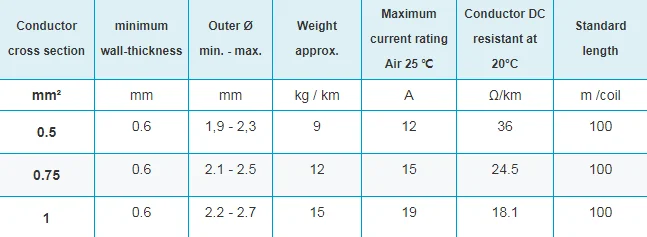

300/500 PVC Insulated non-sheathed with solid copper conductor for house wiring

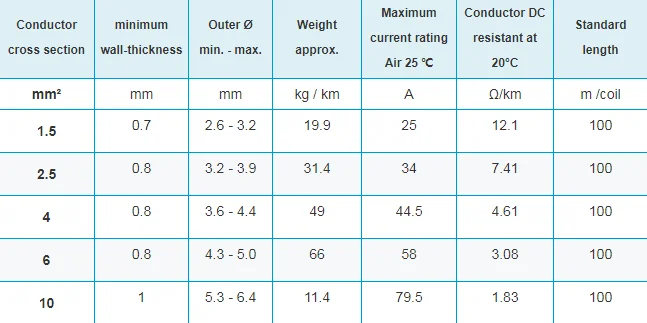

450/750V PVC Insulated non-sheathed with solid copper conductor for house wiring


Our Certifications

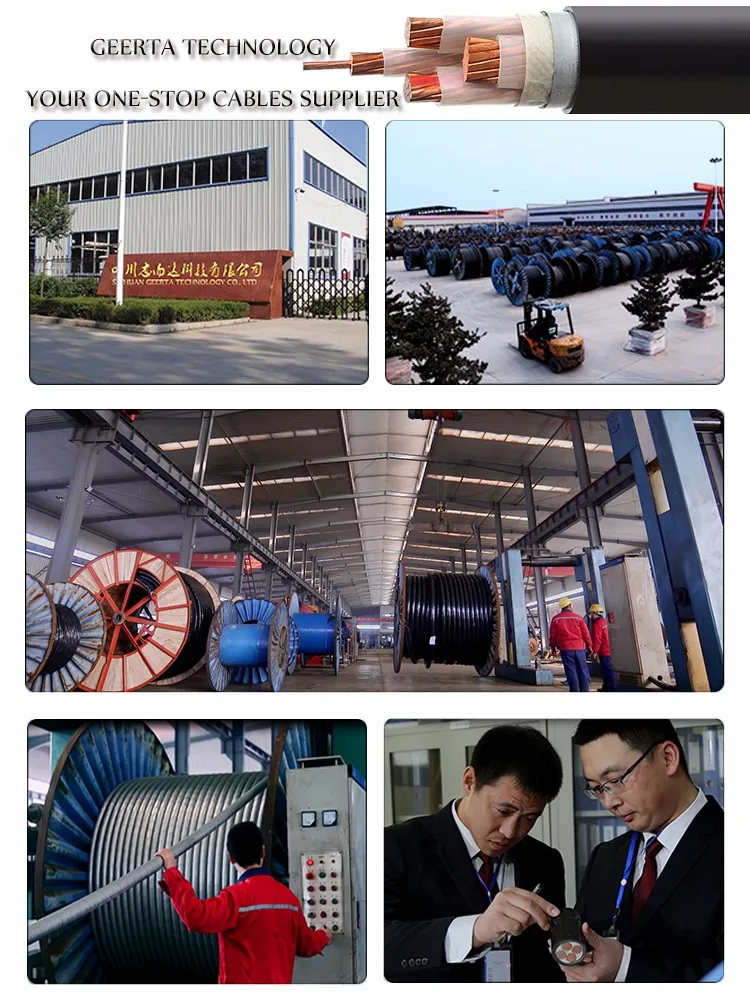

Our Company

Sichuan Geerta Technology Co., Ltd  is a professional manufacturer of cable & wire, who is committed to supply top quality power cable & wire products to the world. We are specialized in manufacturing power cables of voltage up to 35KV, rubber-sheathed cable, ABC cable, aluminium cable, control cable, bare conductors(ACSR, AAC, AAAC, BCC), welding cables, special cables, etc. More than 30 varieties with thousands of specifications are available. All of our products are produced in accordance with GB, BS, ASTM and IEC standards, and have obtained production license for national industrial products and China compulsory product certification. We can also provide OEM service and manufacturing products according to customers' requirements.So far, we have served customers from more than 10 countries including Australia, UAE, Pakistan,Cyprus, Netherland, Angola and South Africa.

Project Case
FAQ

Q: Are you a trading company or manufacturer?
A: We are a manufacturer supplier.

Q: What is your lead time?
A: Normally, it's about 7~15days.

Q: Do you provide samples? Is it free?
A: Yes, we could offer free samples.

Q: What is your terms of payment?
A: 30% T/T prepaid, balance paid before shipping.

Q: How can I contact you?
A: You can contact us through the inquiry chart below.
