PVC Wall Cladding Panel Extrusion Line / Plastic Wall Board Production Machine / PVC Ceiling Wall Panel Making Machine

FOB Reference Price:Get Latest Price
$45,000.00 - $75,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SZ-65 SJZ-65
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Plates
Plastic Processed:
PVC
Screw Design:
Double-screw
Automatic Grade:
Automatic
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
JEEPLAS
Voltage:
175-225 kW
Power(W):
380V 50HZ 3PH (Customized)
Dimension(L*W*H):
25*2*3 M
Weight:
10-12 T
Certification:
ISO CE SGS
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year
Final product:
PVC Wall Cladding Panel
Screw & Barrel:
65/132, 38CrMoALA, Bi-metal, Anti-Abrading & Anti-Rust
Gearbox:
SZ Horizontal or SJZ Vertical, Helical Gear, Hard Tooth, Rigid Surface
Motor:
37kw, AC, SIEMENS or SIMO
Speed:
1~6 M/min
Capacity:
250~300 kg/h
Inverter:
ABB or TECO
Temperature controller:
OMRON
Contactor & Relay:
SIEMENS or SCHNEIDER
Breakers & Switch:
DELIXI
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Packing Conditions:-
LCL Shipment & Cargo: Machine will be covered by plastic film, inside closed wooden pallet
Full Container: Machines will be covered by plastic film inside full closed container
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Plastic PVC Ceiling Wall Cladding Panel

These are to be used as indoor Wall cladding. PVC cladding panels are especially suitable for installing into wet environments.
The wall panel can meet all customer requirements or any installation conditions,
PVC Wall panel with width normally from 150∼1000 mm
PVC Wall panel with height normally from 7∼12 mm.
PVC Wall panel with different treated surface such as double color roller printing & coated with UV lacquer or by transfer or by lamination, which can make marble, wooden design on surface of product.


Ceiling Cladding Advantages:-
Quick and easy installation
Lightweight
Easy to clean
Durable
Anti-fungal
Corrosion resistant
No paint required
Water proof
No maintenance
Fire retardant
Cost efficient
Efficient insulators
thermal resistance

Production Line Spec

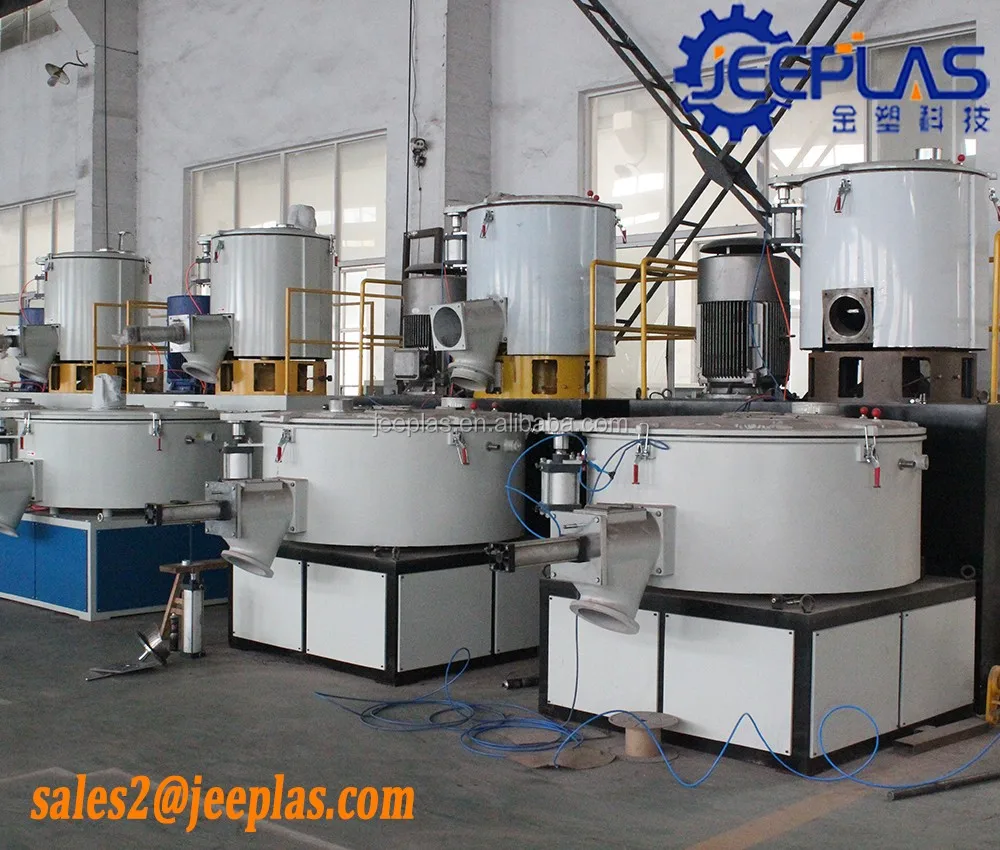

SRL-Z 300/600 High Speed Hot & Cooling Mixer
Method
Hot Mixer
Cooling Mixer
Total Capacity
300 L
600 L
Effect. Capacity
225 L
380 L
Motor Power
40/55 kw
11 kw
Motor Brand
AC, SIEMENS or SIMO
Inverter Brand
ABB or TECO
Electric Parts
SIEMENS & DELIXI
SZ-65/132 PVC Double Screw Extruder Machine
Screw Dia.
Ø 65 x 132 mm
Extruder Motor
37kw, AC, SIEMENS or SIMO
Feeding Motor
1.1 kw
Max. Capacity
250~300 kg/h
Inverter
ABB or TECO
Temperature Controller
OMRON
Electric Parts
SIEMENS & DELIXI

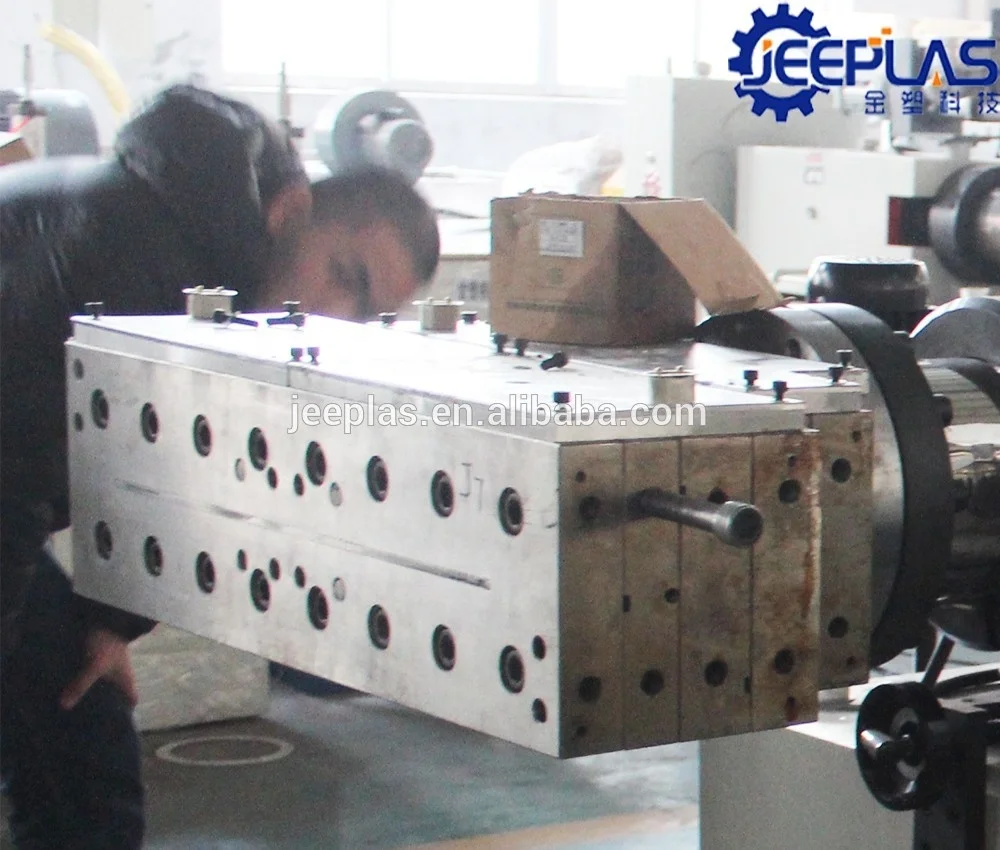

PVC Panel Mould
Material
3Cr17, Steel
Surface
Polished
Type
High Speed Mould
Speed
Depend on Panel Size
Structure
Die Head + Aluminum Heater + Calibrators
Specification
According to customer Samples & Drawings
Speed Sensor
Depends on
Infrared
Controller By
Automatic
Function
Control Haul-off Speed Exactly & ensure production quality.

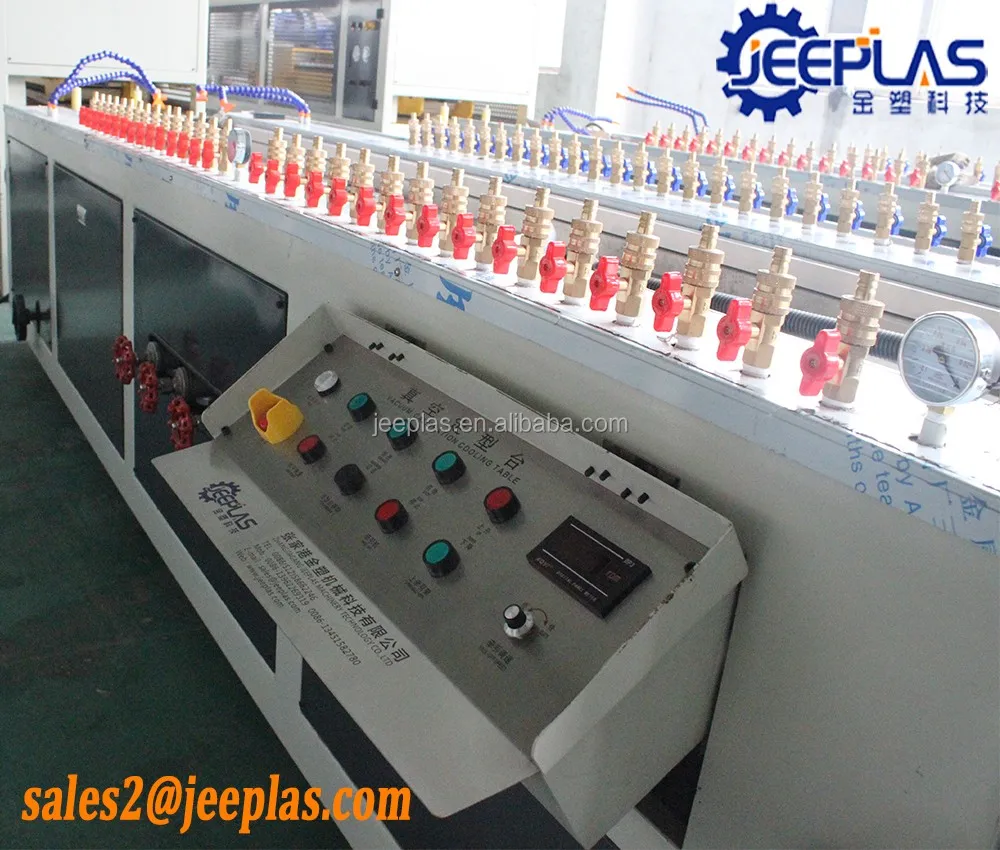

Vacuum Calibration Cooling Machine
Effective Length
4000 mm
Material
SUS304 Stainless Steel
1st Vacuum Pump Power
7.5 kw
2st Vacuum Pump Power
5.5 kw
Water Pump Power
2.2 kw
Blower Power
0.75 kw
Moving Motor Power
1.1 kw
Electric Part
SIEMENS & DELIXI

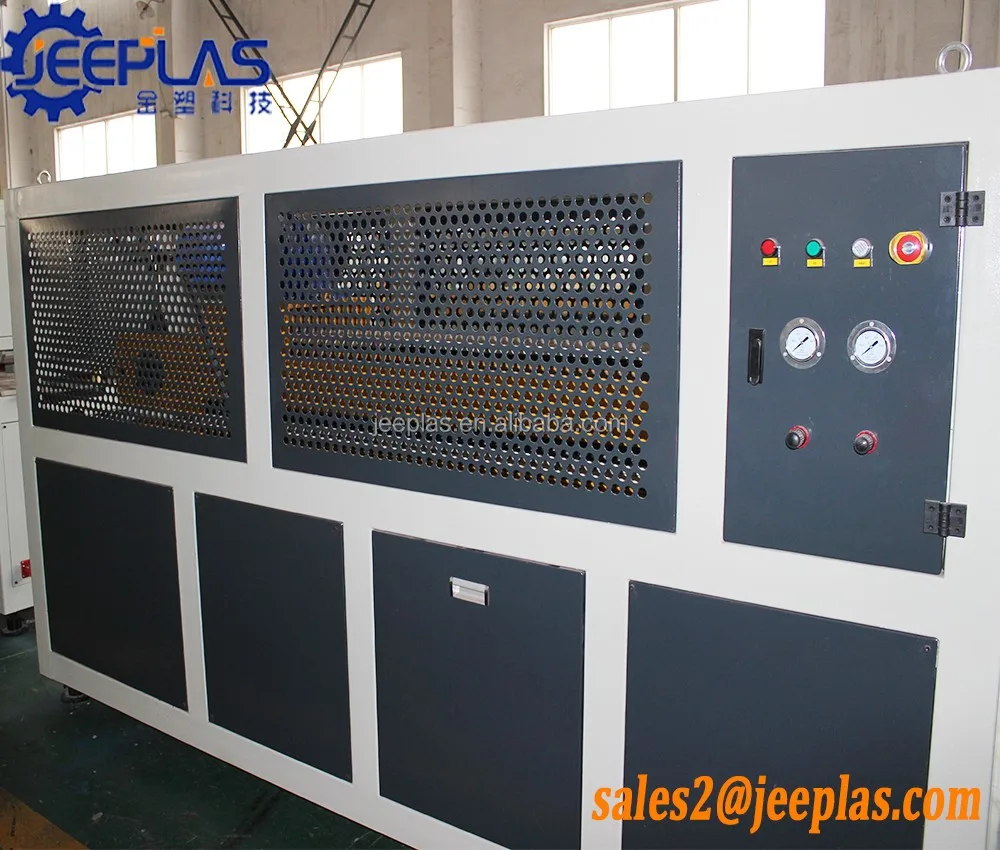

Haul-off Machine
Structure
2 Caterpillar Rubber Pad
Effective Length
2500 mm
Speed
2~6 M/min
Motor Qty
2 PCS
Motor Power
1.5 kw/pcs = 3kw
Transmission Method
gearbox
Inverter
ABB or TECO
Electric Parts
SIEMENS & DELIXI
Cutting Machine
Suitable For
PVC Wall & Ceiling Panel
Structure
Horizontal Circular Saw
Cutting Motor Power
2.2kw
Moving Motor Power
0.18 kw
Working Method
Pneumatic
Control Method
Automatic
Control by
PLC Screen
Final Stacker
Suitable For
PVC Ceiling Panel
Length
6000 mm
Material
Stainless Steel
Working Method
Pneumatic
Stracture
Horizontal

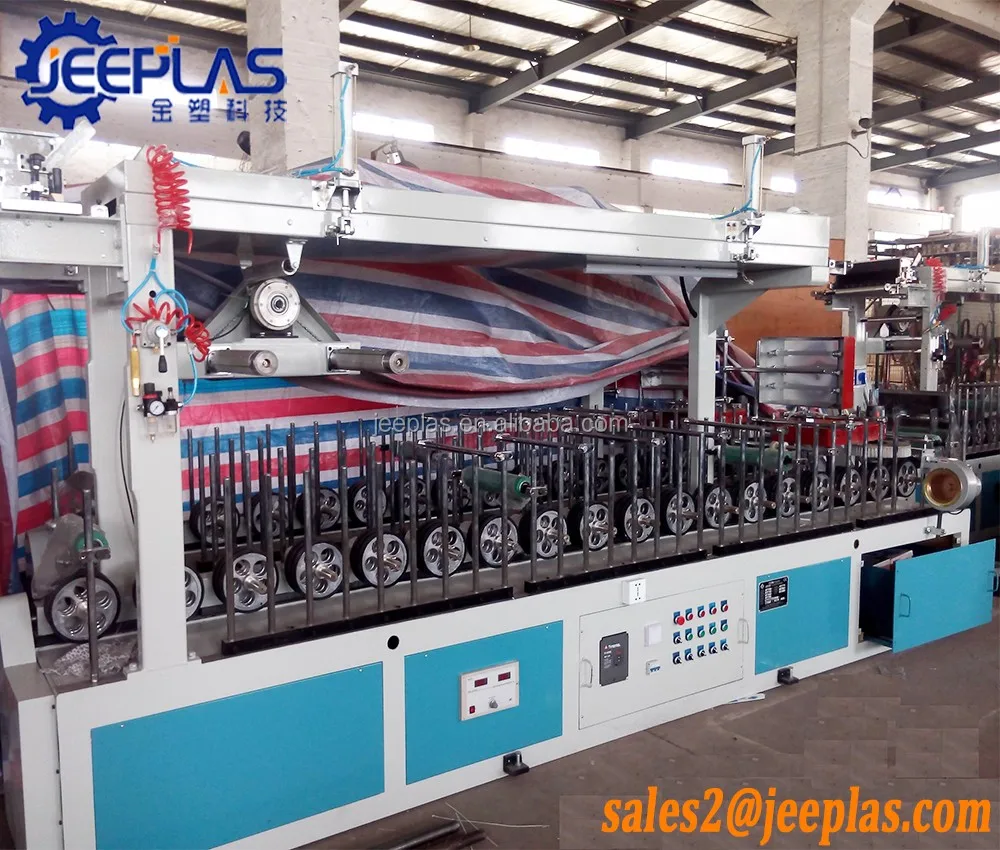

Laminating Machine
Model
Offline Machine
Suitable For
Panel & Profiles
Thickness Range
3∽80mm
Max. Working Width
≤600mm
Drive Motor
2.2kw
Total Heating Power
4.5kw
Total Power
12kw
Gluing By
PU Adhesive
Useful Links
Facebook Page
https://www.facebook.com/jeeplasmachinery
You Tube
https://www.youtube.com/channel/UCF50kI1LGRAAnXr1BoUtfGw
Google+
Jeeplas Machinery
Contacts
Packing
Our Company

ZHANGJIAGANG JEEPLAS MACHINERY TECHNOLOGY CO., LTD.

We are a Plastic extrusion, Recycling lines, Extrusion mould professional manufacturer was founded since 1998, at zhangjiagang city which is the hometown of the plastic extrusion machinery. Our facility more than 30,000 square meters with an in-house research and development center where all of our machines are designed, tested, and constantly evolving, All high quality, high precision machinery are CE & ISO9001:2000 certified, we stress the usage of only high grade materials, spare parts, electric components and motors from well known Chinese, Japanese & German manufacturers.
Our main products are as followings:-
(1) Plastic (PVC, PP, PE, HDPE, PPR) Pipe extrusion machinery.
(2) Plastic (PVC, SPC, WPC) Floor sheet and tile extrusion machinery.
(3) Plastic (PVC) Ceiling and wall Panel and profile extrusion machinery.
(4) Plastic (PVC, PP, PE, PS, PC, PP & PC hollow) sheet and Panel extrusion machinery.
(5) Plastic (PVC, PS, WPC) Foamed sheet extrusion machinery.
(6) Plastic (PVC, PS, WPC) Profiles extrusion machinery.
(7) Plastic (PVC, WPC) Door sheet and Profile extrusion machinery.
(8) Plastic (PVC, PP, PE, PET) Recycling, Washing and Drying machinery.
(9) Plastic recycling machinery (Crusher, Shredder, Pulverizing, pelletizing).
(10) Plastic extrusion's auxiliary equipment (Mixer, Hopper, Dryer, Loader...etc.).
(11) Plastic extrusion's moulds.
Already exported to more than 50 countries around the world such as Poland, German, Russia, Ukraine, Turkmenistan, Kazakhstan, Pakistan, India, Bangladesh, Iran, Saudi Arabia, Egypt, Sudan, Ethiopia, Algeria, USA, Brazil, Peru, Colombia, Australia...Etc.
JEEPLAS with more than 150 employees as strong technical and after sales service team have more than 20 years experience in plastic extrusion, recycle machines and extrusion moulds not only make high quality machines, also support you from 0 to get end quality products in market.

Choose JEEPLAS, that is trust coming and cooperation forever,
We only make useful and valuable machines.
