Passive CWDM Mux Demux Device,19' Rack Mount Package, 18Channels LC/UPC Duplex Fiber

FOB Reference Price:Get Latest Price
$95.00 - $490.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HiLink
Model Number:
HI-CWDM-16CH
Wavelength:
1270-1610nm
Channels:
8-18CH
Operating temperature:
0~70'C
Certification:
CE RoHS FCC
Channel Insertion Loss:
< 4.9dB
Return Loss:
≥ 45dB
Connector:
Duplex LC/UPC
Package:
1U Rack-Mount Chassis/ABS Box/LGX
Spacing:
20nm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
In Common,our transceiver package has been labelled and marked by Hilink as default. Customized label or package solutions are available as request.
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated

Passive CWDM Mux Demux Device,19' Rack Mount Package, 18Channels LC/UPC Duplex Fiber



Product Description





 Product Details



Hilink Coarse Wavelength Division Multiplexing units are a flexible plug-and-play network solution that allows network operators to cost effectively implement point to point or ring based WDM optical networks.
Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH/SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.



ParametersUnitCWDM Module
Wavelength Rangenm1260 ~ 1620
Channel Center Wavelengthnm1270 / 1290 / … / 1610 or 1271 / 1291 / … /1611
Channel Spacingnm20
Channel Passbandnmλc ± 7.5
Channel No.-4891618
Insertion LossdB≤1.8≤2.5≤2.8≤4.2≤4.9
Adjacent Channel IsolationdB≥ 30
Non-adjacent Channel IsolationdB≥ 40
Wavelength thermal stabilitynm/℃≤ 0.003
Insertion loss thermal stabilitydB/℃≤ 0.005≤ 0.007≤ 0.008
PDLdB≤ 0.1≤0.15≤ 0.15≤ 0.20≤ 0.25
Polarization mode dispersionps≤ 0.1≤ 0.15
DirectivitydB≥ 50
Return lossdB≥ 45
Optical PowermW≤ 500
Operating Temperature-10 ~ +70
Storage Temperature-40 ~ +85
Relative Humidity%5 ~ 95
Housing Types-1RU Rack-Mount/LGX Cassette/Splice/Pigtailed Module



Our Services





Warranty



We promise all the advertised optical transceivers are brand new with new components and parts.

We absolutely never use old and refurbished materials.

All the optical transceivers have been through functional test and aging test.

We provide 3 years warranty for all the optical transceivers from the date of shipment.


Packaging & Shipping



Shipment

Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of  by FedEx, DHL, UPS, TNT and EMS.
Some items in stock can be  shipped  out the same day . The Items with no stock, then the shipment would be done in 3-7 days.
DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.
For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

Company Information



Hilink Advantage

1.Hilink establish in 2007,Specialize in this field with  around 10-year experience.
2." Credit is the basis, quality is the first",all our products are  new,we never use second-hand components.
3.Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4.We provide 3 years warranty for all our products from the date of shipment.
5.All of our products get through CE,ROHS,FCC.
6.We also provide DWDM CWDM WDM with optical solutions.

2015 OFC In The USA

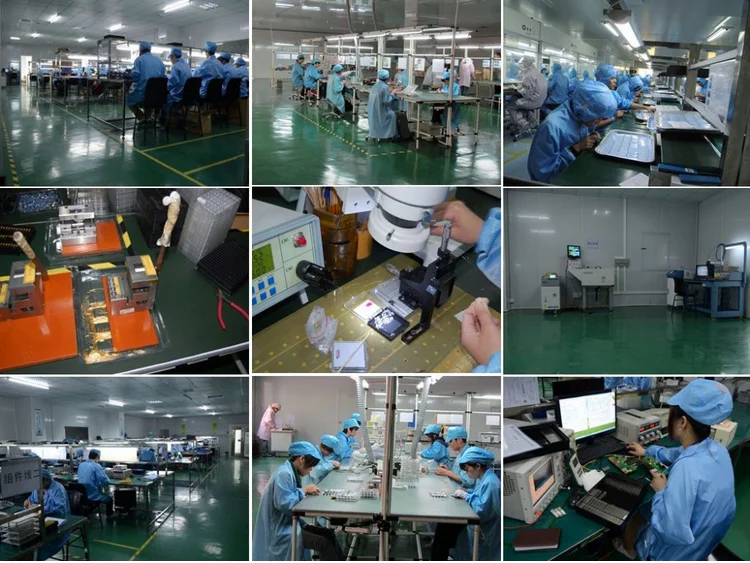

Our Working Shop


CE ROHS




If you have any other requirements, feel free to contact me:

Contact Person: Vicky He

Tel: +86 755-23357706

Mob: +86 13544042360

Skype: live:vickyhe8888

Email: vicky(at)hilinktech.com
