Pathfindir ii flir thermal camera night vision thermal infrared image Camera for car or truck XY-IR313

  • 10 - 299 Sets
  • 300 - 499 Sets
  • >=500 Sets
Analog Camera
Hidden Camera
Lead Time:
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 12 14 15 Negotiable
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 500 Sets)


Graphic customization (Min. Order: 500 Sets) Less
$1,500.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
Place of Origin:
Brand Name:
Model Number:
Special Features:
Waterproof / Weatherproof
CCD, thermal IR
Thermal Infrared
Analog Camera
Waterproof level:
Night vision:
Mirror/Normal image:
Working Temperature:
f18mm/F1.0 or optional
TV System:
NTSC (PAL optinal)
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Color box size:20*14*7cm
Carton details: 10set/carton
Carton size: 55x42x52cm
Picture Example:
Lead Time :
Quantity(Sets) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 12 14 15 To be negotiated
Video Description
Product Description

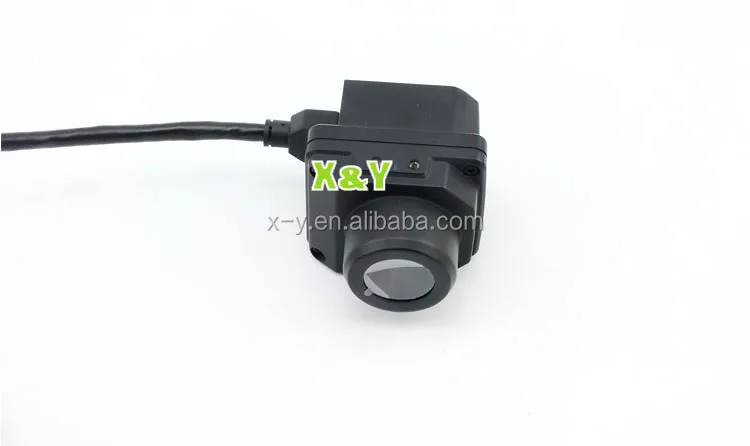

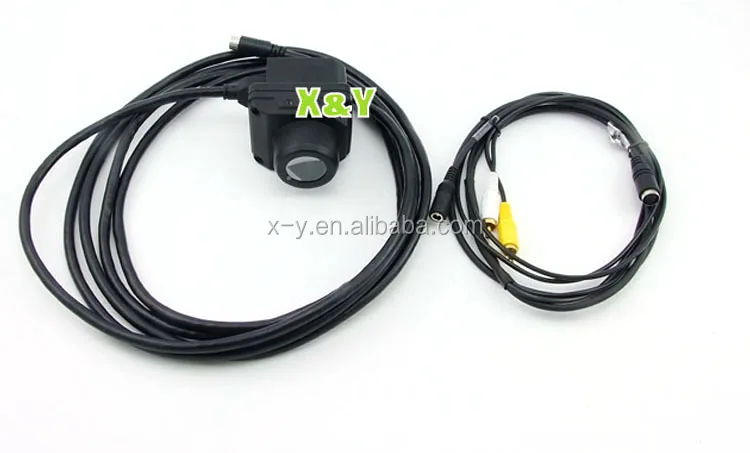

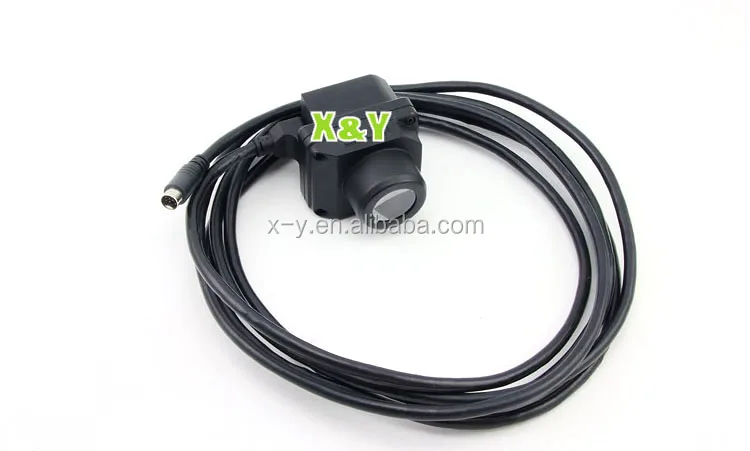

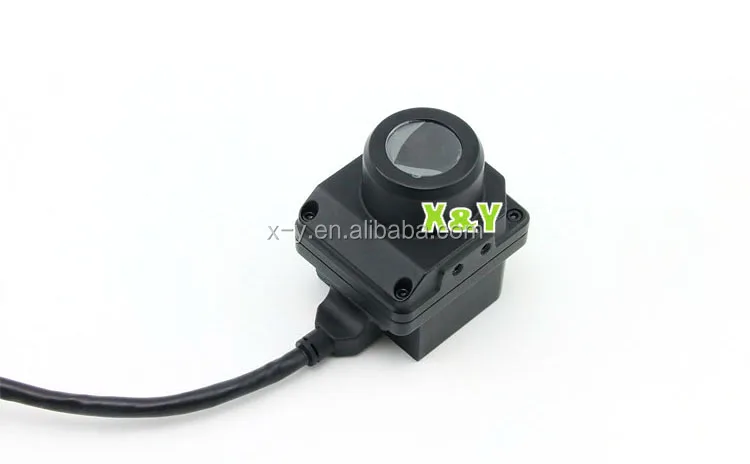

Pathfindir ii flir thermal camera night vision thermal infrared image Camera for car or truck XY-IR313

The car IR aid camera's visual range is up to 5 times of the range of standard headlights.

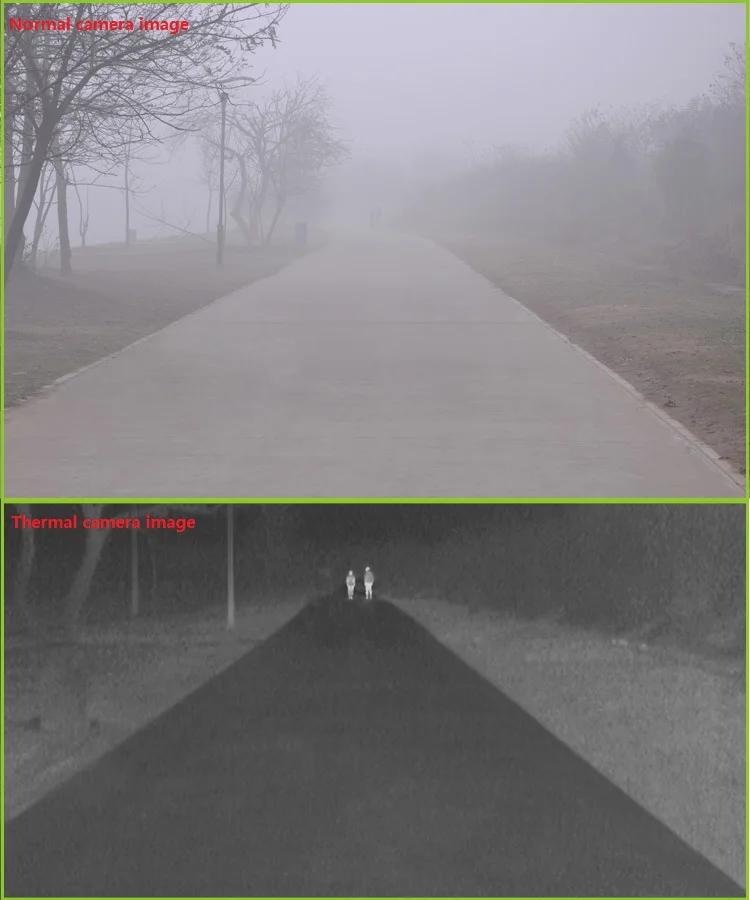

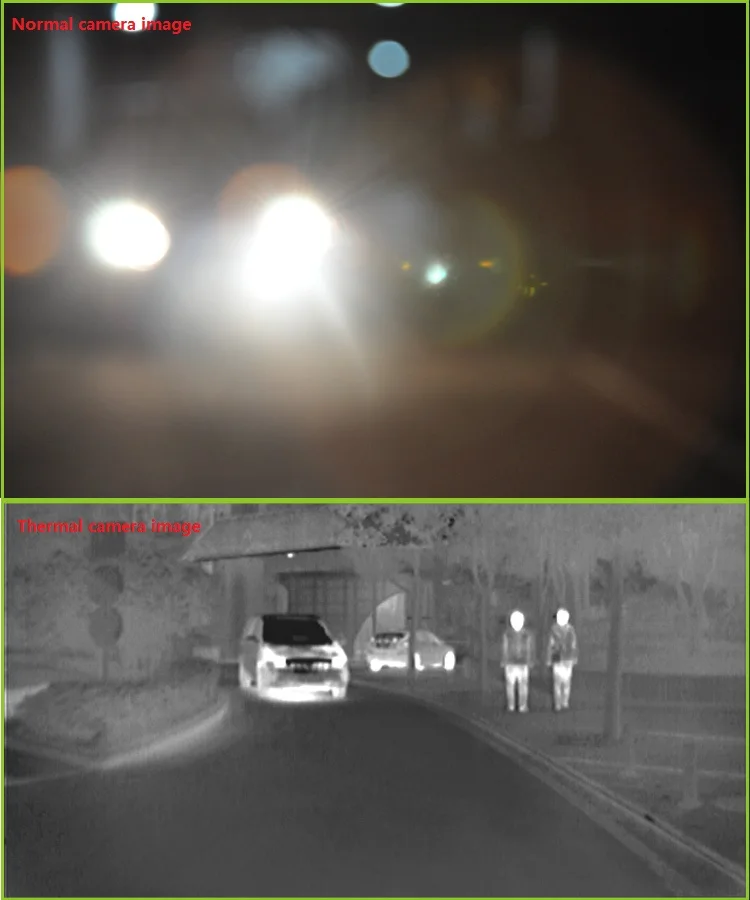

Enables the driver to recognize pedestrians, animals and objects ahead in darkness, smoke, fog, rain, snow and strong headlight glaring.

Allows more time to react to any potential dangers

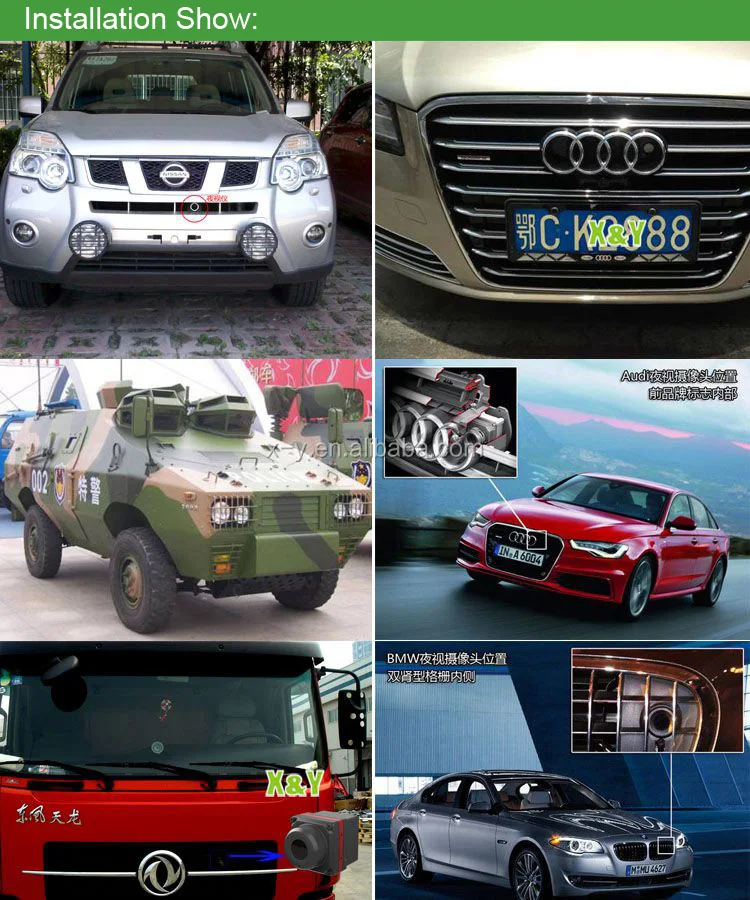

Convenient installation
Compact profile
Multiple application: Security and vehicle, including military vehicles and aftermarket commercial vehicles

Camera specification
Detector Type 400X300 Microbolometer
Spectral Range 8~14um
Optical Lens 19mm /F
FOV 21° X28°
IFOV 1.7 mrad
NETD 100mk@25℃
MRTD 500mk@25℃
Image presentation
Video Output 50HZ PAL or 60HZ NTSC
Adjust Auto brightness and contrast adjustment
Image calibration Auto calibration without shutter
Image recognition auto pedestrian recognition
Alarm auto
System performance
start up time less than 6s
Defroster Support
≤2℃ activate defroster automatically
@-30℃ deice 1mm ice within 15m
≥7℃ close defroster automatically
External DC adapter 9V~36V DC
Power dissipation
≤1.4W without alarm function

Command and Control RS232
Image display Real time on PC or indicated monitor
Operating Temperature -40 deg to 70deg
Storage temperature -45 deg to 80deg
Dust protection MIL-std810
Rating IP67
Weight (including lens) ≤0.6kg
Size 75mm X 58mm X 68mm

Details Images
Product packaging
Color box size:20*14*7cm
Carton details: 10set/carton
Carton size: 55x42x52cm
Company Profile

X&Y Car Electronic Limited is the professional company in car visible parking and driving security system areas,since 2013.

We apply ISO9001/TS16949 car electronic standard from 2015 with strict quality control system for each producing proess.

More than 6.7% of annual sales of the group was invested on research,developing,faulty improving,to ensure our production has the most competitive performace and reliabe quality.
With the strong belief "we could do much better for our customers" and CRM system,we have formed high quality efficient customer service team try to help solve 90% problems within 24hours.
Also we have won AAA enterprise credit rating in 2016,and cooperated with with over 40000USD assurance to make each deal more safety.

After years of developing,we have formed strong ability in new production development,and strict quality control system to ensure excellent quality and service.
With the support of many long term strategy cooperate customers, our prodctions are welcomed all over the world.

Our Mission:Make a safer driving!

We are the professional supplier in car driving assist camera system with customised service ability.

And have OEM/ODM experience in shell design and modual design, could supply different camera view angles,high waterproof standards as customers requirement.

We also doing researches on 360 around view driving and parking assist system with DVR(AVM) and

BSD/BSM blind spot driving assist systems in order to make driving more safety and more easy.

Most of our production has CE,FCC,ROHS certifications,and pass strict condition test on vehicles.

All our production has 1 year warranty.

We offer OEM/ODM service to oversea customers.

Welcome to cooperate with X&Y to get win&win success.
