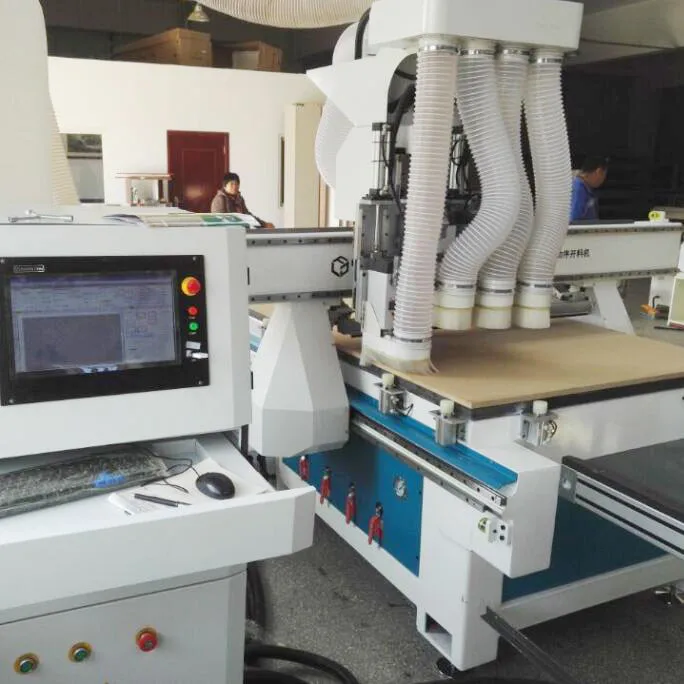

Philicam 1325 woodworking machinery wood door making cnc router cutting

Feedback Ratings
  • 1 Sets
    $16,000.00
  • 2-4 Sets
    $14,500.00
  • >=5 Sets
    $12,500.00
Model Number:
FLD1325
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
28 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $16,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Philicam
Voltage:
220V/380V
Power(W):
3.0kw
Dimension(L*W*H):
1300*2500*200mm
Weight:
2000kg
Certification:
CE ISO
Warranty:
1 year
Product name:
wood door making cnc router cutting
Working area:
1300mm*2500*200mm
Axis:
cnc router 3 axis
Application:
Woodworking
Spindle:
Air Cooling Spindle
Spindle power:
6kw/4.5kw/4.5kw/4.5kw
Control system:
Syntec
Transmission:
XY-axis:rack Z-axis:screw
Motor:
Servo motor
Color:
Customer Needing
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
3450X2100X2000 cm
Single gross weight:
3000.0 kg
Package Type:
wooden box package
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 28 To be negotiated
Related Products

                      Video

                        Video

                                   Video

Product Description

wood door making cnc router cutting Application

Material: MDF, acrylic, green board, soft metal, PVC, aluminum-plastic panel, particle board, insulation board, particle board,

                 solid wood, multilayer board, marble

Product: Furniture industry: cabinet door, kitchen,door,cabinet,wardrobe, study, chair, table, picture frame, handicraft.

                 Advertise industry: Advertising board, Label design, Acrylic cutting, model of the multi material decoration products.

No.
 Description
  Parameter
 1
Table size
1380*3000mm
 2
Working area
1300*2500*200mmv
 3
Repeat positioning accuracy
±0.02mm
 4
Lathe bed frame
Steel square tubes
 5
X,Y Structure
Rack drive, Taiwan HIWIN guide
 6
Z Structure
Germany Ball screw and Taiwan HIWIN guide
7
Position mode
Pop-up pins
8
Working table
Vacuum table
9
Spindle power
6.5KW+4.5KW+4.5KW+4.5KW
10
Spindle rotate speed
18000r/min
11
Spindle inverter
Fuling inverter
12
Command language
G Code*,U00*,mmg*,nc

>>>>>>>>>>>>>>>>>>>>>>wood door making cnc router cutting Sample<<<<<<<<<<<<<<<<<<<<<

wood door making cnc router cutting Main Features

1) This cnc machinery adopts Taiwan Hiwin square guide rails along with double row four columns ball slider,large bearing capacity,
Smoth and reliable operation,High precision,long service time.

2) Install big power air-cooling spindle,stable performance.

3) NC studio control by PC with Unique intelligent budget rules,full electrical potential to achieve high speed processing,linear
    synchronous,the curve is more perfect.

4) Advanced file pre-treatment function can correct the error in the files and is compatible with the process codes of muitiple
    software.

5) Vacuum table can be effective adsorption of different size plates.

Detailed Images

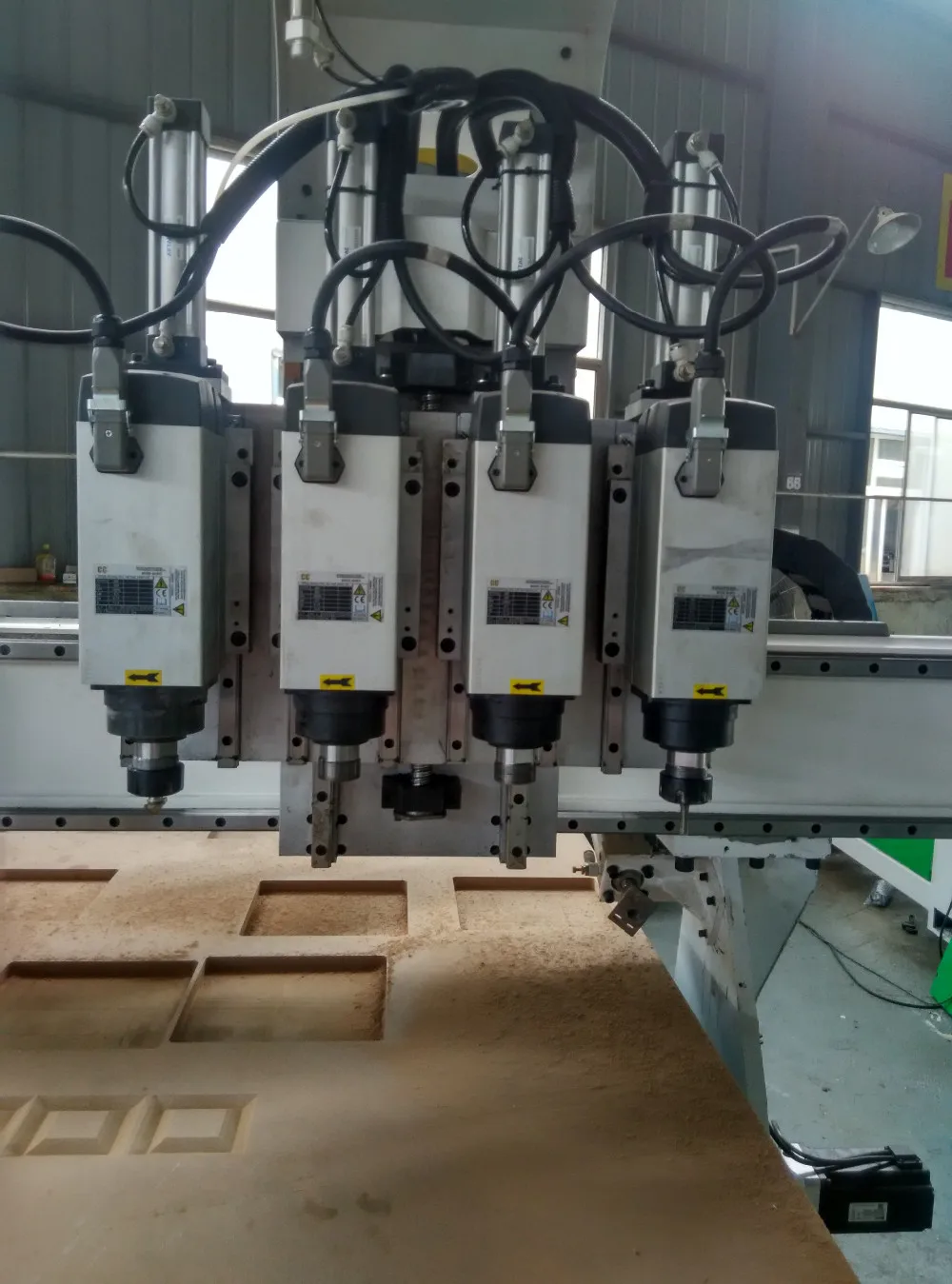

Name: Multi-spindle

Advantage:

Carving and cutting accurate and steady, four tools to
 improve work efficiency

Name: Vacuum table
Advantage:
The vacuum table surface is multi-zoned which allows the

operator to easily switch from full sheet processing to smaller

part processing. Zones can be turned off easily via control valves

on the front of the machine.

Name: Pop-up pins
Advantage:
The pop-up pins are equipped with aluminum slots, when the
machine used the pushing function the slots will rise up as
a tank on the table surface so that the positioning surface is
 big enough to stop smalls pieces falling off the machine.


Name: Machine body
Advantage:

The base frame is fabricated from heavy-duty steel, precision
machined and stress relieved so that the foundation remains
stable and steady over the operational life of the machine.

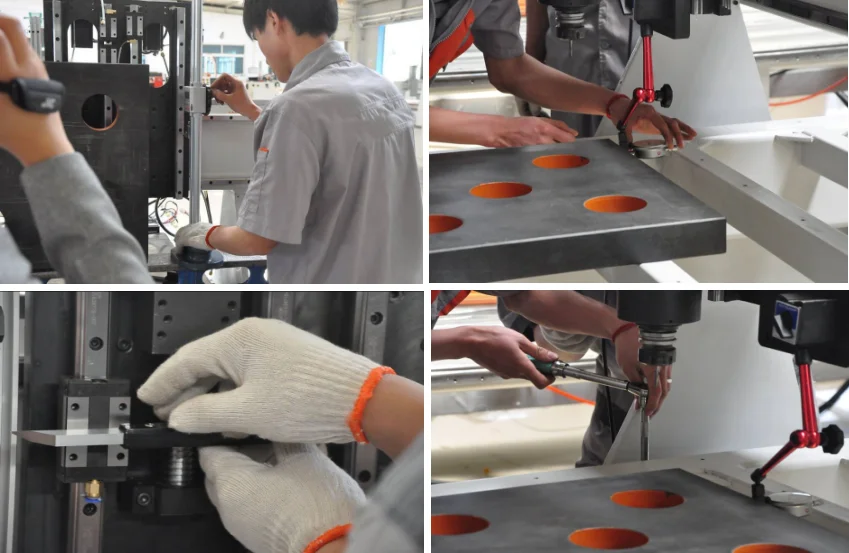

>>>>>>>>>>>>>>>>>>>>wood door making cnc router cutting Testing<<<<<<<<<<<<<<<<<<<<<<<
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the
    machine.
* Engineers available to service machinery overseas.
Packing & Delivery
wood door making cnc router cutting Packaging
Size
3450*2100*2000MM
Weight
3000KG



Packaging Details
∗ Water-proof plywood package with
foam protection in each corner.

∗ Solid Seaworthy Plywood Box Package
with Steel Belt.

∗ Save space as much as possible for
container loading.

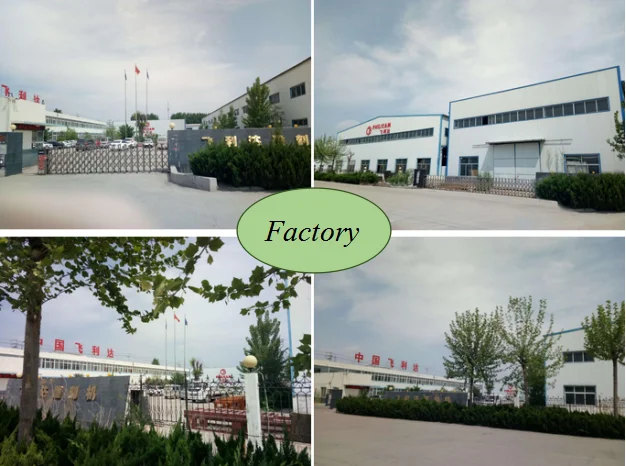

Company Information

PHILICAM Group:

PHILICAM Group was established in 2003, which is a high-tech corporation with cnc routers development,design,production,maintainance and marketing. Engaged in R&D of CAD/CAM technology with the cooperation of Shandong Mechanical
Institute,Philicam enjoys fast development and has a high level Professioalism and service system.

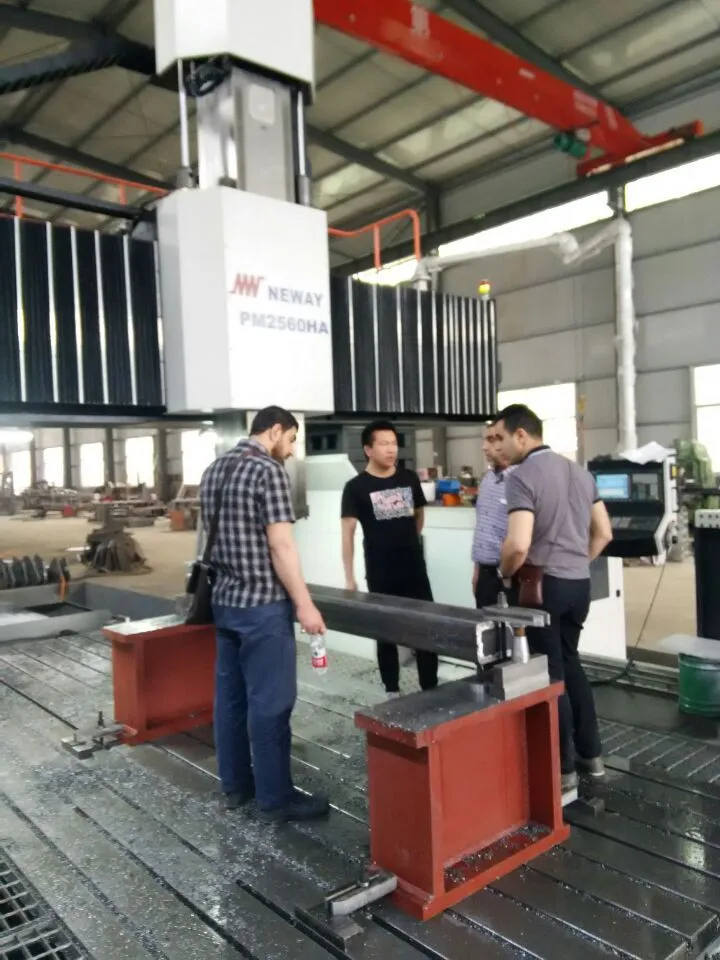

>>>>>>>>>>>>>>>>>>wood door making cnc router cutting Coustomer Visit<<<<<<<<<<<<<<<<<<
