Pins connector positive transflective 20 characters x2 rows lcd

Feedback Ratings
US $5.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
CM202-1SLDAA
Type:
Character
Item name:
Pins connector positive transflective 20 characters x2 rows lcd
Color:
Yellow green
Voltage:
5V or 3V
Backlight:
LED backlight
Interface:
Serial or parallel
Viewing area:
83x18.5mm
LCD type:
STN
LED backlight color:
White
Display mode:
positive
LED backlight current:
25mA

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X17X5 cm
Single gross weight:
0.5 kg
Package Type:
Paper box
Lead Time :
Quantity(Piece) 1 - 1 >1
Est. Time(day) 7 To be negotiated

Pins connector positive transflective 20 characters x2 rows lcd

Product Description

Number of characters: 20 characters x 2 lines
Display type: COB STN/FSTN, blue/gray/yellow green, negative/positive
Duty: 1/16
Bias: 1/5
Input voltages: 5.0 or 3.3V DC
Viewing angle: 6 or 12 O'clock
Controller: SPLC780D or equation
Connector: zebra
LED backlight color: white/blue/yellow green
Operating temperatures: 0 to 50, -20 to 70°C
Storage temperatures: -10 to 60, -30 to 80°C
VA (W x H): 85.0 x 20.0mm
AA (W x H): 76.59 x 11.86mm
Module dimensions (W x H x T): 116.0 x 37.0 x 12.5mm

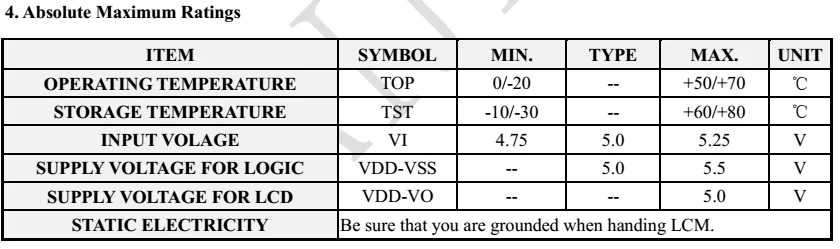

Specification for Pins connector positive transflective 20 characters x2 rows lcd

202 character lcd module.png

Drawing for Pins connector positive transflective 20 characters x2 rows lcd

202 lcd display.png

PINS CONNECTION FOR Pins connector positive transflective 20 characters x2 rows lcd

202 mono lcd.png

202 stn lcd.png

Pins connector positive transflective 20 characters x2 rows lcd

Product Certificates

Pins connector positive transflective 20 characters x2 rows lcd

8 characters 2 lines lcd module certificates.png



Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles



Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

Related Product  for Pins connector positive transflective 20 characters x2 rows lcd

 About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.

Display ContentModel No.Outline Size(mm)V.A(mm)Dots SizeControllerVoltageInterface
8x2CM802-140×35×728×140.5×0.5SPLC7805V/3Vserial/parallel
8x2CM802-258×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
8x2CM802-658×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
12x1CM121-1103×35×1176×251×1.4SPLC7805V/3Vserial/parallel
16x1CM161-180×36×1264×13.80.55×0.7SPLC7805V/3Vserial/parallel
16x1CM161-2122×33×1499×130.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-1122×44×13.499×240.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-384×44×13.762×180.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-480×36×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1084×44×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1180×36×12.564.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1285×36×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1380×36×12.564.6×13.80.55×0.55SPLC7805V/3Vserial/parallel
16x2CM162-1585×29×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1785×36×1462×160.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-3680x36x11.364.9x15.90.54x0.62SPLC7805V/3Vserial/parallel
16x4CM164-187×60×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
16x4CM164-287×55×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
20x2CM202-1116×37×12.583×18.50.61×0.66SPLC7805V/3Vserial/parallel
20x2CM202-2180×40×14.3148×231.1×1.12SPLC7805V/3Vserial/parallel
20x2CM202-3116×32.5×7.987.8×17.50.553×0.569SPLC7805Vserial/parallel
20x2CM9079123×25×12.785×12.90.55×0.65SPLC7805Vserial/parallel
20x4CM204-198×60×1476×260.55×0.55SPLC7805V/3Vserial/parallel
20x4CM204-2146×62.5×13123×42.50.92×1.1SPLC7805V/3Vserial/parallel
40x2CM402-1182×33×11.5154×15.80.6×0.65SPLC7805Vserial/parallel
40x4CM404-1190×54×13.6147×29.50.5×0.55SPLC780x25V/3Vserial/parallel
