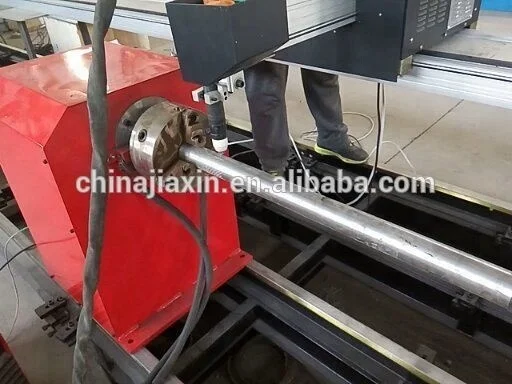

Pipe cutting cnc plasma machine for steel metal iron stainless steel

  • 1 - 1 Sets
    $2,900.00
  • >=2 Sets
    $2,800.00
Model Number:
JX-1330GB
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Place of Origin:
Shandong, China
Brand Name:
JIAXIN
Condition:
New
Dimension(L*W*H):
3500*2000*800mm
Certification:
CE ISO
Rated Power:
160W
Voltage:
220V/50hz
metal pipe diameter:
40mm to 300mm
Metal pipe length:
Max. 3m; could be longer
Control system::
Shanghai Fangling controller
Cutting material:
Iron, steel, aluminum, galvanize
Color:
red, blue, black, yellow,
Software:
Starcam or Fastcam software
Flame cutting thickness:
6-160mm
Plasma cutting thickness:
0--30mm
Machine Type:
Plasma cutting machine for metal pipe and metal plate
Cutting area:
1300*3000mm
After-sales Service Provided:
Engineers available to service machinery overseas
Weight:
200--300kgs
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Video Description

Pipe cutting cnc plasma machine  for steel metal iron stainless steel





parameter

 New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine

 ModelJX-1330GB
1Power sourceAC 220±10%VAC 50/60Hz
2Cutting modeO2/C3H8 or C2H2
3Effective cutting range(mm)1300*3000 for metal sheets, 40--300mm diameter for tubes
4Input Voltage220V, 50HZ
5Length of tubesMax. 3000mm
6The ovality of tubesLess than 2%
7Cutting speed(mm/min)0-8000mm/min
8Cutting thickness(Flame)6-160 mm (O2/C3H8 or C2H2)
9Cutting thickness(Plasma)According to plasma power source;
10Move precision±0.2mm/m
11Cutting systemShanghai Fangling control system
12Plasma sourceHuayuan brand 40A--160A
13Gas pressure(Mpa)Max.0.1
14Oxygen pressure(Mpa)Max.0.7
15Type of gasC3H8 C2H2
16Emergency stopYes
17Working temperature-5~45
18Power8.5kw
19ARCUntouched arc striking
20Processing MaterialsIron, steel aluminum sheets, galvanized sheets, Titanium plates and other kinds metal



























Applications

 New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine  can cut mild steel with flame cutting, and cut high

carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely

applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

   Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the

formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.

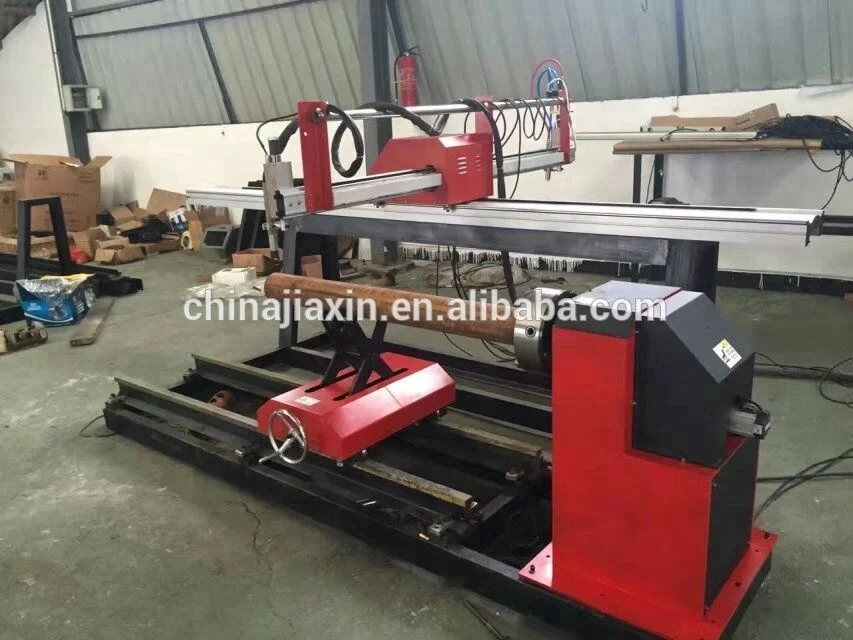

2017 New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine

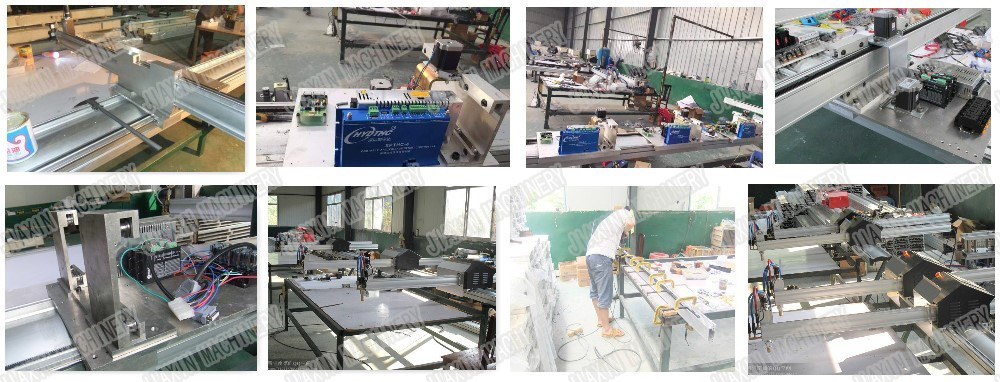

Main produce process

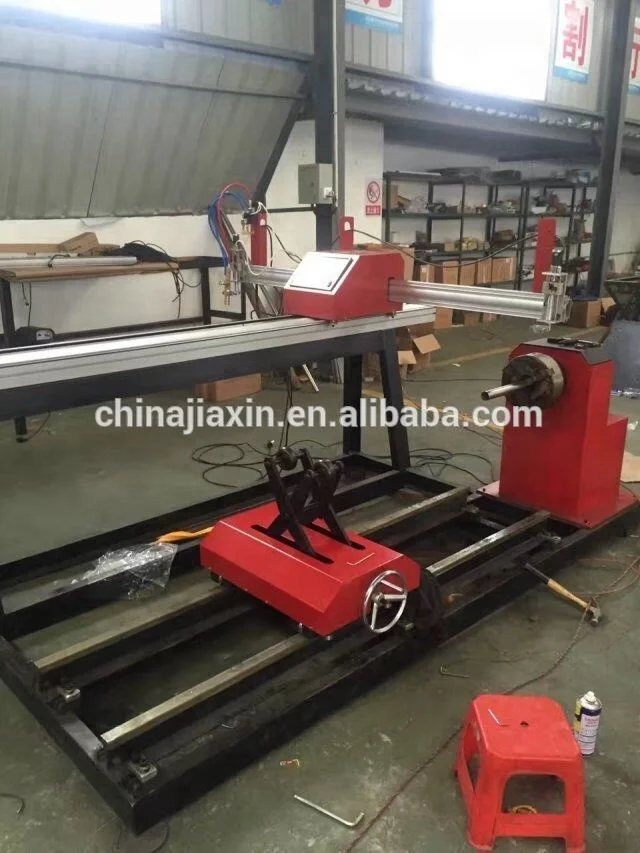

2017 New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine

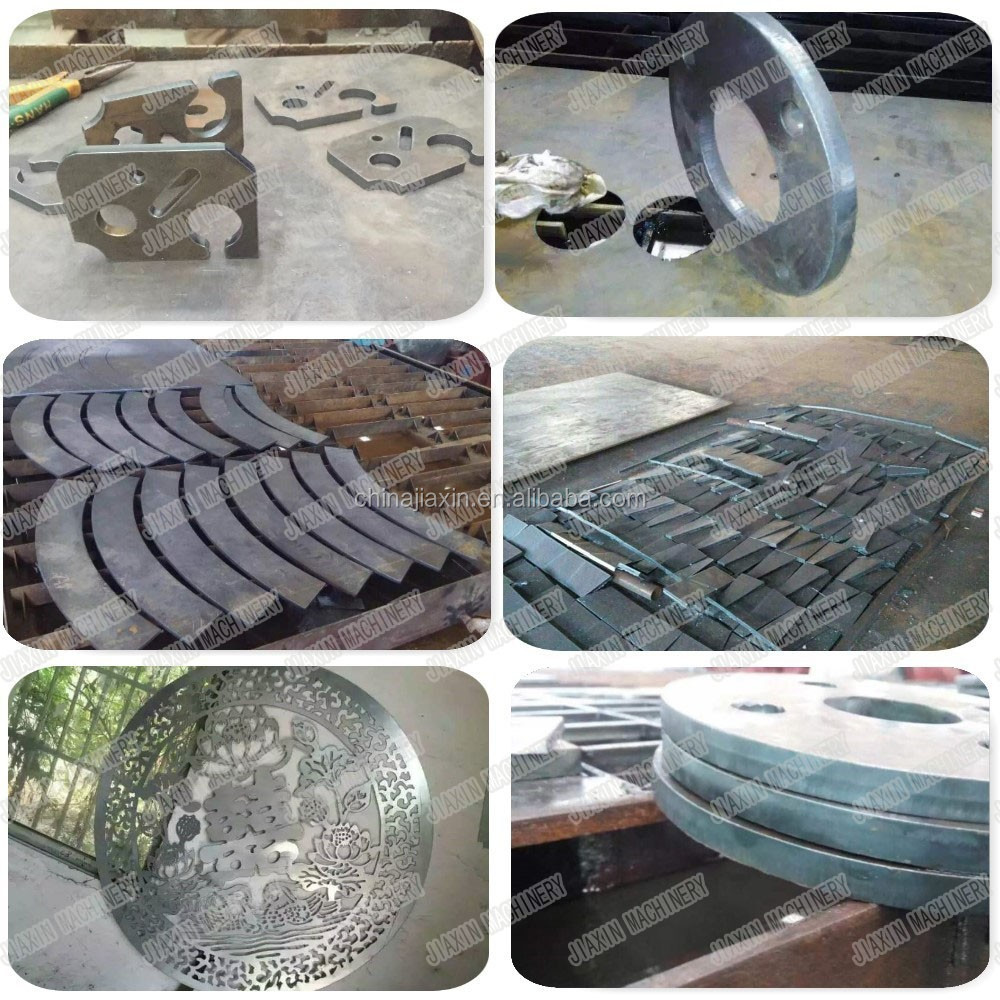

Samples show

New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine;

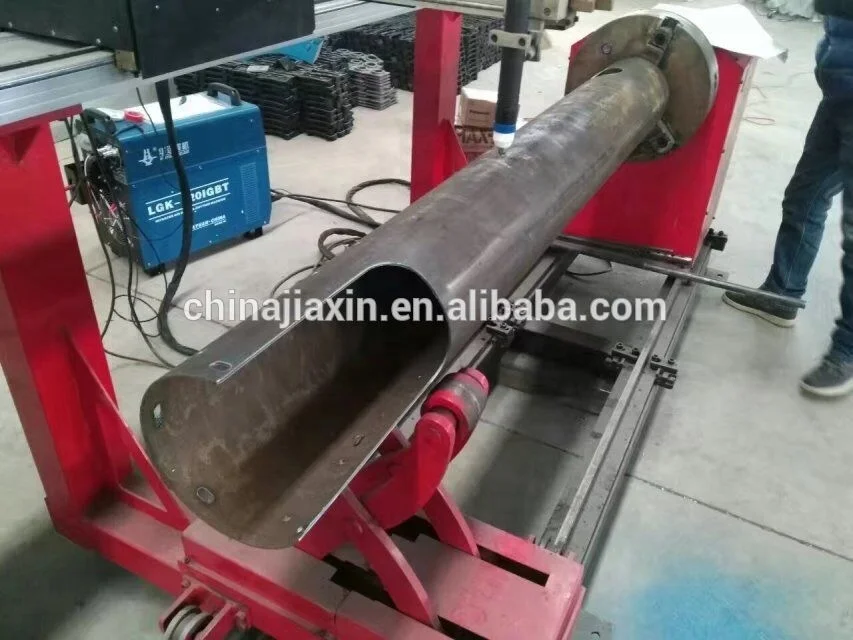

This machine could cut both metal tube and metal sheets.

 2017 New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine



2017 New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine

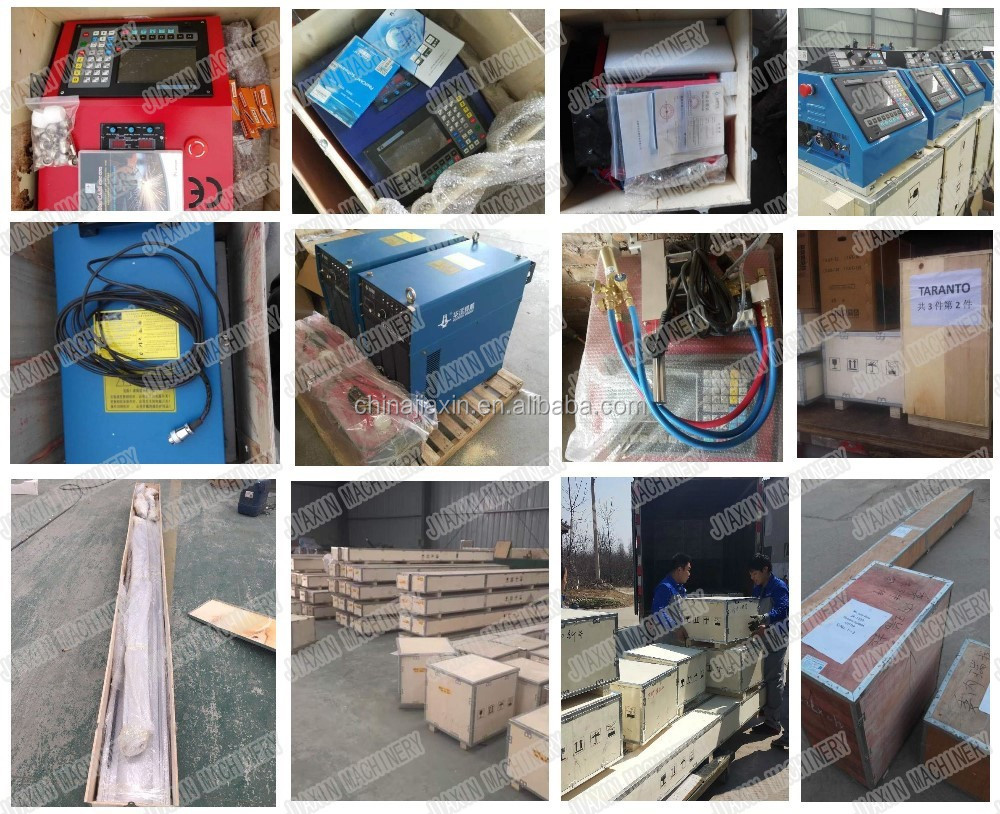

Packing&shipping

One set Plasma tube cutting machine will packed in 3 or 4pcs fumigation-free wooden case.

2017 New Portable type Plasma Metal Pipe cutter machine, CNC metal tube cutting machine





























































FAQ

Q: What's the delivery time?

A: 10-15 working days to delivery port.

Q: What's the usually delivery terms?

A: FOB, CNF, CIF, Exworks will be OK.

Q: What's the MOQ?

A: 1 set.

Q: What’s the payment term?

A: We accept T/T, L/C or Cash.

Q: What's your delivery port?

A: Usually Qingdao port, Shanghai port.

Q: What's the packing?

A: Iron Pallet and Plywood cases or carton or depending on your requires.

Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?

A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.

Q: Can you place OEM orders?

A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information

Q:Where is your factory located? How can I visit there?

A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
