Planetary cycloidal pinwheel reducer three phase vertical XDW/BWD cycloid with motor

  • 1-4 Pieces
    $40.00
  • >=5 Pieces
    $35.00
Rated Power:
0.75-55KW
Model Number:
B/X series
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 5 Pieces)
Customized packaging (Min. Order: 5 Pieces)

More

Graphic customization (Min. Order: 5 Pieces) Less
Samples: $40.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $40.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Energy & Mining
Gearing Arrangement:
Planetary drive
Output Torque:
2.6-1195N.m
Input Speed:
300-1800Rpm
Output Speed:
0.16-1028r/min
Place of Origin:
Jiangsu, Jiangsu,China
Brand Name:
DEVO
Product name:
cycloidal gearbox
Application:
Drive or reduce gear
Color:
blue
Material:
Steel
Certificate:
ISO9001
Ratio:
11-87
Mounting Position:
Mounting Position
Bearing:
NSK
Usage:
transportation, food, printing, lifting, mining

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X14X16 cm
Single gross weight:
20.0 kg
Lead Time :
Quantity(Piece) 1 - 1 2 - 5 >5
Est. Time(days) 5 10 To be negotiated
Product Description

Introduce


X/B cycloidal pinwheel reducer is a kind of machinery which implements reduction by meshing cycloidal pinwheel teeth according to the principle of planetary transmission with few tooth difference. This machine can be divided into horizontal, vertical, biaxial and direct assembly modes. It is a common equipment for metallurgy, mining, construction, chemical industry, textile and light industry.

sturcture and principle


Cycloidal gear reducer is a new transmission device with planetary transmission principle and cycloidal gear meshing. All transmission devices of cycloidal pinwheel reducer can be divided into three parts: input part, deceleration part and output part.

Dislocation on the input shaft is equipped with a 180 ° of the double eccentric sleeve, turn on the eccentric sleeve is equipped with two called arm of roller bearing, the formation of H, two cycloid gear center hole is the eccentric sleeve on the turning arm bearing raceway, and by a group of cycloid gear and pin gear mesh circular permutation needle, to form tooth difference, for the internal meshing gear reducer is institutions (in order to reduce friction, in small ratio of speed reducer, the needle with needle teeth on the gear set).

Type
Allowable Torque
Model
Single stage motor direct coupling



100-29400N.m
Single stage:
BW , BWD  , XW  , XWD , BL , BLD , XL , XLD ,

Two stage:
BWE , BWED , XWE , XWED , BLE  , BLED , XLE , XLED ,
Two stage motor direct coupling

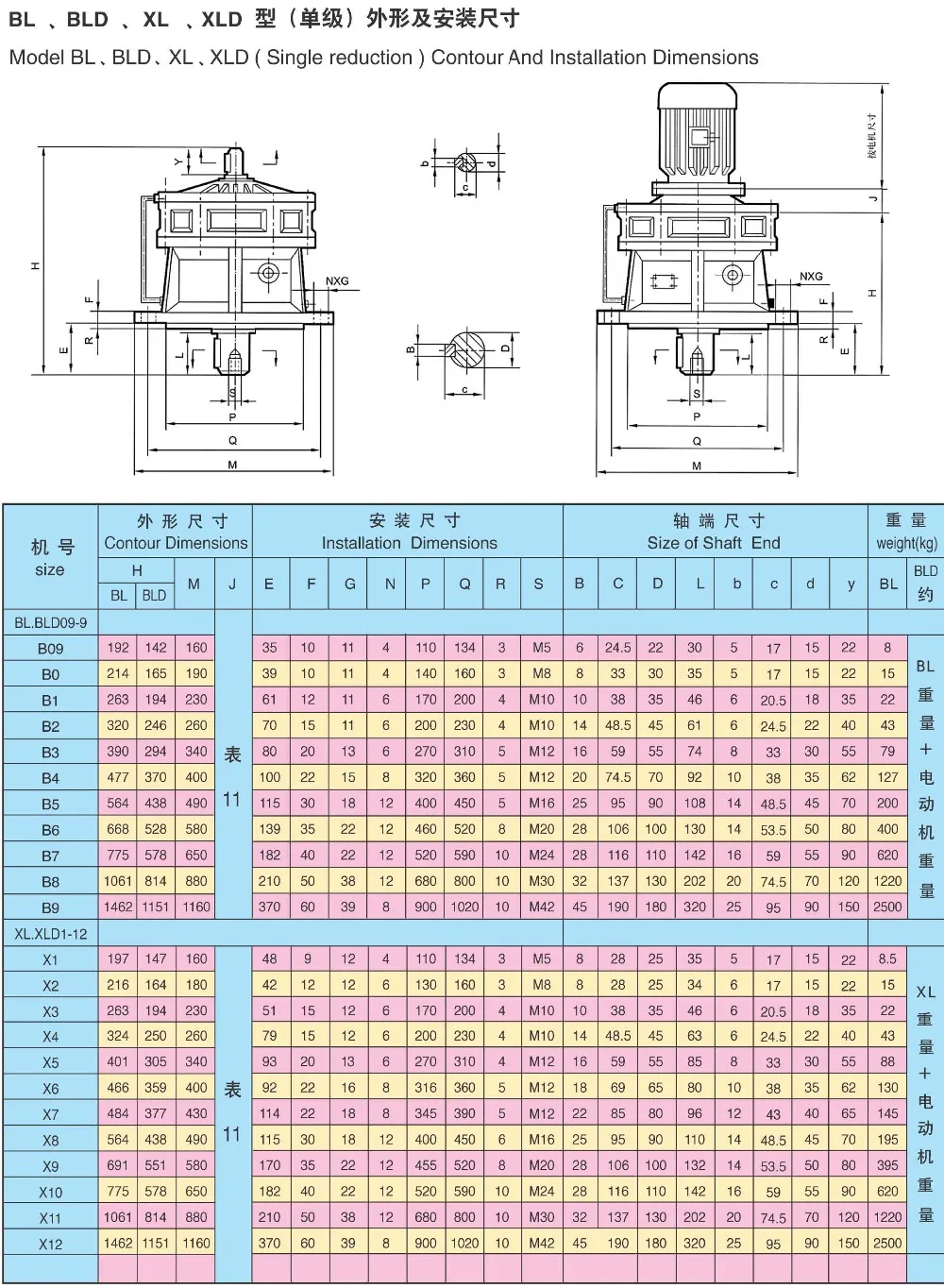

Vertical installation

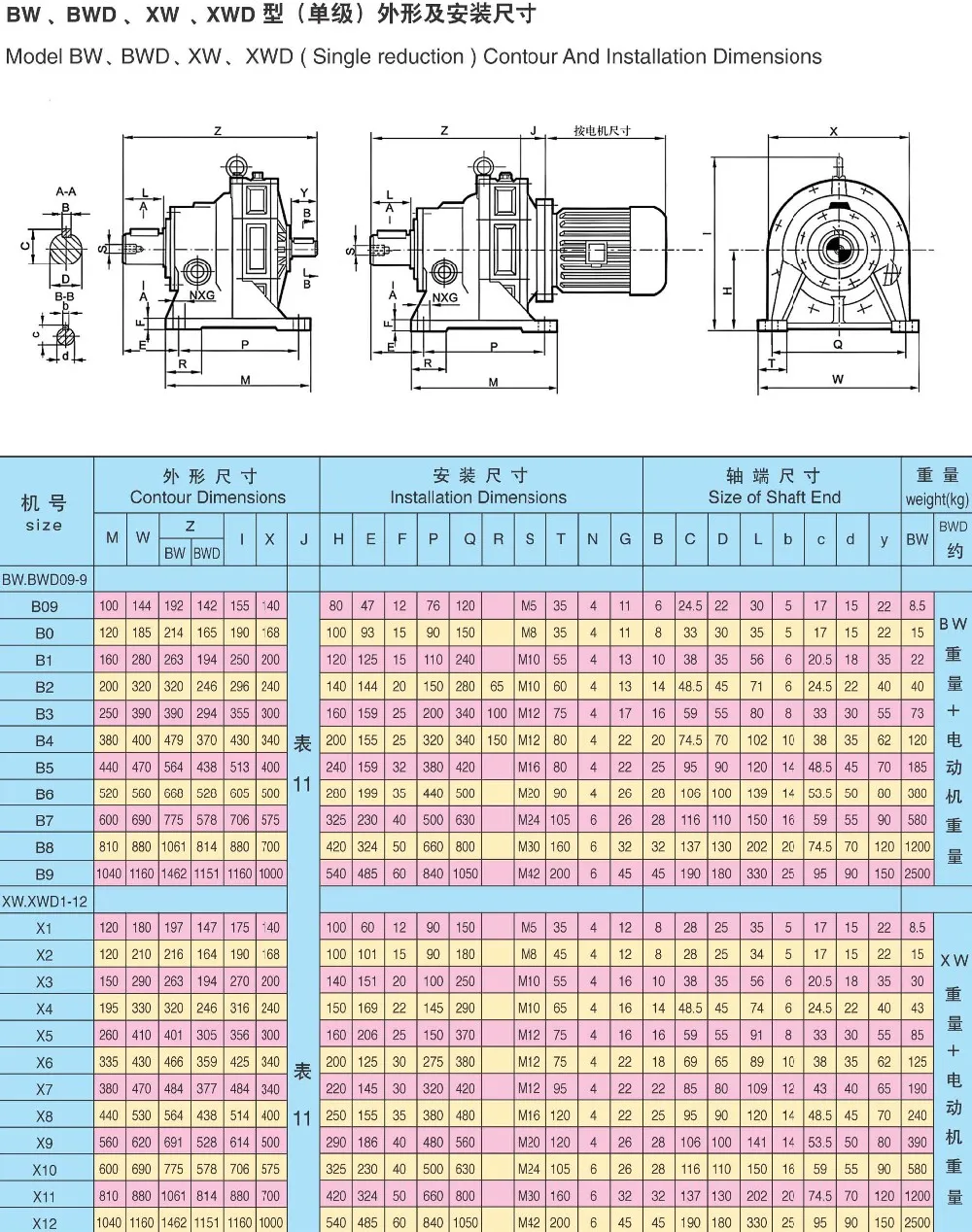

Horizontal installation

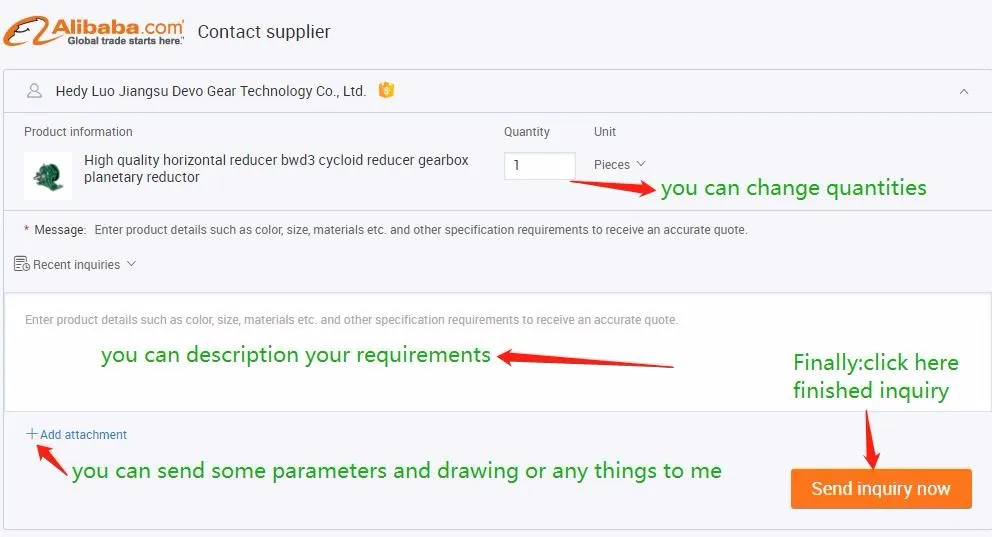

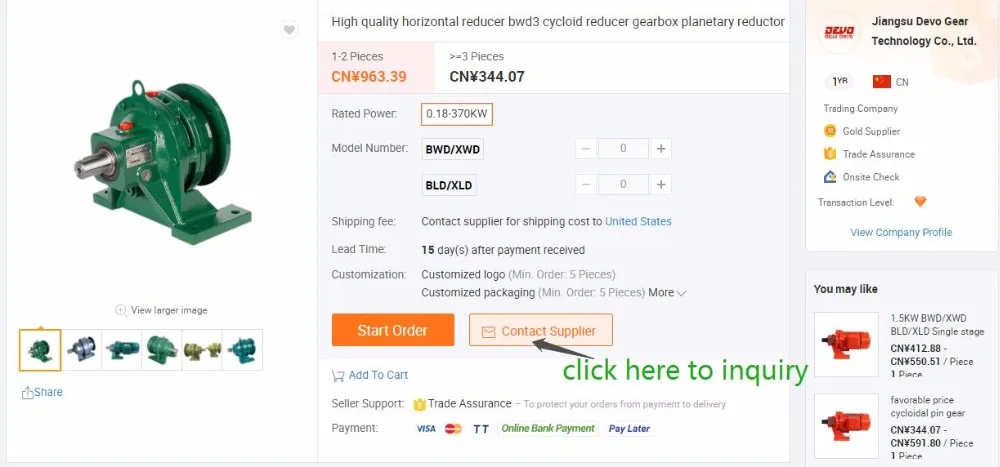

BUYING GUIDES:

COMPANY

OUR COMPANY

We are a manufacturer in Jiangsu Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.

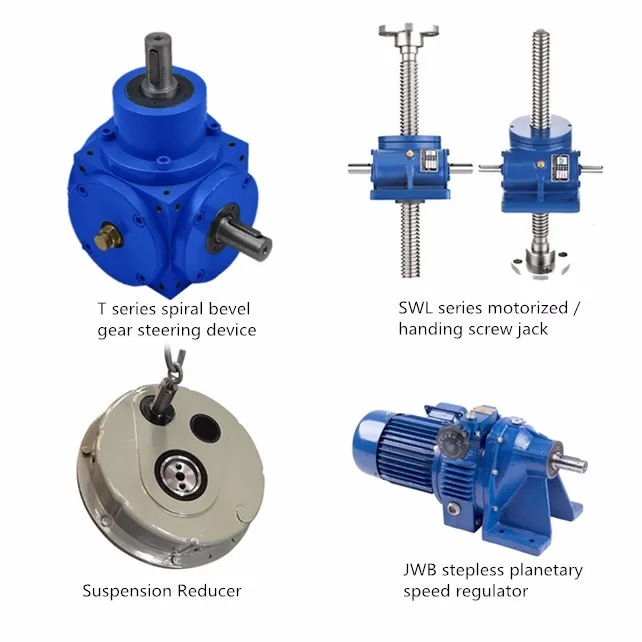

We handle the products of power transmission, our lines mainly cover series products in speed reducers, gearboxes , associated electricial motors and other power transmission accessories. Based on the versatile functions, our products can be utilized in many fields: machines of waste water treatment, dredgers, chemical industry, cranes, metal working mills, conveyors, paper industry, cement industry, cableways and so on.With the excellent quality and reasonable price , our products enjoy a good reputation from customers and the peers all over the world.

Our prices are always competitive. If the customer can place a large order, we surely will allow discount.

Certifications
Packing & Delivery

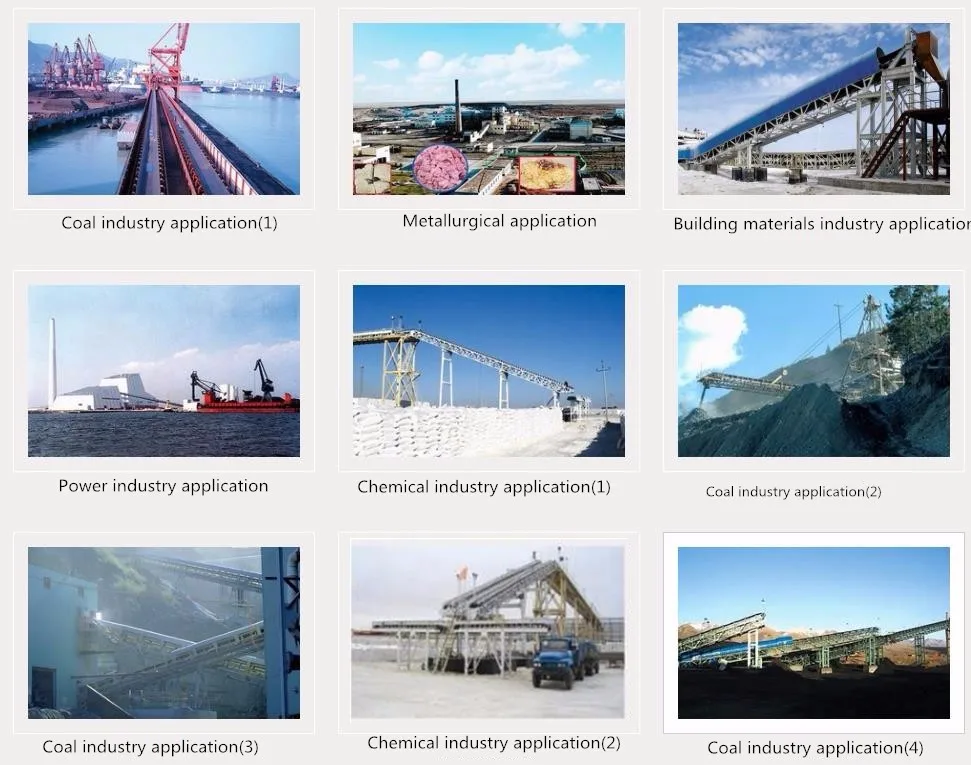

Application area
FAQ

Q1: Are you a trading company or a manufacturer ?
A: We are a manufacturer in Jiangsu Province, China. Our company owns
the ability of manufacturing, processing, designing and R&D. We welcome your visit.

Q2: How we select models and specifications?
A: According to the specific details of the demands from the part of enquiry,
we will recommend the products' models upon synthesizing the factors of
field of products usage, power, torque arm and ratio...

Q3: How is your price? Can you offer any discount?
A: Our prices are always competitive. If the customer can place a large order,
we surely will allow discount.

Q4: How long should I wait for the feedback after I send the enquiry?
A: We will reply as soon as possible, 12 hours at most.

Q5: What is your product warranty period?
A: We have the certifications of ISO9001,CE, SGS.

Q6: What industries are your gearboxes being used?
A: Our gearboxes are widely applied to metallurgical equipment, mining
equipment, automation equipment, food machinery, packaging equipment,
tobacco equipment and so on.
