Plastic Woven Bag Production Line

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $8,800.00
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Bag Forming Machine
Bag Type:
pp woven sack
Condition:
New
Material:
Plastic
Computerized:
Yes
Place of Origin:
Zhejiang, China
Brand Name:
KD
Model Number:
SBYx6S-800
Voltage:
380V/220V 50HZ
Power(W):
3KW
Dimension(L*W*H):
9000x2400x2900mm
Weight:
2000KG
Certification:
CE/ISO9001
Name:
Plastic Woven Bag Production Line
Application:
Packaging Industry
Bag Width:
300-800mm
Speed:
120-160m/h
shuttles:
6
power:
3kw
dimension:
9000x2400x2900mm
weight:
2000kg
Product name:
Plastic Woven Bag Production Line
Processing Type:
PP Woven Sack Making Machine/Six shuttle Circular Loom/starling style
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case Plastic Woven Bag Production Line
Port
wenzhou
Lead Time :
30days Plastic Woven Bag Production Line
Product Description

Plastic Woven Bag Production Line

our company has recently developed the starling style high speed pp woven sack making machine six shuttle circular loom, it is specially designed for making high quality barrel-type fabric rice bags,flour bags, feed bags and so on.


 Shuttleqty
Folding width (40 warps/100)
Max warp No.
Main motor rotational speed
Total power
Capacity
Dimension
Weight
6
300-850mm
720pcs
130-160 r/min
3kw
110-160m/h
9x2.4x2.9m
2000kg

Main Features

Plastic Woven Bag Production Line

1.pp rice bag making machine  adopt the direct-drive motor to drive the new small cam mechanism instead of the complex driving mechanism. it has the advantages of high efficiency, energy saving, low consumption, stable operation and low failure.


2. intelligent lifting system can compensate automatically, completely eradicate the fabric dense and parse phenomenon when start or stop the machine.

3. automatic warp tape feeding system, signal transmission system for weft tape break down and weft tape finish automatic rewinding system, all of these provide good conditions to make the high quality fabric,

4. the man-machine interface operation, powerful function, centralized control, and easy operate.
Certifications
Detailed Images

Machine Parts

Name: Plastic Woven Bag Production Line

PP Woven Rice Bag Making Machine Line structure

nice structure, starling style.

Main Features

Name: Plastic Woven Bag Production Line

PP Woven Rice Bag Making Machine Line

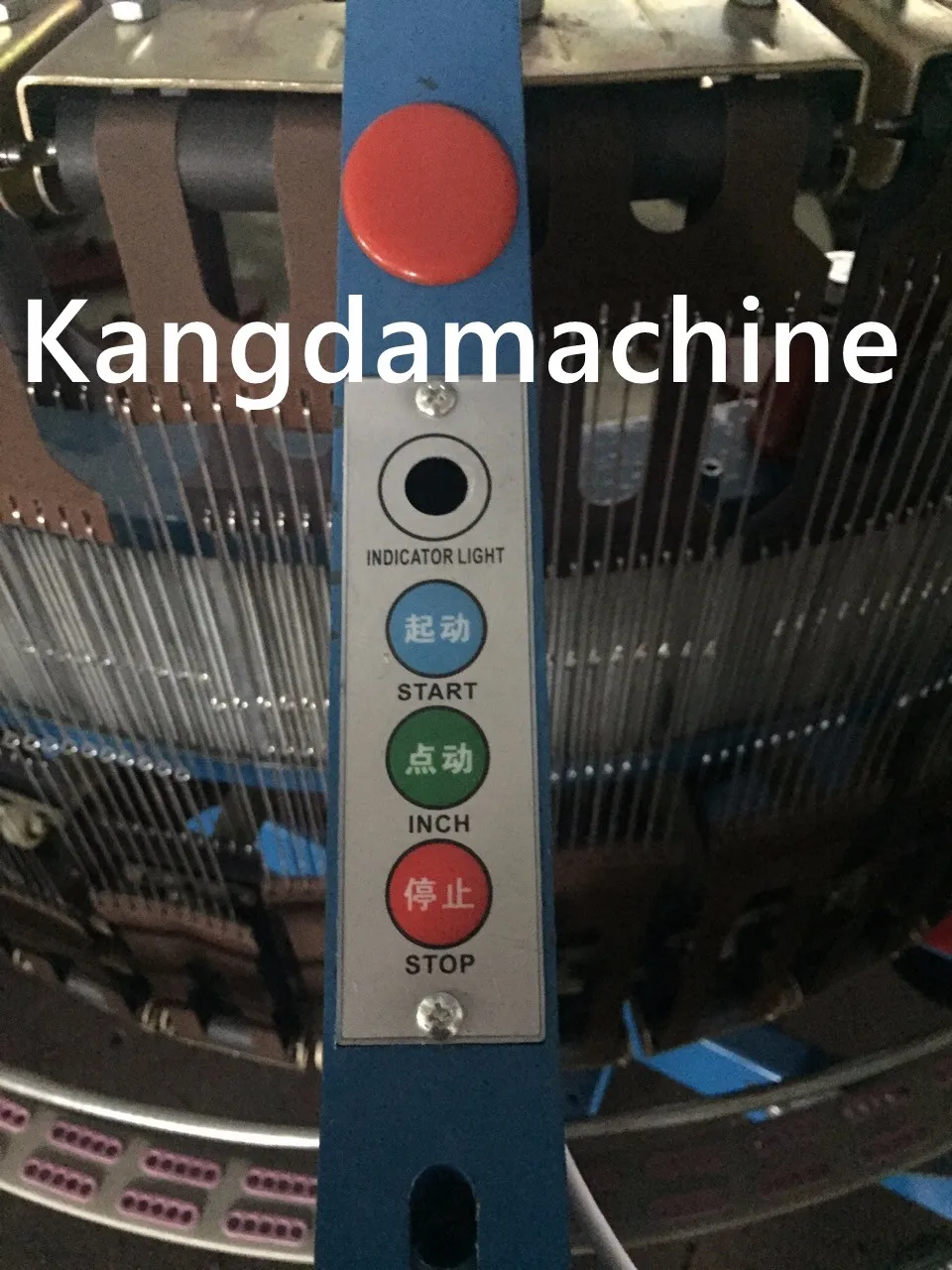

 PLC touch screen


automatic start, stop and inch easy and simple.

Machine Parts

Name: Plastic Woven Bag Production Line

SBYx6S-800 PP Woven Rice Bag Making Machine Line

belt

Original: Singapore
best quality which imported from Singapore, can use for 2 years.

Main Features

Name: Plastic Woven Bag Production Line

SBYx6S-800 PP Woven Rice Bag Making Machine Line no noise


no noisy, with less spare parts.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2900(L) *2400 (W) * 2000 (D)
Weight
2.0 T



Packaging Details
Plastic Woven Bag Production Line
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
2900(L) *2400 (W) * 2000 (D)
Weight
2.0 T



Packaging Details
Plastic Woven Bag Production Line
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
