Plug-in connector Nema 23 Stepping Motor 2.0A 1.26Nm Single Shaft, Wholesale

Feedback Ratings
  • 1-9 Pieces
    US $10.90
  • 10-29 Pieces
    US $10.70
  • >=30 Pieces
    US $9.90
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order:: 100 Pieces)
Graphic customization (Min. Order:: 100 Pieces)

More

Customized packaging (Min. Order:: 100 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Motech Motor
Model Number:
MT-2303HS200A (Plug-in C)
Phase:
2
Type:
Hybrid
Certification:
CE, ISO, ROHS
Step Angle(degrees):
1.8 degree
Holding Torque:
12.6 kg.cm
Current / Phase:
2.0A
Motor Type:
Bipolar (4 wires)
Recommended Voltage:
24-48 V DC
Phase Resistance:
1.4 ohms
Phase Inductance:
5.1 mH
Frame Size:
57*57mm
Body Length:
56mm
Shaft Diameter:
6.35mm
Front Shaft Length:
20.6mm
D-cut Legnth:
15mm
Stock:
Rich

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X8X9 cm
Single gross weight:
0.76 kg
Package Type:
The package we used is strongest recycle carton and durable EPE foam. We make sure the goods are safely delivered to your door.
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 3 To be negotiated
Product Description

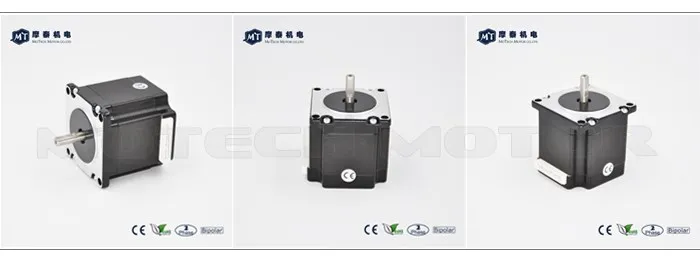

Plug-in Connector Nema 23 CNC Stepper Motor 2.0A 1.26Nm Single Shaft for CNC Machine

MT-2303HS200A

The step angle is 1.8° and size is 57*57*56mm. Holding torque 12.6 kg.cm (175 oz.in), 2.0A/phase and 4 wires construction. It's one of the most popular Nema 23 in CNC application.

Item
Specifications
Step Angle
1.8°
Step Angle Accuracy
1.8°±5% (full step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80°C Max.(2 phase on)
Ambient Temperature
-20°C~+50°C
Insulation Class
B, 130 °C
Insulation Resistance
100MΩMin. , 500VDC
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
75N (20mm from the flange)
Max. axial force
15N

4 Lead Bi-Polar


Dimension
Model #
Rated Current
Holding Torque
Resistance
Inductance
Inertia
Detent Torque
“L” Max
Singal Shaft
(Amps)
(oz.in)
(kg.cm)
(Ohms)
(mH)
(g.cm²)
(g.cm)
41.0mm
(1.62")
MT-2301HS200AW
2.00
84.0
6.0
1.10
3.4
120
210
MT-2301HS280AW
2.80
84.0
6.0
0.70
1.4
120
210
51.0mm
(2.00")
MT-2302HS200AW
2.00
160.0
11.5
1.40
5.1
275
360
MT-2302HS280AW
2.80
160.0
11.5
0.83
2.2
275
360
56.0mm
(2.20")
MT-2303HS200A
2.00
175.0
12.6
1.40
5.1
300
400
MT-2303HS280AW
2.80
175.0
12.6
0.90
2.5
300
400
65.0mm
(2.56")
MT-2304HS250AW
2.50
223.0
16.0
2.00
7.6
340
400
77.0mm
(3.03")
MT-2305HS280AW
2.80
265.0
19.1
1.13
3.6
480
680
86.0mm
(3.39")
MT-2315HS300AW
3.00
340.0
24.5
1.20
4.0
670
1000
100.0mm
(3.94")
MT-2306HS300AW
3.00
430.0
31.0
2.80
11.0
680
1000
110.0mm
(4.33")
MT-2307HS310AW
3.10
445.0
32.0
1.90
7.3
810
1200

6 Lead Uni-Polar


Dimension
Model #
Rated Current
Holding Torque
Resistance
Inductance
Inertia
Detent Torque
“L” Max
Single Shaft
(Amps)
(oz.in)
(kg.cm)
(kg.cm)
(mH)
(g.cm²)
(g.cm)
41.0mm
(1.62)
MT-2301HS1006AW
1.00
55.5
4.0
5.7
5.4
120
210
51.0mm
(2.00")
MT-2302HS1006AW
1.00
101.0
7.3
6.6
8.2
275
360
56.0mm
(2.20")
MT-2303HS1006AW
1.00
126.0
9.1
7.4
10.0
300
400
77.0mm
(3.03")
MT-2305HS1006AW
1.00
189.0
13.6
8.6
14.0
480
680
MT-2305HS3006AW
3.00
189.0
13.6
1.0
1.6
480
680
