Plumbing fittings single sphere ansi flange neoprene flexible rubber joint

FOB Reference Price:Get Latest Price
$1.00 - $300.00 / Piece | 1 Piece/Pieces (Min. Order)
Type:
Flange
Pipe size:
DN100
Material:
Stainless Steel Zinc
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$50.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Runtaida
Model Number:
KXT
Connection:
Flange
Technics:
Forged
Shape:
Equal
Head Code:
round
Standard of flange:
ANSI or as you request
Material of flange:
Stainless steel 304 or as you request
Material of rubber:
EPDM or as you request
Nominal diameter:
800 mm
Length:
260 mm
Working pressure:
1.0 -2.5 Mpa
Applicable temperature:
- 15℃ ~ + 80 ℃ (- 30℃ ~ + 160 ℃ special use)
Certificate:
ISO 9001
Application:
Pipes, construction, industry, gas, oil and ship building etc
Product name:
flexible rubber joint
Supply Ability
Supply Ability:
12000 Piece/Pieces per Month Plumbing fittings single sphere ansi flange neoprene flexible ru
Packaging & Delivery
Packaging Details
Inner plastic film packing, outer standard export wooden case packing.
Port
Qingdao port or as you request
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 3 To be negotiated

Plumbing fittings single sphere ansi flange neoprene flexible rubber joint


Introduction of rubber joint
Applicable mediaAir,compressed air,water,sea water,hot water,oil,acid, and alkali etc.
Material of rubberEPDM
Nominal diameterDN100 (4inch)
Length of rubber150mm
Nominal pressure150 lb
Standard of flangeANSI
Material of flangeStainless steel 304
Type Single sphere
ShapeEqual shape
Quantity1 piece



Product Overviews

Structure of rubber joint

Rubber expansion joint is generally consist of the inner and the outer rubber layer and fabric reinforced layer (the enhancement layer has a multilayer spreading cord fabric), vulcanization molded in high temperature and high pressure , then assembly together with rubber tube and metal flange or parallel joint sleeve.




Material of rubber joint
No.NameMaterial
1Outer/inner rubberNR, NBR, EPDM, SBR, BR etc.
2FrameworkNylon card fabric
3Pressurized ringSteel wire strand
4FlangeQ235 carbon steel, 304 stainless steel etc.



Technical conditions of rubber joint
Type123
Working pressure(Kg f/cm2)1.0(10)1.6(16)2.5(25)
Explosion pressure(Kg f/cm2)2.0(20)3.0(30)4.5(45)
Vacuum value(mmHg)53.3(400)86.7(650)100(750)
Applicable temperature-15℃ ~ +80 ℃ (-30℃~+160℃ special use)
Applicable mediaAir,compressed air,water,sea water,hot water,oil,acid and alkali etc



Main connecting dimension of rubber joint
Nominal diameter(DN)LengthAxial displacementHorizontal displacementDeflexion angle
mminchmmExtension(mm)Compression(mm)mm(a1+a2)°
321 and 1/49569915°
401 and 1/2 95610915°
5021057101015°
652 and 1/21157131115°
8031358151215°
100415010191315°
125516512191315°
150618012201415°
200821016252215°
2501023016252215°
3001224516252215°
3501425516252215°
4001625516252215°
4501825516252215°
5002025516252215°
6002426016252215°
7002826016252215°
8003226016252215°
9003626016252215°
10004026018262415°
12004826018262415°
14005635020282615°
16006435025353010°
18007235025353010°
20008042025353010°
22008842025353010°
24009642025353010°
260010445025353010°
280011245025353010°
300012050025353010°



For offering you a qucik quotation,pls tell us
1.Which kind of media do you want to flow through the rubber expansion joint, water , oil or anything else ?
2.What's the nomial diameter of rubber expansion joint ?
3.What's the type of rubber expansion joint, equal or reducing shape ?
4.What's the material of rubber and flange, EPDM and stainless steel ?
5.What's the standard of flange, ANSI, DIN or anything else ?
6.What's the nominal pressure,150lb or 300lb ?
7.What's the length of rubber sphere?
8.How many pieces of rubber expansion joints do you need in total ?



Product Description

Introduction of rubber joint

Rubber expansion joint is also known as flexible rubber joints, rubber soft connection, soft joint, flexible rubber joints, rubber expansion joints, suspension throat, shock absorber, is a kind of pipe connecting piece with advantages of high elasticity, high air tightness, medium resistance and weather resistance.






Usage of rubber joint

Protecting piping and equipment system from stress or motion.






ADVANTAGES of rubber joint

1.Outstanding pressure resistance

It excels in pressure resistance by the combination of spherical structure with super stability against internal pressure and strong special reinforcing nylon.Runtaida flexible connector display an outstanding pressure resistance of bursting pressure.



2.Superior absorption of vibration-noise-shock

Runtaida single sphere flexible rubber joint are engineered to reduce vibration ,noise and movenment inherent in piping systems.Joint installation of the Runtaida will enable the isolated equipment to move freely ,eliminating vibration and repelling sound which is prevalent in metallic type joint.



3.Compensate greater elongation, compression , lateral and angular movement

Equipment such as pump ,chillers,cooling tower,compressors and piping systems move out of alignment due to wear,load stress and during the setting of foundation blocks.Runtaida flexible connector for lateral ,torsional and angular movement to prevent damage ,which elimate costly downtime in plant operation.




Characteristics of rubber joint

It take advantages of rubber, such as high elasticity, high air tightness, medium resistance, weather resistance and radiation resistance, it can reduce the vibration and noise of pipeline, and it can play the role of compensation for thermal expansion and contraction caused by temperature change.

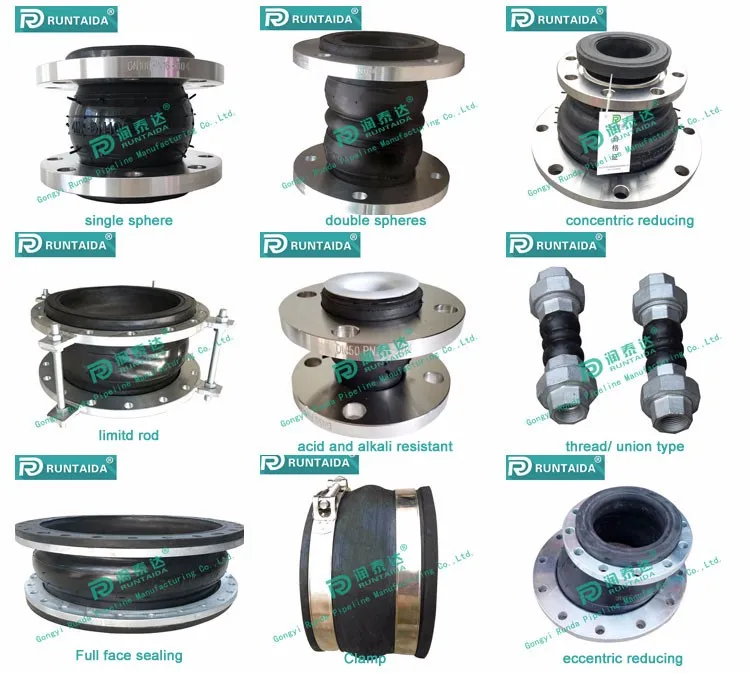

Classification of rubber joint

According to the different media, used rubber material is also different, such as Natural rubber,  Styrene-butadiene rubber , Butyl rubber, Nitrile rubber, Ethylene-Propylene-Diene Monomer, Neoprene, Silicon rubber, Fluoro rubber etc.It has the functions of heat resistance, acid resistance, alkali resistance, corrosion resistance, abrasion resistance and oil resistance.






NBR material rubber expansion joint



Packaging & Shipping

Packing of rubber joint

Rubber expansion joint is packed by plastic film,then fixed into standard export wooden case.


Plastic film packing of rubber expansion joint



.jpg

Standard export wooden case packing of rubber expansion joint







Shipping of rubber joint

1.FedEx/DHL/UPS/TNT for sample.       Door-to-Door

2.By Air or By Sea for batch goods for LCL/FCL;        Airport /Port receiving

3.Customers specified freight forworders or negotiable shipping methods!




Delivery Time of rubber joint

 a.in stock:immediately        b.sample:about 3 days        c.OEM/ODM:about 15 DAYS





Company Information

Gongyi Runda Pipeline Manufacturing Co.,Ltd. is located in Xicun village pipeline equipment industrial park, Xicun town, Gongyi city, Henan province, China mainland, covering an area of 20,000 square meters,The company currently has the largest diameter 4000mm pipeline equipment production capacity,The main products are: steel expansion joint, flexible waterproof casing, large caliber flange, double flanges transmission expansion joint, sleeve compensator, bellows pipe compensator (corrugated pipe compensator), non metallic compensator, rubber expansion joint, direct current  medium without thrust compensator, flexible telescopic pipe, etc,annual production capacity of 12000 pieces.

.jpg

Client visit our factory for confirming order detailes of mass production.

 - .jpg


Certifications

The company passed the ISO9001:2008 quality management system certification. The company has a strict quality control system, the standard production process, standardized factory testing means to ensure that every product to meet the national standards and customer requirements.Our products are widely approved ,adopted and favored by domestic and foreign enterprises,and our products are widely approved ,adopted and favored by domestic and foreign enterprises.

.jpg

 Trademark certificateISO9001 certificate of rubber expansion jointBusiness licence



Why choose the expansion joints of Runtaida ?
124 hours online service-- Anytime,anywhere can provide what you want
2100% quality inspection Before Shippment
3Reasonable and competitive price
4Best production capability ,best quality control, best Service



OEM&ODM serviceWe are a company which specialised in producing expansion joints, and we producing according to your samples or drawings ,if they are not available, we design according to your requirements and the application.
After sale serviceProfessional service team, all-weather emergency telephone within 48 hours to solve difficult problems, to provide you with the fastest and healthiest after-sales service.





FAQ

Frequently asked questions of rubber joint



Are you factory or trade comapny ?

We are manufacturer, and we have cooperated with many foreign clients.



What's the warranty of rubber expansion joint?

12 months. From the day the customer receiving the goods, we grant a free replacement if the products have any problems during the guarantee period.



Can i get a sample of rubber expansion joint?

Yes,for standard type of rubber joint we can offer the sample, but the customer will afford the freight. For non-standard rubber joint or more quantity, we will charge for the sample.



Can i get a customized rubber expansion joint?

Yes, we have a excellent engineer team, and they can offer you professional drawing and technical support.
