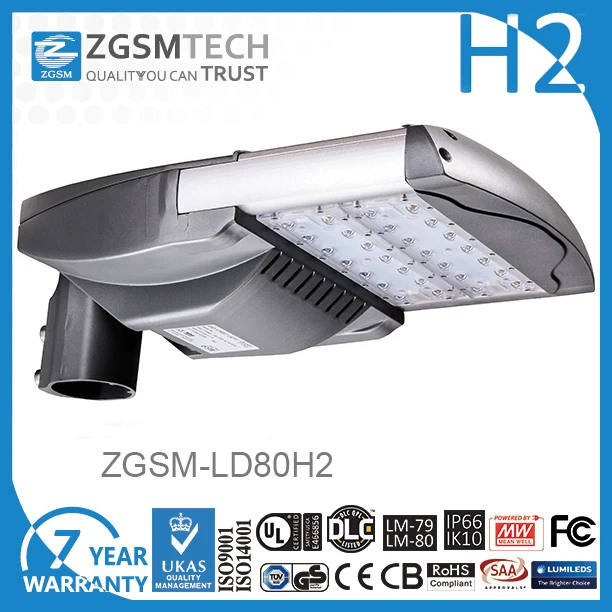

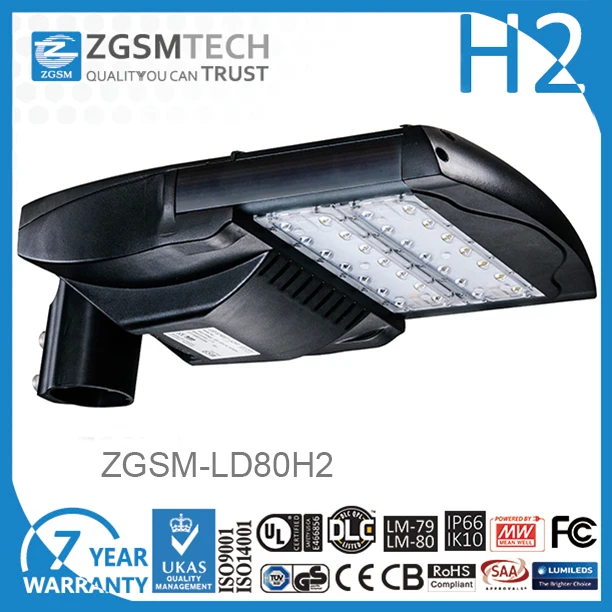

Pole Mounted Street light heard DC24V 80W Outdoor LED Solar Road light

FOB Reference Price:Get Latest Price
  • 1 - 99 Pieces
    $104.00
  • >=100 Pieces
    $96.00
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
100-240/277VAC/DC24V
Lamp Luminous Flux(lm):
8800
CRI (Ra>):
70
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
100000
IP Rating:
IP66
Certification:
CE, EMC, Energy Star, FCC, GOST, GS, LVD, RoHS, SAA, UL
Warranty(Year):
7
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ZGSM
Model Number:
ZGSM-LD80H2
Product name:
LED Solar Road light
Maximum Current:
DC 3.24A -12V, 1.62A -24V
LED Luminous Source:
LUMILEDS LUXEON TX
Battery:
EP solar
Driver Efficiency:
> 90%
Power Factor (PF):
> 0.95
Operating Humidity:
10% to 90%
Heat Radiator:
Anodized Aluminum
Lens:
PC -primary, Toughened Glass -secondary
Solar panel:
Monocrystalline Silicon
Item Type:
Street Lights
LED Light Source:
LUXEON T
Lamp Power(W):
80
Lamp Luminous Efficiency(lm/w):
110
Color Temperature(CCT):
3000 or 4000 or 5000 or 5700K
Lamp Body Material:
Anodized Aluminum
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month LED Solar Road light
Packaging & Delivery
Packaging Details
Pole Mounted Street light heard DC24V 80W Outdoor LED Solar Road light
1pcs/1ctn
Packing Details
Fixture Dimension 504x316 x136 mm
Fixture Weight 6.1 kg /13.4 lbs
Packing Dimension 555x370 x200 mm
Packing Weight 7.3 kg /16.1 lbs
Port
ningbo/shanghai
Lead Time :
LED Solar Road light:2-5days

Pole Mounted Street light heard DC24V 80W Outdoor LED Solar Road light



ModelZGSM-LD80H2
LED BrandLUXEON® T
Driver BrandMeanwell HLG series
Norminal Wattage80W
LED Module Quantity2 modules
Input Voltage100-240/277VAC/DC24V
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output8800 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature3000 or 4000 or 5000 or 5700K
Photometric TypeType I Medium;Type II Medium;Type III Medium,TypeV Short
Optimal Operating Temperature25℃
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100,000 hours -L70, @25 ºC (77 ºF)
w
Wind IndexForce 12
Body and Shell MaterialsAnodized Aluminum
IP RatingIP66 with test report
IK RatingIK08 with test report
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Optional Function1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty7 years
