Polyester Plain weave dryer fabric for paper mill

FOB Reference Price:Get Latest Price
$15.00 - $40.00 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Model Number:
SH -SDF
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SUN HONG
Name:
Paper Making Polyester Forming Fabrics
Type:
4-shed single layer fabric
Supply Type:
Make-to-Order
Wire Diameter Warp(mm):
0.20
Wire Diameter Weft(mm):
0.25
Density (Root/cm) Warp:
29
Density (Root/cm) Weft:
22
Tensile Strength :Surface:
≥600
Thickness:
0.41-0.87mm
Permeability:
7500±500
Supply Ability
Supply Ability:
500000 Square Meter/Square Meters per Year
Packaging & Delivery
Packaging Details
wooden cases, plastic woven bags,pallet,warp with films
Port
Any seaport is available.
Corporate Culture

Excellence and Integrity,Sharing Harmony

Corporate culture is the cornerstone for the survival and development of enterprises. While making efforts to improve competitiveness, the company also precipitates its own profound corporate culture and builds the people -oriented culture system with quality as the core , national brand casting as the responsibility and harmony promotion as the mission, thus contributing to the flourish development of SUN HONG and establishing a distinctive brand image.

Development philosophy : integrity, innovation, cooperation and win-win

Corporate philosophy:identify location,raise awareness,and be upright and practical

Operating philosophy:market-oriented ,technology as impetus ,sincerity principle ,business innovation,quality as life and constant service.

Dryer Fabric

The dry fabric is a high-breathing fabric applied to the dryer section of the long-wire paper machine and the board machine. It is made of various plastic synthetic fibers as the main raw material, and is processed by weaving and heat setting. Special resin treatment is carried out as needed, and the joints of the net are also advanced. This fabric has heat resistance, abrasion resistance and high air permeability. It has obvious effects on saving energy and increasing vehicle speed. The dry mesh is highly adaptable and can be used from tissue paper to cardboard.

Function:

The main function of the dryer mesh is to improve the contact between the paper sheet and the dryer during the process of guiding the wet paper sheet through the drying section, to obtain high yield, low energy consumption, and good performance on the paper surface. This requires the dry mesh to have sufficient strength, proper ventilation, good size, stability and smooth mesh surface.

Fabric Equipments

Dryer fabric dedicated warping machine.

Manufacturer: JAGER( Germany)

Obtaining more equal warp tension.

C5 Automatic seaming machine

Manufacturers: WIS

Average splice point and  strong constructions

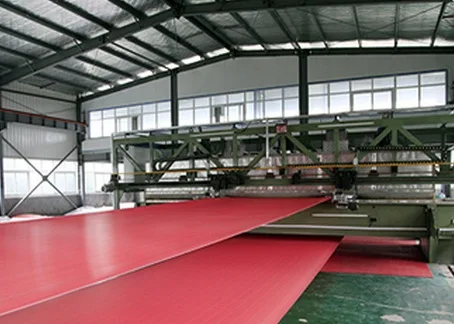

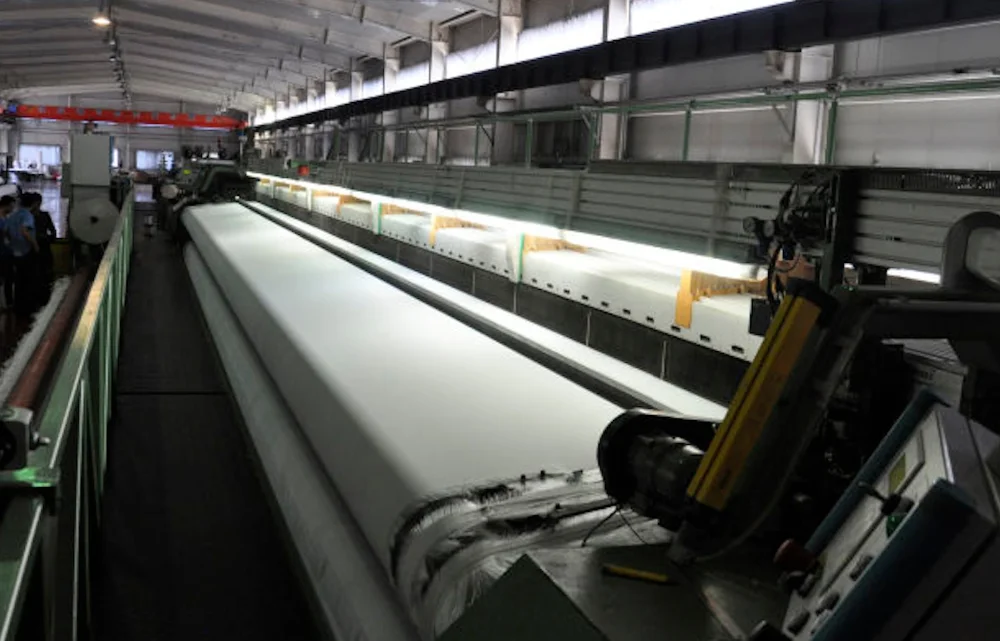

14M BK600 Weaving machine

Manufacturer: JAGER

Wide weaving width makes sure the rate of finished products yields.

Product Description

Polyester Dryer fabrics.

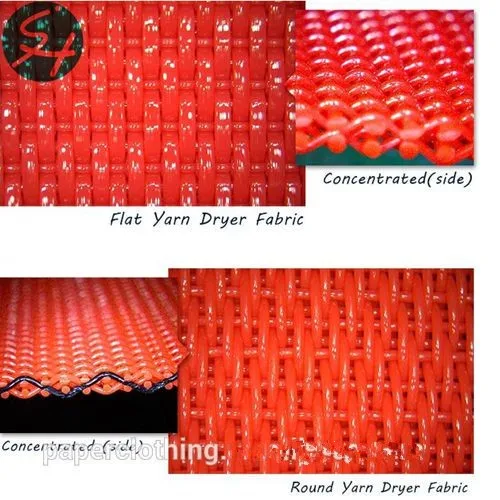

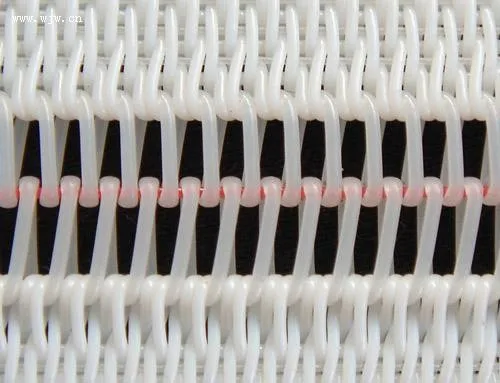

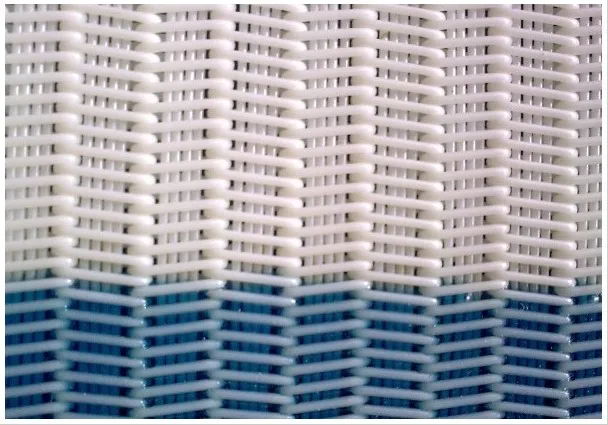

Polyester Dryer Fabric -- Round Wire / Flat Wire/ Spiral Wire

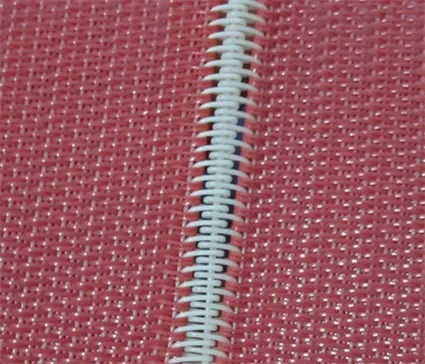

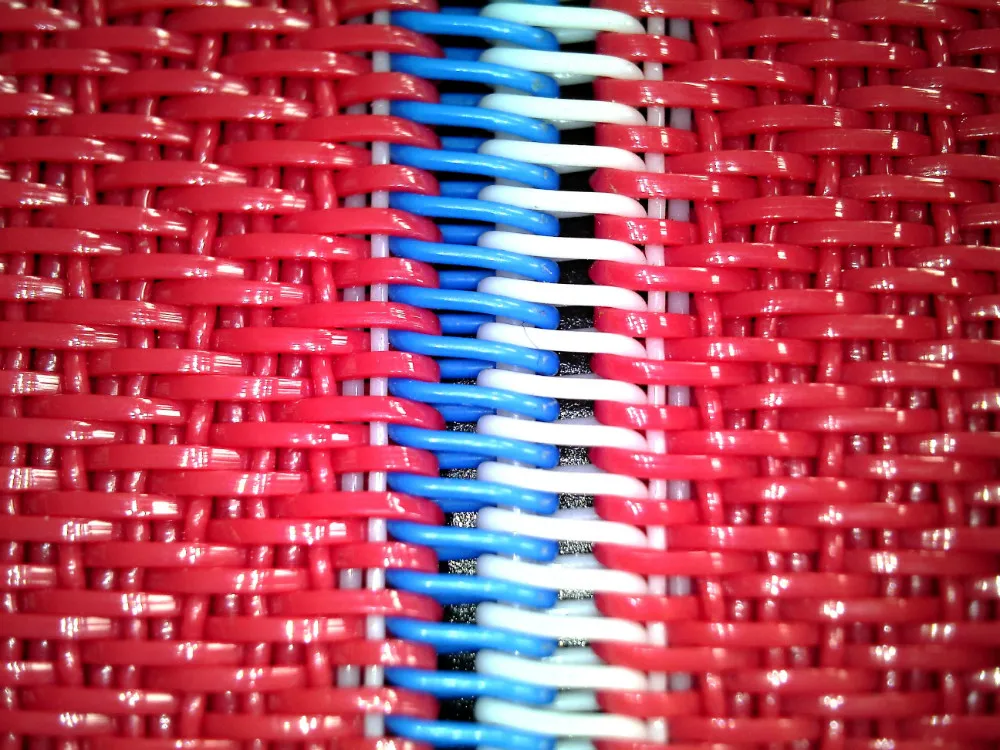

According to the seam mode, it can be divided into insert, pin, pin ring and spiral ring join.
3-shed one layer and a half polyester dryer belt are suitable for drying papers below 70 g.
4-shed double layer polyester dryer belt is suitable for drying papers above 70 g.
SUN HONG polyester dryer fabric can bring your machine : dryness increased, paper surface improved and energy saved. They can meet your paper requirement, from tissue paper ,writing & news printing ,package paper to paper board .

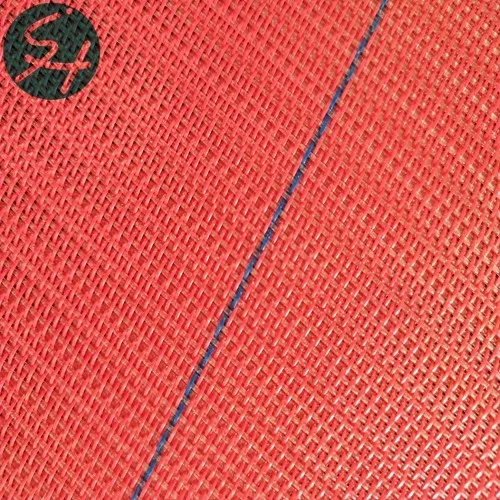

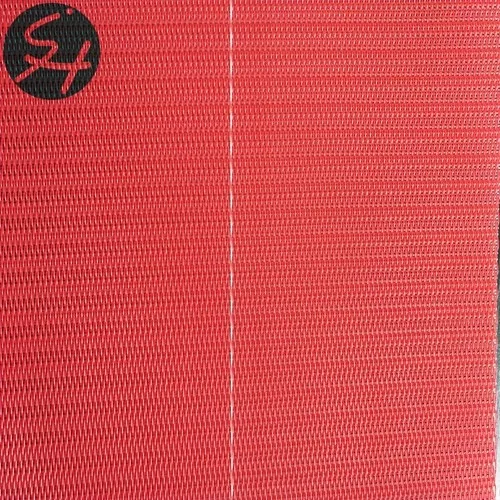

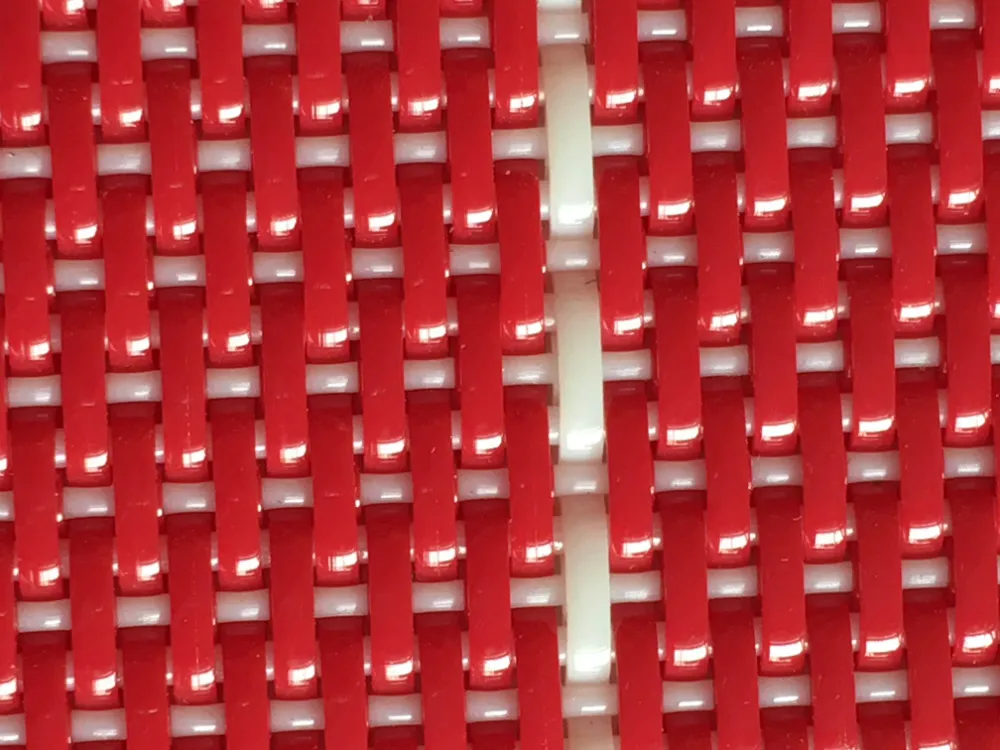

Dryer fabrics Show and details

The below data sheet comes from SUN HONG .

Let us know before you use it.We are willing to share the information with peers.

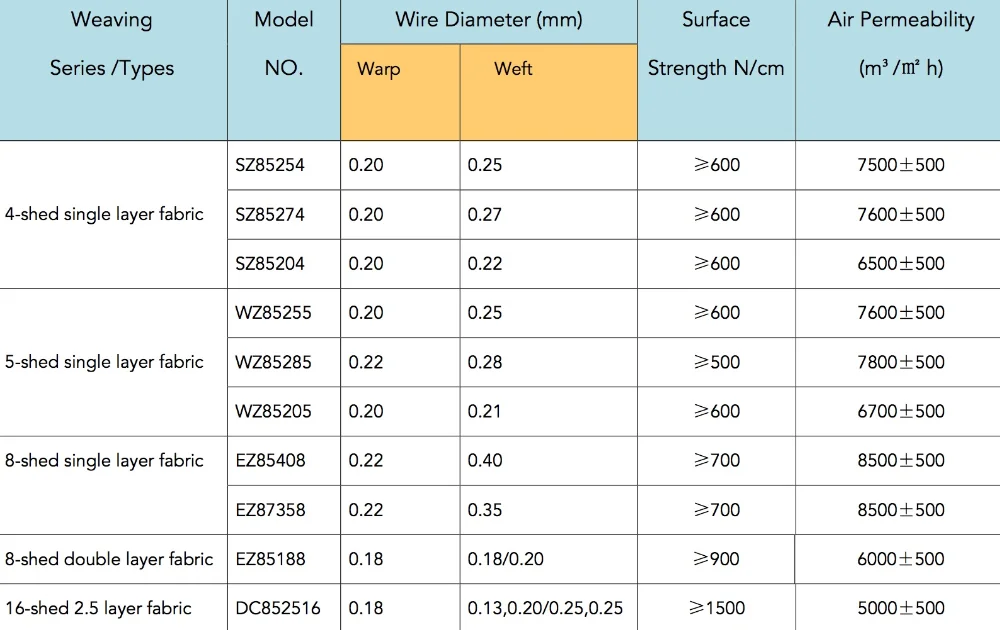

Date sheet

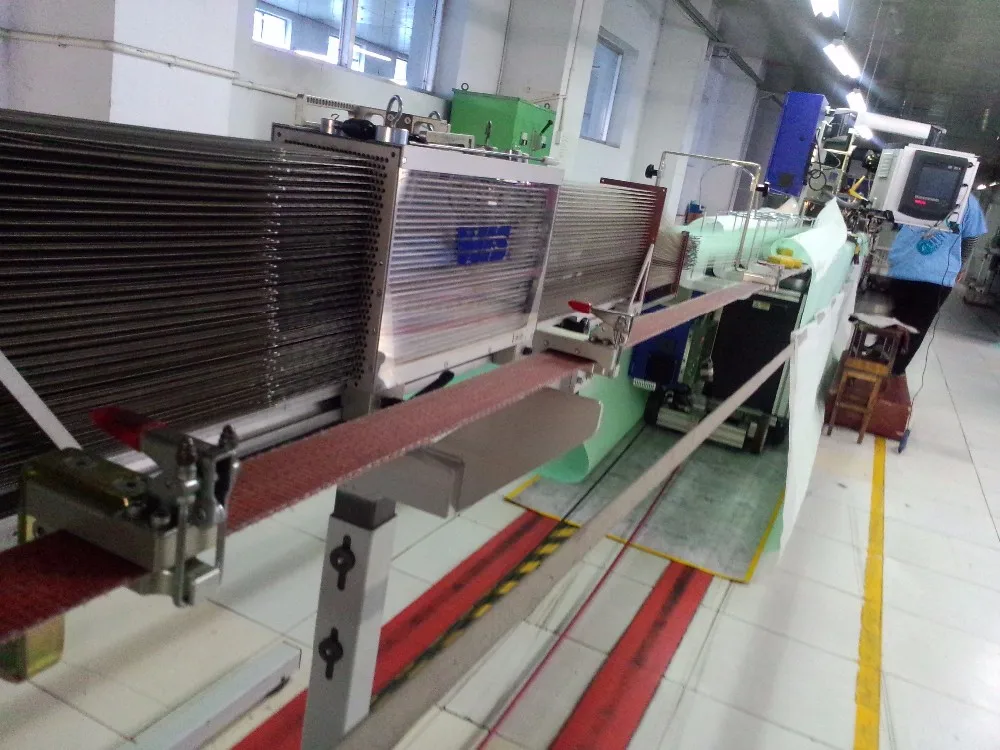

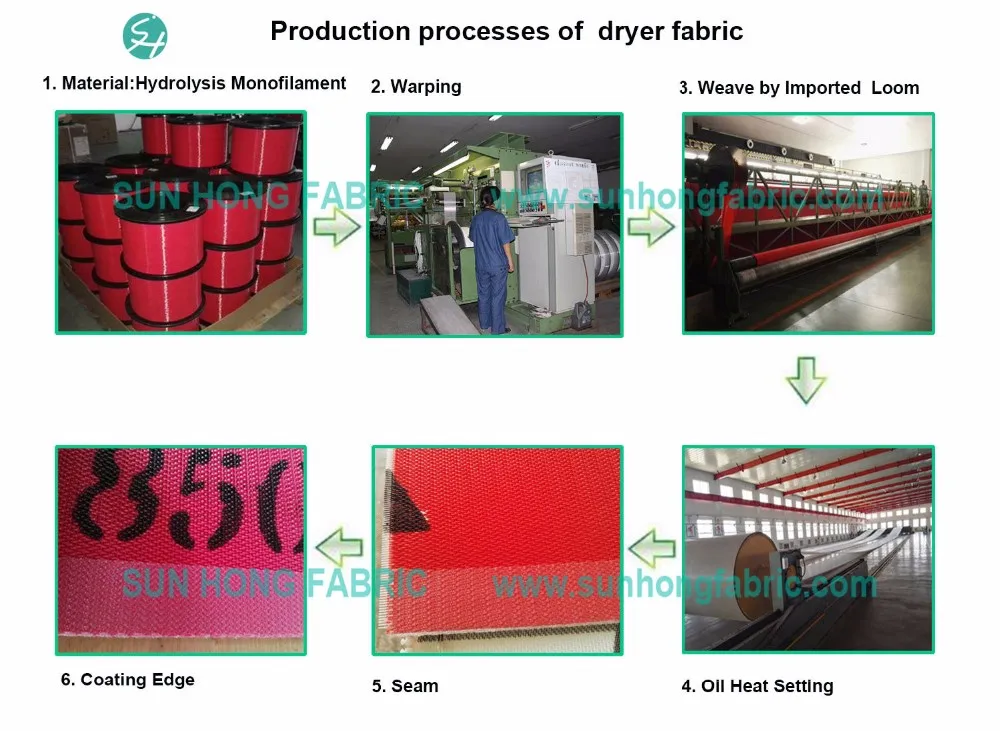

Production Process

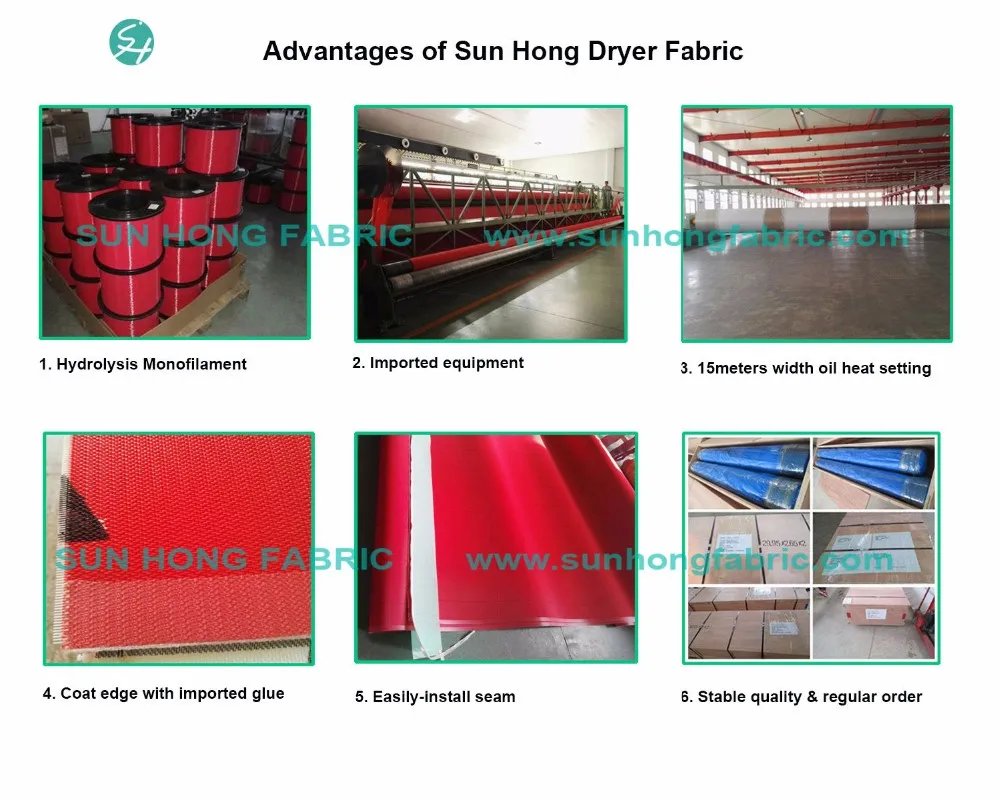

Product Advantage

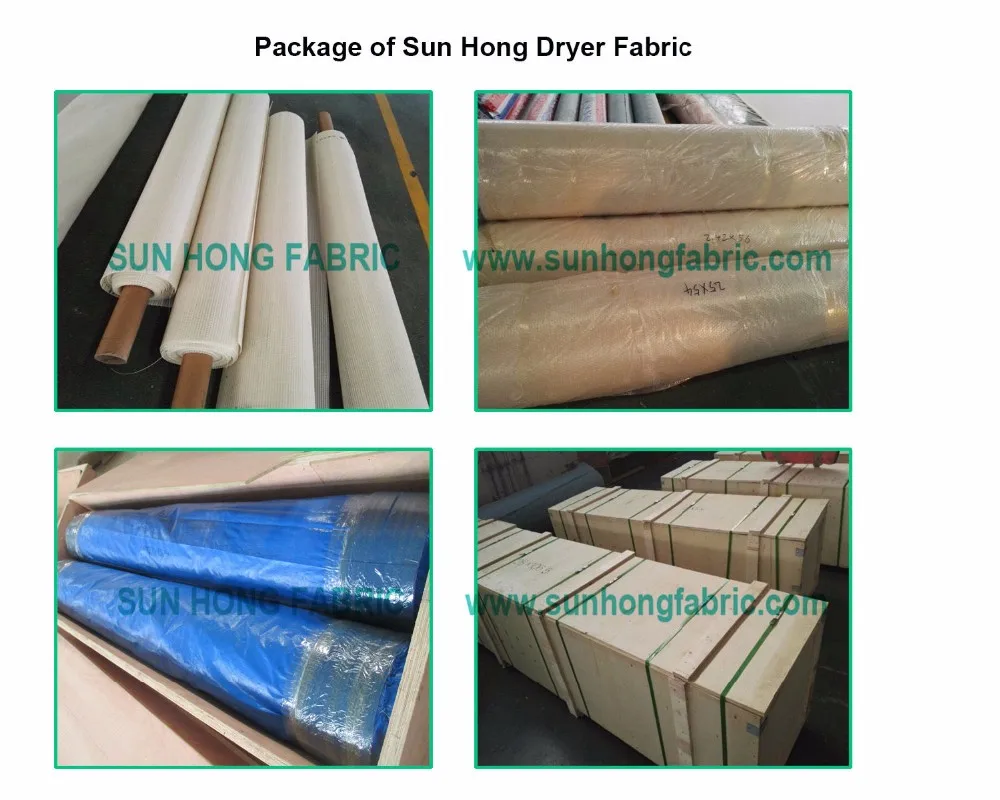

Package and Delivery
