Popular in Mauritius Aluminium Roofing Making Equipment

FOB Reference Price:Get Latest Price
$14,000.00 - $17,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
XF25-190-760-914-19row
Power(W):
4+4KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1year
Type:
Tile Forming Machine
Production Capacity:
8-10m/min
Certification:
CE/ISO9001
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Overseas service center available
Condition:
New
Tile Type:
Colored Steel
Use:
Roof
Place of Origin:
Hebei, China (Mainland)
Brand Name:
XF
Voltage:
380v 50hz 3phase
Dimension(L*W*H):
8.99*1.45*1.51m
Weight:
about 3.2T
color:
blue
Thickness of the plate:
0.3-0.6mm
Control system:
PLC control
Suitable to process:
Color steel plate
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Main machine is naked and control box is packed by carton box frame
Port
tianjin newport
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Our Company

 Botou Xianfa Roll Forming Machine Factory was established in 1996, we are the professional manufactory of roll forming machine. The main products are trapezoidal sheet roll forming machine, corrugated sheet roll forming machine, glazed tile roll forming machine, double layer roll forming machine ......
We have passed ISO9001 quality certification and European CE security certificate.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers.
We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request.We believe that our cooperation will create bright future.

Product Description
No.
Main Parameter
1
Suitable to process
Color steel plate,Galvanized board
2
Width of the plate
914mm
3
Thickness of the plate
0.3-0.6mm
4
Production Capacity
8-10m/min
5
Dimensions
8.99*1.45*1.51m
6
Weight
about 3.2T
7
Power
4+4KW
8
Hydraulic
 40#
9
Diameter of the roller
Φ70mm
10
Voltage
380V 50Hz 3phases
11
Control system
PLC control
12
Processing precision
Within 1.00mm
13
rollers
20rows
Detailed Images

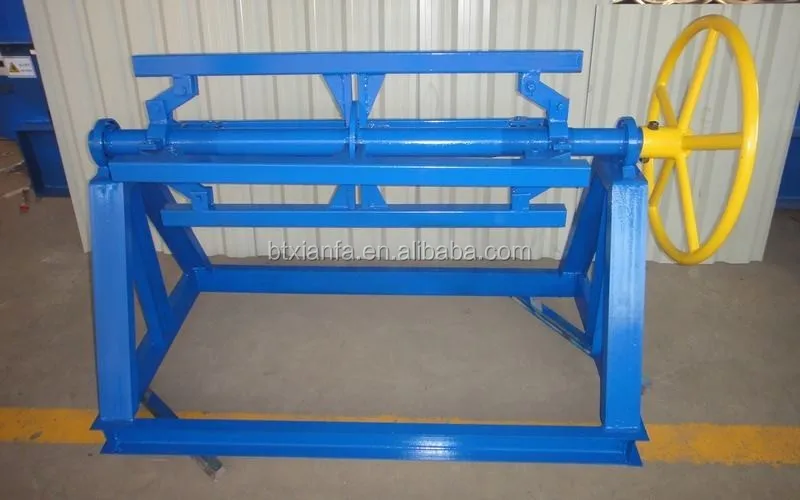

Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity:5000KG.
Inner diameter: 500-508mm

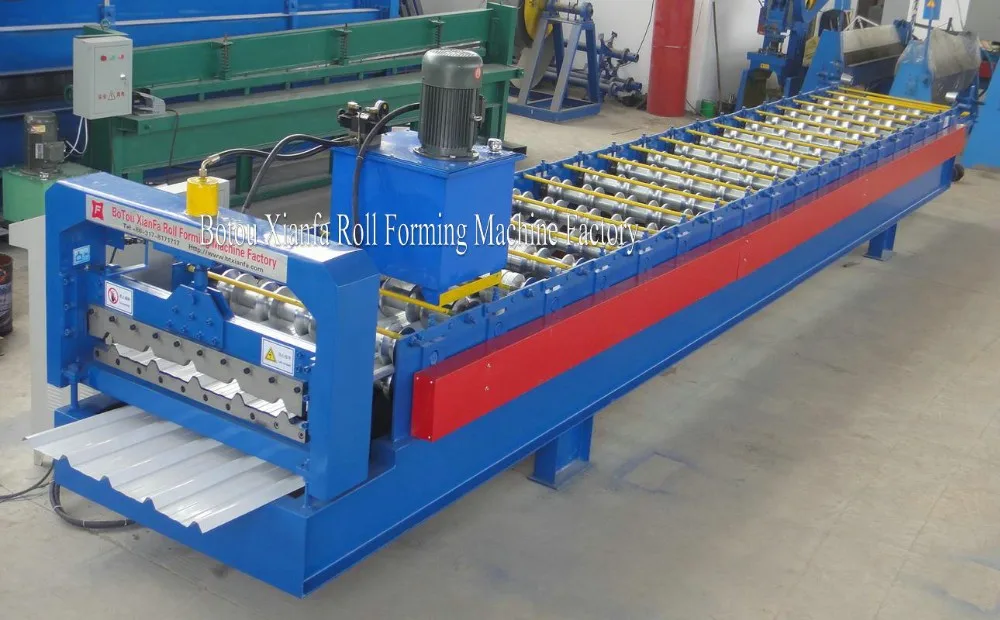

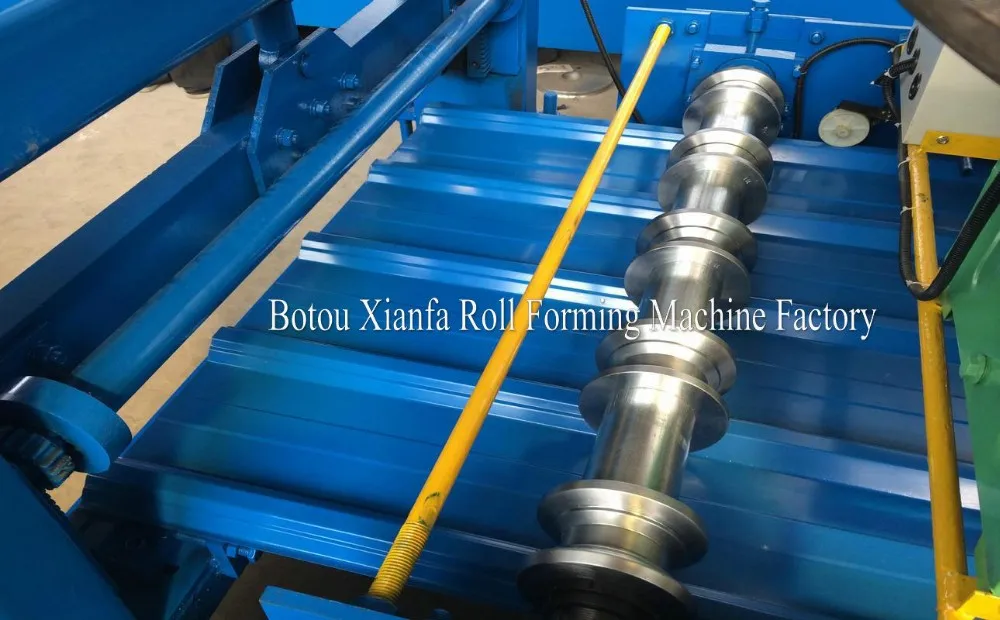

Main Roll Forming Machine

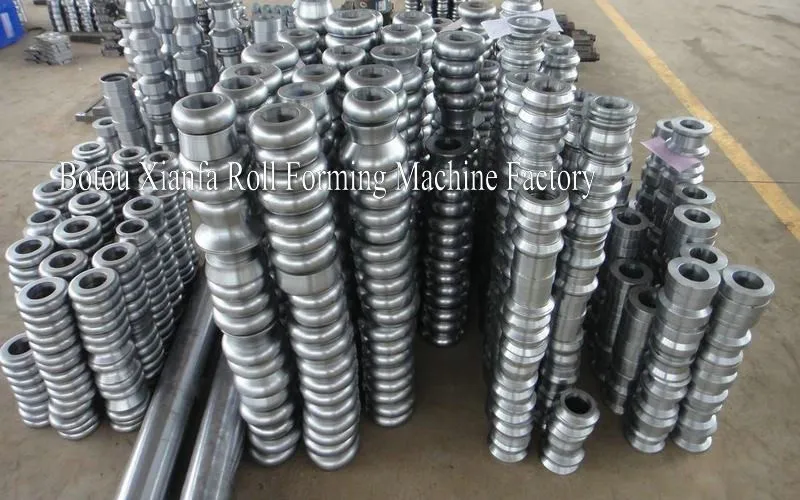

Bearing steel, hard chrome.The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic System & Computer Control Cabinet

Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC: EURA(Can customize as customer require)

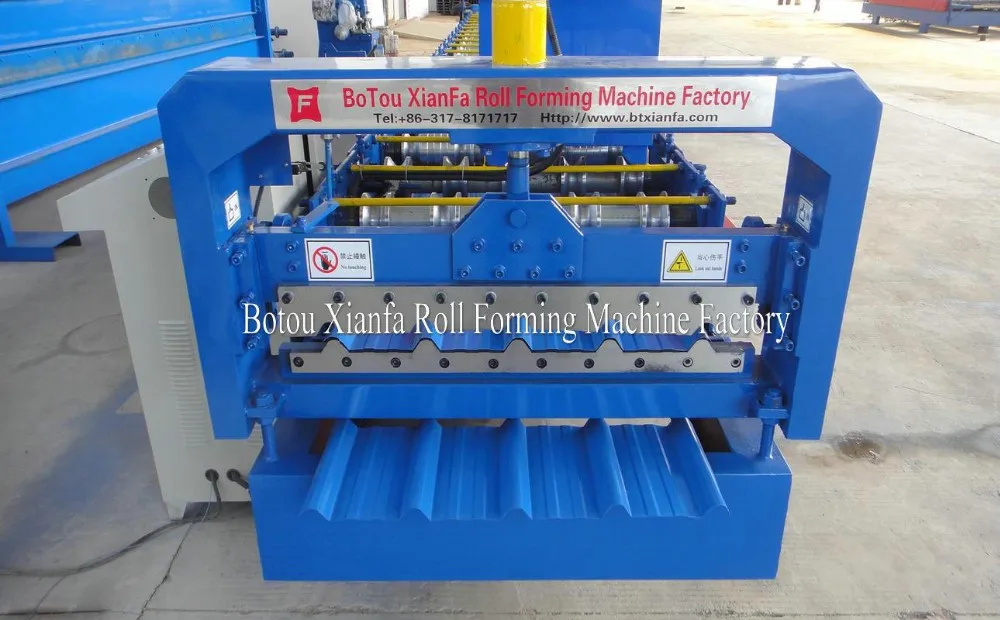

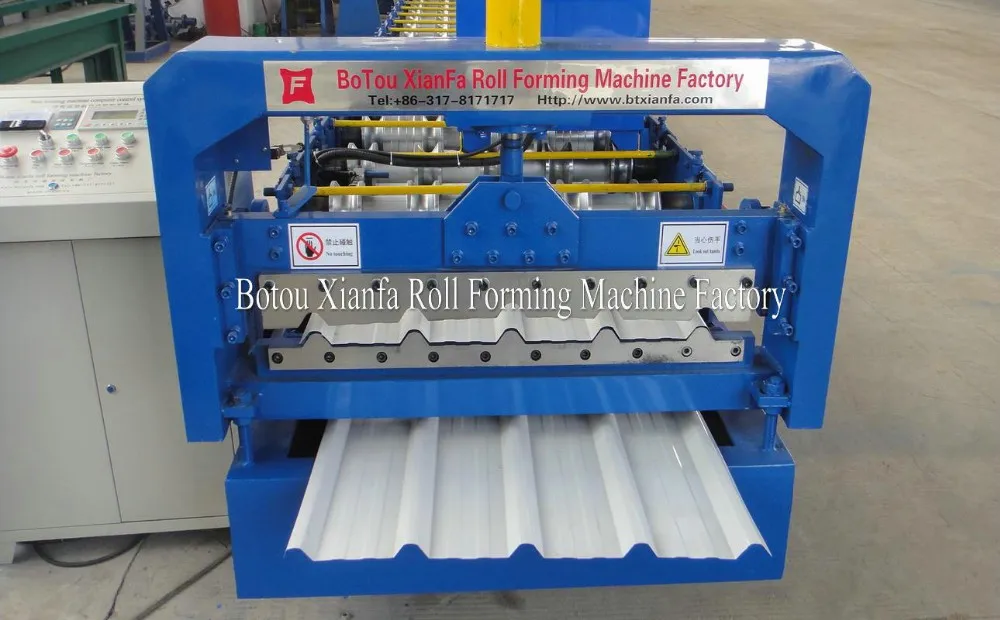

Shearing Mechanism



It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment


Output Table


It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

Packing & Delivery
Packaging
       Size
8.99*1.45*1.51m
Weight
about 3.2T



Packaging Details
1.We have professional technicians for loading.Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Contact

We can make the machine according to the clients' requirements. If you are interested in our products, please send inquiry to us, we will be back to you in the first place , looking forward to cooperating with you .
