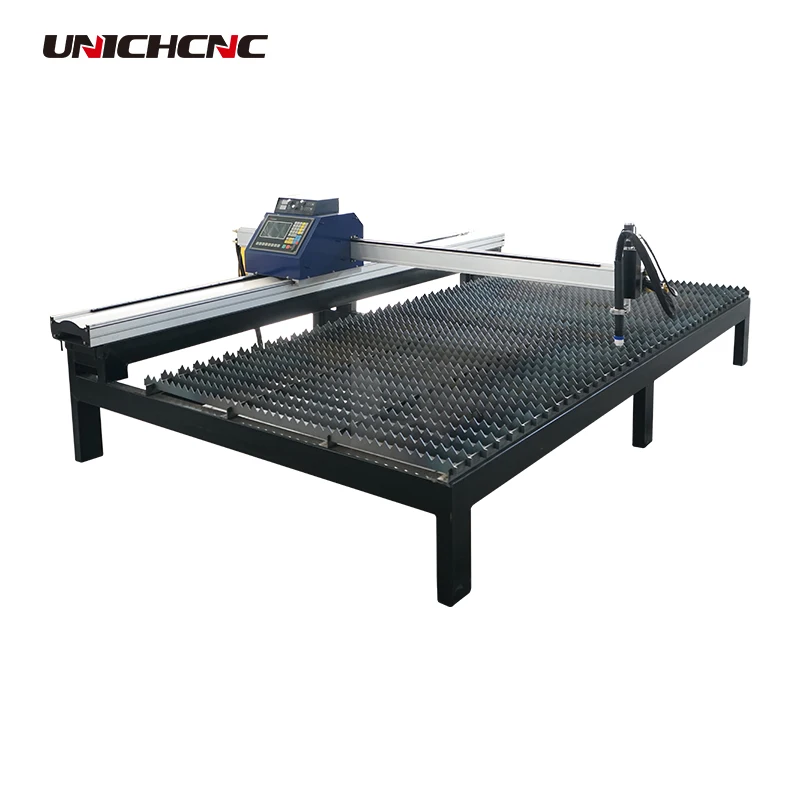

Portable 4 x 8 cnc plasma cutter

  • 1 - 1 Sets
    $2,600.00
  • 2 - 2 Sets
    $2,500.00
  • >=3 Sets
    $2,300.00
Effective Cutting Range (mm):
1500*3000*150mm
Lead Time:
Quantity(Sets) 1 - 30 31 - 50 >50
Est. Time(days) 7 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Place of Origin:
CHINA
Brand Name:
UNICHCNC
Condition:
New
Dimension(L*W*H):
1500*3000*150mm
Certification:
CE ISO SGS
Dimensions:
1500*3000mm
Rated Power:
8KW
Voltage:
220/380V, 380V (220V)
Year:
2019
Motor Type:
Stepper Motor
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
Can be customized
Weight (KG):
300
Product Name:
Portable Cnc Plasma Cutting Machine
working size:
1500X3000mm
Control system::
Beijing Starfire
Height adjust:
Torch height controller
Plasma power:
63A 100A 120A 160A 200A
Plasma source:
Chinese Huayuan or Hypertherm
Cutting thickness:
0.3-8mm for 63A (1-30mm for 200A)
Cutting mode:
Plasma cutting & flame cutting
Supply Ability
Supply Ability:
500 Set/Sets per Month portable cnc plasma
Packaging & Delivery
Packaging Details
Free fumigation wooden cases
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 30 31 - 50 >50
Est. Time(days) 7 10 To be negotiated

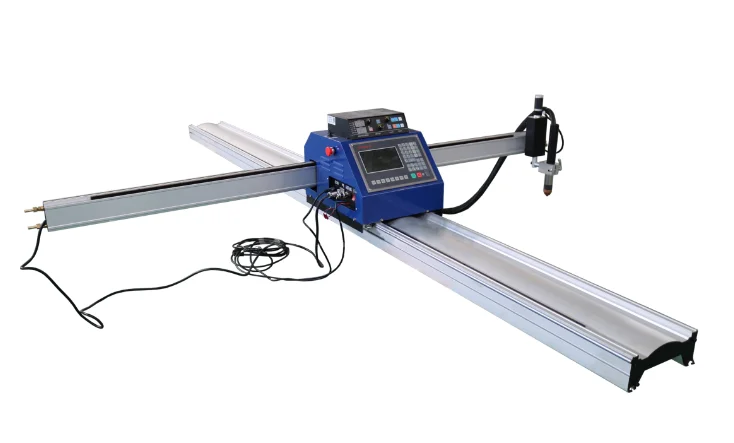

Portable 4 x 8 cnc plasma cutter


portable 01.jpg



1.Features Of Plasma Cutting Machine:

1). Low Noise And High Running Accuracy

2).  Occupies A Small Place

3). Operates With High Efficiency

4). Cuts Automatically With High Precision And Uses Materials Effectively

5). It Is Of Compacted Design, Light Weight And Is Small In Size

6). It Is Easy To Move, Suitable For The Site Indoor Or Outdoor

7). The Control System Is Independently Designed And Developed With Optimized Programming,

 Easy To Learn And Operate

8). The Operation Interface, Simple And Clear, Can Store Over 80 Programs

9). LCD Screen Of Dynamic And Static Display Of Graphics Can Convert The CAD File To The

Programmed One In The Computer And Transmit
It To The Machine Via A USB Flash Disk Before Automatic Cutting Performance Which Can Also

 Be Made By Inputting The Simple Instruction
In The Machine For Programming Cutting.

2.Parameter:

ModelLXP1530 CNC Plasma cutting machine (Other models are optional)
Working size1500*3000mm (4.3x8.2ft)   (Other working sizes are optional)
Three axes repeat positioning accuracy±0.05mm
Process precision  ±0.35mm
Transmission system

X,Y: Taiwan Hiwin high-precision,zero clearance increased linear guide+ rack

Z: the arc voltage control

Max. cutting speed15000mm/min
Working voltage     AC220/50HZ
Control system

STARFire plasma cutting system

Standard high sensitivity arc voltage device

Software supportFASTCAM,AutoCAD,etc
Instruction formatG code
Drive systemStepper motor
Plasma power supplyChina Huayuan 63/100/160/200A(Optional Hypertherm --45A,65A,85A,105A,125A,200A

 3.Assembly parts:

6.12_026.12_04

4.Application Of  Plasma Cutting Machine:

1).Applicable Industries

Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,

Military Industrial,Wind Power,Structural
Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator Manufacturers,

Textile Machinery,Environmental Protection
Equipment,Ect.

2).Applicable Materials

Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon Steel,

Stainless Steel,Alloy Steel,Composite Metal

5.Samples:

.jpg
