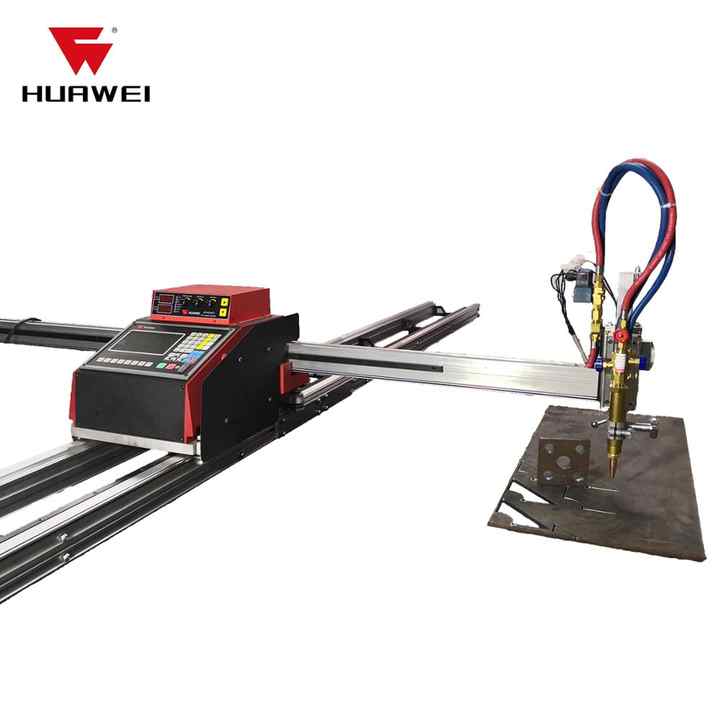

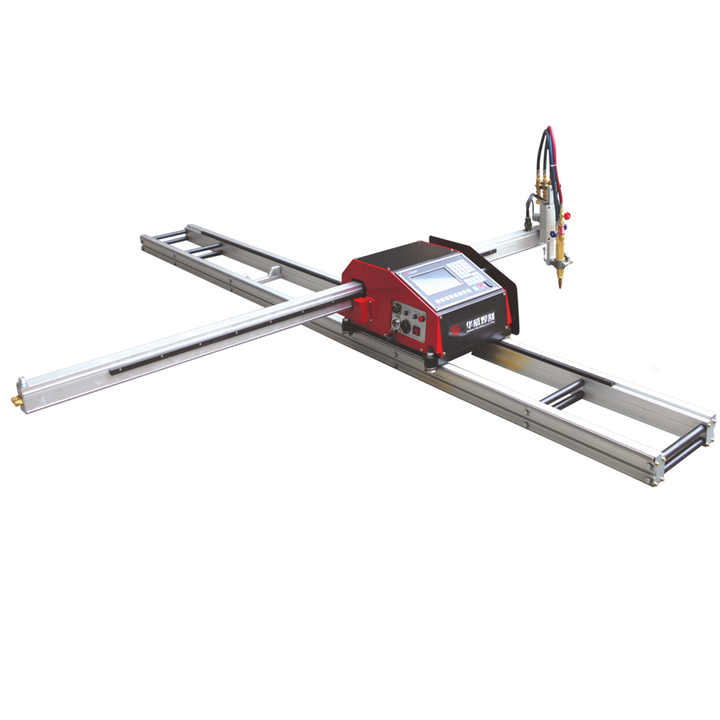

Portable CNC Plasma Metal Cutting Machine Steel Plate Gas Flame Cut Cutter Price Huawei EHNC-1500W-J-3

$1,110.00 / Set | 1 Set (Min. Order)
Effective Cutting Range (mm):
1500*3000
Model Number:
EHNC-1500W-J-3
$1,110.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Sets)
Customized packaging (Min. Order: 20 Sets)

More

Graphic customization (Min. Order: 20 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Dimensions:
3000*1300*1200 mm
Motor Type:
Stepper Motor
Condition:
New, New
Place of Origin:
Shanghai
Brand Name:
Huawei
Voltage:
220V/110V
Rated Power:
200W
Dimension(L*W*H):
3000*1300*1200 mm
Certification:
CE
Year:
2019
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Online support, Video technical support
Traveling speed:
5000mm/min
Color:
Red
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Control system:
START Control System
Cutting mode:
Plasma Cutting+ Flame Cutting
Application:
Industrial Metal Cutting
Type:
Portable Type
Weight:
90KG

Packaging & Delivery

Selling Units:
Single item
Single package size:
150X35X35 cm
Single gross weight:
45.000 kg
Package Type:
High quality carton
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 5 To be negotiated
Video Description

Portable CNC Plasma Metal Cutting Machine Steel Plate Gas Flame Cut Cutter Price Huawei EHNC-1500W-J-3

Product Description







The EHNC-1500W-J-3 could send by air



delivery after pay on Alibaba directly.



(1) Tailored track acquires high-intensity, high-speed and high-precision features.
(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
(5) With two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.

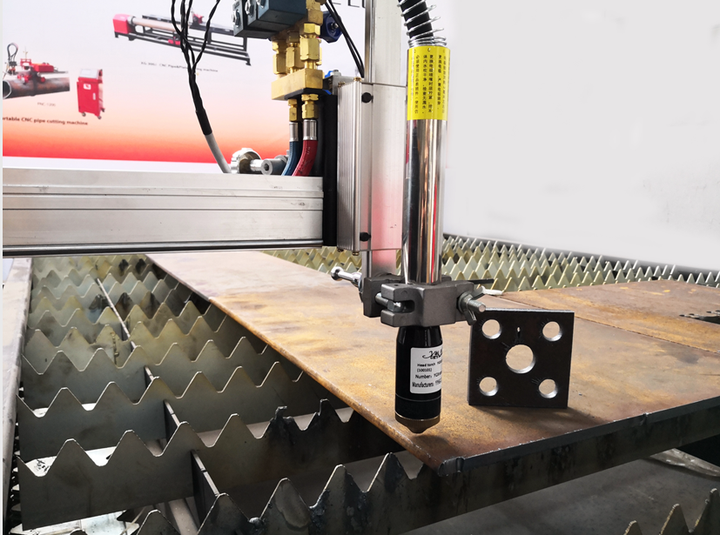

(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,

protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) Compatibility of the domestic plasma and foreign-brand plasma.



The EHNC-1500W-J-3 could send by air delivery after pay on Alibaba directly.

The other model for other cutting size please send inquiry to us.



Model

Cutting Range

MM

Supply Voltage

V/HZ

Cutting TorchNumber

of groups

Cutting speed

(mm/min)

MAX no-loading

speed

(mm/min)

Dimensions

Weight



EHNC-1500W-J-21500*2000

AC220V-50

110V-60

150-75030002.5*2.2*0.3475
EHNC-1500W-J-2.51500*2500

AC220V-50

110V-60

150-75030003*2.2*0.3482
EHNC-1500W-J-31500*3000

AC220V-50

110V-60

150-75030003.5*2.2*0.3487
EHNC-1500W-J-3.51500*3500

AC220V-50

110V-60

150-75030004*2.2*0.3494
EHNC-1500W-J-41500*4000

AC220V-50

110V-60

150-75030004.5*2.2*0.34101
EHNC-1500W-J-5
1500*5000

AC220V-50

110V-60

150-750
3000
5.5*2.2*0.34
113
EHNC-1500W-J-61500*6000

AC220V-50

110V-60

150-75030006.5*2.2*0.34126
