Portable EDM Metal Disintegrator Broken Drill Remvoe Broken Easy Out

$2,380.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
SFX
Model Number:
SFX-4000B
CNC or Not:
Normal
Condition:
New
Dimension(L*W*H):
420*220*370mm
Certification:
CE Certification
Voltage:
AC220V /AC110V
Electrode Diameter Range:
2-24mm
Max Travel of working head:
70mm
Max Processing Speed:
2mm/min
Working Liquid:
Tap water
Remove broekn taps sizes:
Larger than M2
Package size:
528*325*460mm
Net weight:
24KG
Gross weight:
26KG
Weight:
22kg
After-sales Service Provided:
Overseas service center available
Warranty:
12 Months
Power(W):
3000W

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X33X46 cm
Single gross weight:
26.0 kg
Package Type:
Two layer of thick carton packaged, surrounded by foam filled to protact the machine, five straps tie up on the outer carton.
Picture Example:
package-img
Lead Time :
3
Video Description

Portable EDM Metal Disintegrator Broken Drill Remvoe Broken Easy Out

Product Description

1.Small size, light weight, convenient to operate, especially on large size work piece;
2.Electrolytic Corrosion principle, no damage to workpiece;
3.Magnetic base, easily to attract on the workpiece;
4.Vibration motor improved the effiency to two or three times;
5.Work head is separated, helpful for complex machining;
6.Alarm automatically for certain depth;

7. Could remove broken tap sized M2-M48.

Two models tap remover satisfy kinds of demands



Our tap remover edm has been sold to most countries of the world and got good reputation from customers.

drilling machine, broken tap removal, edm tap removal, magnetic pick up tool, screw tap extractor, edm punching machine, portable edm machine, tap remover, tap extractor

3

Machine details

2[]SFX-4000B

Items

SFX-4000B



Input Voltage

AC220V/110V



Input Power(W)

3000W



Max Processing Depth of Spindle Servo(mm)

70mm



Electrode Diameter(mm)

2-24



Max Processing Speed(mm/min)
Processing Material:Quenched steel δ=10mm

2
Electrode Φ5

1
Electrode Φ12



Adjustable Current

Stepless Adjustment



Set Depth

Alarm Automatically for Certain Depth



Working Liquid

Running Water(Purified Water or Distilled Water is better)



Processing Range

  • Fast remove broken taps, drill, drift, screw, plug gauge without damage to the workpiece.
  • Processing non-precision hole and marking on metal materials such as hardened steel, hard alloy steel and copper.



Power Box Size(mm)

420*220*370



Working Head Size[Drill Chunk included](mm)

300*50*50



Packing Size(mm)

528*325*460



Gross Weight(kg)

28kg

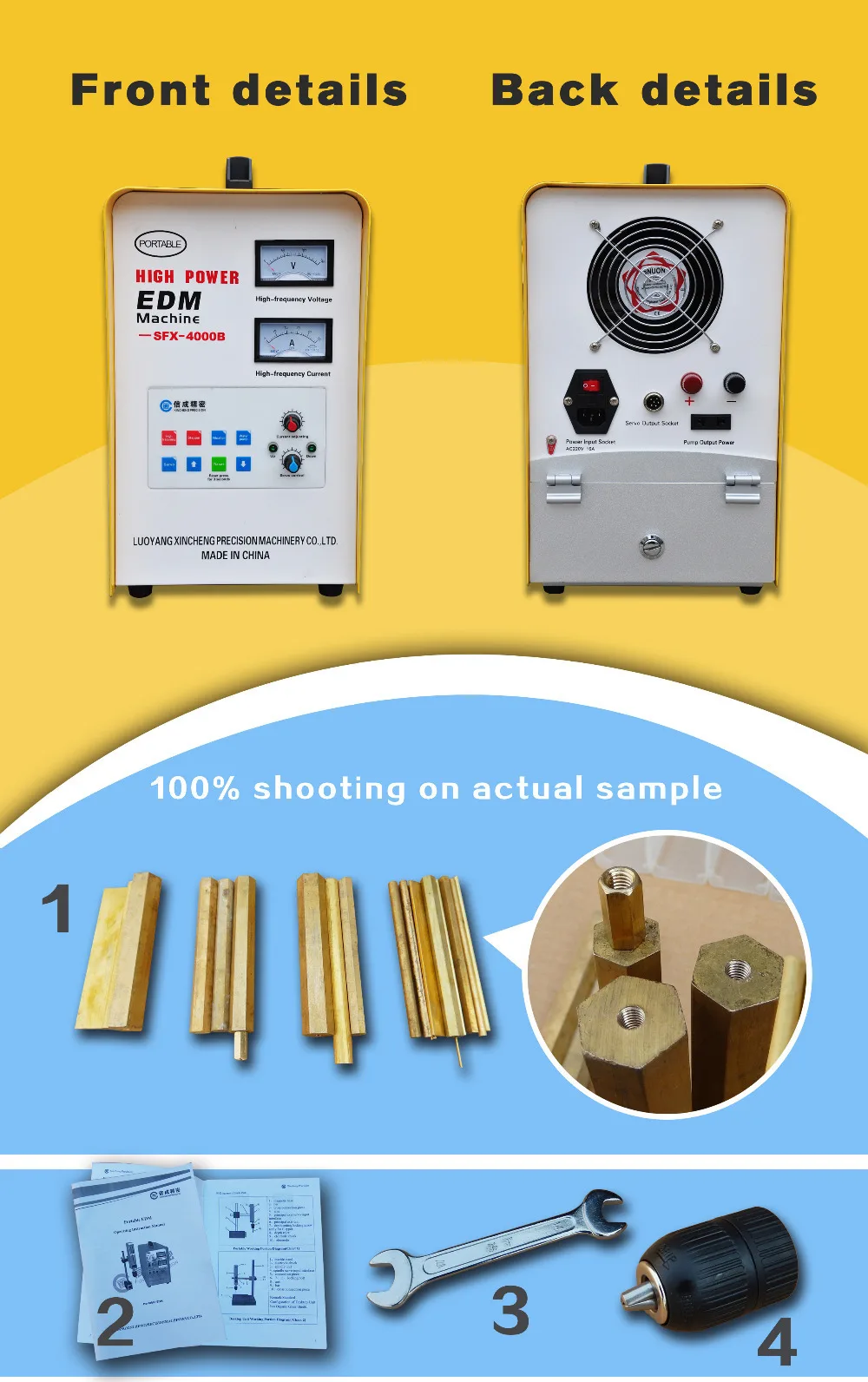

Portable edm broken tap remover details 1

2

Operating Shows

working sample
