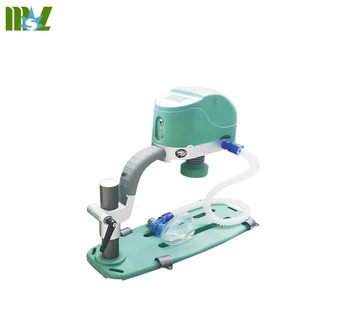

Portable Multi-function CPR resuscitation machine with adjustable pressing frequency 100-120 times

FOB Reference Price:Get Latest Price
US$2.999,00 - US$5.999,00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Breathing Apparatus
Brand Name:
MSL
Model Number:
MSLHS02
Place of Origin:
Guangdong, China
Instrument classification:
Class II
Power Source:
Electricity
Pressing depth:
30 mm~65mm adjustable,one type:5 mm error:±2 mm
Pressing release rate:
1:1
pressure relief valve:
0.65Mpa;error:±0.12Mpa
Pressure of gas road:
no less than 1Mpa
Ventilation quanity:
500ML no adjust,error:±10%
working pressure:
≤816.4N
input power(DC):
≤17W
AC:
≤54W
The thickness range of patients:
155 to 305MM
Pressing frequency:
100times/ min,110times/ min,120times/ min
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
CPR machine Standard export package
Port
Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description

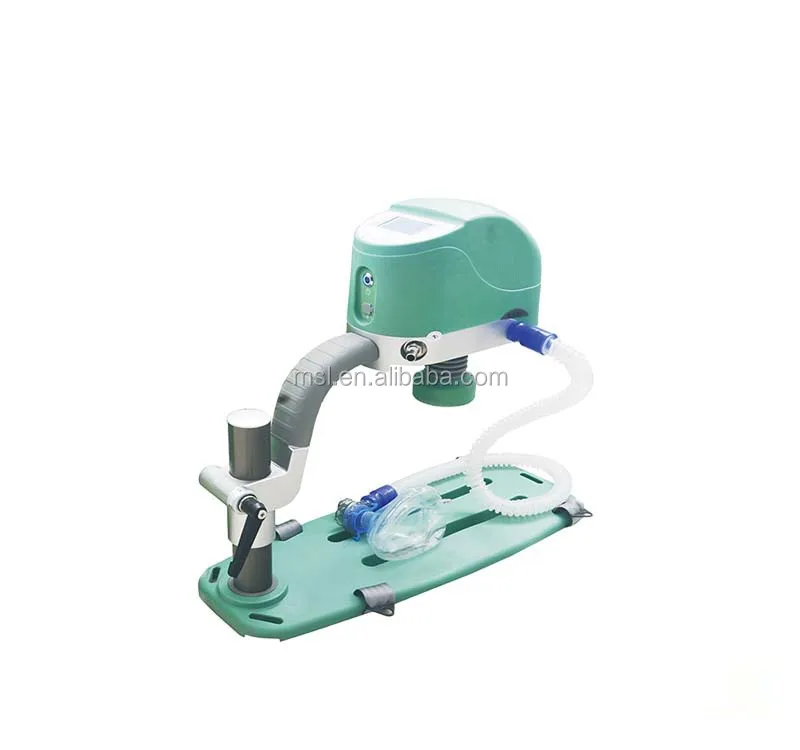

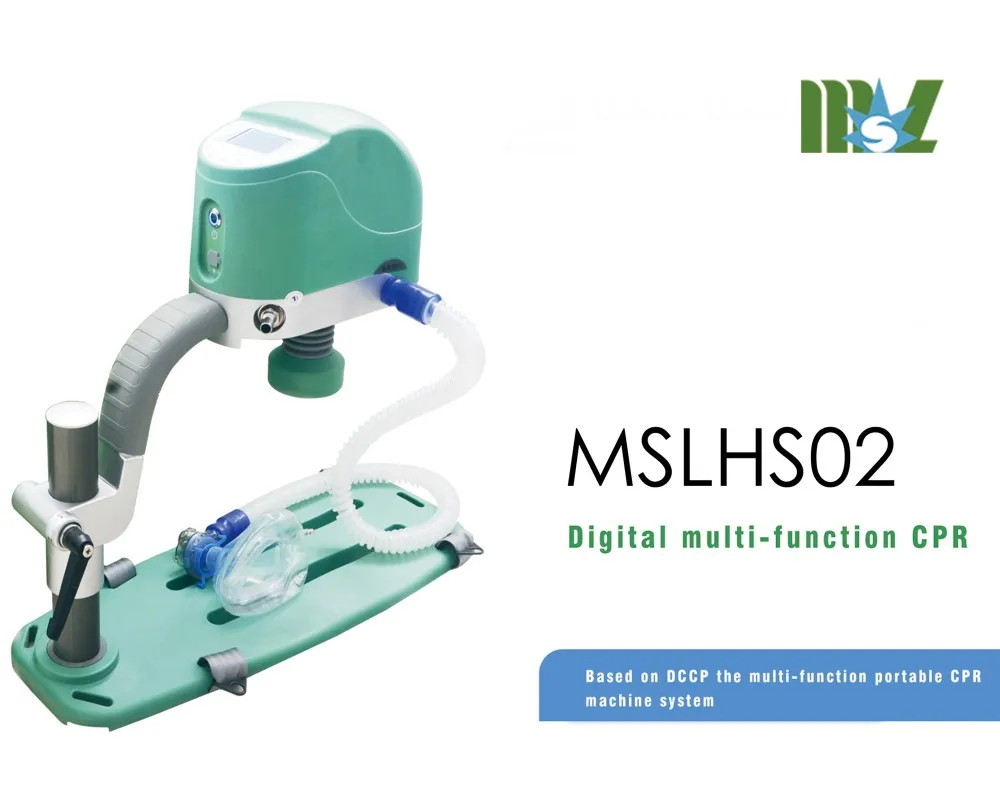

Digital multi-function CPR MSLHS02

Based on DCCP the multi-function portable CPR machine system

Why choose MSLHS02?

-Digital

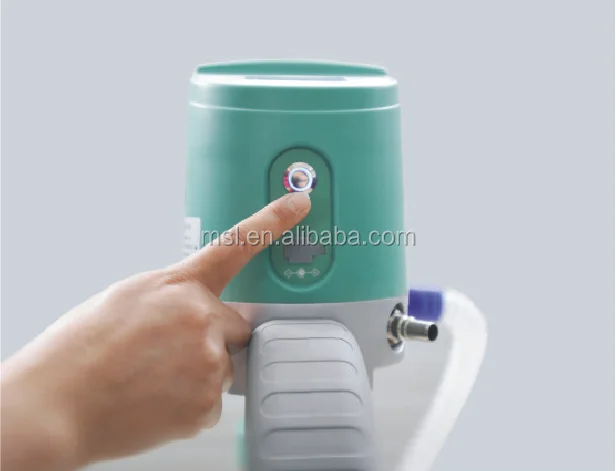

Touch-tone;

Breathing and circulation support mode switch freely;

30:2 pattern will repeat continuously


-Accurate

Compression depth: error<2 mm

Compression frequency: error=0


-C type spiral arms open vertical pressure

Fuselage rotate 360 degrees, it's convenient to cooperate to produce another rescue measures.


-Control system

Security state Default;

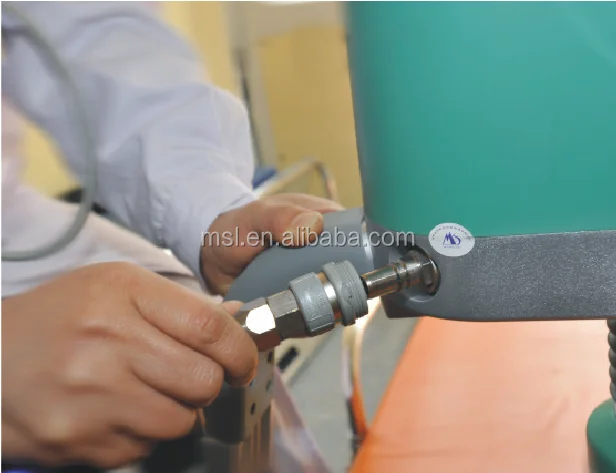

Air access equipped with fast plug-in;

Quick start in 2 seconds

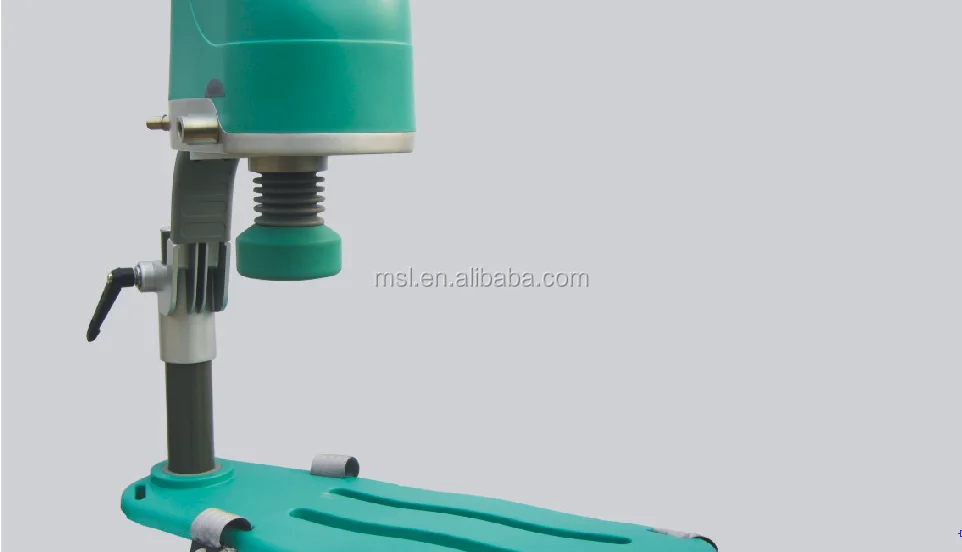

-Platform (system function)

Security; Convenient; Simpleness

Product Parameter
Auto-CPR Device MSLHS02 parameter
1,Pressing depth:30 ㎜~65 ㎜ adjustable,one type:5 ㎜,error:±2 ㎜;
2,Pressing release rate:1:1 ;
3,pressure relief valve:0.65Mpa;error:±0.12Mpa;
4,Pressure of gas road is no less than 1Mpa;
5, Ventilation quanity:500ML no adjust,error:±10%;working pressure:≤816.4N ;
6,input power(DC):≤17W; AC:≤54W;
7,Press the ventilation ratio:30:2 continuously adjustable;,error:±1 time;
8,Pressing frequency: 100times/ min,110times/ min,120times/ min error:±1 time;
9,The fastness of fastening band fastness is not less than 100N;
10,The thickness range of patients was 155 to 305MM.
11,The pressure is not enough to alarm, the pressure depth is reduced automatically, and the manual
recovery after air pressure recovery must be deep.
12,Electricity, according to the low voltage alarm, start the suspended function;
13,Default mode:Press the ventilation ratio: 30: 2,press depth 30mm,press frequence 100 pcs/min
Ventilation quanity 500ML
14,Safety requirements refer to medical electrical appliances safety standard GB 9706.1-2007,
electromagnetic compatibility standard YY05052012;
15,Earthquake Resistance
16,drop resistance
17,The enclosure protection level is IP55 (dustproof and water spray);
18,noise≤70dB ;
19,Working environment : a)Temperature:-20℃~55℃;b)Relative temperatur:10%~90%;c)Atmospheric pressure:500hPa~1060hPa.
Detailed Images
Related Products

Fetal Monitor MSLDMO2

3 option: monitoring parameter: 3/ 4 / 9

Vital Signs Monitor MSLMP06

12.1 inch wide screen

MSLFS02/03/04

Portable Full-automatic cardiopulmonary resuscitator

MSLFS01

Full-automatic cardiopulmonary resuscitator

SonoScapeS3

SonoScapeS6

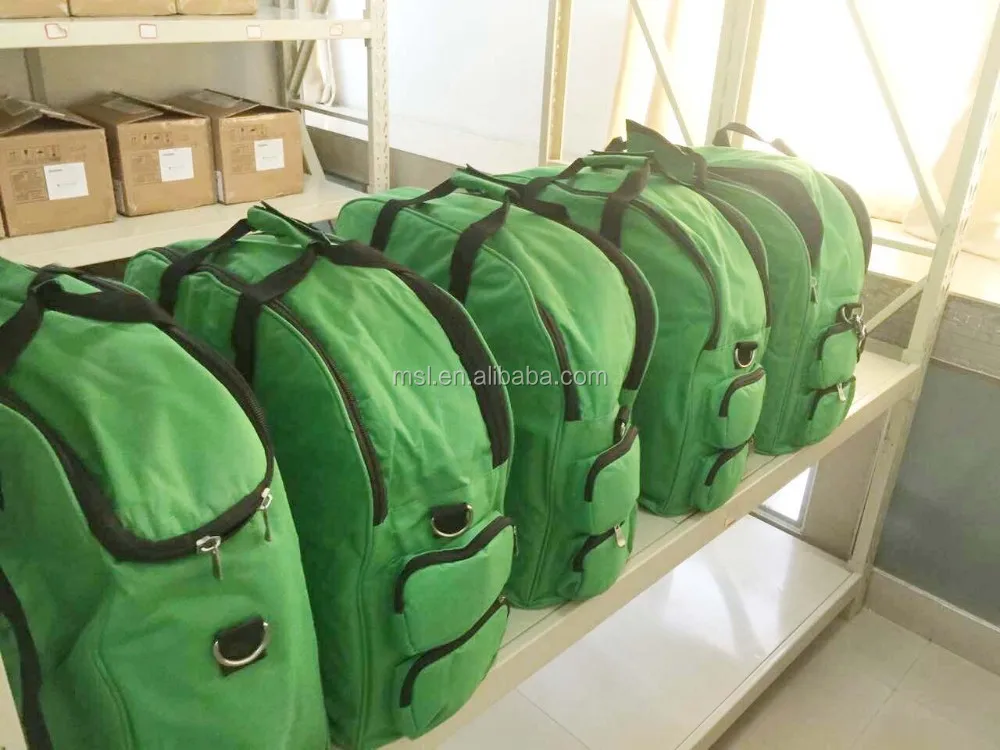

Packing & Delivery
