Power Electronics Trainer
Good wooden box
5000 Set/Sets per Year
Packaging & Delivery
1 - 1
To be negotiated
three phase, five wire, 380V±10% 50Hz
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Jinan Should Shine supply educational equipment, didactic equipment, vocational training equipment for university, college, engineer training centers. Jinan Should Shine design, develop, manufacture and supply after sales service for educational equipment for USA, Canada, U.K., Australia, New Zealand, and more than 80 countries in the world, with more than 10 years design, manufacture and export service, with 10 engineer design team, and 10 international sales team, supply professional technical consultant and professional after sales services. With self owned brand: ShouldShine, JSS, SSEDU, gunt, and passed ISO9001 certificate since 2013. Jinan Should Shine is Alibaba verified supplier, past Intertek on site checking. Jinan Should Shine has a wide range of products including 8 ranges: electrical training equipment, mechatronics training equipment, fluid lab equipment, thermal training equipment, refrigeration training equipment, food machine trainer, PCB lab equipment, mechanical training equipment.
Power Electronics Trainer Vocational Training Equipment Educational Training Equipment

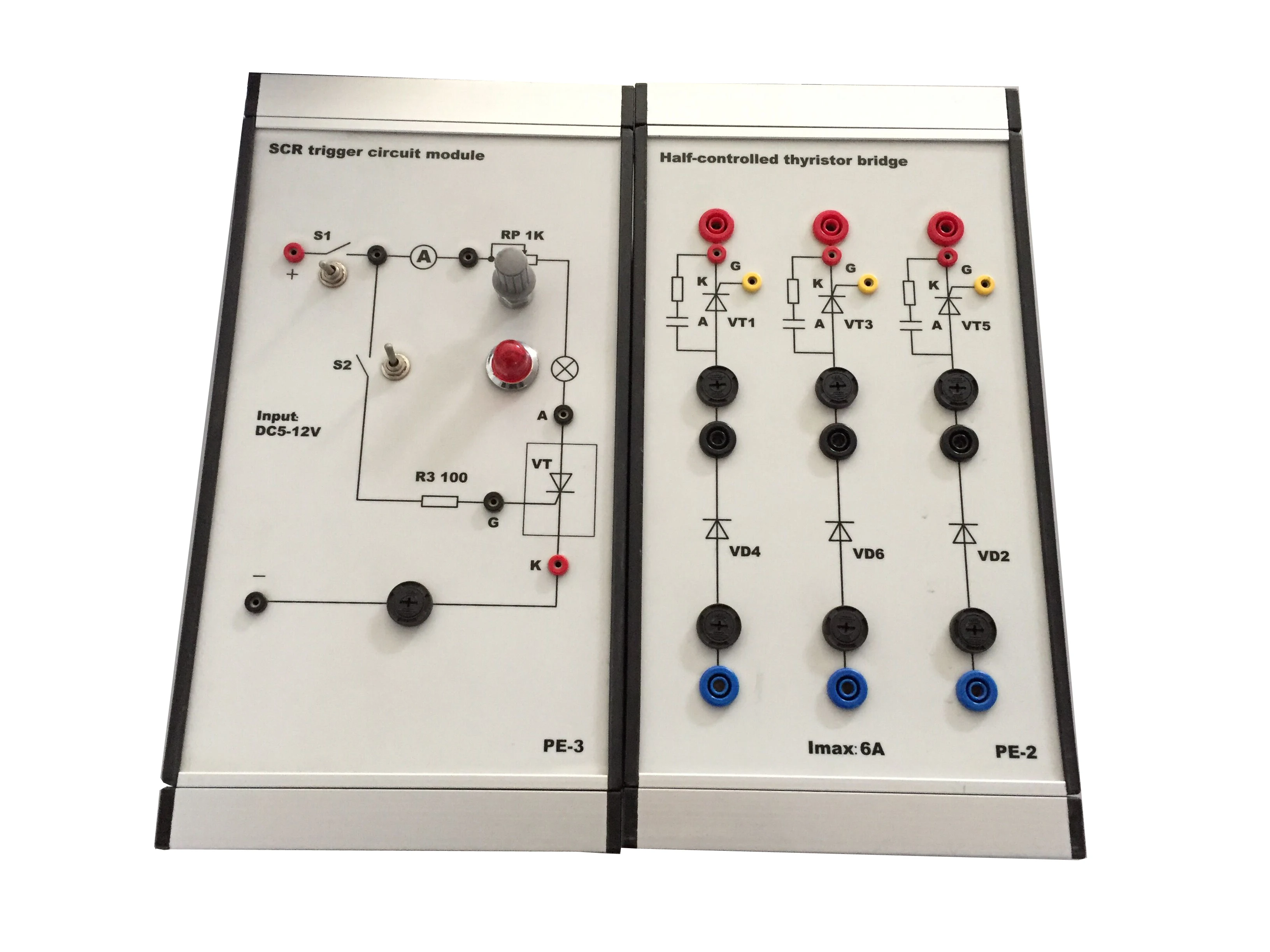

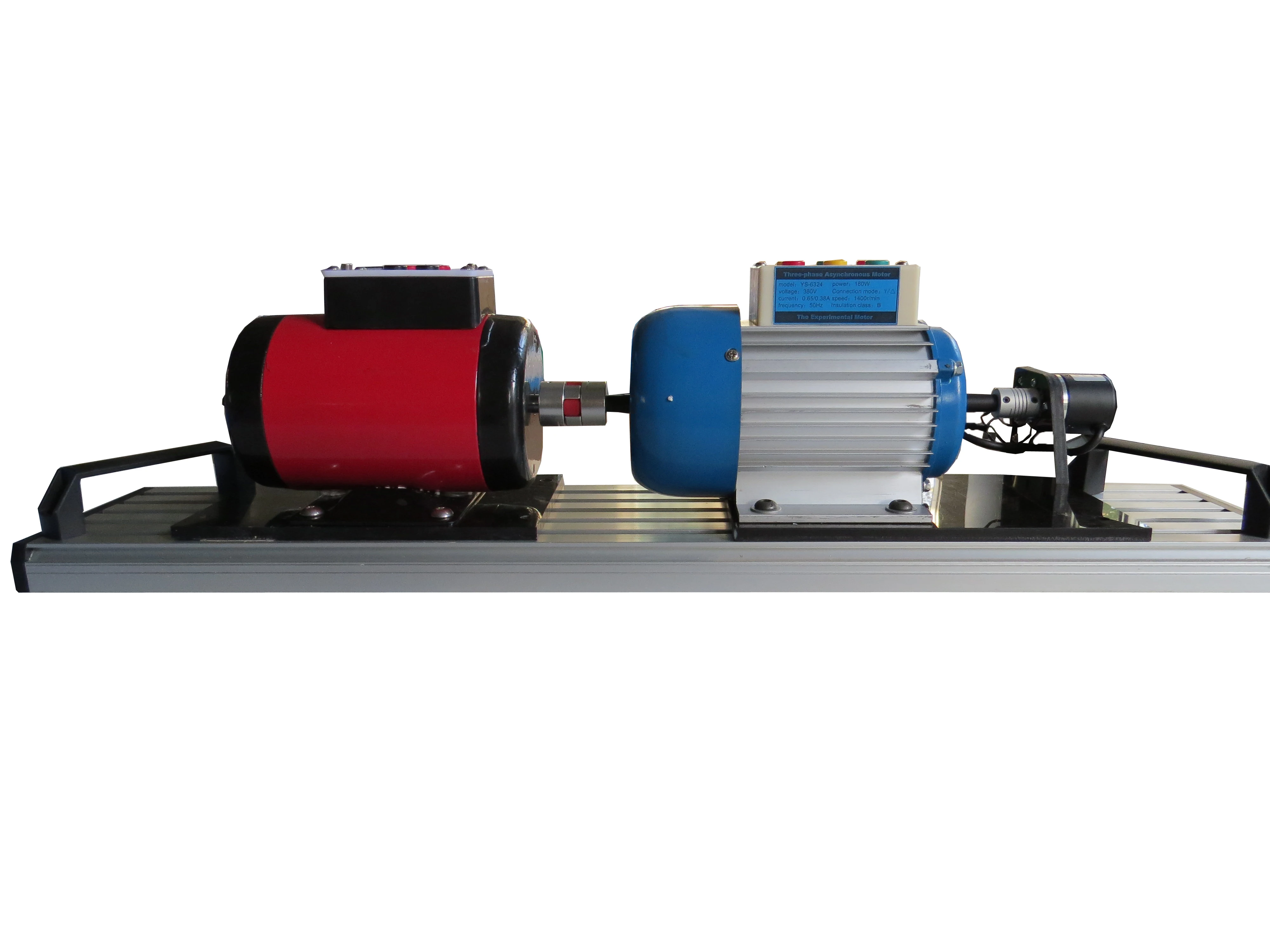

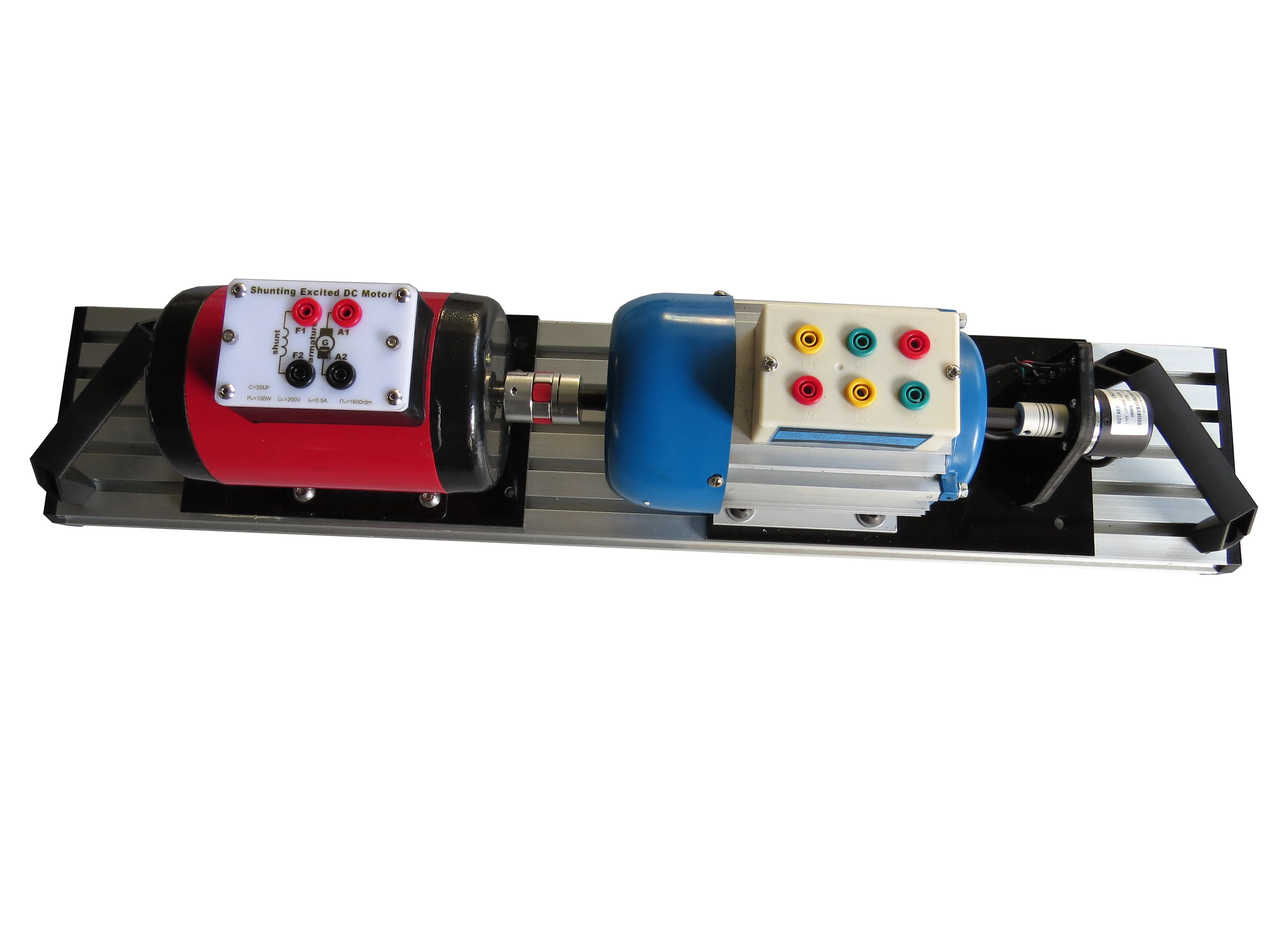

1. Product 1.1 Overview This training device includes basic devices, power electronics rectifier circuit PWM DC speed regulator, motor control objects, such as through the relevant experiment, can be familiar with silicon controlled rectifier, motor running characteristics, grasp its control principle and control mode, raises the student the corresponding knowledge and skills, suitable for higher vocational colleges, higher technical, secondary vocational school and technical school related professional teaching and skill training evaluation. 1.2 Feature (1) Training bench with aluminum column frame structure, the power supply built-in integrated installation, safe and convenient to use, is not easy to damage. (2) unit circuit hanging box configuration are complete, combination use, complete variety of critiquing the training content. (3) It can be set for an experiment subjects related units hang flexible increase or decrease in the box, in order to meet different user requirements. (4) Training platform has a good safety protection system. 2 Character parameter (1) Input power: three phase, five wire, 380V±10% 50Hz (2) Dimension:1600mm×800mm×1800mm (3) Whole capacity: ＜2.0KVA (4) Weight: ＜100kg (5) Work condition: Environment temperature: -10℃～+40℃ Relative humidity: ＜85%(25℃) 3.1 Power control panel The power control panel using aluminum alloy profile panel, enclosed body structure, and placed at the bottom of a connection as one. 3.2 Training workbench(only for stand type) Training workbench use aluminum structure. There are universal 4 wheels at the bottom of workbench, there are 2 breakers on wheel. The trainer can be moved or stop convenient . The workbench panel thick is 25mm high density substrate , there is high temperature high pressure anti-fire treatment process. It equip with three guide rail type drawer, 2 push and plug cabinet. The structure is sound and reliable, outlook is beautiful. 3.3 Power box (1)Three phases, five wires power input, it has been tested by leakage breaker control, it has emergency stop button, you can cut off electricity when emergency. (2) Current meter, and voltage meter do output indication. (3)It equipped with indicator, power plug output, safety output sockets. (4)Inner with AC current, with short circuit protection function. (5) Inner AC 0-220V continuous AC current, multi votlage output DC stabilized power supply and AC low-voltage power supply with short circuit protection function. 3.4 Equip tools (1)power factor meter hanging box 1 piece (2)Three-phase AC filterHanging box 1 piece (3)Filter inductive /capacitance Hanging box 1 piece (4)Tachometer Hanging box 1 piece (5)Condensive load Hanging box 1 piece (6)PWM DC speed adjusting Hanging box 1 piece (7)Three-phase squirrel cage AC asynchronous motor (8)DC motor (9)Three phases transformer module (10)Bulb load Hanging box 1 piece (11)4mm safety electrical cable 25 pieces (12)Electrician tool 1 set (13)Digital multimeter 1 piece
