Power Plugs / Connector /Phone Charger/Patch cord making machine price

FOB Reference Price:Get Latest Price
$3,900.00 - $8,850.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
TW-25V-C
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Style:
Vertical
Condition:
New
Plastic Type:
Thermoplastic
Clamping Force:
25 tf
Type:
Injection Blow Molding
Place of Origin:
Guangdong, China
Brand Name:
TaiWang
Automatic:
Yes
Certification:
CE
Color:
Green
Screw Diameter:
28 - 75mm
Injection pressure:
2321 - 1294cm2
After-sales Service Provided:
Engineers available to service machinery overseas
Injection Weight:
72 119 gr
Injection Rate:
47 78 cc/s
Opening Stroke:
28 36mm
Power(W):
7.5Kw
Supply Ability
Supply Ability:
100 Set/Sets per Day plastic injection molding machine
Packaging & Delivery
Packaging Details
Packaging Details:
1. Standard Packing: Plastic film is wrapped on the machine;
2. Outside wooden Package
Port
ShenZhen / GuangZhou
Product Description

Application:
1.TaiWang injection molding machine is suitable for multi-purpose injection molding.
2.The following materials are suitable for our products:GPPS, HIPS, SAN, ABS,LDPE, HDPE,PP, PPO, PA6, PA66, ACEAL COPOLYMER, CAB, PET, PBT,PC, PMMA, hard PVC, soft PVC,PU, EVA, PSF, , BMC.

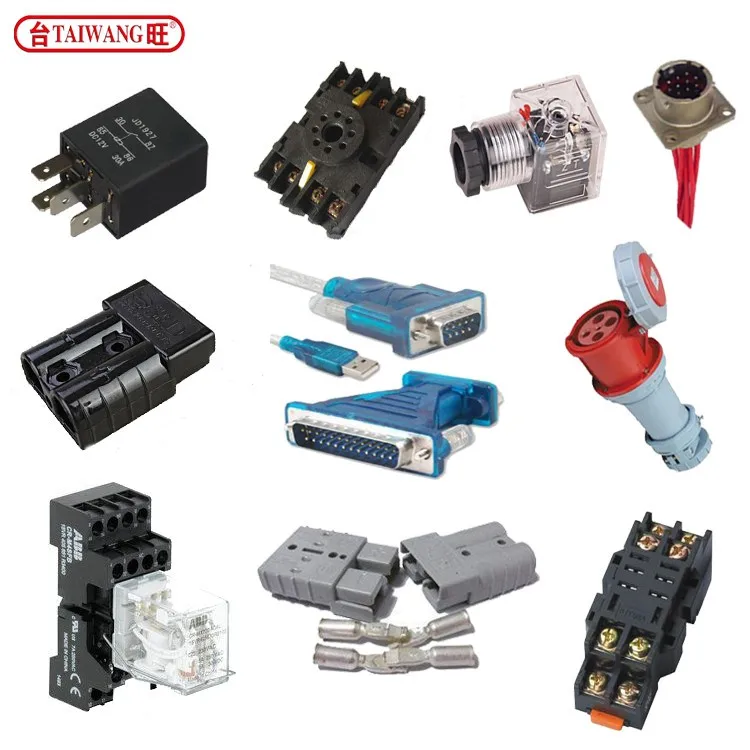

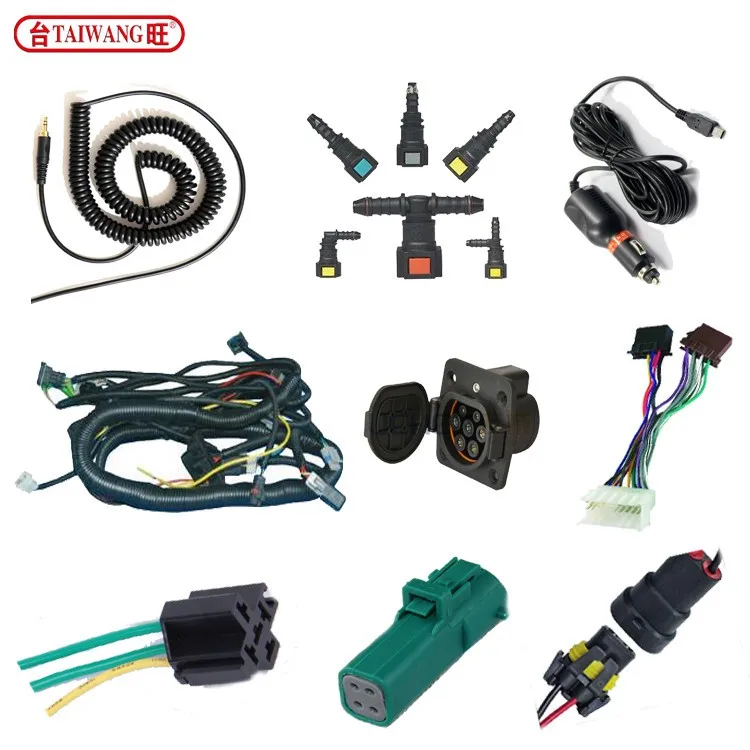

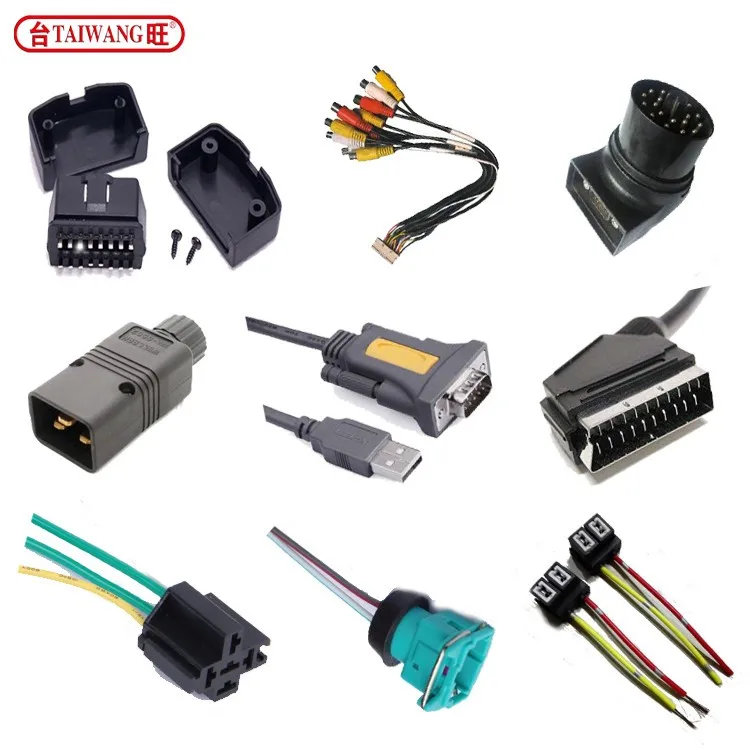

3.TaiWang vertical injection machine are widely applied to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, cables,auto parts, Plug ,etc.
4. Our machines can inject plentiful materials such as plastic, rubber, silicone could be fromed according to your requirment and available to different industry like auto, electron, medical, living goods and shoe industry.

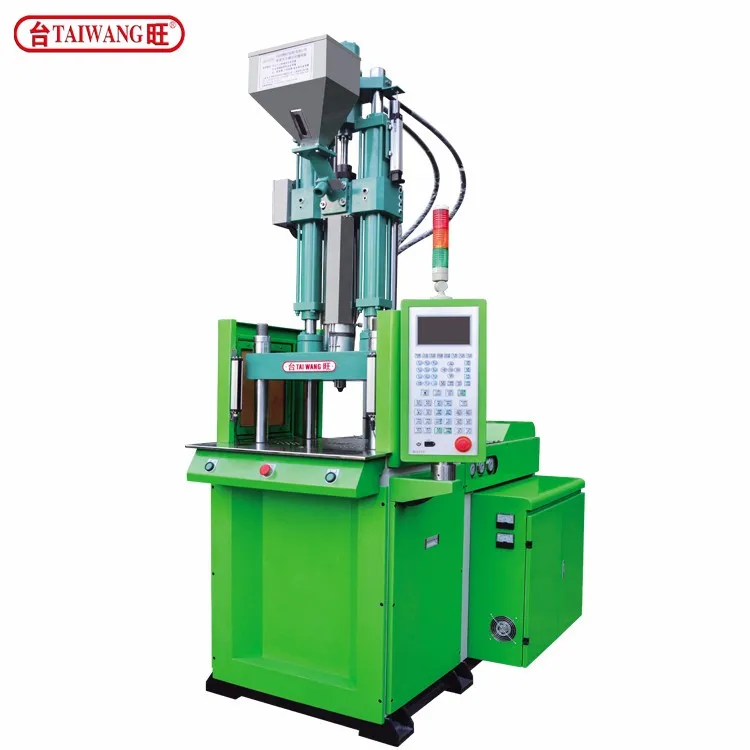

Standard Machine Series
TW25T ~ TW350T
INJECTION UNIT
Item
Unit
TW-25V
Screw Diameter
mm
22                  26
Injection Capacity
kgf/c㎡
2089             1496
Injection Pressure
cm³
36                   50
Injection Weight(P.S)
gr
32                   45
oz
1                     2
Injection Rate
cc/s
33                   46
Screw Speed
r.p.m
0~150
Screw Stroke
mm
95
Nozzle Stroke
mm
150
Nozzle Contact Force
tf
2.4
CLAMPLING UNIT
Clamping System
……
Hydraulic
Clamping Force
tf
25-30
Clamping Stroke
mm
215
Max.Mould Space
mm
360
Min.Mould Height
mm
145
Overall Size Of Platens(H×V)
mm
490*290
Space Between Columns(H×V)
mm
350*150
Hydraulic Ejector Force
tf
1.7
Ejector Stroke
mm
40
OTHERS
Drive Motor
kw
3.7(5HP)
Heater
kw
4.1
Dimension of Machine(L×W×H)
m
1.3*1.1*2.8
Weight Of Machine
t
1.15
Shipping Size(L×W×H)
m
1.5*1.3*2.2
Shipping Weight
t
1.75
Oil Tank Capacity
L
130
Cooling Water
l/hr
500~700

Main Feature:

1.Clamping Force:25T-350T
2.Injection Capacity:2089cm³ - 1294cm³
3.Vertical clamping and injection design, especially suitable for the insert molding production.


4.Space-saving compact design,more convenient to take product out.
5.Adopts the international brand component for keeping machine running stable, reliable and accurately.
6.Multistage precision molding heaters.

8.High-power motor ensures plasticizing capacity during working time.
9.User-friendly LCD display which owns diverse languages system indicates various functions and working situation.
10.TaiWang vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.

Detailed Images

Main Features

Name:   Injection unit
♦ Quick response checking valve
♦ Dual alloy 39CrMoAl screw and barrel
♦ High response and double cylinder injection system with automatic conversion function
♦ Screw back pressure control

Machine Parts

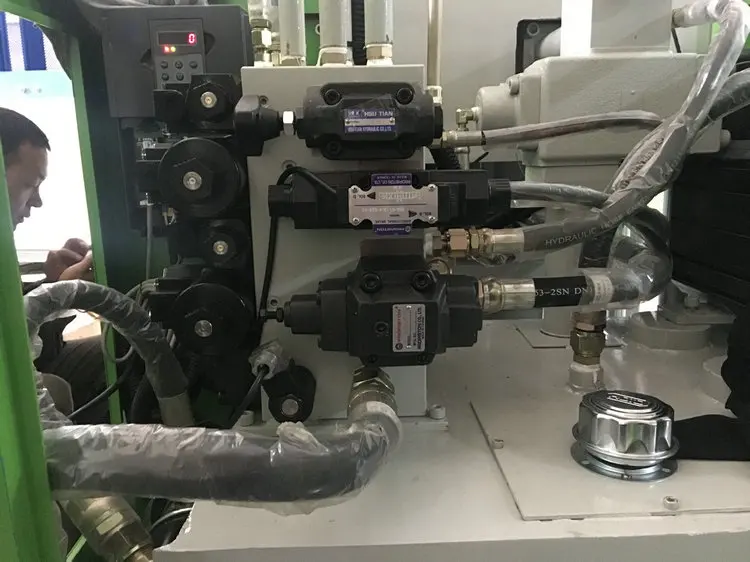

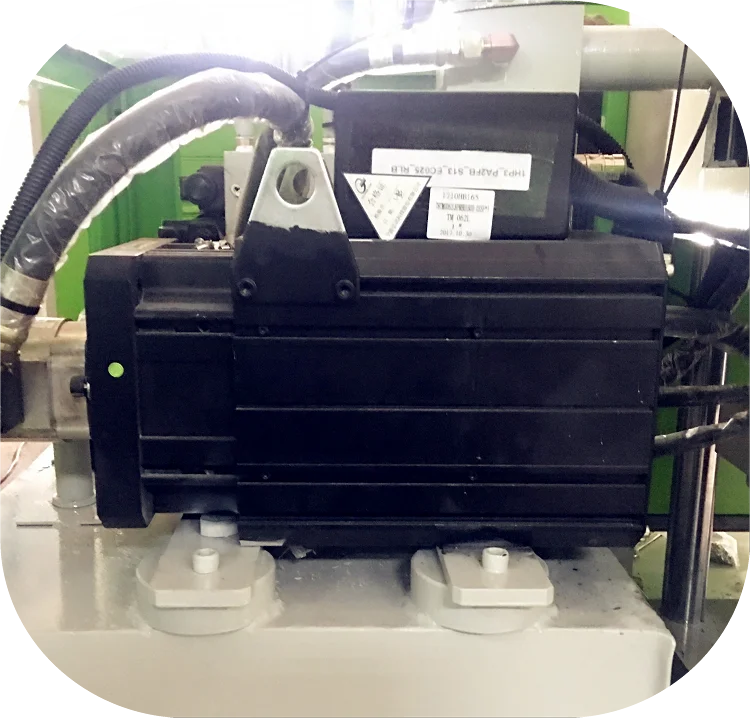

Name:   Hydraulic unit

♦Top brands hydraulic parts ensure machine fast and stable
♦Visible and dischargeable oil tank, easy for hydraulic circuit maintenance
♦Top brand hydraulic pipe fits with seal, no leaking
♦High response hydraulic circuit,0.05S to reach the maximum power output

Main Features

Name: Electric Unit
♦ Top brands electric parts supporting
♦ High class color screen controller
♦ Three color tower light with alarm
♦ Euro standard safety standard

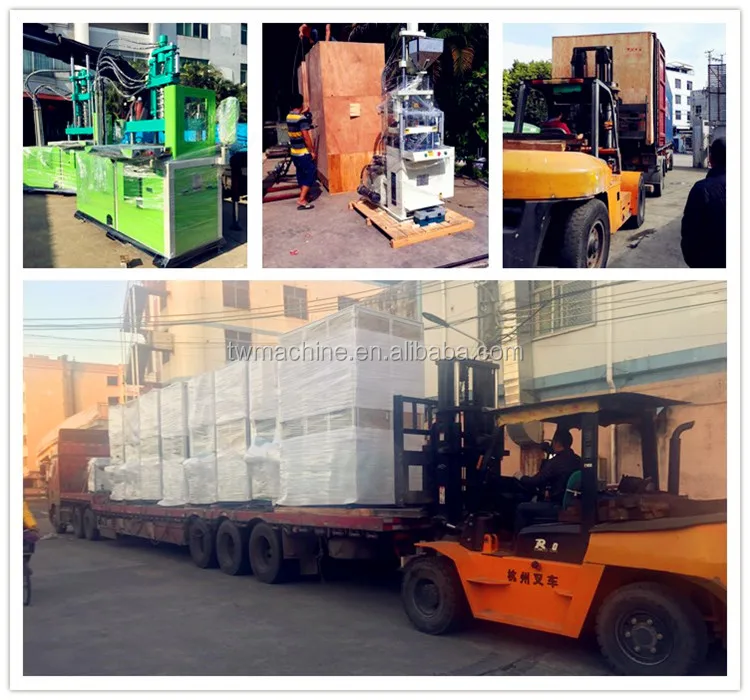

Packing & Delivery

1st step.

♦.Machine is surrounded by wrapping paper.
♦.Split the machine into two primary parts which decide to dimension of machine in the fixable wooden box.

2nd step.

♦.Grease the parts with antirust oil in order to avoid corrosion during transit.
♦.Fasten wooden box by nail and stick cautions.

3rd Step.

♦.Ship package to designated Port by crane.
♦.The professional supervises till package reach port smoothly.

Packaging Details:

♦. Standard Packing: Plastic film is wrapped on the machine;
♦. Outside wooden Package

Delivery Time: 15 days only


Our Company

International Market

    Over 10 years international trading experience, we have always  provided  good service, high quality as clients want and got great feedback.

Company introduction:

     Our company where locate in DongGuang city of GuangDong province has specialized in manufacturing injection machine for around 10 yeras and attain great reputation for high quality and considerate service also our machine is widely used among domestic and foreign customers. In terms of technical aspect, not only in order to cater with various clients who is from diverse industrial field such as medical,toy manufacturer, car accessories,aviation , stationery,sport even living goods and etc but also We provide customized service to special manufacturer.




Our Business partner :

     More and more world-famous company had established business partnership with us. Be recognized by world and Be the best vertical injection machines supplier are our goal we pursuing.
