Power Portable Precision wood cutting sliding table saw machine Saw for cutting wood panel

  • 1-2 Sets
    $2,050.00
  • >=3 Sets
    $2,000.00
Type:
Table Panel Saw
Model Number:
MJ6132TD
$
- +
available
MJ6116TD
$
- +
available
MJ6130TD
$
- +
available
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples: $2,000.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $2,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Use:
Woodworking, table saw
Style:
Horizontal
Place of Origin:
Shandong, China
Brand Name:
Houda
Usage:
Woodworking
Voltage:
220V/380V/415V
Dimension(L*W*H):
3350x3150x900mm
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Application:
Wood cutting,Panels wood cutting machine
Applicable Industries:
Furniture Factory
Product name:
sliding table saw
Max.Cutting Length:
3200mm
Main Saw Blade Diameter:
300mm/30mm
Speed of scoring saw blade:
7000-8000rpm/min
motor power:
5.5KW+1.1KW
sliding table: steel bar:
3200*415mm
Main saw blade diameter:
300mm/30mm
Scoring saw blade diameter:
120mm
Max.Cutting Height at 90 degree:
90mm
Height cutting at 45 degree:
60mm
Power:
6.6kw
Weight:
750kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
3350X3150X900 cm
Single gross weight:
750.000 kg
Package Type:
Wooden case 3350*3150*900mm,Package for Sliding Table SawStandard exported wooden case and film (8-12 sets for a 20 GP container);(20-24 sets for a 40 GP container)
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 3 4 - 10 >10
Est. Time(days) 10 15 To be negotiated
Product Description

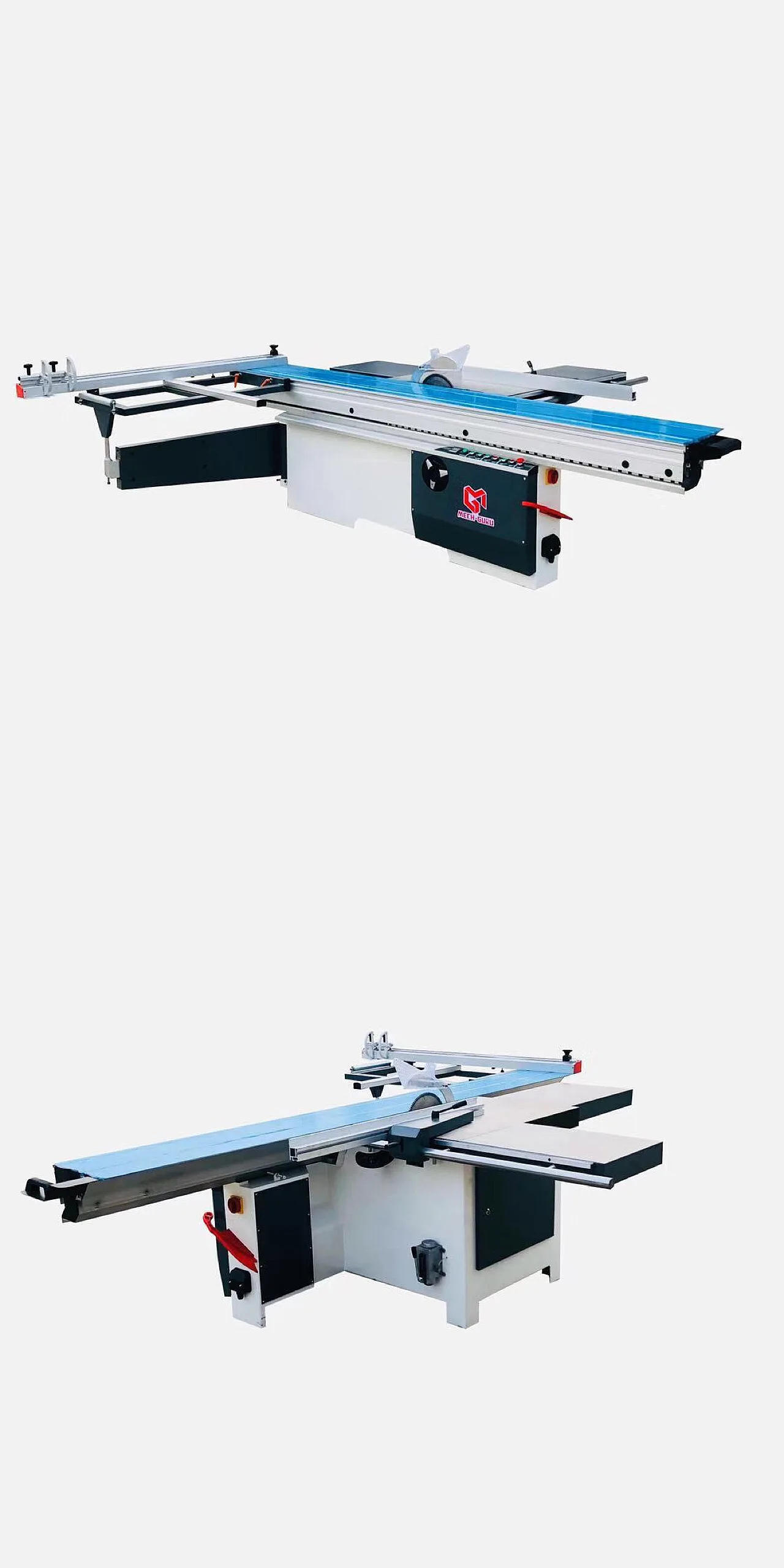

This particular panel saw MJ-6132TD with upper dust collection from Houda Machinery , modern design , durable  operation elements , high precision, excellent peormance and better operating comfort , ensure machine reliability for years.

Main Features

What are the characteristics of our products compared to others ?

1) All internal parts are processed by the center, precision and sewing, motor sleeve, no shaking, we use the hole-digging technology, different from the common sleeve on the market.
2) Used for various kinds of density board, particleboard, wood-based board,ABS panel,PVC panel, solid wood and other wood.
3) Electrical case to prevent dust and malfunction, to prevent fire.

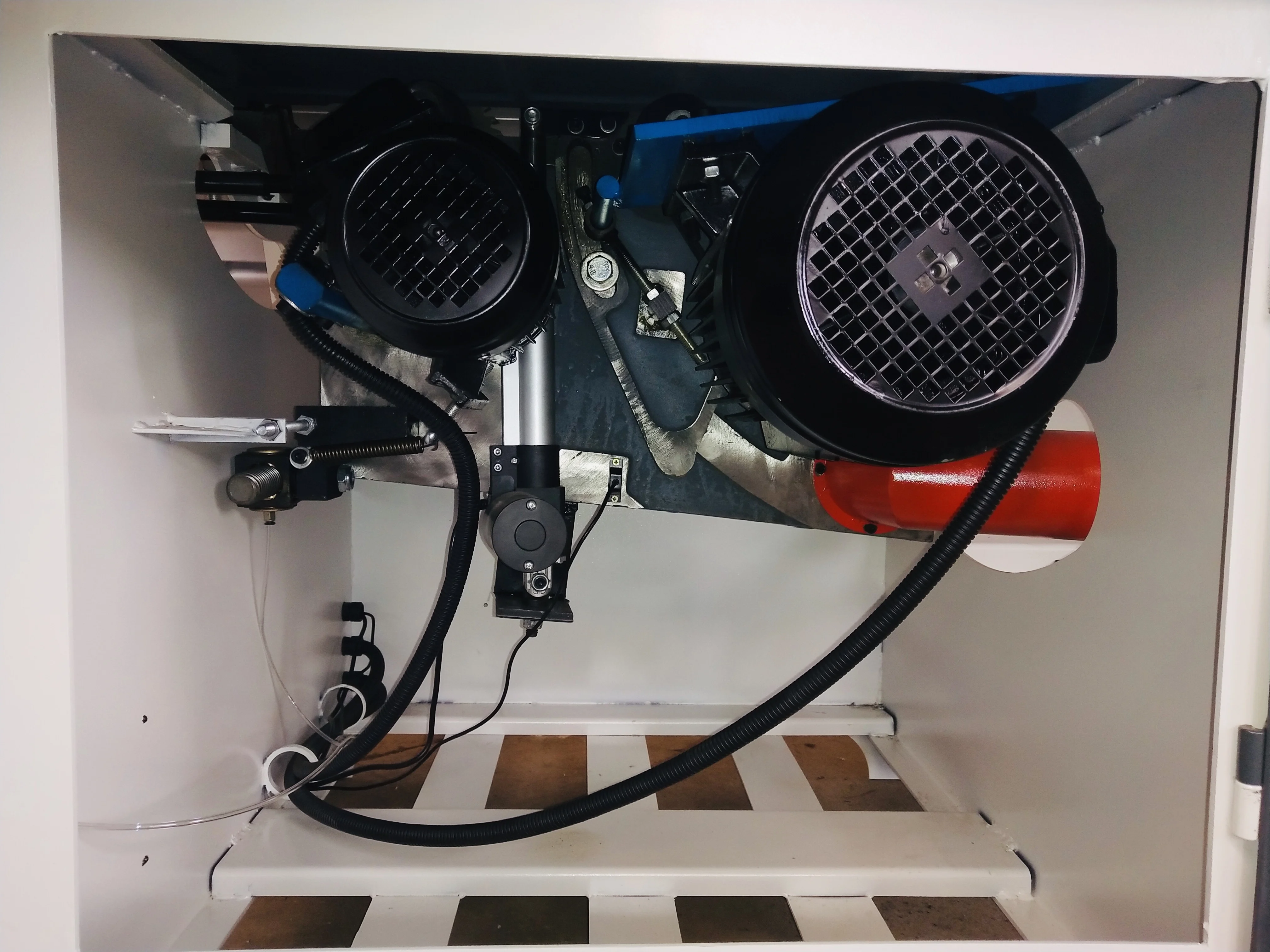

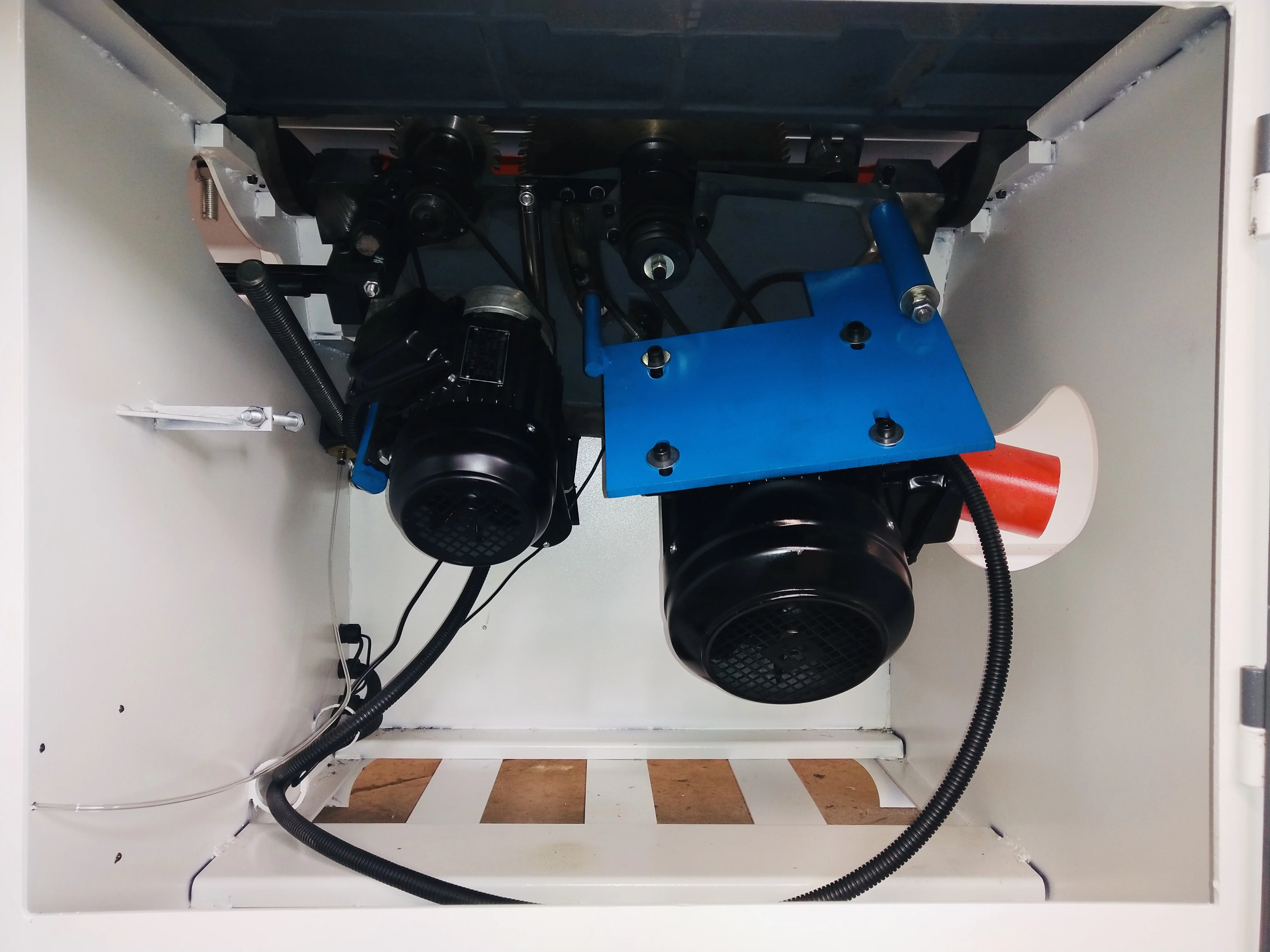

4) 45°angle saw blade:Saw blade tilt available, Not only 90°sawing,but also 0° to 45°,that'll be better for cutting work. 5) Machine Frame: Laster cutting frame Plastic spray surface treatment. 6) Internal structure and table: Qualified material,painting and anti-corrosion Extendable measuring stick Aluminum track,stability and non displacement Guarantee the precision of cutting process. 7) Motor and parts:High-strength parts,more longer working life;Pure copper wire motor 5.5+1.1KW;NSK bearing. 8) Movable table guide track is plating chromium steel balls structure, exact and durable. 9) Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend. 10) With oxidation treatment, movable table surface is beautiful and hardwearing. 11) Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.


detailed parameter
Dimension of sliding table
3200x388mm
Gross cut capacity
3200mm
Width of cut between saw blade and rip fence
1250mm
Saw blade diameter
300mm(250-400mm)
Height of cut (300mm)
80mm
Height of cut with saw blade 300mm at 45 degree
60mm
Speed of main saw spindle
4500/6000rpm
Main spindle diameter
30mm
Tilting saw blade (degree)
0~45 degree
Main motor
5.5kw
Scoring saw blade diameter
120mm
Speed of scoring saw blade
7000-8000rpm
Scoring saw diameter
20mm
Scoring motor
1.1kw
Gross weight (with wooden package)
850kg
Overall Dimension
3250*3350*900mm
Packing size of the machine body (L*W*H)
2210*1080*1060mm
Packing size of the sliding table (L*W*H)
3340*430*270mm

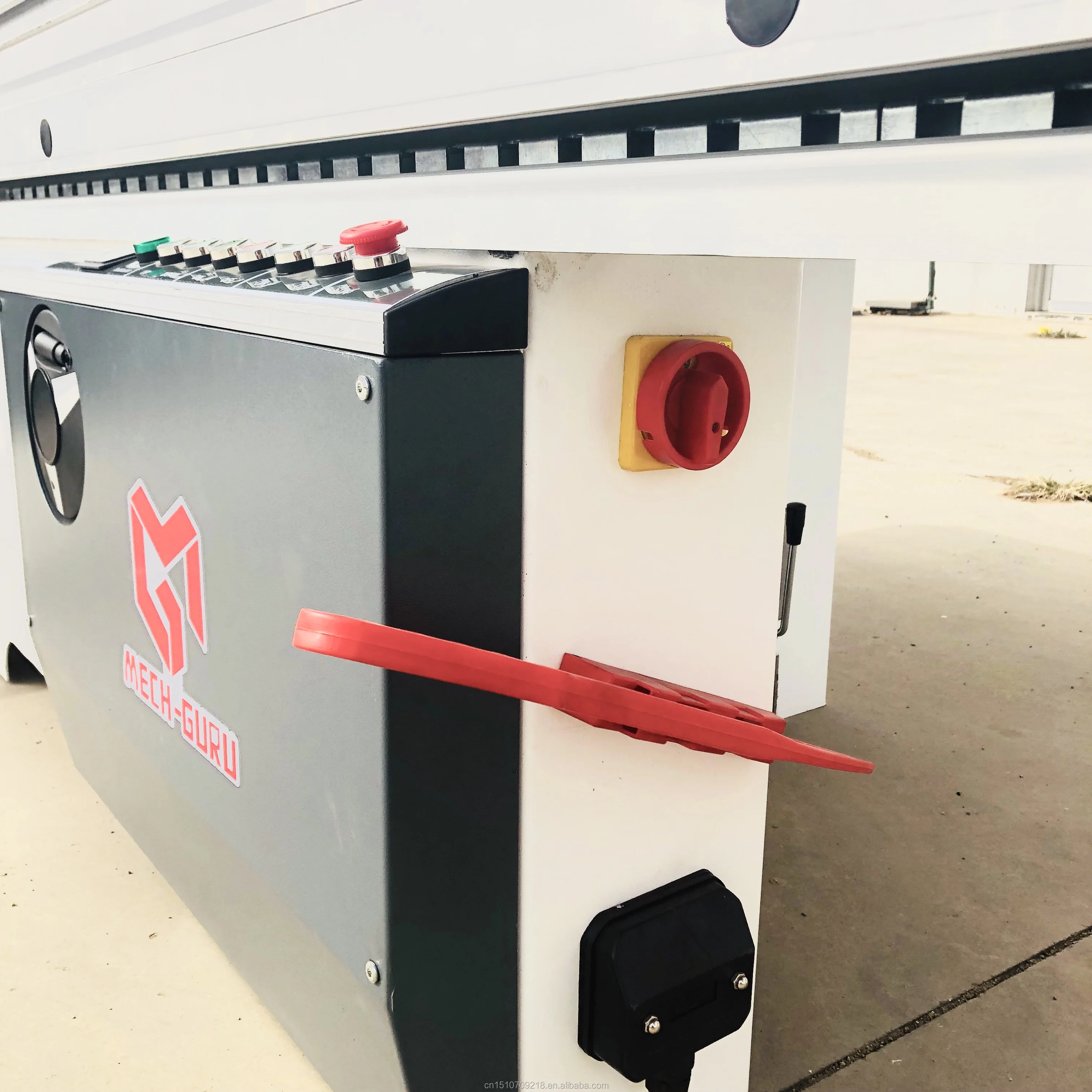

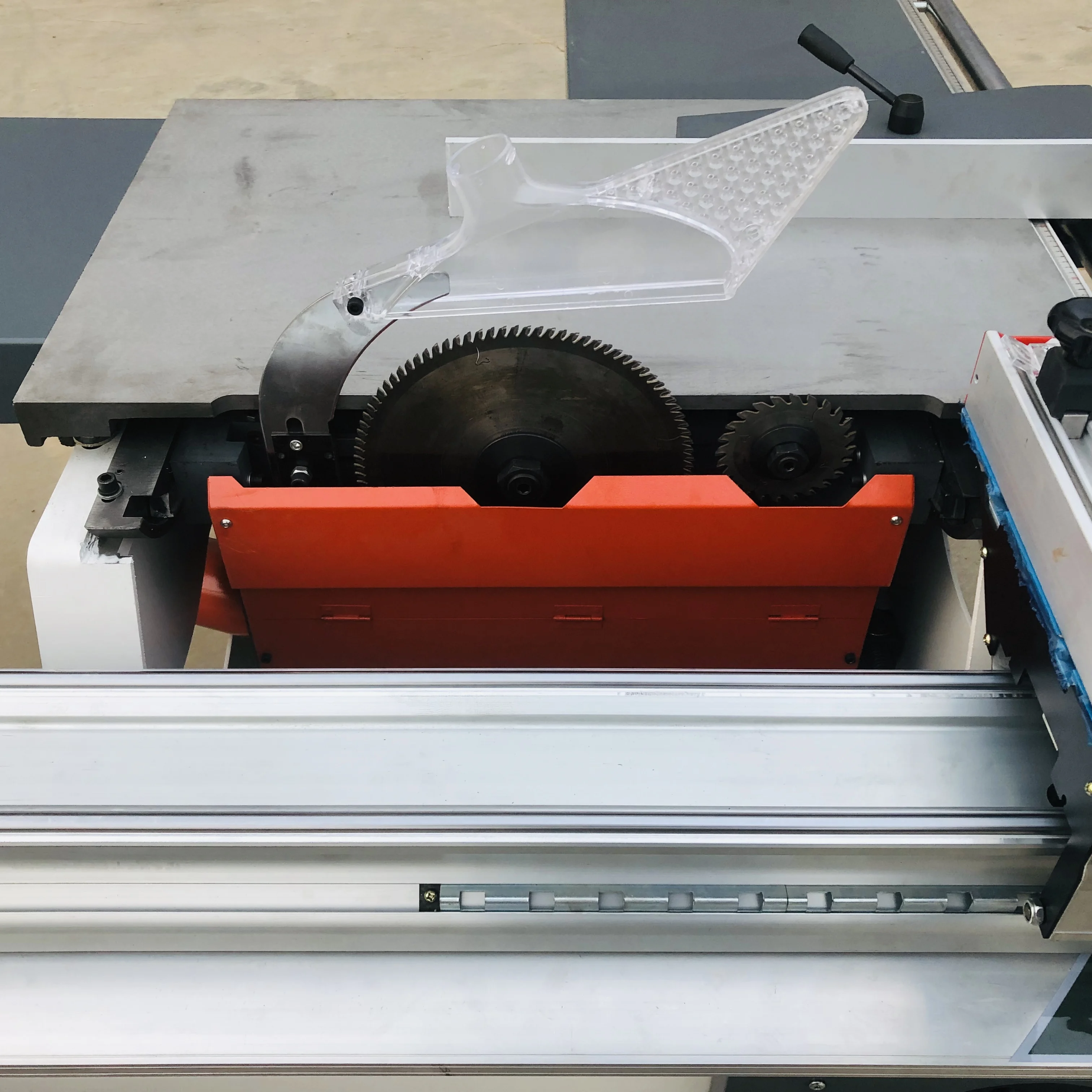

Detailed Images

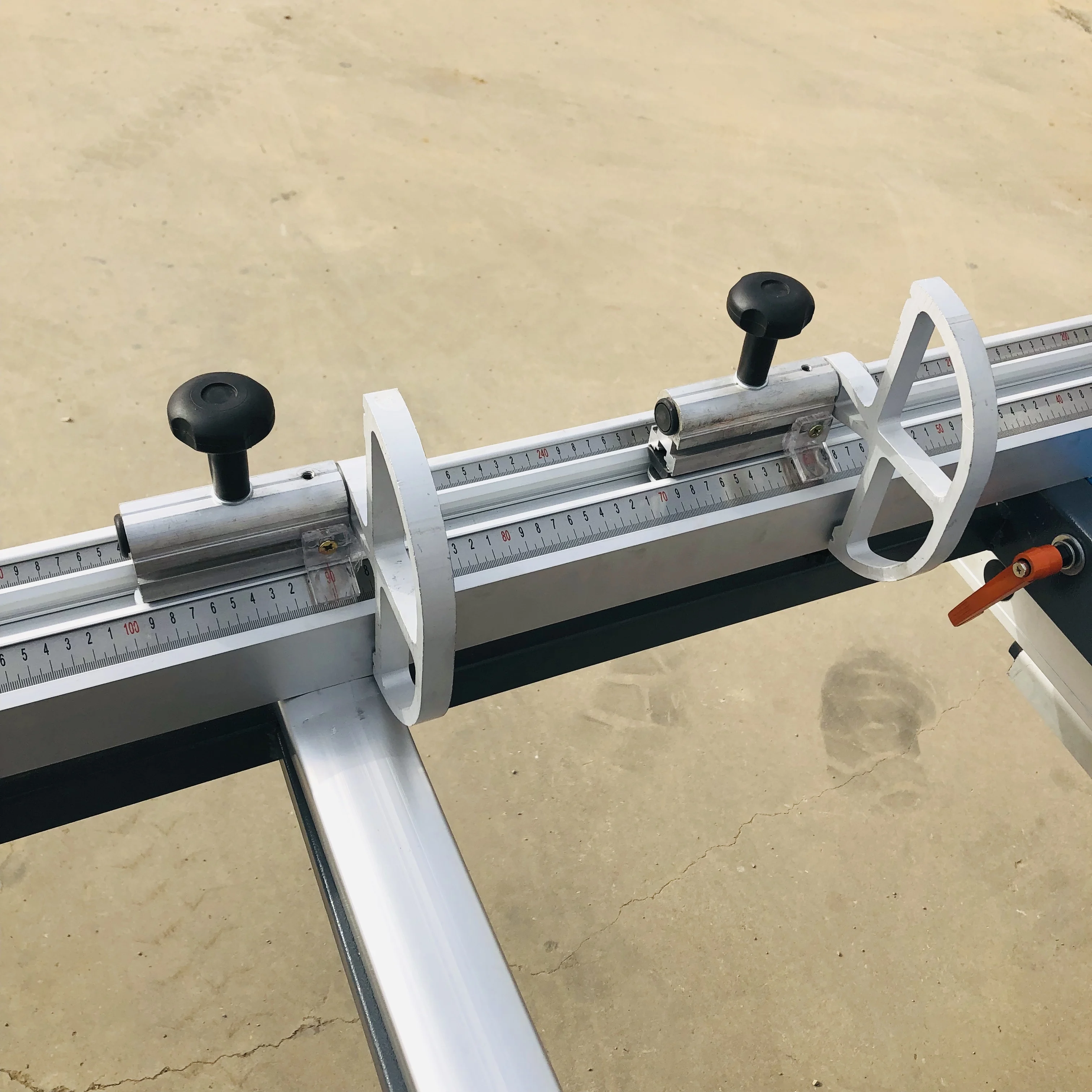

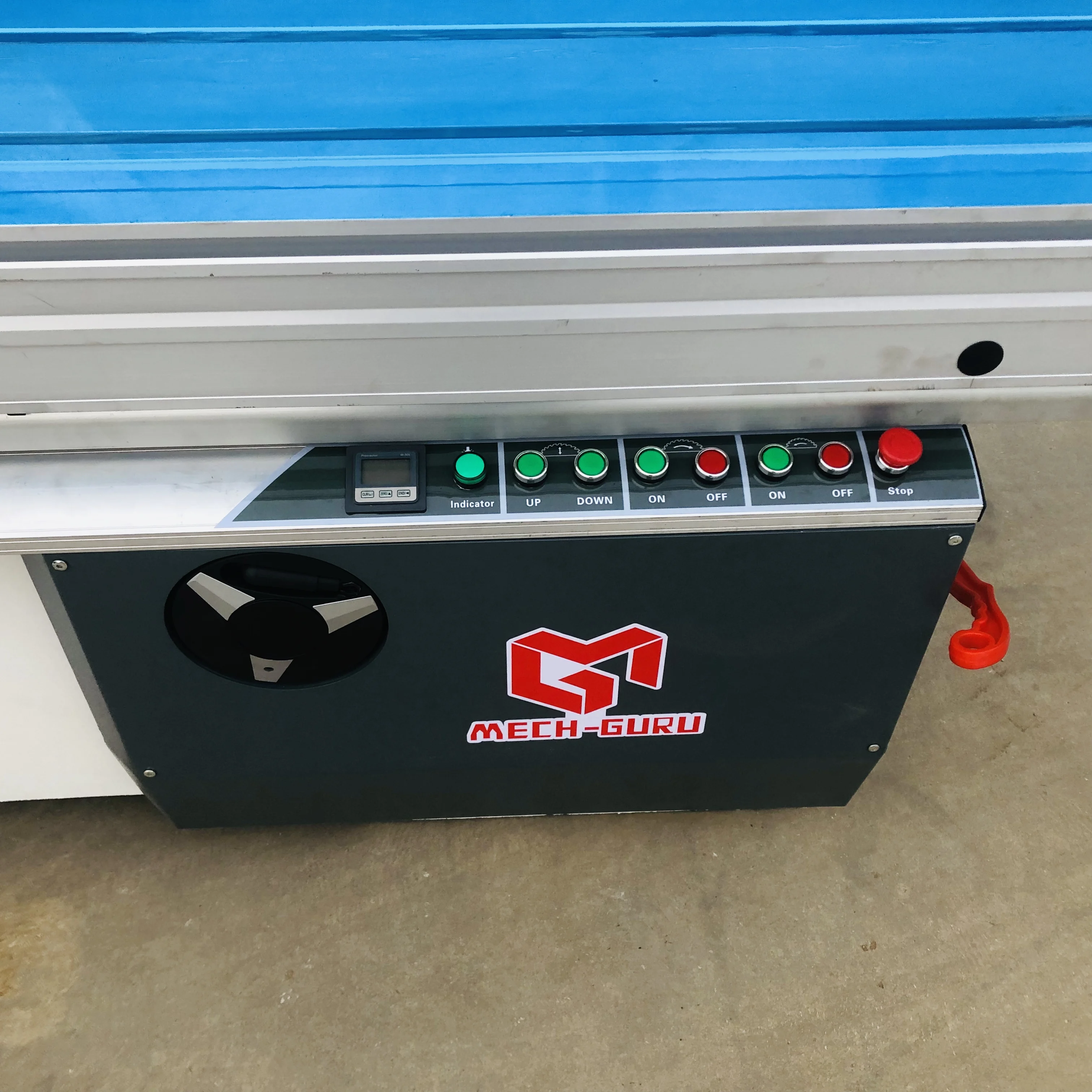

Upgraded clasp design

Add buckle design,It can be stuck and fixed at any time,The left LCD can display 45 and 90 more clearly,Effectively control the cutting Angle, more accurate

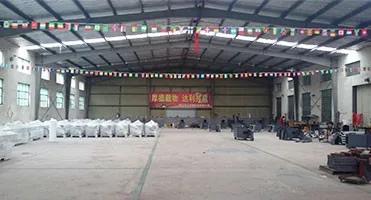

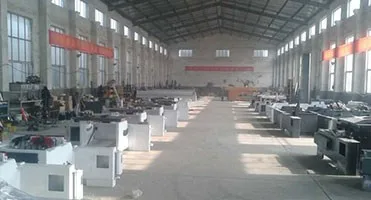

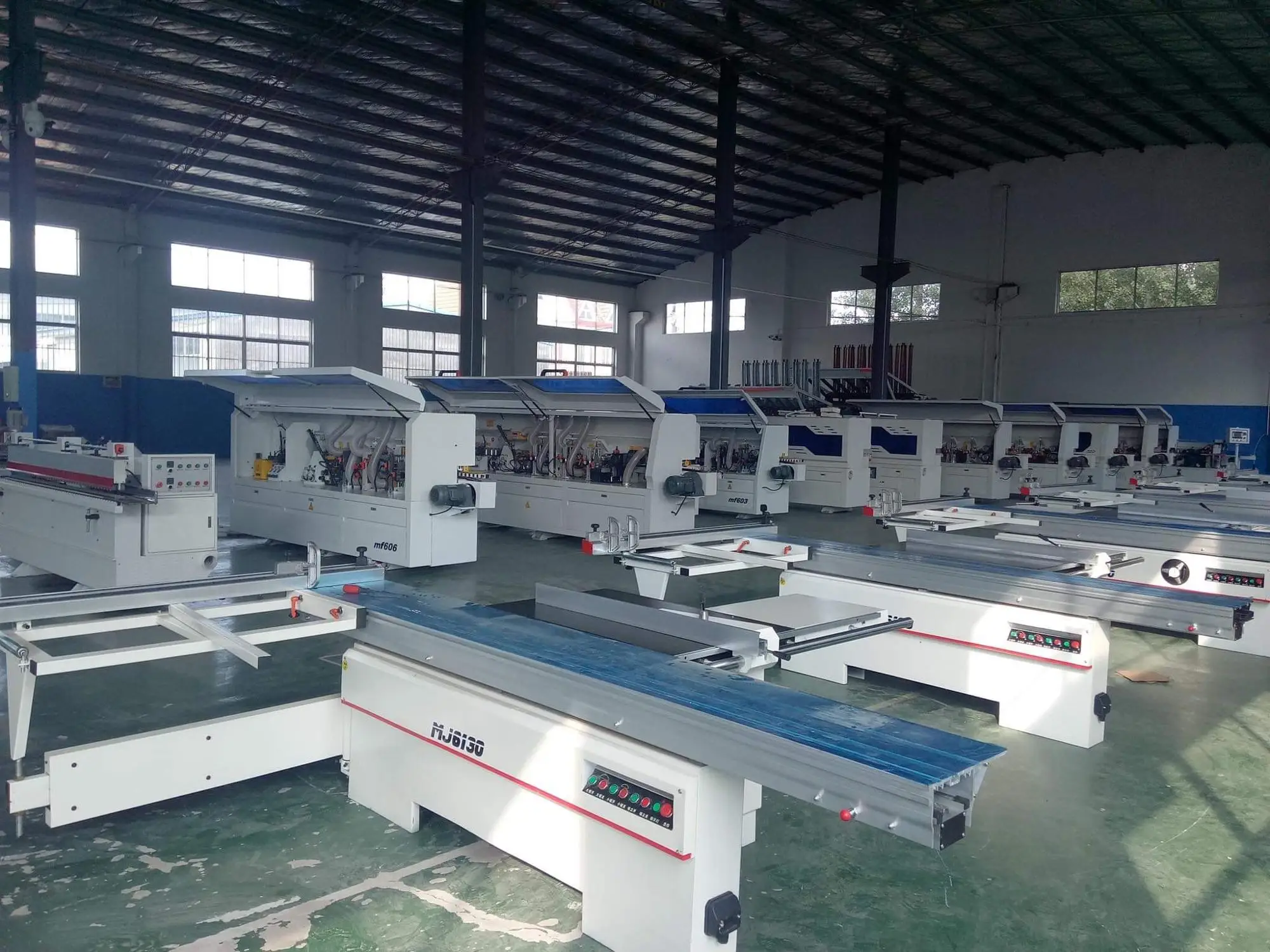

Our Company


Houda (Qingdao) Machinery Co.,Ltd. is one of the benchmarking enterprise in domestic woodworking machinery industry, specializing in the mass production of Sliding Table Saws, Edgebanders, Cold Press Machines, Line Boring Machines, and Sanding Machines, etc. houda (Qingdao) Machinery Co.,Ltd. with import and export trading qualifications, products are exported to more than 30 countries and regions, widely recognized by the most of international trade associations. houda team is one of the competitive companies in domestic woodworking machinery industry, not only has numbers of international top engineers, but also has 7 years experience of professional ecommerce management team, the first woodworking ecommerce(via taobao.com) that we created in domestic woodworking industry. houda doesn't take Internet as one of ways to expand our sales channel, but to change woodworking machinery industry via Internet, eliminating the substantial price premium caused by multi layer agent channels so that customers/clients are able to contact with houda (manufacturer) directly, we aim to let customers enjoy the most effective, most affordable, most efficient purchasing solutions that meet customer's need. In the past, it's considered completed sales once woodworking machinery products were sold to customer. However, for houda, it's the real beginning of our sales. We value customer's feedback on our products and services. We aim to create and develop better, higher quality products through deep communications with customers. Technical support and troubleshooting service available from 8:00am to 5:30pm (GMT+8 Beijing Time) Monday to Friday via online chat or phone calls. Feedback & Support Hotline: WeChat WhatsApp +8615192587677

Why Choose Us
1. As alibaba's star supplier, we have Alibaba Trade Assurance to make sure the buyer' s benefit.

2. Adopt first-class processing equipment, advanced manufacturing technology. More and more customers are using our machines, and
we receive good comments and feedback from many countries.

3. We have perfect after-sales service.
4.As a professional manufacturer, we have 15 years factory experience for woodworking machinery, from parts processing and
production to the whole machine assembly and sales, professional,dedicated and efficient,providing customers with one-stop
service.
5.With more than 10 R&D staff and senior engineers. Support equipment programming and function customization. meet different
customer' s needs.

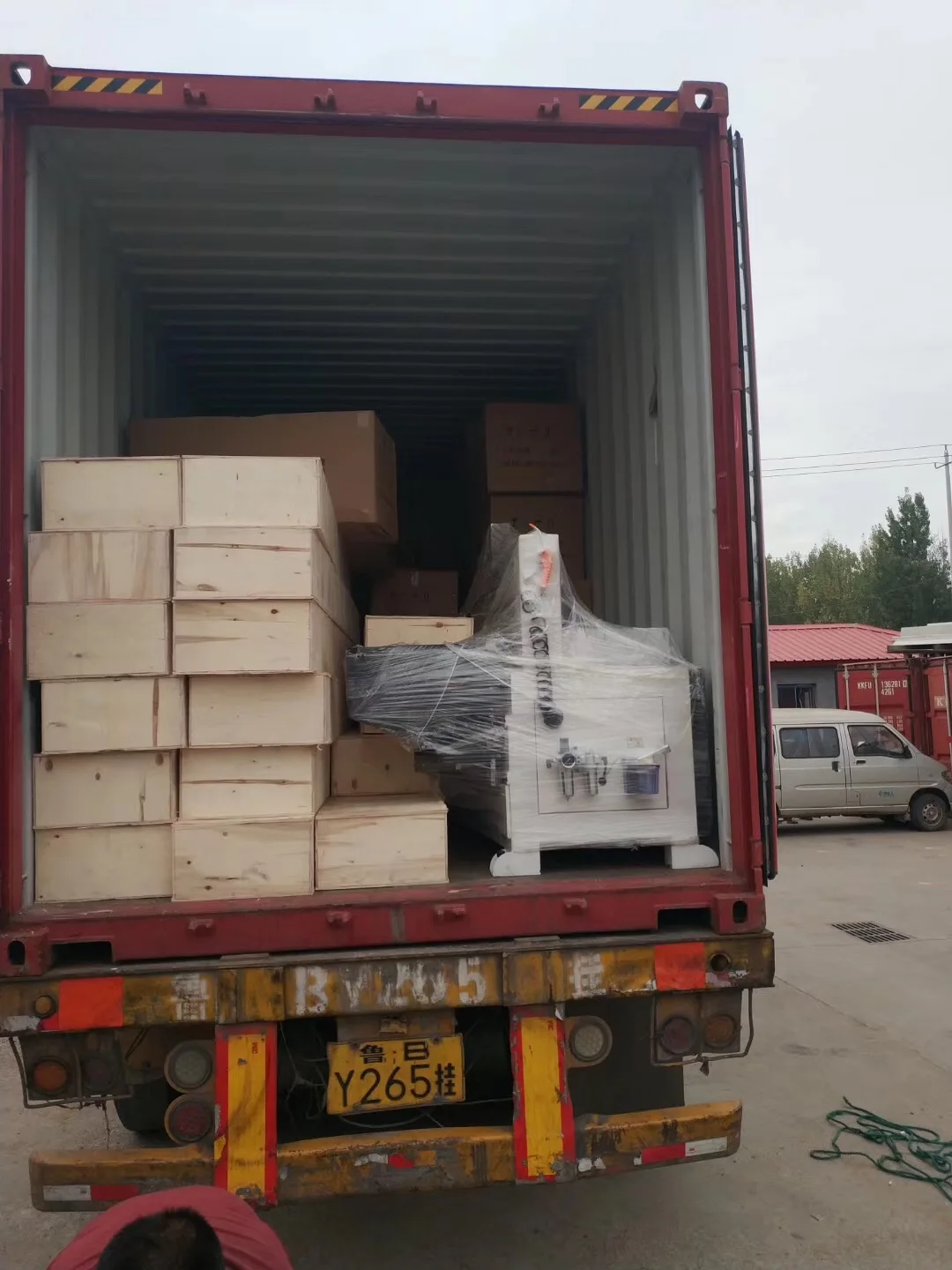

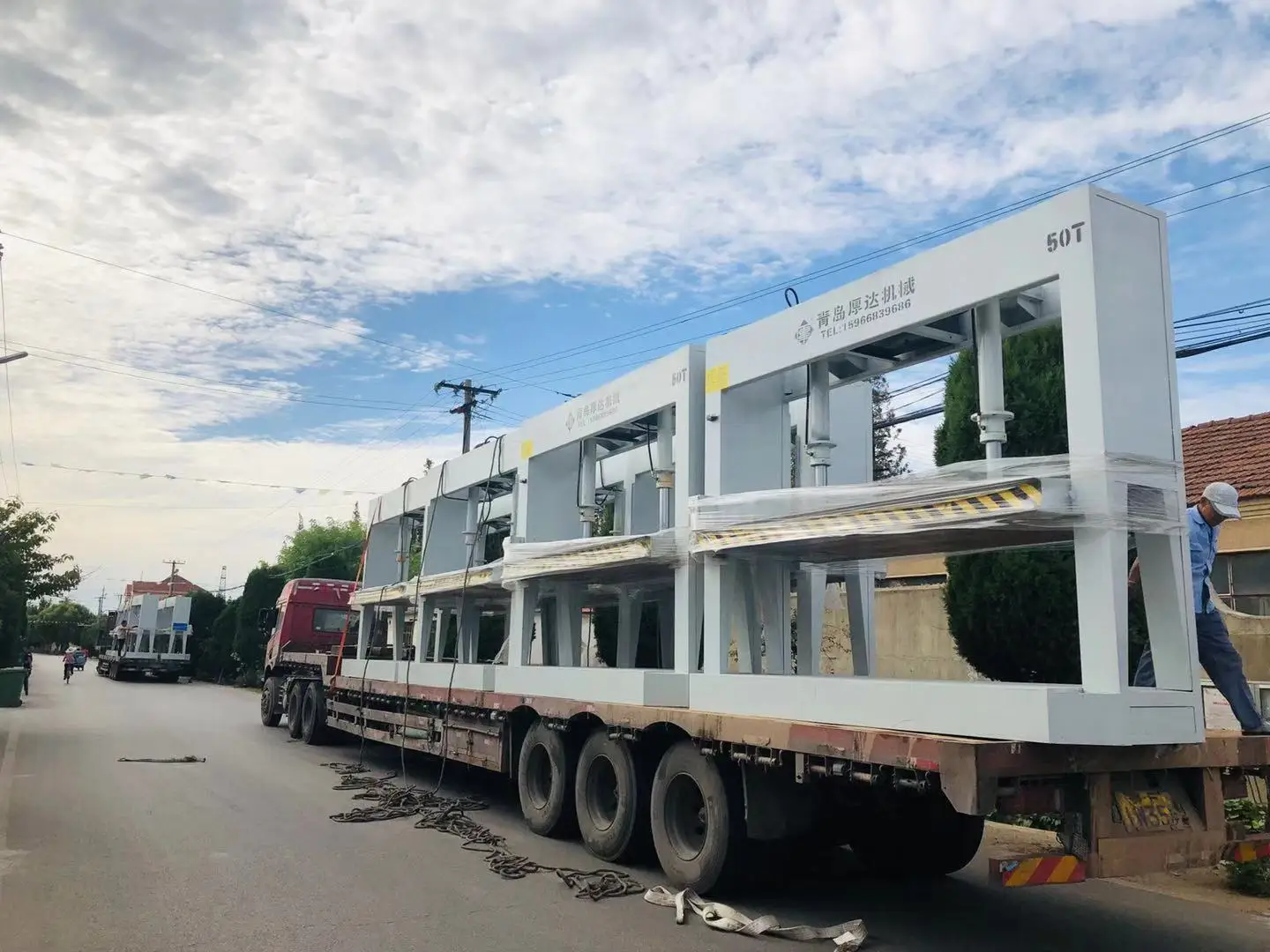

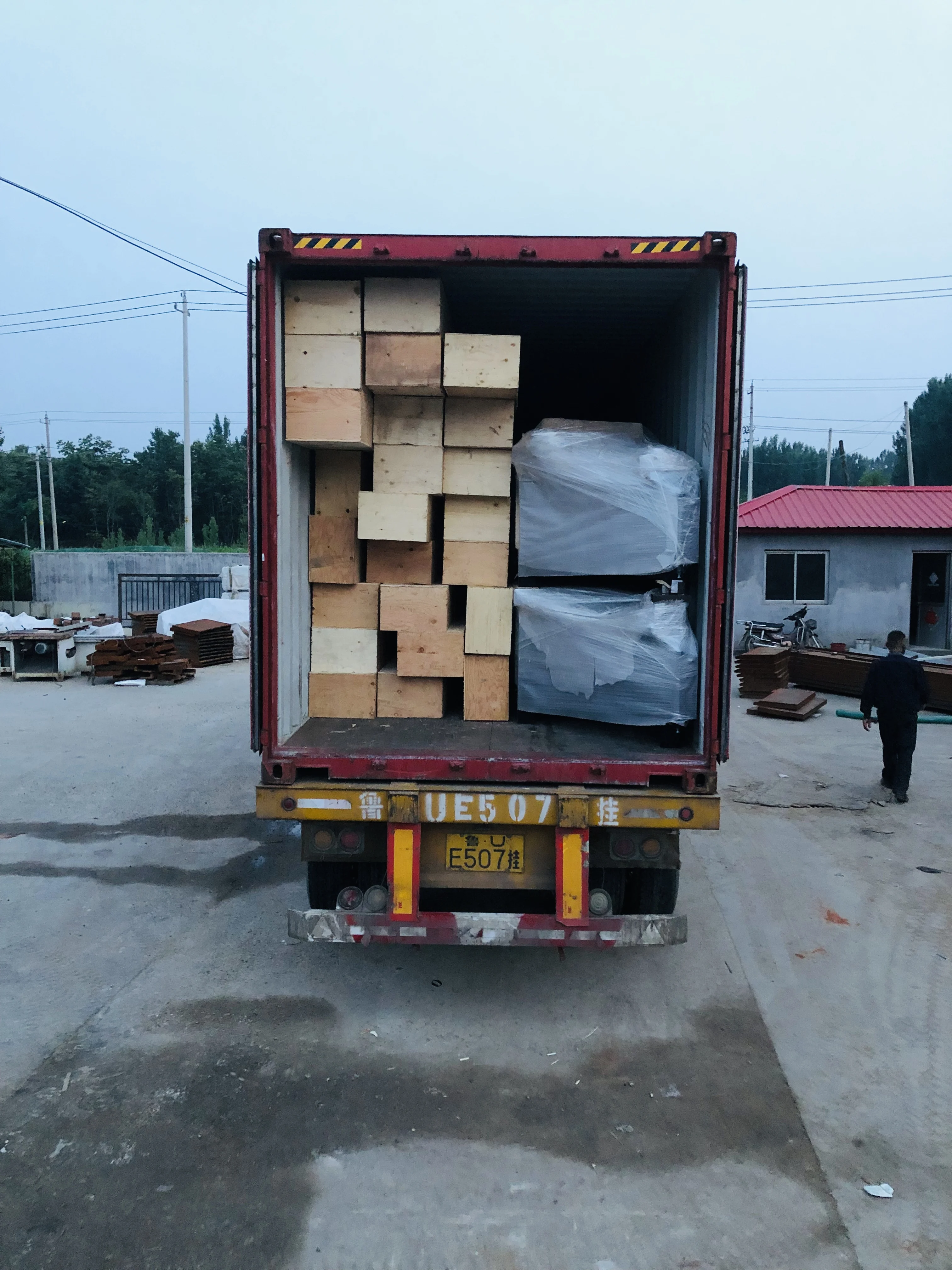

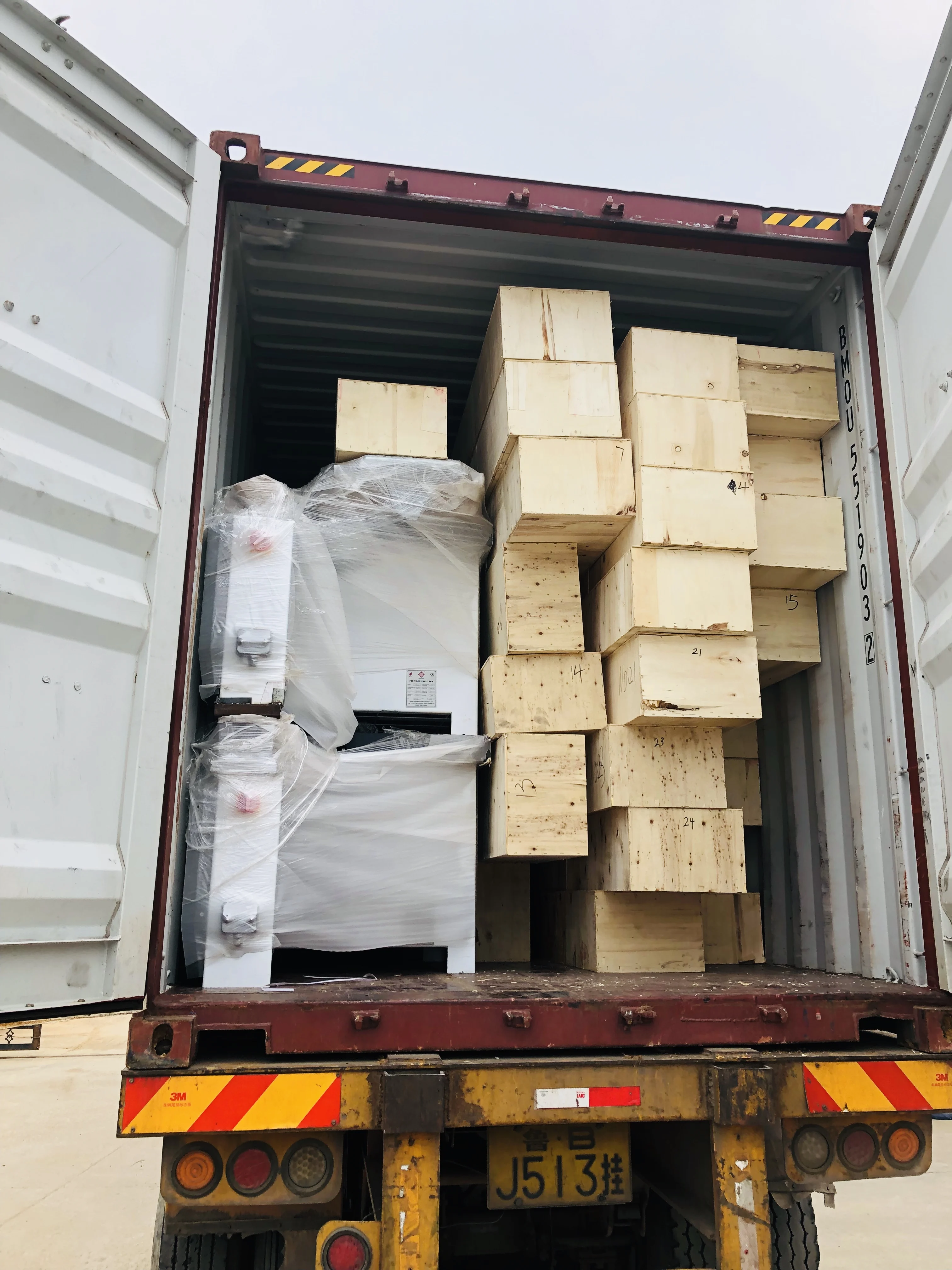

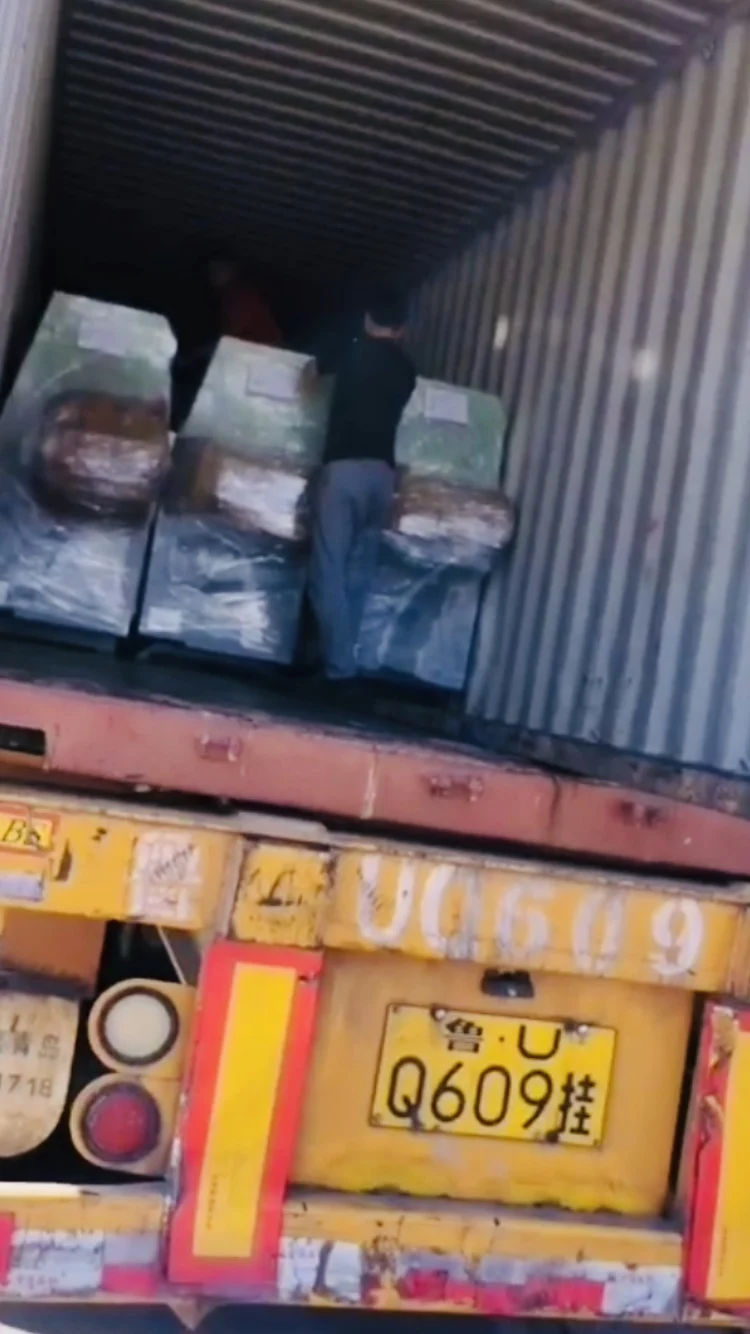

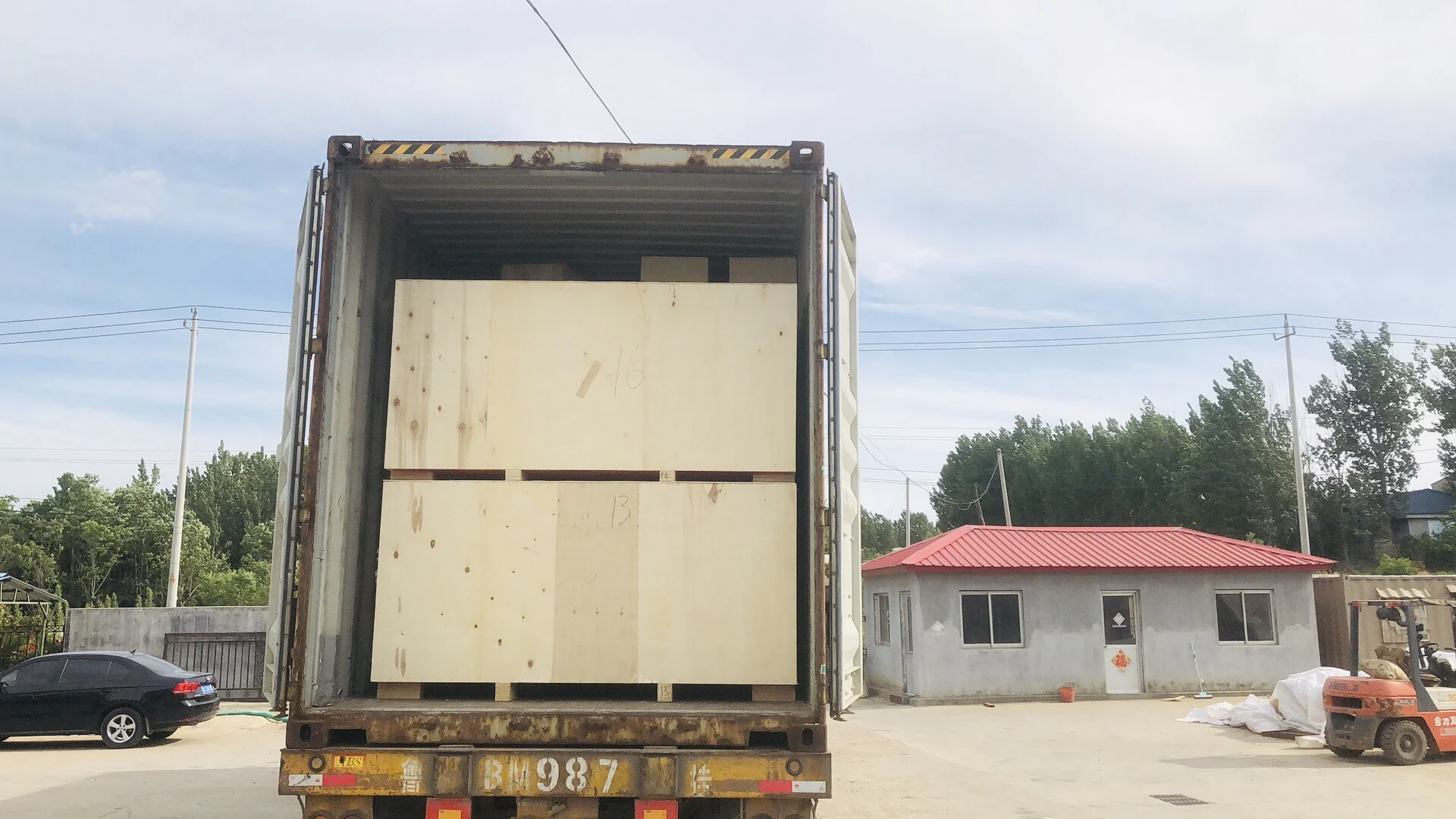

Packing & Delivery
