Premade Pouch Pepper Chilli Soy Sauce Packaging Machine

FOB Reference Price:Get Latest Price
$18,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
2.3kw
Model Number:
RZ8-300
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Applicable Industries:
Food & Beverage Factory
Condition:
New
Function:
Filling, Sealing
Application:
Food, Machinery & Hardware
Packaging Type:
Bags, Pouch
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Place of Origin:
Zhejiang, China
Brand Name:
rezpack
Dimension(L*W*H):
1675*1535*1480
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas
type:
sauce packing machine
filling range:
5-1500g
Bag Size W:
70~200mm
Bag Size L:
100~300mm
Packing Speed:
20~45Bags/min
Package Accuracy:
Error≤±1%
Main Power:
2.3kw
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
before the shipment we will packing the machine in wooden case then loading in container
Port
any port in China
Products Description


Application Range:

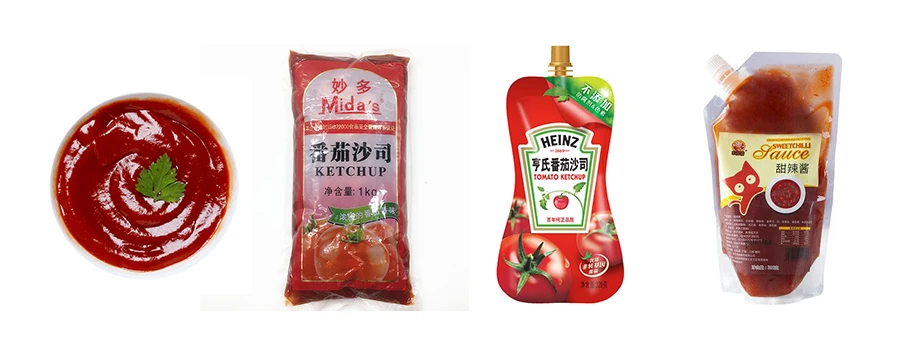

All kinds of liquid and think-liquid (sauce), fruit juice, seasoning sauce, tomato sauce, peanut butter, jam, chili sauce, hand sanitizer, liquid detergent and so on.


Bag Types:

Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag etc. and all kinds of compound bags.

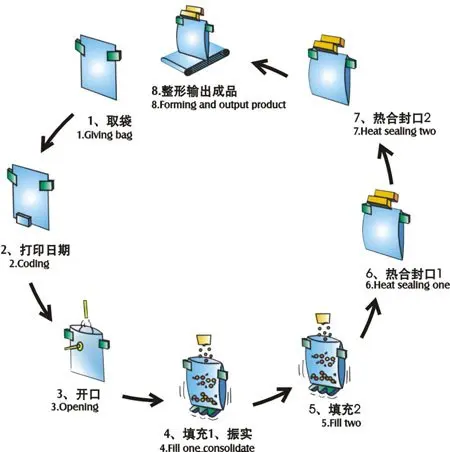

Station Process:

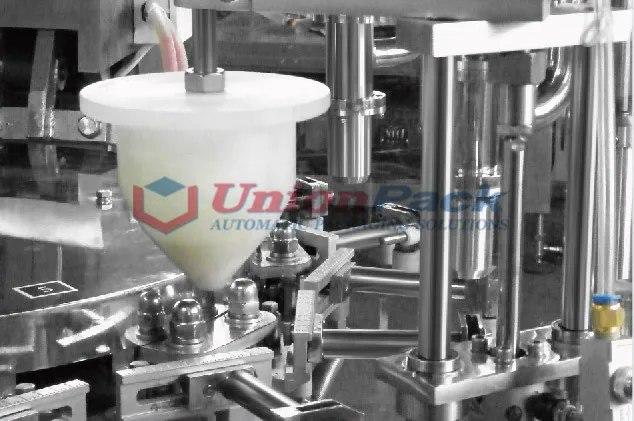

1.Bag Feeding 2.Date Coding 3.Standby 4.Bag Opening 5.Filling 6.Dust Cleaning 7.Heat Sealing 8.Forming & Output


Main Technical Parameter:

Equipment Model
RZ8-200
RZ8-300
Bag Size
W:70~200mm L: 100~300mm(date coding requires≥ 140mm length)
W:160~300mm L: 100~400mm(date coding requires≥ 140mm length)
Filling Range
5~1500g
5~2500g
Packing Speed
20~45Bags/min(depended on the product and filling weight)
10~40Bags/min(depended on the product and filling weight)
Package Accuracy
Error≤±1%
Weight
1000kg
2000kg
Dimension
1635mm*1455mm*1480mm (L,W,H)
1695mm*1725mm*1640mm (L,W,H))
Total Power
2.3kw
4kw
Driving Power Source
380V Three-phase Five-line 50HZ
Control Power Source
DC24V
Compressed Air Requirement
≥0.45m3/min(Compress air is provided by user)
≥0.35m3/min(Compress air is provided by user)
Our Main Premade Pouch Packaging Machine
More Products

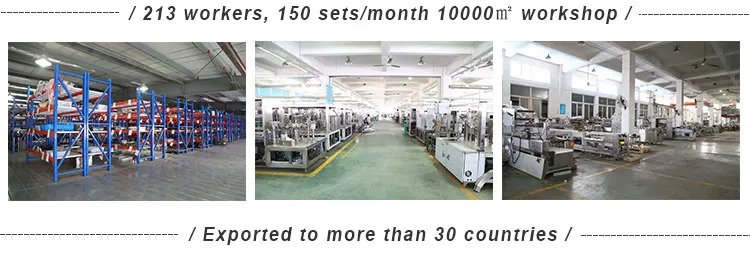

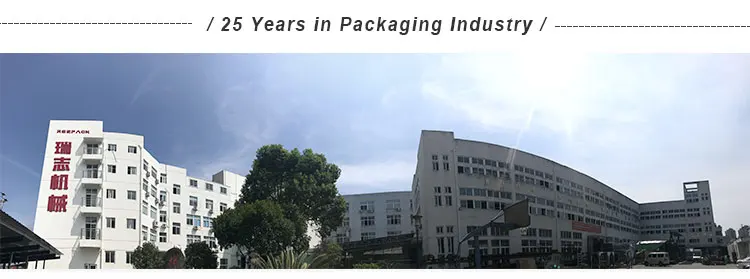

Our Company
