Professional production brewhouse equipment/Customize various models beer brewing equipment

FOB Reference Price:Get Latest Price
$12,600.00 - $187,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment, Double-sided &Argon gas purge welding
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HULK
Processing Types:
Alcohol
Voltage:
220V/380V
Power(W):
15-70Kw Depends
Dimension(L*W*H):
Capacity Request
Weight:
200KG-2000KG
Certification:
CE ISO
Warranty:
3 Years
Material:
Internatinal Standard SUS304-SUS316L
Tank thickness:
3mm for Inner-Jacket/2mm for External-Jacket
Control method:
Manual, semi-automatic, full-automatic
Control system:
Temperature, Pressure auto control
Washing system:
CIP cleaning, Omni spray washing
Inner polishing precision:
Roughness: Ra<0.6micrometer
Heating method:
Steam/electric heating/direct fire heating
Fermenter cone:
60-75 Cone Bottom
After-sales Service:
Engineers available to service machinery overseas
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged with wooden box.
3. All items wrapped with soft package for protection.
Port
QingDao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Company Advantage

1. Professional team with abundant practical experience.

2.  Adequate spare parts stocking and smooth procurement channels to ensure delivery time.

3. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 30%;

4. All product specifications are food grade stainless steel 304 and above.

5. Have complete marketing plan, and establish a direct, efficient and warm service communication channels with customers to provide long-term service.







Mashing system

Mashing System

Main equipment

Mash tun, lauter pot, kettle and whirlpool tank

Optional

Cold liquor tank (CLT), hot liquor tank (HLT), Boiler

Capacity

50L--5000L per batch

Heating way

Steam heating, electric heating, direct fire heating

Material

SUS304, thickness: Cylinder inner layer 0.3mm, Cylinder outer layer 0.2mm

Insulation

Polyurethane(PU), thickness: 80mm

Polishing precision

Ra0.6um

Accessories

Pump, pipeline, heat exchanger, valve, raker, platform, and all other accessaries

Function

Separate all sugar from grains and solve sugar in water. Also solve hops in water. Then separate grains and impurities from water. Finally get pure wort





Fermentation system

Fermentation system

Main equipment

Beer fermentation tanks, brite beer tank

Capacity

50L--5000L per tank

Material

SUS304, thickness: Cylinder inner layer 0.3mm, Cylinder outer layer 0.2mm

Insulation

Polyurethane(PU), thickness: 80mm

Polishing precision

Ra0.6um

Cooling way

Dimple plate

Cone bottom

60° resist compression design

Sampling method

1 piece of aseptic sampling valve

Fermentation tank pressure

Design pressure 0.3MPa; Working pressure 0.15Mpa

Accessories

Pump, pipeline, yeast adding tank, valve, and all other accessaries

Function

Yeast has aerobic respiration and anaerobic respiration in fermentation tank. Turn sugar into CO2 and alcohol. Finally we get original beer









Refrigeration system



Refrigeration System

Main equipment

Ice water tank, chiller, ice water pump

Capacity

100L--15000L per tank

Material

SUS304, thickness: Cylinder inner layer 0.3mm, Cylinder outer layer 0.2mm

Insulation

Polyurethane(PU), thickness: 80mm

Polishing precision

Ra0.6um

Cooling media

Glycol and water

Accessories

Pump, pipeline, valve, and all other accessaries

Function

Cool down wort when fermentation tank temperature is high. Control fermentation carries on under appropriate temperature. Sometime, ice water is also used to cold down hot wort before wort goes into fermentation tank



Auxiliary system

Clean all tanks before brewing beer or finish brewing         Function: Control all the pump and motor. Control

beer. Use NaOH to clean firstly, secondly is H2O2,               mashing system and CIP system manually, control

finally is water. Then begin to brew beer                                fermentation tank temperature automatically.



                  Crushing system                                                                           Filtering  system



Production standards

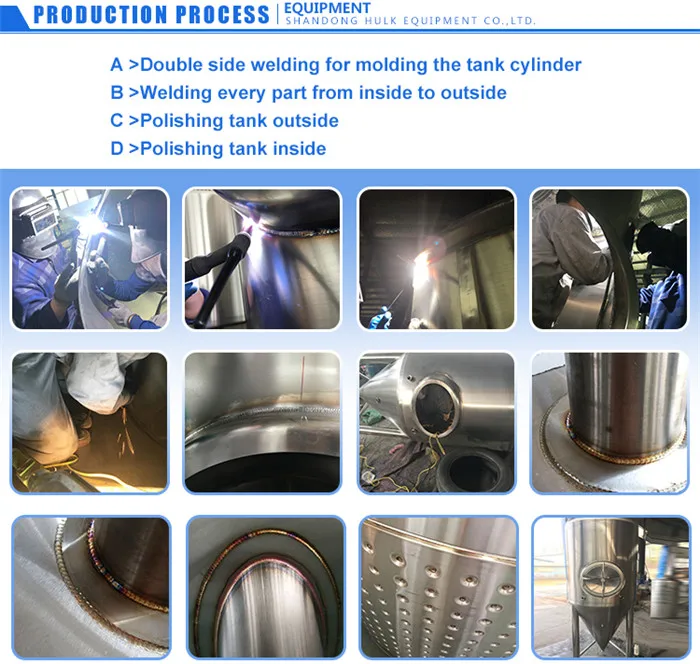

Selection of food grade stainless steel 304 for equipment and materials,tanl body use 100% TIG welded joints, inner–jacket pickling and passivating treated, external-Jacket ink wires drawing plate. Top use dish head

Our Services

We have professional advisory services, provide three services for customers.

Pre-sale service:

Recommending suitable equipment according to customer requirements, customized process flow chart and design brewery layout according to the customer work factory. Analyze craft beer project cost and benefit, provide successful beer brewing project for your reference.

Sale of service:

Timely communication with customers about equipment production schedules, guide customers to do factory preparation works, and also help customers handle the relevant business license procedures, help customers check and inspect the brewery and coordinate delivery works.

After-sale service:

Professional brew maters and engineers guide for installation and operation, can teach craft beer brewing technology and skill. Also provide a variety of craft beer brewing recipe, raw materials and lifetime technical support.



Packaging & Shipping





About Campany

Shandong Hulk Machinery Co., Ltd was located in Jinan city, Shandong province, is a professional beer brewery equipment manufacturer and exporter.

We have our own professional design team, production plant, sales team, after-sales service team, installation and commissioning of beer equipment. We can customize various types of beer brewing equipment and provide beer brewing programs. Including large, medium, micro brewery plant, pub/restaurant brewery, trial/education equipment.
