Professioneller heavy industrial machinery cnc fiber laser cutting machine with Raycus IPG laser head for meta sheet steel

  • 1 - 3 Sets
    $30,000.00
  • >=4 Sets
    $20,000.00
Model Number:
DRK 3015F1 DRK 3015F2
Power(W):
500W 750W 1000W 1500W 2000W 3000W
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 15 30 45 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Samples - $30,000.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
1500*3000mm
Cutting Speed:
0-40000mm/min
Graphic Format Supported:
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application:
Laser Cutting
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Cutting Thickness:
0-30mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Shandong, China
Brand Name:
Derek
Certification:
CE, ISO, GS, SGS, UL, CCC, FDA
Warranty:
2 Years
Laser Source Brand:
RAYCUS
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
PMI
Control System Brand:
Cypcut
Key Selling Points:
High-accuracy
Optical Lens Brand:
Raytools
Product name:
Faser-Laserschneideanlage
Model:
DRK1530
Keyword:
Faser-Laserschneideanlage
Laser head:
Worthing /Raytools Schneidkopf
Laser tube:
Raycus Faserlaser Generator
Function:
Mental Stoff zu schneiden
Cutting materials:
Edelstahl, Kohlensoff Stahl usw.( Mental Faser Laserschneideanlage)
Laser power:
500W / 1000W / 2000W / 3000W
Color:
nach Bedarf
Motor:
Japan Yaskawa Servo Motor
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Standarde Sperrholzkiste, die bessere Druckfestigkeit und Lagerqualitaet hat.
2. Die Brettflaeche sind klein und wasserdicht.
3. Die Sperrholzkiste sind begasungsfrei.
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 15 30 45 To be negotiated
Video Description
Product Description

Welecome to Jinan Derek Laser Technology Co.,Ltd
500w-2000w fiber laser metal cutting machine for both stainless steel tube and sheet 1530 fiber laser cutter

SPECIFICATIONS FOR DRK1530 FIBER LASER CUTTING MACHINE
Model
DRK-1530F metal laser cutting machine
Cutting Tube maximum diameter
200mm
Rotary Attachment
For both sheet and tube cutting
Control System
Cypcut
Laser Power
Domestic 500W 750W 1KW 2KW Raycus
Position Type
red dot
Working Area
1500*3000mm
Power Consumption
≤12KW
Laser Wave Length
1064nm
Working Voltage
380V/50Hz
Working Table
Sawtooth
Auxiliary Gas
oxygen,nitrogen,air
Maximum Idle Running Speed
1400mm/s
Working life of fiber module
More than 100000 hours
Fiber laser cutting head
Worthing Raytools
Liner guider system
PMI made in Taiwan , (Option THK made in Japan)
Transmit system
Dual Rack & Pinion type
Warranty time
Whole machine for 24 mouths
Delivery time
15 days
Gross weight
4000kg
Driver system
Janpan Yaskawa servo motor
Working life of fiber module
More than 100000 hours

Features for high quality laser cutting machine

1. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
2. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
3. High speed and efficiency, the speed of cutting metal sheets close to tens of meters;
4. The laser maintenance free;
5. The cutting edge looks perfect and the appearance is smooth and beautiful;
6. Imported the transmission mechanism and servo motor, and high cutting accuracy;
7. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.

Fiber Laser Cutting Machine Application

Application Industry: Manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc
Available Materials:Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Cutting speed

Material
 thickness
(mm)
Speed
 (meter/min)
Pressure
(mpa)
Focus
SS 201
1
9
0.8
-4
SS 201
2.2
2
1.2
-4
SS 304
1.3
7
0.9
-4
SS 304
1.8
3
1
-4
  Carbon Steel
1.1
9(10)
0.8
-1
  Carbon Steel
2.4
2.2
0.4
-3
  Carbon Steel
2.8
1.5
0.4
-3.5
  Carbon Steel
4
1.5(1.2)
0.4
-4

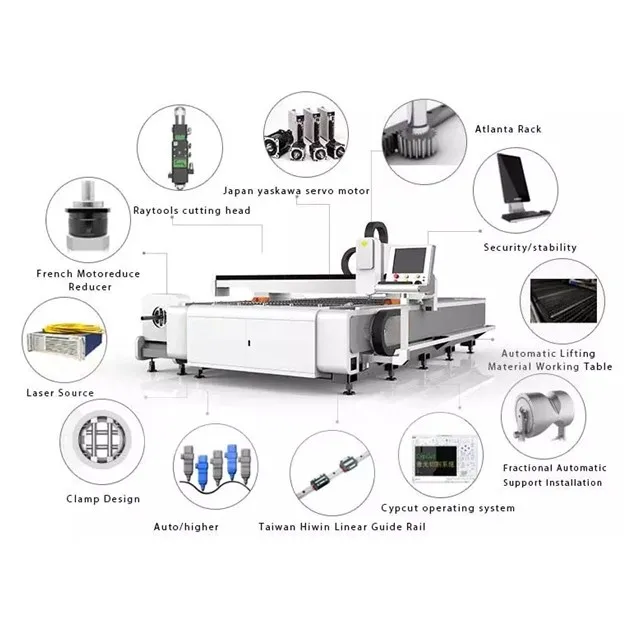

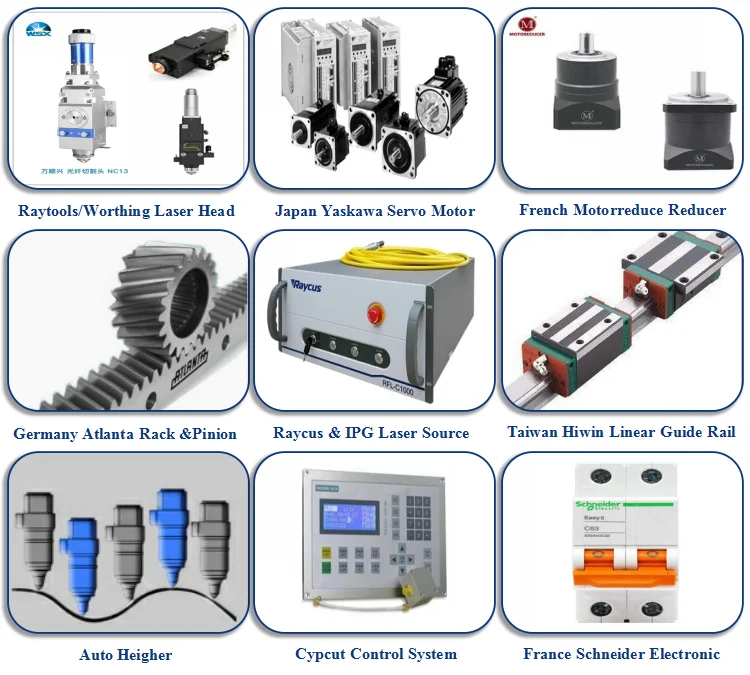

Configuration

3000*1500mm working area;
Worthing laser cutting head;
X,Y axis Japan YASKAWA servo motor;
Z axis Japan Panasonic servo motor;
Taiwan HIWIN guide rail;
Taiwan APEX gear rack;
France MOTOREDUCER reducer
Taiwan TBI ball screw;
Japan SMC /Taiwan AirTac pneumatic components;
France Schneider electrical components;
Tongfei Teyu water chiller;
Cypcut control system;
Gross weight 3500kg;

Our Service

Warranty and service

1. One year equipment warranty and maintenance for lifetime.
2. Free installation and test before sending and free training for operators
3. Advice for the solutions best for customers requirements.

Packing & Delivery
