Pt100 Temperature Transmitter Modbus

FOB Reference Price:Get Latest Price
$55.00 - $79.00 / Pieces | 1 Piece/Pieces (Min. Order)
Usage:
Household Industrial Outdoor Indoor
Theory:
Bimetal Thermometer Pressure Thermometer Temperature Sensor Resistance Thermometer Temperature Transmitter Temperature Recorder Thermocouple Thermometer
Accuracy:
0.50%
Temperature range:
-200-1600 ℃
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
XINGYUTENG
Model Number:
QTB102
Usage:
Industrial
Theory:
Temperature Sensor
Name:
4-20ma pt100 Temperature Transmitter
Output:
4-20mA/RS485
Connection:
M20*1.5 G1/4 G1/2 NPT
Power:
12-30VDC
Probe size:
6mm or 8mm
Probe length:
20cm or customsized
Protection:
IP65
Storage temperature:
-40°C~+85°C
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
cartons packing and other
Port
shanghai,tianjin ,shenzhen and other
Product Description

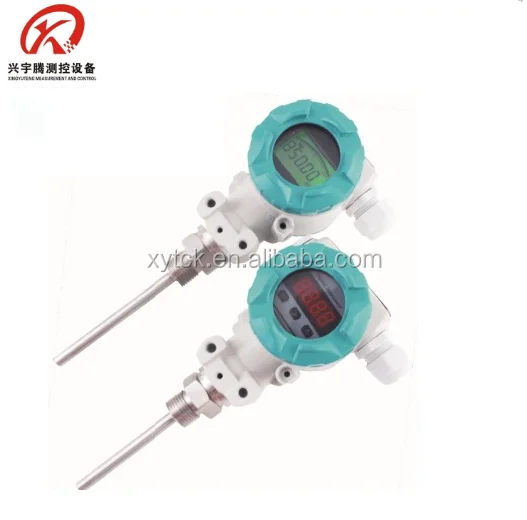

Pt100 Temperature Transmitter Modbus

Spe QTB102

Product Application


QTB102 is a digital temperature transmitter, widely used in temperature measurement of liquid and gas.

Main Features

1. Aluminum alloy case
2. Imported temperature sensor, high anti-interference
3. Saving cost of compensating lead wire and installation
4. Wide range of -200℃-1600℃.
5. Cold junction compensation and nonlinearity correcting circuit

SELECTIONS FOR QTB102 PRESSURE TRANSMITTER

Output signal
I
4-20mA
R
RS485

Type
A
thermocouple
B
thermal resistance


          Display
W
NONE
X
LED
Y
LCD
          Measuring Range
According to customer's request
SPECIFICATIONS FOR QTB102 PRESSURE TRANSMITTER
PRESSURE RANGE
-200~1600°C
ACCURACY
0.5%F.S
STABILITY
≤0.1%/year
POWER SUPPLY
12~30VDC
WORK TEMPERATURE
-30°C~80°C
Connector material
Stainless steel
PRESSURE TYPE
Temperature Sensor
Display
LED/LCD
RELATIVE HUMIDITY
0~90%
MEDIUM
Gas/Liquid/Oil /Industrial etc
Sensor
PT100
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007, is located in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
XingYuTeng can offer an extensive variety of the highest quality pressure transmitter as well as digital pressure gauge and level transmitter and temperature transmitter. Recognized for their accuracy and long-term reliability, our products are the sensor of choice for diverse markets such as hydroelectricity, public waterworks, chemical engineering,mechanical engineering, petroleum industry, Industrial Controls, Medical industry and Food Handling.

With the implementation of ISO9001, CMC (China Metrology Certification), EX(Explosion-proof certification),our company has adopted programs to ensure compliance with the necessary directives for quality control and product safety.
At present, our products have been accepted and exported to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, we keep improving our product development capability and processing technic to offer a better product.

We sincerely hope that we can be one of your dependable and trust-able cooperators!
Exhibition


Application

Oil pumping/Oil drilling


Automobile


HVAC


Natural gas


CNG/LNG Gas station


Pump&water treatment


Hydraulic control system


Chemical industry


Food industry


Packing & Delivery

1.If the quantity of order is not very big, we could deliver them to you by express, such as TNT,DHL,UPS,FEDEX or EMS.

2.If order is big , we will advise you use Air shipping or Sea shipping through your nominated forwarder agent,our  long-term      cooperated agent is also available.

3.Freight collect if bulk shipment.

Certifications

Explosion-Proof Certificate and AAA Credit Rank

FAQ

1. How long will you reply me?
Normally in 1 hours, no more than  12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
