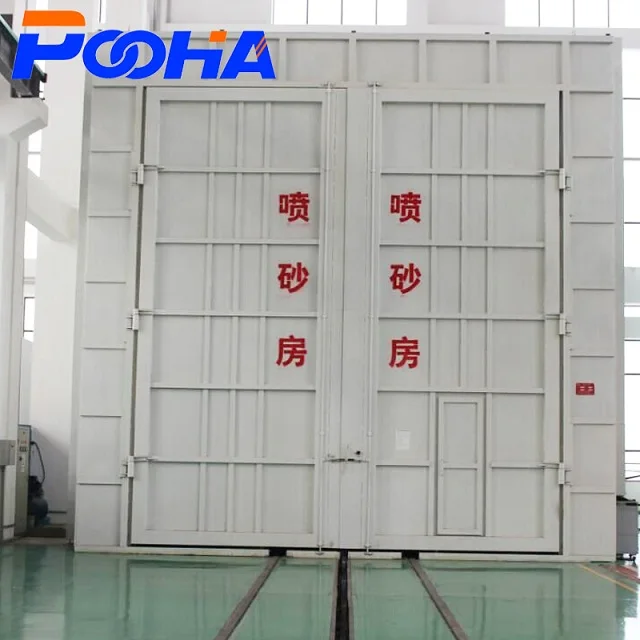

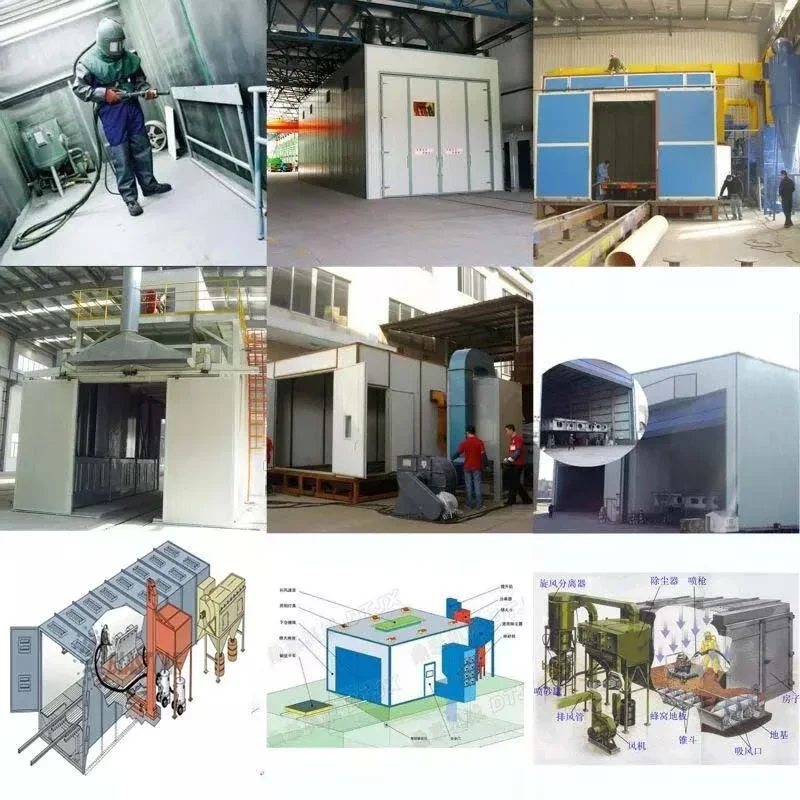

Sand blasting room/Spray booh/Painting room also called sand play room, suitable for large work piece surface cleaning, rust removal, increase the work piece and the adhesion between the coating effects, sandblasting room according to the abrasive way of recycling peening room is divided into: mechanical recycling type shot blasting room and artificial recovery type shot blasting room. The artificial recycling sandblasting room due to the economic and practical, simple, convenient, simple materials, greatly reduced the cost of sandblasting room cost, also accepted by many customers, especially small and medium-sized enterprises.
1. High paint quality 2. Energy-saving 3. Strength is suitable for any type of vehicle 4. The machine bear the weight of car door, leaf plate, hood, trunk lid. 5. It can effectively improve the working efficiency of the workers, which is more than 1 to 2 times more than the normal working efficiency. 6. Speed, positive and negative can be sprayed at the same time, save time, vertical spray paint can reflect the mirror effect of the paint, save the baking time and reduce the energy consumption of the baking room.
Max. Workpiece size (L*W*H)
Max. Workpiece weight
Max. 5 T
Can achieve Sa2-2 .5 (GB8923-88)
30-60 m3/min (Operator start different blasting guns quantity)
40~75 μ (Depend on abrasive size)
Grinding steel shot, Φ0.5~1.5
Sand blasting room inside dimension (L*W*H)
Electric power supply
380V, 3P, 50HZ or customized
Components and function
Q2610 Sand blasting room mainly includes Blasting chamber, Shotblasting tank, Abrasive circulation system, Lighting system, 3D operating table, Dust Collector, Trolley system, Electric control system and other parts. The surface finish level can achieve Sa2.5.

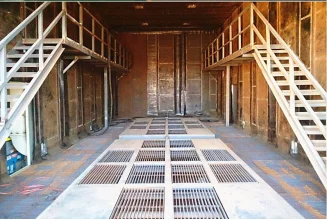

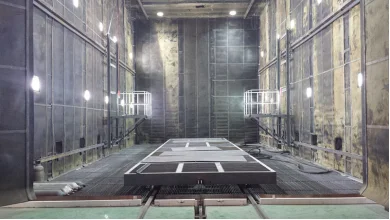

Blasting body is made of sandwich composite panels and rectangular steel frame, it is a strong, seal and spacious operation space to clean the workpiece. Blasting chamber is consist of body shell, left and right side wall, lateral wall, roof, rubber protection plate, etc.
It is equipped with 40 LED lamps (all lamps are defended by stainless steel protective net), inner light brightness can achieve 600 Lux. The blasting chamber is protected by 4 mm white wear resistant rubber plate which has high wear resistant performance. This can prolong the service life, reduce noise. The door is manually door, on side of blasting chamber has one set of emergency door.

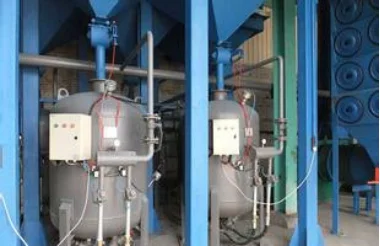

Blasting assembly is composed of 1 set 0.6 m3 sandblasting tank, sprayer pipe, jet nozzle and pneumatic

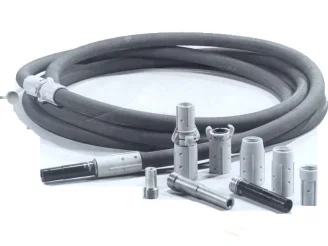

components, etc. It is used for continuous operation with sand blast wheel, nozzle using boron carbide material, sprayer pipe is 20 m length, and the production of tank with pressure vessel certificate. Equipped 2 sets air conditioning protective clothing.
Abrasive circulation system
This machine used materials circulation purification equipment including shot circulatory system and abrasive separation purification system, is made up by screw conveyor, bucket elevator, separator, abrasive supply valve, conveying shot tube, etc.
1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents:
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc. Spray booths/painting room
Supply Professional Customization Design Service. Can design most suitable machine according to your details requirement and workpiece!
1.The first dedicated shot blasting machine for office building outside wall decoration marble in China;
2.The first dedicated shot blasting machine for aggrandizement floor grinding tool in China;
3.The first dedicated shot blasting machine for high-speed rail, filled the domestic blank in China;
4.The first dedicated shot blasting machine for crystalline silicon;
5.The first dedicated shot blasting machine for oil field special-purpose cable tray;
