QBK series high pressure air operated double diaphragm pump

FOB Reference Price:Get Latest Price
US $300-1,500 / Sets | 1 Set/Sets diaphragm pump (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DEFU
Model Number:
QBK
Theory:
air pump, reciprocating pump
Structure:
air operated double diaphragm pump
Usage:
Air Pump
Power:
Pneumatic
Standard or Nonstandard:
Standard
Fuel:
air operated
Pressure:
High Pressure
Application:
Chemcial, oil, mining, etc.
air diaphragm pump size:
1/4inch , 3/8inch, 1inch, 1.5inch, 2inch
air diaphragm pump material:
plastic, aluminum, SS304,SS316, cast iron
diaphragm material:
teflon, buna-N, viton, hytrel etc.
air diaphragm pump spare parts:
diaphragm, valve ball, valve seat, SS shaft etc.
air diaphragm pump warranty:
1year for the whole pump, 3months for the mainly working parts
Type:
air operated double diaphragm pump
Max. flow rate:
1060L/min(63.6m3/h)
Max. head:
84m
Max. air pressure:
8.4bar high pressure
keywords:
high pressure air pump
SupplyAbility
SupplyAbility:
Set/Sets per Month diaphragm pump
Packaging & Delivery
Packaging Details
1pc/plywood case or carton, diaphragm pump, mini high pressure air pump
Port
Ningbo/Shanghai
Lead Time :
Shipped in 7 days after payment

QBK series high pressure air operated double diaphragm pump

Product Description

QBK series air operated diaphragm pumps is driven by air. It is a kind of positive displacement pumps which volume changes caused by compressing diaphragms in both side. This pump not only can exhaust the flow liquid, but also can convey some uneasy flowed medium, with the merits of self priming pump, slurry pump and impurity pump, etc.



Specification



Model

Flow Rate

(m3/h)

Head

( m)

Suction Stroke ( m)

Max. Particle Diameter (mm)

Max.Air Pressure

(kg/cm2)

Max.Air Consumption (m3/min)

QBK-06/10

0-1.62

0-84

6.4

1.6

7

0.14

QBK-15/20

0-3.42

0-84

7.6

2.5

8.4

0.56

QBK-25

0-9.42

0-84

8

4

8.4

1.12

QBK-40

0-21.48

0-84

8

5

8.4

2.24

QBK-50

0-35.22

0-84

8

6

8.4

2.8

QBK-80

0-63.6

0-84

8

9.4

8.4

9.8







THE SPECIFICATION OF AIR OPERATED DOUBLE DIAPHRAGM WATER PUMP

Model

QBK series

Inlet and Outlet Diameter

10-80 mm

Flow Rate

0-63.6 m3/h

Head

0-84 m

Max. Suction Lift

8 m

Max. Particle Diameter

9..4 mm

Max. Air Pressure

8.4 kg/cm2

Air consumption

0.14-9.8 m3/min

Pump Material

Cast Iron, Stainless steel 304/316. Aluminum and PP(Polypropylene)

Diaphragm Material

Teflon, Santoprene, Buna-N, Viton and so on

Pump Spare Parts

Diaphragm, Valve Ball, SS shaft and so on

Application

Chemical, mining, oil, sewage and so on

More information, please contact us.




Application

Application

1.The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate,hops&syrup etc.

2.The pump can suck the paint, pigment, glue and adhesive etc.

3.The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

4.The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.

5.The pump can suck various toxin and flammable or volatility liquid etc.

6.The pump can suck various wedge water, cement slurry and mortar etc.

7.The pump can suck various strong acid, alkali and corrosive liquid etc.

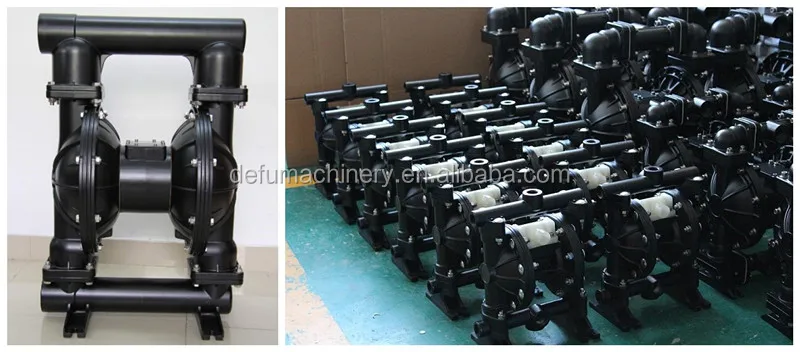

Product Image

Stainless Steel Air Pump (SS304/316/316L)

Plastic Air Pump (PP, PVDF, Acetal)



Aluminum Alloy Air Pump



Company Information

Wenzhou Defu Machinery Co., Ltdfounded in 2012, is an enterprise in designing, developing, manufacturing and selling water pumps, including diesel engine pump, centrifugal pump, self priming pump, diaphragm pump and other pump.  Our factory name is Shanghai Y&L pump co., ltd., whicn located in Shanghai.

FAQ

1. Q: Whats the MOQ ?

A: 1 set for regular product ,the special one we need to discuss.



2. Q : What're your payments ?
A: For small order valve < 4000USD, our customer chose 100% T/T.

For order valve >4000USD, we can accept 30 % T/T inadvance , 70 % should be paid before shipping.



3 . Q : How long is the deliver time ?
A : For the order in stock ,we will deliver goods at once against payment.
For the orders out of stock , the products time is 7 days for bare pump, 25days for electric pump set or diesel engine pump set , the deliver time is base on the shipping date and your order by sea.



4. Q: What about the package ?
A : Standard export Plywood case .



5.Q : How is the pump delivered to us ?
A : For small order will be delivered by internation express ,like DHL,TNT ,FEDEX,UPS.
For large order ,it will be delivered by air ,sea ,vehicle or multi-modal transport.



6. Q : How long is the warranty ?
A: According to the internation standards , pump in standard operation is 1 year ,3 monthes for spare parts.
