QS Motor Quanshun QSMOTOR 500W - 16000W brushless dc gearless electric wheel hub motor with CE Certification

$114.00 - $650.00 / Set | 1 Set (Min. Order)
Voltage(V):
48v-144v
Output Power:
273 8000W hub motor 96v for e-car
$650.00
- +
available
205 3000w spoke hub motor 72v for e-bike
$276.00
- +
available
138 3000w 6000w mid drive motor 72v
$258.00
- +
available
All 7 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
QS Motor
Model Number:
BLDC Hub Motor
Usage:
Car, Electric Bicycle, Electric Scooter Motorcycle
Certification:
CCC, CE, ISO/TS
Type:
Gearless Motor
Torque:
90-350N.m
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
IP54
Speed(RPM):
300-1500RPM
Continuous Current(A):
50-500A
Efficiency:
85~92%
Motor Manufacturer:
Taizhou Quanshun Motor Co., Ltd.
Design:
Out Rotor In-Wheel Hub Motor
Max. speed:
30KPH-160KPH
Color:
Black, White, Golden
Feature:
DIY, Two Halls, High-Efficiency
Size:
10-17inch

Packaging & Delivery

Selling Units:
Single item
Single package size:
43X43X34 cm
Single gross weight:
23.5 kg
Package Type:
QS Standard export packing 1. polyfoam + carton box 2. Or according to customer's requirements
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

QS Motor Quanshun QSMOTOR 500W - 16000W brushless dc gearless electric wheel hub motor


There are 205 (500W-3000W), 260 (1500W-5000W), 273 (3000W-8000W) Hub Motor, doulbe shaft or single shaft design is avaialbe, which varies with or without wheels for different electric vehicles.

205 motor means the diameter of iron ring is 205mm, for all 205 motor, e.g. 10inch & 12inch 205 e-scooter hub motor,205 spoke hub motor, 10inch & 12inch 205 single shaft hub motor, etc., the configuration & performance is the same as 10inch 205 Hub Motor.






Statement of Quanshun Company.jpg

Product List



Product List

QS Motor In Wheel Hub Motor List

QS Motor Electric Scooter Motorcycle Hub Motor List



It's the index of QS Motor, for details, please refer to hyperlink below.

Lastest Product
Most Powerful Hub Motor for mass production, not hand-made.

High Power Electric Scooter Motorcycle Hub Motors
10inch dual startor 205 hub motor is avaiable, e.g. dual 3000W(hand-made sample, equal to 6000W).
13inch dual startor 273 hub motor is avaiable, e.g. dual 4000W, dual 8000W (hand-made sample, equal to 16000W).
QS Motor 13-17inch 2000W-8000W 273 Water Cooled Electric Scooter Hub Motor, available for mass production.
PS.205 & 273 Hub Motor could be single shaft, now 260 hub motors could be single shaft also.
For details, please refer to the hyperlink.

Mid Drive Motor

Electric Bike/Motorcycle Hub Motor
Integrated Wheel Motor, 20inch E-Bike 500-1500W



Product & Price List, base online

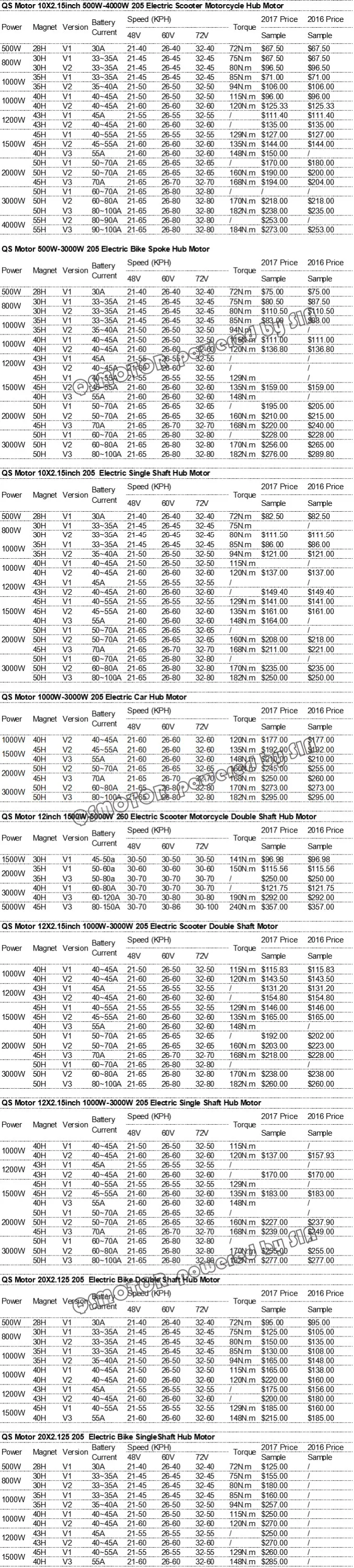

205 Hub Motor Quotation List.jpg

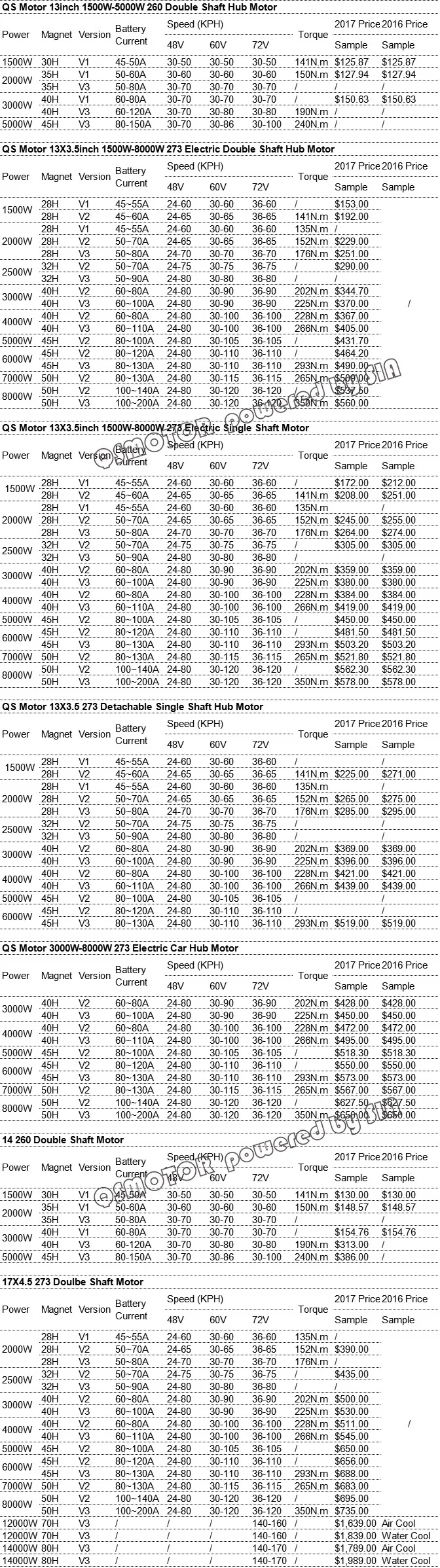

273 Hub Motor Quotation List.jpg

Product Description



QS Motor Specification (e.g. 8000W 273 50H V3)

Item: QS MOTOR 13inch 8000W 273 50H V3 BLDC Electric Scooter Motorcycle Hub Motor

  • Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
  • Brand: QS Motor,QSMOTOR
  • Motor Design: Double axle with 13inch moped Aluminum rim (integrated)
  • Rim size:13x3.5inch, Matching tire 130/60-13.
  • Magnet Height: 50mm, 16 pole pairs
  • Stator: Aluminmum Core
  • Rated Power: 8000W (could be 21000W peak in few seconds)
  • Rated Voltage: 96V as default (48V-144V, optional)
  • Speed: 120KPH as default (24-120KPH, optional)
  • kV: 6.0/9.0/13.0/14.9/18.0/19.4 etc.
  • Max Torque: approx 350N.m
  • Max Efficiency: 86-91%
  • Continuous Battery Current: 104A (96V)
  • Peak Battery Current: 210A (96V)
  • Suggest Peak Phase Current: 530-660A
  • Thermic Probe: KTY83/122 (as default, optional)
  • Working Temperature: 70-120℃ , peak 150 ℃
  • Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)
  • Drop-outs/Rear Fork Width for installation: 200mm
  • Dual Hall Set with waterproof connectors
  • 16mm² Cross Section of Phase Wire (not include insulation layer)
  • Hall Sensor Phasing angle: 120 degree
  • Waterproof Grade: IP54
  • Color: Black (as default), Yellow or White/Luminous (extra $5.0)
  • N.W./G.W.: 21.8kg/23.5kg   Package Dimension: 43cm*43cm*34cm/piece

PS. Temp Sensor Options: KTY84/130, KTY83/122, 10K@25C NTC(model MF58-103F3950).

QS Motor could work 120 ℃ in half an hour without damage.

Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.



More QS Motor Informaiton:

Optional Appearance

Motor Details, drawing, performance curve/test report are avaiable.

For more information, please feel free to contact with us.

Inner View of Hub Motor (e.g. QS Motor 3000W 205 50H V3 Electric Bike Spoke Hub Motor)

QS Motor Kits

E.g. For 13inch 273 Motor, only 13X3.5inch is available, which fit with 130/60-13 Tire.

Generally, it's Disc Brake, PCD3*80mm.

13inch Hub Motor Optional Appearance

13inch Hub Motor Optional Appearance

13inch 273 Drawing & Test Report Performance Curve

How to find suitable hub motor

To customized a suitable motor, could you pls. inform below points:

  • 1.E-scooter, E-tricycle or E-car, tire model?
  • 2.Volt and wattage of motor, Speed(kV), and torque/climb angle ?
  • 3.Your vehicle weight and loading weight?
  • 4.Lithium or lead-acid Battery?

We could suggest most suitable motor accordingly, thank you for your cooperation.

PS. To calculate the speed, v(km/h)=n(r/min)*2rπ(m)*60/1000,   n=load RPM, r=tire radius.

For speed less than 100KPH, consider the Windage Resistance & Rolling resistance.

the load RPM is appr 0.9 * no-load RPM. v(km/h)=0.9*n(r/min)*2rπ(m)*60/1000

For over 100KPH,  V=0.85*RPM*2rπ*60/1000



Electric Motor Kits

After confirming the motor, we could try to offer suitable motor kits, e.g.Motor ControllerWheel RIM, charger, speedometer, throttle, brake, DC-DC converter, etc.

PS. So far, the battery is not avaiable.



QS Motor Description-1.jpg



Company Information



QS Motor Manufacture

QS Motor Manufacture

QS Motor Manufacture

QS Motor Certification



Product Uses



Application

e.g. 13inch 273 Electric Double Shaft Hub Motor

High Power QS Motor 13inch 1500W-8000W 273 Brushless DC Electric Scooter Motorcycle Hub Motors





No QS Motor, No Super EVs!
